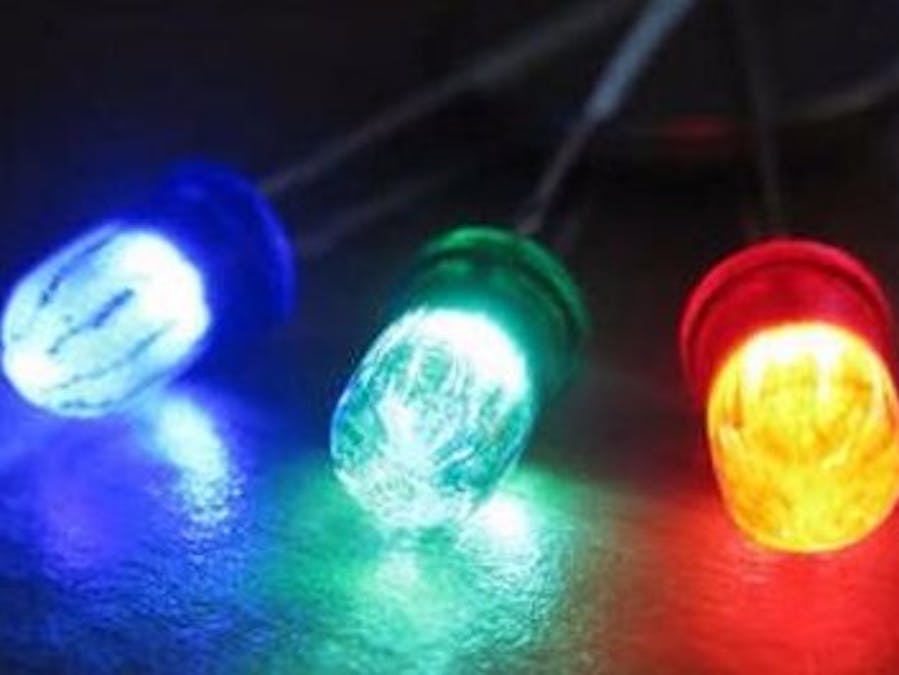

RGB LED with Theremino Master.

Theremino RGB

This application sends signals to three slots for mixing colours red, Green and blue with adjustable fade. There are five modes of operation and many different combinations can be obtained by adjusting parameters. With output values you can drive LEDs, headlights with gels or PsycoBall in this same page.

Operating modes:

• Each slot one color – This is the original operation that serves for applications such: Scriabin's lemons plan. Starting from the First input slot "slot reads a number of consecutive slots that correspond to the keys on a piano keyboard. For each of the twelve semitones is a color. The twelve colors are fixed and match the colors defined by Scriabin for the twelve notes.

• First slot only – The same as "Each slot one color" but the value read by the input slot "slot" First defines one of twelve colors of Scriabin. If the number is not between 0 and 11 then you can find the number between these limits, calculating it modulo 12.

• Sinusoidal – The value read from the slot "First slot input" and other two consecutive three-speed modulating define three sinusoidal signals one per color. If you adjust "First -1" with "slot input? then she sets three fixed speeds suitable for randomly change colors. With the value "Loop time (Ms)"you get a further speed control for all colors at once.

• Semi sinusoidal – The same as "Sinusoidal" but with sinusoidal in the top half and the bottom half of the triangular adjusting colors.

• Triangular – The same as "Sinusoidal" and "Semi sinusoidal" but with linear target of adjusting colors.

In all modes the value "Change speed" provides a further softening of color variations.

One last operation mode, entirely manual, you get stopping all the automatisms. You set Each slot one color "and" First input slot = -1 and adjusting the three sliders manually.

– – – – – –

Completing Theremino_RGB with other hardware and software modules of the system, You can create applications for Chromotherapy and ambient lighting. You can also create amazing effects of Wall Washing in response to noise variables, temperature, public actions or any other observable. Just read the sensors and put together the right modules. With the system Theremino you can compose very complex systems, even without knowing the electronics and programming.

Even ThereminoRGB can drive the PsycoBall, more info here: hardware/outputs/light-control-systems

– – – – – –

Notes for versions Versions from 0.0 to 1.6 – For now the controls are few, the colors for the Scriabin's piano are written into the software and the Help are the comments of the software. Version 1.7 – Added methods "FirstSlotOnly", "Sinusoidal", "Semi sinusoidal" and "Triangular" and then have the option to select the colors with the value of a single slot and change of automatic shades, with various options and speed. Version 2.0 – Delete the flashes to the ignition. Version 2.1 – Deleted the file CustomControls.dll that faced problems with Linux and Mac.

Download RGB Theremino – Version 2.1 Theremino_RGB_V 2.1 Theremino_RGB_V 2.1 _WithSources For all systems from Windows XP to Windows 10, both 32 which in 64 bit (Linux and OSX with Wine)
