Mobile Water Level Tracker

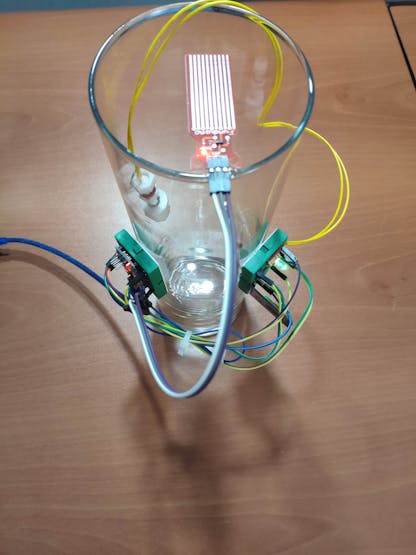

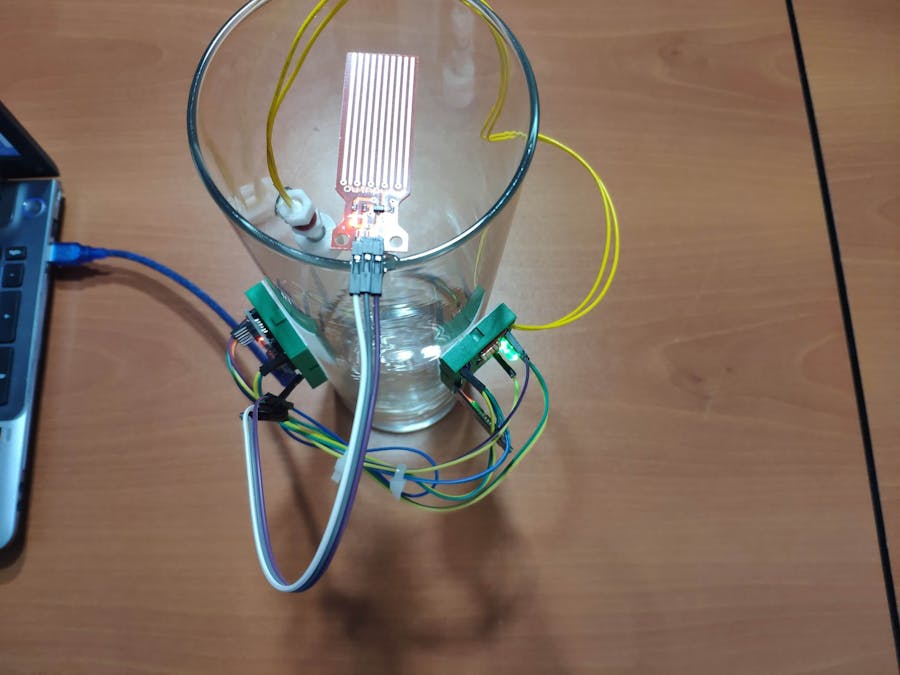

View the water integrity and level of selected areas on your Android phone by using an HC-06 Bluetooth module to make an irrigation system.

AdvancedFull instructions provided2 hours1,325
Mobile Water Level Tracker

Things used in this project

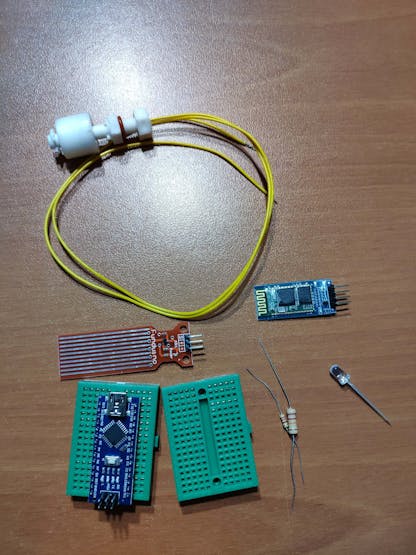

Hardware components

Arduino Nano R3
Arduino Nano R3
×1
HC-06 Bluetooth Module
HC-06 Bluetooth Module
×1
Funduino Water Sensor
×1
Water Level Switch(Sensor)
×1
5 mm LED: Green
5 mm LED: Green
×1
Resistor 10k ohm
Resistor 10k ohm
×1
Resistor 221 ohm
Resistor 221 ohm
×1
SparkFun Solder-able Breadboard - Mini
SparkFun Solder-able Breadboard - Mini
×1
Male/Female Jumper Wires
Male/Female Jumper Wires
×1
Male/Male Jumper Wires
×1

Software apps and online services

Arduino IDE
Arduino IDE
MIT App Inventor 2
MIT App Inventor 2

Hand tools and fabrication machines

Hot glue gun (generic)
Hot glue gun (generic)

Story

Read more

Custom parts and enclosures

Fritzing File

Schematics

Schematic

Mobile water level tracker skzji5zm1a

Code

Source Code

Arduino
      /////////////////////////////////////////////
     //      Mobile Water Level Tracker         //
    //              via HC-06                  //
   //               (Android)                 //
  //             by Kutluhan Aktar           //
 //                                         //
/////////////////////////////////////////////


// Measure the water integrity and level around the area where you want to get data from by using a water level sensor and a Funduino water sensor.
// View the water integrity and level variables send by a HC-06 Bluetooth Module on your Android phone by downloading the Mobile Water Level Tracker.
//

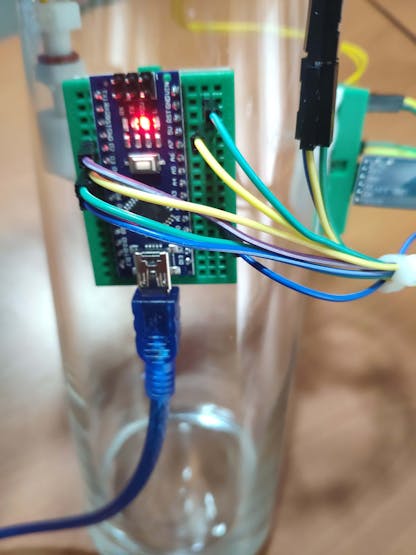

// Connections
// Arduino Nano :
//                                 HC-06 Bluetooth Module
// 5V  --------------------------- 5V
// GND --------------------------- GND
// D5  --------------------------- RX
// D4  --------------------------- TX

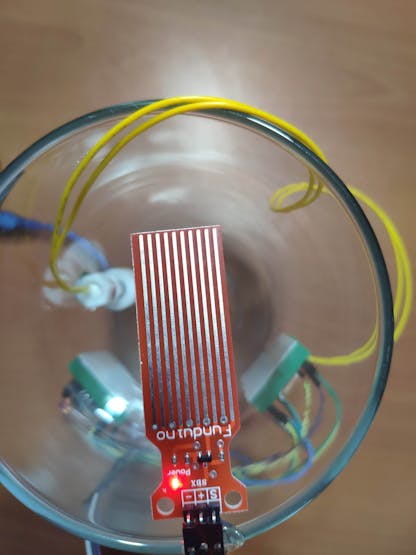

//                                 Funduino Water Sensor
// 5V  --------------------------- 5V
// A0  --------------------------- S
// GND --------------------------- GND
//                                 Water Level Sensor
// 5V  --------------------------- Leg(1)
// GND + D2 ---------------------- Leg(2)

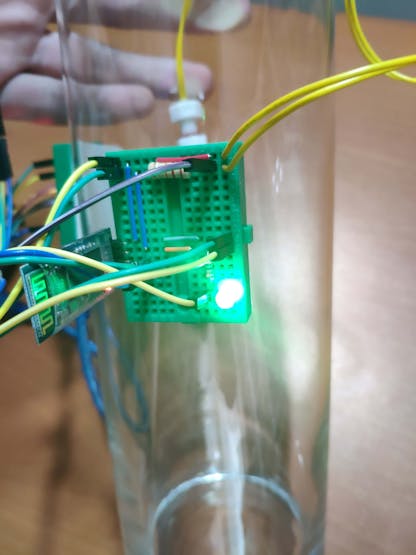

//                                 Control Led
// D3  ---------------------------


// Include SoftwareSerial to control HC-06 Bluetooth Module
#include <SoftwareSerial.h>

// Define HC-06 Bluetooth Module RX and TX pins.
#define Water_RX 4
#define Water_TX 5

// Define bluetooth control pin.
#define control 3

// Define the Water Level Sensor digital pin.
#define Level 2

// Define Funduino Water Sensor pins.
#define Water A0

// Data holders.
int WaterLevel, WaterIntegrity;

// Initiate the bluetooth module.
SoftwareSerial WaterModule(Water_RX, Water_TX);

// Change the HC-06 Bluetooth Module default variables.
String Name = "WaterModule";
int Password = 1111;
String Uart = "9600,0,0";

void setup() {
Serial.begin(9600);
WaterModule.begin(9600);

pinMode(control, OUTPUT);

// If you want to change the HC-06 Bluetooth Module default variables, just uncomment this function below.
//Change_BluetoothModule_Defaults();

}

void loop() {
gatherWater();

sendWaterLevel();

}

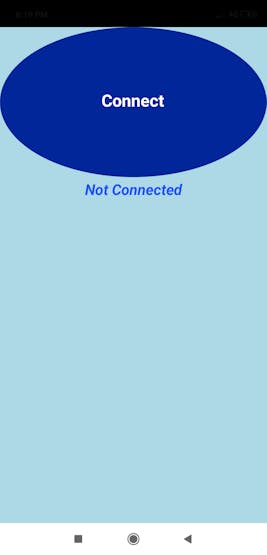

// Send water level and integrity to Mobile Water Level Tracker App through the HC-06 Bluetooth Module.
void sendWaterLevel(){
  if(WaterModule.isListening()){
    // Turn the control led on.
    digitalWrite(control, HIGH);
  }else{
    // Turn the control led off.
    digitalWrite(control, LOW);
   }

    WaterModule.print("Water Level : \n");
    if(WaterLevel == 1){ WaterModule.print("OK \n"); }else if(WaterLevel == 0){ WaterModule.print("FULL \n"); }
    WaterModule.print("Water Integrity : \n");
    WaterModule.print(WaterIntegrity);

    delay(1000);
}


// Gather water level and water integrity from water sensors.
void gatherWater(){
  WaterLevel = digitalRead(Level);

  // Map the water sensor values between 0 and 10 to better measure the water integrity.
  WaterIntegrity = map(analogRead(Water), 0, 1073, 0, 10);
}

// Change the default variables embedded in the HC-06 Bluetooth Module.
void Change_BluetoothModule_Defaults(){

  WaterModule.print("AT+NAME"); // Change the name.
  WaterModule.println(Name);
  Serial.print("Name is changed: ");
  Serial.println(Name);
  delay(2000);
  WaterModule.print("AT+PSWD"); // Change the password.
  WaterModule.println(Password);
  Serial.print("Password is changed: ");
  Serial.println(Password);
  delay(2000);
  WaterModule.print("AT+UART"); // Change the baud rate. If the bluetooth module is a HC-05, the default value of baud rate is 38400.
  WaterModule.println(Uart);
  Serial.print("Baud rate is set: ");
  Serial.println(Uart);
  delay(2000);
  Serial.println("Task is completed."); // You can see in the terminal whether the task is completed correctly or not.
}
