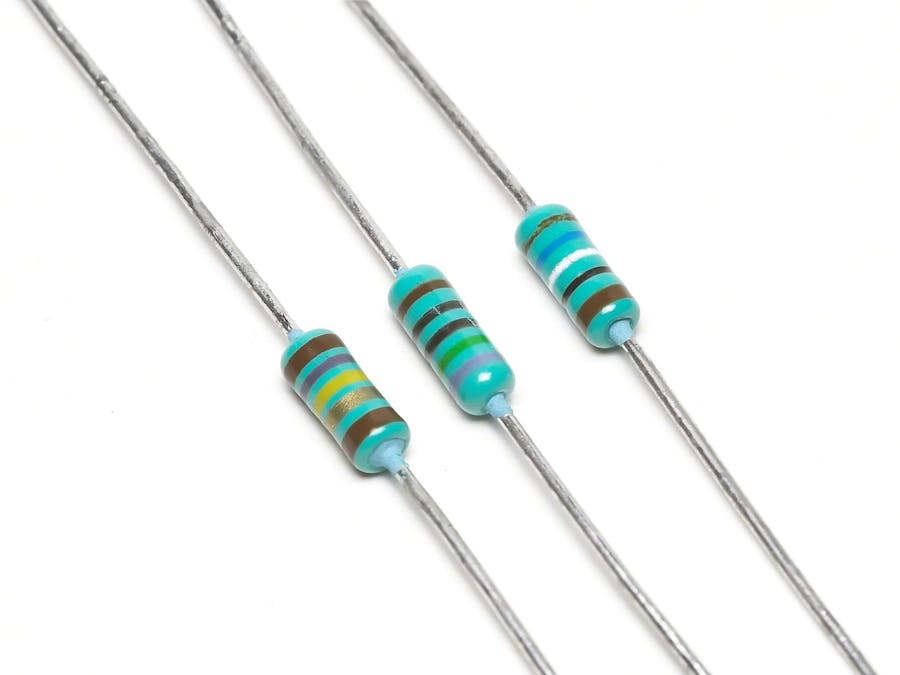

Resistor Helper

Resistor Helper is an Alexa Skill that will give you the resistor value for any given four band sequence, which really comes in handy!

EasyProtip2 hours766
Resistor Helper

Things used in this project

Hardware components

Amazon Echo
Amazon Alexa Amazon Echo
×1

Software apps and online services

Alexa Skills Kit
Amazon Alexa Alexa Skills Kit

Story

Read more

Code

Lambda Code

JavaScript
This is the code that runs on Lambda
/**
 * This code takes resistor color bands and returns a completed value
 */

// Route the incoming request based on type (LaunchRequest, IntentRequest,
// etc.) The JSON body of the request is provided in the event parameter.
exports.handler = function (event, context) {
    try {
        console.log("event.session.application.applicationId=" + event.session.application.applicationId);

        if (event.session.application.applicationId !== "amzn1.echo-sdk-ams.app.b8fd96c7-b572-480a-be06-e67d08008cd5") {
             context.fail("Invalid Application ID");
        }

        if (event.session.new) {
            onSessionStarted({requestId: event.request.requestId}, event.session);
        }

        if (event.request.type === "LaunchRequest") {
            onLaunch(event.request,
                event.session,
                function callback(sessionAttributes, speechletResponse) {
                    context.succeed(buildResponse(sessionAttributes, speechletResponse));
                });
        } else if (event.request.type === "IntentRequest") {
            onIntent(event.request,
                event.session,
                function callback(sessionAttributes, speechletResponse) {
                    context.succeed(buildResponse(sessionAttributes, speechletResponse));
                });
        } else if (event.request.type === "SessionEndedRequest") {
            onSessionEnded(event.request, event.session);
            context.succeed();
        }
    } catch (e) {
        context.fail("Exception: " + e);
    }
};

/**
 * Called when the session starts.
 */
function onSessionStarted(sessionStartedRequest, session) {
    console.log("onSessionStarted requestId=" + sessionStartedRequest.requestId +
        ", sessionId=" + session.sessionId);
}

/**
 * Called when the user launches the skill without specifying what they want.
 */
function onLaunch(launchRequest, session, callback) {
    console.log("onLaunch requestId=" + launchRequest.requestId +
        ", sessionId=" + session.sessionId);

    // Dispatch to your skill's launch.
    getWelcomeResponse(callback);
}

/**
 * Called when the user specifies an intent for this skill.
 */
function onIntent(intentRequest, session, callback) {
    console.log("onIntent requestId=" + intentRequest.requestId +
        ", sessionId=" + session.sessionId);

    var intent = intentRequest.intent,
        intentName = intentRequest.intent.name;

    // Dispatch to your skill's intent handlers
    if ("BandsToValue" === intentName) {
        BandsToValue(intent, session, callback);
    } else if ("ValueToBand" === intentName) {
        ValueToBand(intent, session, callback);
    } else if ("AMAZON.HelpIntent" === intentName) {
        getHelpResponse(callback);
    } else if ("AMAZON.StopIntent" === intentName || "AMAZON.CancelIntent" === intentName) {
        handleSessionEndRequest(callback);
    } else {
        throw "Invalid intent";
    }
}

/**
 * Called when the user ends the session.
 * Is not called when the skill returns shouldEndSession=true.
 */
function onSessionEnded(sessionEndedRequest, session) {
    console.log("onSessionEnded requestId=" + sessionEndedRequest.requestId +
        ", sessionId=" + session.sessionId);
    // Add cleanup logic here
}

// --------------- Functions that control the skill's behavior -----------------------

function getWelcomeResponse(callback) {
    var sessionAttributes = {};
    var speechOutput = "Welcome to Resistor Helper, " +
        "I'll tell you the value of a resistor if you give me the colors. If you're ready, can you tell me the four colorbands?";
    var shouldEndSession = false;
    var reprompt = "I'm ready for the four color bands when you are, with the tolerance band last."

    callback(sessionAttributes,
        buildSpeechletResponseReprompt(reprompt, speechOutput, shouldEndSession));
}

function getHelpResponse(callback) {
    var sessionAttributes = {};
    var speechOutput = "Resistor helper takes four color values and returns the calculated resistance and tolerance. The provided values should be something similar to black, brown, red, gold.";
    var shouldEndSession = false;
    var reprompt = "I'm ready for the four color bands when you are, with the tolerance band last."

    callback(sessionAttributes,
        buildSpeechletResponseReprompt(reprompt, speechOutput, shouldEndSession));
}

function handleSessionEndRequest(callback) {
    var speechOutput = "Thank you for using resistor helper, happy hacking!";
    // Setting this to true ends the session and exits the skill.
    var shouldEndSession = true;

    callback({}, buildSpeechletPlainResponse(speechOutput, shouldEndSession));
}

function BandsToValue(intent, session, callback) {
    var value = 0;
    var tolerance;
    var repromptText = null;
    var sessionAttributes = {};
    var shouldEndSession = true;
    var speechOutput = "";
    var badValue = "I'm sorry, I must've misheard. The ";
    var badValueCont = " band isn't valid. Could you repeat the colors?"

    switch(intent.slots.First.value) {
        case "black":
            value += 00;
            break;
        case "brown":
            value += 10;
            break;
        case "red":
            value += 20;
            break;
        case "orange":
            value += 30;
            break;
        case "yellow":
            value += 40;
            break;
        case "green":
            value += 50;
            break;
        case "blue":
            value += 60;
            break;
        case "violet":
            value += 70;
            break;
        case "purple":
            value += 70;
            break;
        case "grey":
            value += 80;
            break;
        case "white":
            value += 90;
            break;
        default:
            ErrorReprompt(badValue+"first"+badValueCont, callback);
            break;
    }
    switch(intent.slots.Second.value) {
        case "black":
            value += 0;
            break;
        case "brown":
            value += 1;
            break;
        case "red":
            value += 2;
            break;
        case "orange":
            value += 3;
            break;
        case "yellow":
            value += 4;
            break;
        case "green":
            value += 5;
            break;
        case "blue":
            value += 6;
            break;
        case "violet":
            value += 7;
            break;
        case "purple":
            value += 7;
            break;
        case "grey":
            value += 8;
            break;
        case "white":
            value += 9;
            break;
        default:
            ErrorReprompt(badValue+"second"+badValueCont, callback);
            break;
    }
    switch(intent.slots.Third.value) {
        case "black":
            value *= 1;
            break;
        case "brown":
            value *= 10;
            break;
        case "red":
            value *= 100;
            break;
        case "orange":
            value *= 1000;
            break;
        case "yellow":
            value *= 10000;
            break;
        case "green":
            value *= 100000;
            break;
        case "blue":
            value *= 1000000;
            break;
        case "violet":
            value *= 10000000;
            break;
        case "purple":
            value *= 10000000;
            break;
        case "gold":
            value *= 0.1;
            break;
        case "silver":
            value *= 0.01;
            break;
        default:
            ErrorReprompt(badValue+"third"+badValueCont, callback);
            break;
    }
    switch(intent.slots.Fourth.value) {
        case "brown":
            tolerance = 1;
            break;
        case "red":
            tolerance = 2;
            break;
        case "green":
            tolerance = 0.5;
            break;
        case "blue":
            tolerance = 0.25;
            break;
        case "violet":
            tolerance = 0.1;
            break;
        case "purple":
            tolerance = 0.05;
            break;
        case "gold":
            tolerance = 5;
            break;
        case "silver":
            tolerance = 10;
            break;
        default:
            ErrorReprompt(badValue+"fourth"+badValueCont, callback);
            break;
    }

    speechOutput =  "The resistor value is "
                    +value+" ohms, with a tolerance of plus or minus "
                    +tolerance+" percent.";

    callback(sessionAttributes,
         buildSpeechletPlainResponse(speechOutput, shouldEndSession));
}

function ValueToBands(intent, session, callback) {
    var repromptText = null;
    var sessionAttributes = {};
    var shouldEndSession = true;
    var speechOutput = "";


    speechOutput =  "The color bands should be ";

    callback(sessionAttributes,
         buildSpeechletPlainResponse(speechOutput, shouldEndSession));
}

function ErrorReprompt(errorText, callback){
    callback(null, buildSpeechletPlainResponse(errorText, false));
}
// --------------- Helpers that build all of the responses -----------------------

function buildSpeechletResponse(title, output, repromptText, shouldEndSession) {
    return {
        outputSpeech: {
            type: "PlainText",
            text: output
        },
        card: {
            type: "Simple",
            title: "SessionSpeechlet - " + title,
            content: "SessionSpeechlet - " + output
        },
        reprompt: {
            outputSpeech: {
                type: "PlainText",
                text: repromptText
            }
        },
        shouldEndSession: shouldEndSession
    };
}

function buildSpeechletResponseReprompt(output, repromptText, shouldEndSession) {
    return {
        outputSpeech: {
            type: "PlainText",
            text: output
        },
        reprompt: {
            outputSpeech: {
                type: "PlainText",
                text: repromptText
            }
        },
        shouldEndSession: shouldEndSession
    };
}

function buildSpeechletPlainResponse(output, shouldEndSession) {
    return {
        outputSpeech: {
            type: "PlainText",
            text: output
        },
        shouldEndSession: shouldEndSession
    };
}

function buildResponse(sessionAttributes, speechletResponse) {
    return {
        version: "1.0",
        sessionAttributes: sessionAttributes,
        response: speechletResponse
    };
}

Intent Schema

JSON
{
  "intents": [
    {
      "intent": "BandsToValue",
      "slots": [
        {
          "name": "First",
          "type": "color_bands"
        },
        {
          "name": "Second",
          "type": "color_bands"
        },
        {
          "name": "Third",
          "type": "color_bands"
        },
        {
          "name": "Fourth",
          "type": "color_bands"
        }
      ]
    },
    {
      "intent": "AMAZON.CancelIntent"
    },
    {
      "intent": "AMAZON.StopIntent"
    },
    {
      "intent": "AMAZON.HelpIntent"
    }
  ]
}
