USB Adaptive Charger (2.7A per port) with Wattmeter

A 10.8A, 4-port USB charger with a wattmeter and adaptive intelligent charging.

AdvancedShowcase (no instructions)Over 7 days2,294

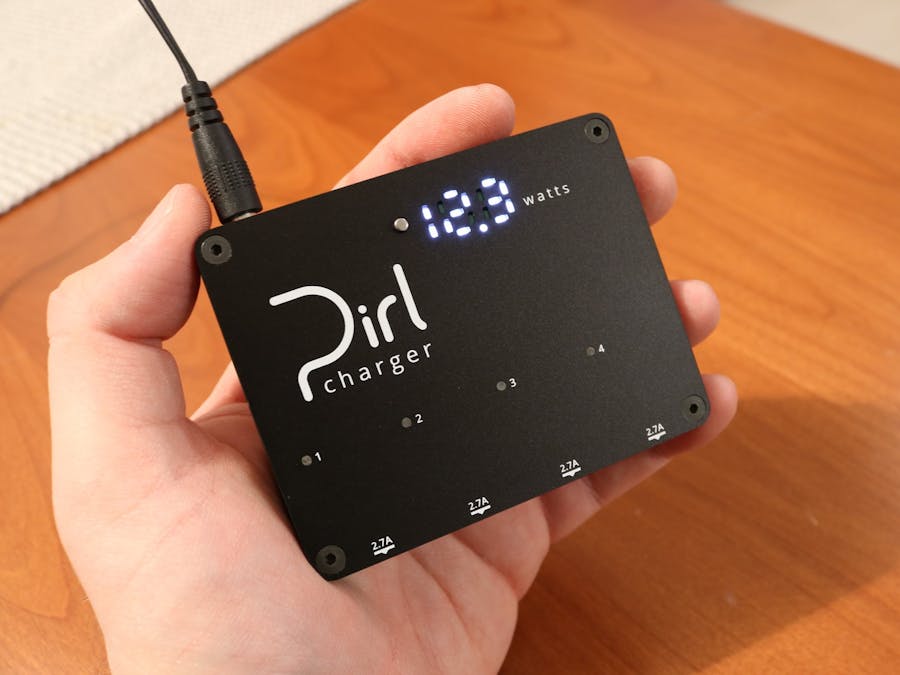

USB Adaptive Charger (2.7A per port) with Wattmeter

Things used in this project

Hardware components

Texas Instruments USB Charging Port Controller (with load compensation)
×4
Microchip Microcontroller (AT tiny)
×1
DC-DC Buck Converter
×4
Type-A USB
×4
Texas Instruments ESD Protection Chip
×4
DC Power Jack
×1
Current Amplifier
×1
Resistors, capacitors, MOSFETs, LEDs, light pipes, ferrite beads, inductors
×4
