Tweet new blog post

STORY:

It is quite tedious to post your blog every time in a social media whenever you publish it.So, here integromat provides a way to publish your post in twitter the way we it to be published as soon as your post is released in the blogger and it notifies you through the LED interfaced through bolt cloud.

CREATING INTEGROMAT ACCOUNT:

1. Visit integromat account www.integromat.com

2. Create your account by signing into your account and get verification mail

3. Choose your required template as I have chosen blogger interfaced with twitter

4.Add your blog details and get verification through your google account the three steps should be filled to get access to your account through integromat

5. Apply filter which of the post should be notified to your twitter

SETTING UP YOUR TWITTER ACCOUNT:

1. Give your twitter account name and it will be verified

2. Get your twitter to be accessed by integromat to send the details of the post that has been published

CONNECTING CLOUD:

1. Select bolt cloud and add on to it

2. Give command as digital write in order to write high or low input to LED

3. Get the device name for connecting cloud through bolt cloud

4. Correspondingly get the unique API key from your bolt cloud

5. Select the digital output pin where you have connected your LED in the blot board.I have connected my LED to 0th pin.

6. The state of the LED is given HIGH because as soon as the when post that has been published it is tweeted and the LED turns ON

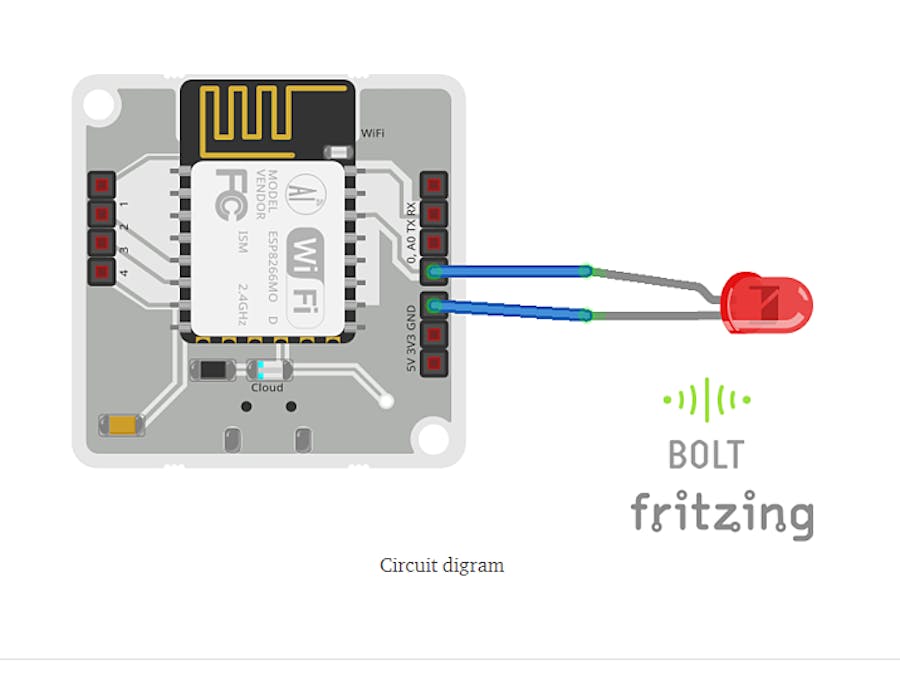

LED CONNECTION:

1. In LED, positive is given to 0th pin and negative is connected to ground through wires to the bolt wifi board

WORKING:

1. After setting up all the above instruction, the scenario is ready to run

2. Click run once on left corner to view the execution, select the operation and simultaneously it will be tweeted on your twitter account

4. LED connected to your blot cloud module goes HIGH(turn on) after it is tweeted to your account

5. And finally after executing the scenario, it gives you the result and the time duration too, this sequence takes place automatically once you post it

CONCLUSION:

These are the steps to be done using integromat to tweet your post in your twitter account as soon as you post in your blogger and simultaneously it notifies you by turning the LED on connected to your bolt cloud.
