TFT Display for RFID (NFC)

📘 Overview

Integrating an NFC (13.56 MHz RFID) module into a product that uses a metal-framed TFT LCD display can be challenging. Metal around the display, especially the backlight shield or mounting frame, significantly interferes with NFC signal propagation.

In this project, we explore three practical design approaches to enable NFC reading and writing functionality in touch-enabled TFT LCD systems.

⚠️ The Challenge: Metal Frame Blocks NFC Signal

Most TFT LCD displays come with a metal shield (iron or aluminum) on the back or sides for EMI protection and mechanical rigidity. However, these components:

Block high-frequency NFC signals (13.56 MHz)

• Block high-frequency NFC signals (13.56 MHz)

Detune the antenna

• Detune the antenna

Cause inconsistent read ranges

• Cause inconsistent read ranges

That’s a problem when building kiosks, terminals, smart locks, or vending devices that require user interaction via touch and NFC at the same physical interface.

🔧 Solution 1: Add a Cover Glass Extension for NFC

How It Works:

Use a larger capacitive cover lens (CTP) that extends beyond the TFT display.

• Use a larger capacitive cover lens (CTP) that extends beyond the TFT display.

Place the NFC antenna in the non-display zone of the cover glass.

• Place the NFC antenna in the non-display zone of the cover glass.

Customize the enclosure so the user taps the extended edge for scanning.

• Customize the enclosure so the user taps the extended edge for scanning.

✅ Pros:

NFC works reliably, not blocked by metal.

• NFC works reliably, not blocked by metal.

Touch glass remains seamless and integrated.

• Touch glass remains seamless and integrated.

⚠️ Trade-offs:

Requires custom CTP glass size and housing adjustment.

• Requires custom CTP glass size and housing adjustment.

Increases the physical dimensions of the product.

• Increases the physical dimensions of the product.

🔧 Solution 2: Use a High-Power RFID Module + Antenna Loop Around Display

How It Works:

Select a high-power NFC/RFID reader (e.g., PN5180, or long-range module).

• Select a high-power NFC/RFID reader (e.g., PN5180, or long-range module).

Place the antenna coil around the TFT screen (not behind it).

• Place the antenna coil around the TFT screen (not behind it).

Boost signal strength so the front surface (above the TFT) becomes a valid reading zone.

• Boost signal strength so the front surface (above the TFT) becomes a valid reading zone.

✅ Pros:

Keeps design compact, no need for additional glass area.

• Keeps design compact, no need for additional glass area.

Maintains center-aligned NFC interaction.

• Maintains center-aligned NFC interaction.

⚠️ Trade-offs:

May require more power (200–500 mA).

• May require more power (200–500 mA).

Complex antenna tuning to avoid distortion around metal parts.

• Complex antenna tuning to avoid distortion around metal parts.

Not suitable for all readers.

• Not suitable for all readers.

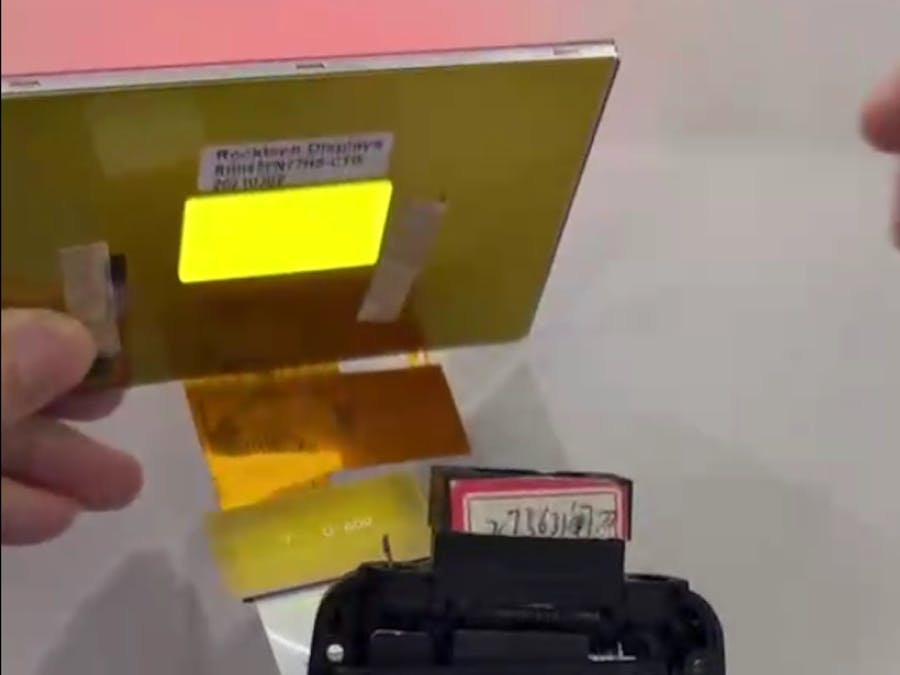

🔧 Solution 3: Create a Metal-Free Window on the TFT’s Back Shield

How It Works:

Work with the TFT LCD manufacturer to customize the iron frame.

• Work with the TFT LCD manufacturer to customize the iron frame.

Cut a non-metal window in the area where NFC signals need to pass.

• Cut a non-metal window in the area where NFC signals need to pass.

Align the NFC antenna behind this window.

• Align the NFC antenna behind this window.

✅ Pros:

Keeps compact design and central NFC placement.

• Keeps compact design and central NFC placement.

Seamless touch + NFC experience.

• Seamless touch + NFC experience.

⚠️ Trade-offs:

Requires MOQ and custom TFT metal frame tooling.

• Requires MOQ and custom TFT metal frame tooling.

Minor structural compromise on display rigidity.

• Minor structural compromise on display rigidity.

📐 Application Examples

Smart vending machine

• Smart vending machine

Parcel lockers

• Parcel lockers

Self-service terminals

• Self-service terminals

Access control panels

• Access control panels

Touchscreen intercoms with NFC visitor logs

• Touchscreen intercoms with NFC visitor logs

🌐 Learn More

📎 Learn more about custom embedded displays and board-level NFC integration at:

👉 Industrial TFT Displays

✅ Conclusion

While metal-framed TFT LCDs pose a real challenge to NFC integration, creative engineering approaches can solve the problem. Whether extending the cover glass, designing antenna loops, or modifying the backplate, each method offers trade-offs between cost, performance, and physical footprint.

This project summarizes key design paths to ensure a seamless user experience combining touch + visual + NFC on a single compact interface.
