Building a Custom Android HMI Panel with PX30 SBC and 10.1’’

📘 Building a Custom Android HMI Panel with PX30 SBC and 10.1” TFT Display

This project demonstrates how to create a custom Android-based HMI panel using a Rockchip PX30 SBC and a 10.1” industrial TFT display.

📝 Project Overview

This project showcases how to build a custom HMI (Human-Machine Interface) panel using a Rockchip PX30-based Android SBC and a 10.1” LVDS TFT LCD (model: RK101HI34E). The final device supports Wi-Fi, capacitive touch, high-brightness display, and Android GUI — making it ideal for smart homes, industrial equipment, and control terminals.

The 10.1” RK101HI34E TFT display used in this project belongs to a series of industrial-grade modules designed for embedded applications requiring long life, high brightness, and stable touch performance.

👉 Learn more: Industrial TFT Displays

The PX30 single board computer powering this system offers quad-core performance and flexible interfaces ideal for Android-based HMI development.

👉 Explore PX30 SBC: rocktech-px30-sbc

📦 Bill of Materials

PX30 Custom SBC: Rockchip PX30 SoC, supports Android/Linux, LVDS, HDMI, Wi-Fi

• PX30 Custom SBC: Rockchip PX30 SoC, supports Android/Linux, LVDS, HDMI, Wi-Fi

RK101HI34E Display: 10.1” 1280x800 TFT LCD, LVDS interface, capacitive touch

• RK101HI34E Display: 10.1” 1280x800 TFT LCD, LVDS interface, capacitive touch

LVDS Cable: For connecting the display to the SBC

• LVDS Cable: For connecting the display to the SBC

12V Power Supply: For powering the SBC and backlight

• 12V Power Supply: For powering the SBC and backlight

USB Touch Controller: USB-C or USB-A interface touch panel controller

• USB Touch Controller: USB-C or USB-A interface touch panel controller

All configuration files and device tree overlays used in this project are available in the GitHub repository:

👉 rocktech-tft-display-configs

💻 Software Stack

Operating System: Android 11 (Buildroot also available)

• Operating System: Android 11 (Buildroot also available)

Touch Driver: USB HID-compliant or I2C driver depending on panel

• Touch Driver: USB HID-compliant or I2C driver depending on panel

Display Integration: Device Tree overlay with LVDS timing

• Display Integration: Device Tree overlay with LVDS timing

Development Tool: Android Studio for app UI testing

• Development Tool: Android Studio for app UI testing

🛠️ Step-by-Step Instructions

Flash Android Firmware

Prepare and flash the Android firmware image for PX30.

Ensure LVDS and USB touchscreen support are enabled in the kernel configuration.

• Flash Android FirmwarePrepare and flash the Android firmware image for PX30.Ensure LVDS and USB touchscreen support are enabled in the kernel configuration.

Configure the Display

Clone the configuration repository:

git clone https://github.com/Kevin109/rocktech-tft-display-configs.git

Include the DTSI file in your board device tree:

#include "RK101HI34E.dtsi"

• Configure the DisplayClone the configuration repository:git clone https://github.com/Kevin109/rocktech-tft-display-configs.git Include the DTSI file in your board device tree:#include "RK101HI34E.dtsi"

Hardware Wiring

Connect the 10.1” display to the PX30 board via LVDS

• Connect the 10.1” display to the PX30 board via LVDS

Connect the USB touch interface to the host USB port

• Connect the USB touch interface to the host USB port

Power the board using a 12V DC adapter

• Power the board using a 12V DC adapter
• Hardware WiringConnect the 10.1” display to the PX30 board via LVDSConnect the USB touch interface to the host USB portPower the board using a 12V DC adapter

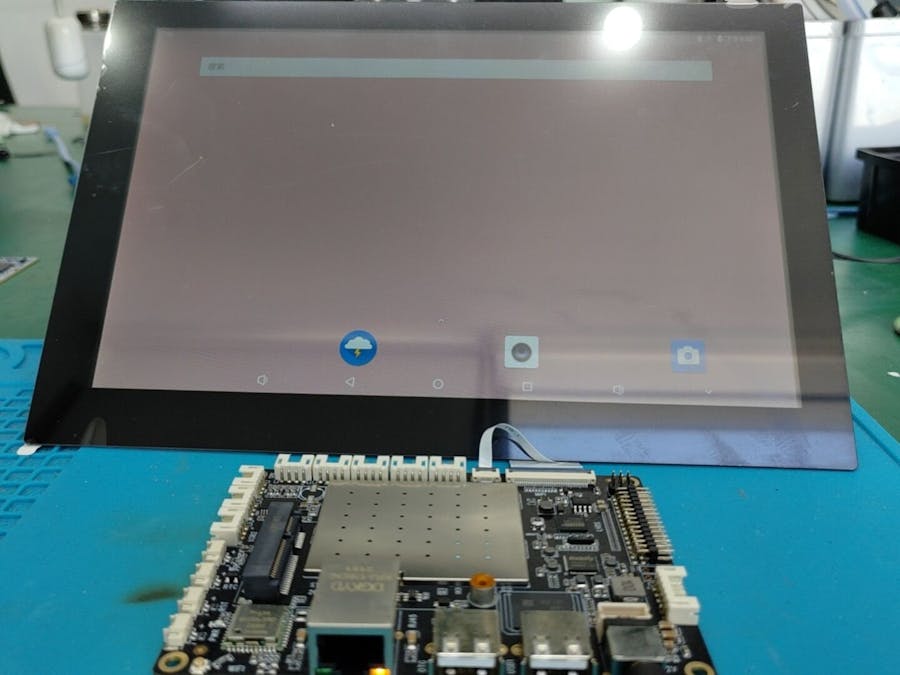

Verify Display & Touch

Boot the system

• Boot the system

The Android UI should appear on screen

• The Android UI should appear on screen

Verify touch response (USB HID touch panels usually work out-of-the-box)

• Verify touch response (USB HID touch panels usually work out-of-the-box)
• Verify Display & TouchBoot the systemThe Android UI should appear on screenVerify touch response (USB HID touch panels usually work out-of-the-box)

App Development (Optional)

Build and deploy custom Android apps using Android Studio

• Build and deploy custom Android apps using Android Studio

Integrate MQTT/HTTP/WebSocket for smart control interfaces

• Integrate MQTT/HTTP/WebSocket for smart control interfaces

Develop UIs using native Android XML or Jetpack Compose

• Develop UIs using native Android XML or Jetpack Compose
• App Development (Optional)Build and deploy custom Android apps using Android StudioIntegrate MQTT/HTTP/WebSocket for smart control interfacesDevelop UIs using native Android XML or Jetpack Compose

🏷️ Tags

PX30, Rockchip, Android SBC, TFT Display, Custom HMI, LVDS, Capacitive Touch, Embedded System, Industrial Panel
