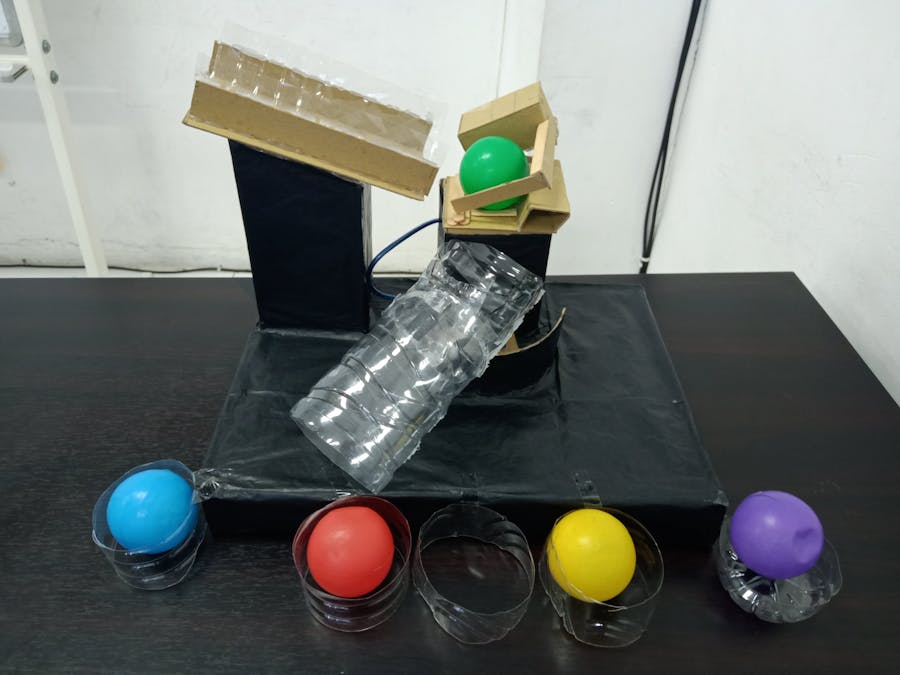

Automatic Color Sorter Prototype 1.0

// TCS230 or TCS3200 pins wiring to Arduino
#include <Servo.h>
#define S0 2
#define S1 3
#define S2 4
#define S3 7
#define sensorOut 8

Servo myser1;
Servo myser2;
int pos = 00;

// Stores frequency read by the photodiodes
int red = 0;
int green = 0;
int blue = 0;
int benar=0, warna=0;

void setup() {
  myser1.attach(5);
  myser2.attach(6);

  // Setting the outputs
  pinMode(S0, OUTPUT);
  pinMode(S1, OUTPUT);
  pinMode(S2, OUTPUT);
  pinMode(S3, OUTPUT);

  // Setting the sensorOut as an input
  pinMode(sensorOut, INPUT);

  // Setting frequency scaling to 20%
  digitalWrite(S0,HIGH);
  digitalWrite(S1,LOW);

   // Begins serial communication
  Serial.begin(9600);
}
void loop() {
   myser2.write(0); //servo2 menulis arah 0
  delay(1000); //jeda 500ms
  while(benar==0) //benar = 0
  {
    detectcolor(); //deteksi warna
    posservo(); //posisi servo
    delay(100); //jeda 100 ms
  }
delay(200); //jeda 100 ms
   myser2.write(70); //servo2 menulis 90
    benar=0; //benar =0
  delay(1000); //jeda 500 ms
}

  //detectcolor();



void detectcolor()
{
  // Setting RED (R) filtered photodiodes to be read
  digitalWrite(S2,LOW);
  digitalWrite(S3,LOW);

  // Reading the output frequency
  red = pulseIn(sensorOut, LOW);

   // Printing the RED (R) value
  Serial.print("R = ");
  Serial.print(red);
  delay(100);

  // Setting GREEN (G) filtered photodiodes to be read
  digitalWrite(S2,HIGH);
  digitalWrite(S3,HIGH);

  // Reading the output frequency
  green = pulseIn(sensorOut, LOW);

  // Printing the GREEN (G) value
  Serial.print(" G = ");
  Serial.print(green);
  delay(100);

  // Setting BLUE (B) filtered photodiodes to be read
  digitalWrite(S2,LOW);
  digitalWrite(S3,HIGH);

  // Reading the output frequency
  blue = pulseIn(sensorOut, LOW);

  // Printing the BLUE (B) value
  Serial.print(" B = ");
  Serial.println(blue);
  delay(100);
if(blue<60 && red<150 && green<90){ //ketentuan range RGB
  warna=1;  //warna =1
  Serial.println("biru"); //menampilkan biru
  }
else if((50<red&&red<83) && (110<green && green<150) && blue<100){ //ketentuan range RGB
  warna=2; //warna 2
    Serial.println("Merah");
  }
  else if((120<red&&red<150) && (70<green&&green<90) && (60<blue&&blue<85)){ //ketentuan range RGB
  warna=3;  //warna 3
    Serial.println("Hijau");
  }
else if((43<red && red<70) && (55<green&&green<80) && (60<blue && blue<80)){ //ketentuan range RGB
  warna=4; //warna 4
    Serial.println("Kuning");
  }
else if((90<red && red<105) && (90<green&&green<115) && blue<55){ //ketentuan range RGB
 warna=5; //warna 5
   Serial.println("Ungu");
  }
  else
  {
  warna=0; //Tidak mendeteksi
    Serial.println("tidak mendeteksi");
  }
}

void posservo()
{
  if(warna==1) //jika warna = 1
  {
    myser1.write(30); //myser1 menulis 30
    benar=1;
  }
  else if(warna==2)
  {
    myser1.write(60);
    benar=1;
  }
  else if(warna==3)
  {
    myser1.write(90);
    benar=1;
  }
  else if(warna==4)
  {
    myser1.write(120);
    benar=1;
  }
  else if(warna==5)
  {
    myser1.write(150);
    benar=1;
  }
}
