Published August 18, 2025 © GPL3+

Cardboard One-Stroke Plotter

A one-stroke drawing created on the M5Stack Tab5 can be reproduced using a cardboard-made plotter.

BeginnerWork in progress24 hours62

Things used in this project

Hardware components

M5Stack Tab5 IoT Development Kit (ESP32-P4)

Software apps and online services

Arduino IDE

Story

Introduction

Inspired by the Arduino Mini CNC Plotter, this project involves building a plotter made of cardboard. Currently, only the X and Y axes are controlled, making it a plotter dedicated to one-stroke drawings. The rack and pinion mechanism is also made from single-layer cardboard.

In this project, the M5Stack Tab5 is used for sending G-code. Since the M5Stack Tab5 features a 5-inch touch display, the system allows the drawing on the screen to be reproduced by the plotter.

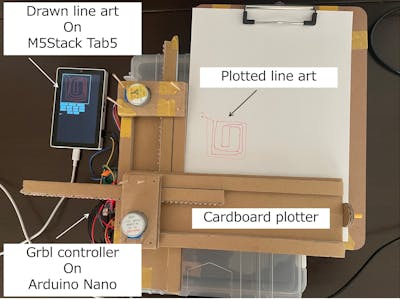

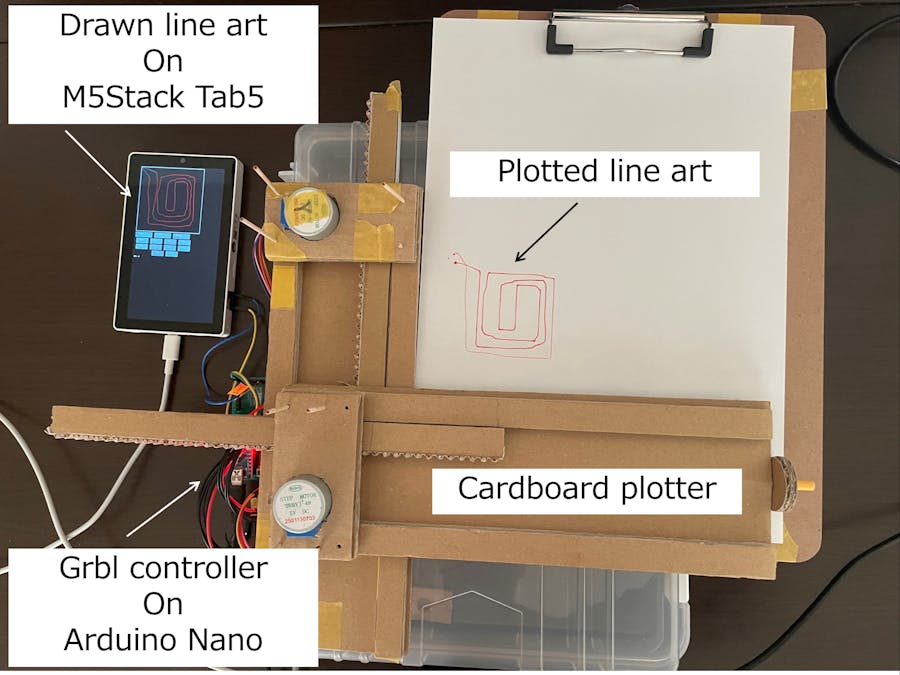

Cardboard Plotter

The cardboard plotter replicates the plastic components of the Arduino Mini CNC Plotter using cardboard.

Wood glue is used for fixed parts, while toothpicks are used for sections that require disassembly and adjustment.

Except for the 28BYJ-48 ULN2003 5V stepper motors used for movement, the plotter is made entirely of paper and wood. Very Japanese, isn’t it?

The GRBL controller used is the recommended GRBL-28byj-48.M5Stack Tab5 Interface

The program was developed using the Arduino IDE.

The screen features a square drawing area where line art can be drawn. Drawings are displayed in white lines.

Below the drawing area are two buttons: “Redraw” and “Plot.” Pressing “Redraw” allows you to redraw the image.

Line drawing example

When “Plot” is pressed, the white lines turn blue, and the movement from the plotter’s origin to the blue lines is shown in gray.

After pressing the "Plot" button

As the pen moves, the blue lines change to red, synchronized with the communication between the M5Stack Tab5 and the GRBL controller.

The communication between the M5Stack Tab5 and the GRBL controller was implemented by referencing Universal G-code Sender.

In Universal G-code Sender, coordinates are sent via G-code, and the system waits for an “OK” response from the GRBL controller before sending the next coordinate.

On the M5Stack Tab5, once coordinates are sent to the GRBL controller, the segment between the previous and current coordinates changes from blue to red.

Plotting (red line shows a trace of pen movement)

Below these buttons, there are additional controls for adjusting the position of each axis to set the pen coordinates. Using these buttons, you can move the pen to the origin. Once the pen has reached the desired position, press the “Set Zero” button to define that location as the origin.

Operation

The operation procedure on the screen is as follows:

1. Use the axis control buttons to move the pen to the origin.

2. Press the “Set Zero” button to set the current pen position as the origin.

3. Use your finger or a stylus to draw line art within the white square frame.

4. If you want to redraw, press the “Redraw” button to clear the drawing.

5. Once the drawing is complete, press the “Plot” button to start plotting with the plotter.

Please enjoy your plotter operation!!

M5TabDrawtoGCode08162301.ino

#include <M5Unified.h>
#include <HardwareSerial.h>
#include <vector>
#include <SD.h>

// --- Work Area Settings ---
// The drawing area (540px) is mapped to the physical work area in mm.
const float WORK_AREA_WIDTH_MM = 30.0;  // Set work area width to 30mm
const float WORK_AREA_HEIGHT_MM = 30.0; // Set work area height to 30mm
// --------------------------

HardwareSerial SerialNano(2);  // Use UART2

#define DRAW_AREA_X 10
#define DRAW_AREA_Y 10
#define DRAW_AREA_SIZE 540
#define BUTTON_WIDTH 140
#define BUTTON_HEIGHT 40
#define BUTTON_Y (DRAW_AREA_Y + DRAW_AREA_SIZE + 10)
#define REDRAW_X 10
#define PLOT_X   170
#define SET_ZERO_X 330

#define BUTTON_ROW2_Y (BUTTON_Y + BUTTON_HEIGHT + 10)
#define BUTTON_ROW3_Y (BUTTON_ROW2_Y + BUTTON_HEIGHT + 10)
#define BUTTON_ROW4_Y (BUTTON_ROW3_Y + BUTTON_HEIGHT + 10)

#define JOG_STEP_LARGE 5
#define JOG_STEP_SMALL 1
#define JOG_STEP_Z     10

#define JOG_BTN_WIDTH 100
#define JOG_XY_C1 20
#define JOG_XY_C2 140
#define JOG_XY_C3 260
#define JOG_XY_C4 380
#define JOG_Z_C1 160
#define JOG_Z_C2 280

#define DARKGRAY 0x7BEF
#define WHITE    0xFFFF
#define BLUE     0x001F
#define RED      0xF800

const char* gcode_path = "/CNC/temp.gcode";

struct Point {
  int x, y;
};

struct rect_t {
  int x, y, w, h;
  bool contain(int tx, int ty) {
    return x <= tx && tx < (x + w) && y <= ty && ty < (y + h);
  }
};

std::vector<std::vector<Point>> strokes;
std::vector<Point> currentStroke;
bool isDrawing = false;

rect_t drawArea = {DRAW_AREA_X, DRAW_AREA_Y, DRAW_AREA_SIZE, DRAW_AREA_SIZE};
rect_t redrawButton = {REDRAW_X, BUTTON_Y, BUTTON_WIDTH, BUTTON_HEIGHT};
rect_t plotButton = {PLOT_X, BUTTON_Y, BUTTON_WIDTH, BUTTON_HEIGHT};
rect_t setZeroButton = {SET_ZERO_X, BUTTON_Y, BUTTON_WIDTH, BUTTON_HEIGHT};

// --- Plotting state machine variables ---
bool grblReadyForNextCommand = true;
bool isPlotting = false;
int plottingStrokeIndex = 0;
int plottingPointIndex = 0;
enum PlottingState { PLOT_IDLE, PLOT_START_STROKE, PLOT_PEN_DOWN, PLOT_DRAWING, PLOT_PEN_UP, PLOT_GO_HOME };
PlottingState plottingState = PLOT_IDLE;

// --- Communication and Timeout variables ---
String grblResponse = "";
bool responseReady = false;
unsigned long commandSentTime = 0;
const unsigned long commandTimeout = 5000; // 5 seconds


rect_t x_minus_large_b = {JOG_XY_C1, BUTTON_ROW2_Y, JOG_BTN_WIDTH, BUTTON_HEIGHT};
rect_t x_minus_small_b = {JOG_XY_C2, BUTTON_ROW2_Y, JOG_BTN_WIDTH, BUTTON_HEIGHT};
rect_t x_plus_small_b  = {JOG_XY_C3, BUTTON_ROW2_Y, JOG_BTN_WIDTH, BUTTON_HEIGHT};
rect_t x_plus_large_b  = {JOG_XY_C4, BUTTON_ROW2_Y, JOG_BTN_WIDTH, BUTTON_HEIGHT};

rect_t y_minus_large_b = {JOG_XY_C1, BUTTON_ROW3_Y, JOG_BTN_WIDTH, BUTTON_HEIGHT};
rect_t y_minus_small_b = {JOG_XY_C2, BUTTON_ROW3_Y, JOG_BTN_WIDTH, BUTTON_HEIGHT};
rect_t y_plus_small_b  = {JOG_XY_C3, BUTTON_ROW3_Y, JOG_BTN_WIDTH, BUTTON_HEIGHT};
rect_t y_plus_large_b  = {JOG_XY_C4, BUTTON_ROW3_Y, JOG_BTN_WIDTH, BUTTON_HEIGHT};

rect_t z_minus_button = {JOG_Z_C1, BUTTON_ROW4_Y, JOG_BTN_WIDTH, BUTTON_HEIGHT};
rect_t z_plus_button  = {JOG_Z_C2, BUTTON_ROW4_Y, JOG_BTN_WIDTH, BUTTON_HEIGHT};

void setup() {
  auto cfg = M5.config();
  M5.begin(cfg);
  SerialNano.begin(115200, SERIAL_8N1, 50, 49);  // GPIO50=TX, GPIO49=RX
  M5.Display.clear();
  drawLayout();
}

void drawLayout() {
  M5.Display.drawRect(drawArea.x, drawArea.y, drawArea.w, drawArea.h, WHITE);
  M5.Display.fillRect(redrawButton.x, redrawButton.y, redrawButton.w, redrawButton.h, DARKGRAY);
  M5.Display.setTextColor(WHITE);
  M5.Display.setCursor(redrawButton.x + 30, redrawButton.y + 10);
  M5.Display.print("Redraw");

  M5.Display.fillRect(plotButton.x, plotButton.y, plotButton.w, plotButton.h, DARKGRAY);
  M5.Display.setCursor(plotButton.x + 40, plotButton.y + 10);
  M5.Display.print("Plot");

  M5.Display.fillRect(setZeroButton.x, setZeroButton.y, setZeroButton.w, setZeroButton.h, DARKGRAY);
  M5.Display.setCursor(setZeroButton.x + 25, setZeroButton.y + 10);
  M5.Display.print("Set Zero");

  // Clear status area to the right of the Set Zero button
  M5.Display.fillRect(setZeroButton.x + setZeroButton.w + 10, setZeroButton.y, 200, BUTTON_HEIGHT, 0);


  // X Jog Buttons
  M5.Display.fillRect(x_minus_large_b.x, x_minus_large_b.y, x_minus_large_b.w, x_minus_large_b.h, DARKGRAY);
  M5.Display.setCursor(x_minus_large_b.x + 30, x_minus_large_b.y + 10);
  M5.Display.print("X- 5");
  M5.Display.fillRect(x_minus_small_b.x, x_minus_small_b.y, x_minus_small_b.w, x_minus_small_b.h, DARKGRAY);
  M5.Display.setCursor(x_minus_small_b.x + 30, x_minus_small_b.y + 10);
  M5.Display.print("X- 1");
  M5.Display.fillRect(x_plus_small_b.x, x_plus_small_b.y, x_plus_small_b.w, x_plus_small_b.h, DARKGRAY);
  M5.Display.setCursor(x_plus_small_b.x + 30, x_plus_small_b.y + 10);
  M5.Display.print("X+ 1");
  M5.Display.fillRect(x_plus_large_b.x, x_plus_large_b.y, x_plus_large_b.w, x_plus_large_b.h, DARKGRAY);
  M5.Display.setCursor(x_plus_large_b.x + 30, x_plus_large_b.y + 10);
  M5.Display.print("X+ 5");

  // Y Jog Buttons
  M5.Display.fillRect(y_minus_large_b.x, y_minus_large_b.y, y_minus_large_b.w, y_minus_large_b.h, DARKGRAY);
  M5.Display.setCursor(y_minus_large_b.x + 30, y_minus_large_b.y + 10);
  M5.Display.print("Y- 5");
  M5.Display.fillRect(y_minus_small_b.x, y_minus_small_b.y, y_minus_small_b.w, y_minus_small_b.h, DARKGRAY);
  M5.Display.setCursor(y_minus_small_b.x + 30, y_minus_small_b.y + 10);
  M5.Display.print("Y- 1");
  M5.Display.fillRect(y_plus_small_b.x, y_plus_small_b.y, y_plus_small_b.w, y_plus_small_b.h, DARKGRAY);
  M5.Display.setCursor(y_plus_small_b.x + 30, y_plus_small_b.y + 10);
  M5.Display.print("Y+ 1");
  M5.Display.fillRect(y_plus_large_b.x, y_plus_large_b.y, y_plus_large_b.w, y_plus_large_b.h, DARKGRAY);
  M5.Display.setCursor(y_plus_large_b.x + 30, y_plus_large_b.y + 10);
  M5.Display.print("Y+ 5");

  // Z Jog Buttons
  M5.Display.fillRect(z_minus_button.x, z_minus_button.y, z_minus_button.w, z_minus_button.h, DARKGRAY);
  M5.Display.setCursor(z_minus_button.x + 30, z_minus_button.y + 10);
  M5.Display.print("Z- 10");
  M5.Display.fillRect(z_plus_button.x, z_plus_button.y, z_plus_button.w, z_plus_button.h, DARKGRAY);
  M5.Display.setCursor(z_plus_button.x + 30, z_plus_button.y + 10);
  M5.Display.print("Z+ 10");

}

// Robust, line-based serial handling inspired by UGS
void handleSerial() {
  while (SerialNano.available() > 0) {
    char inChar = SerialNano.read();
    if (inChar == '\n') {
      responseReady = true;
    } else if (inChar != '\r') { // Ignore carriage returns
      grblResponse += inChar;
    }
  }

  if (responseReady) {
    grblResponse.trim(); // Remove leading/trailing whitespace

    // Display the processed line for debugging
    M5.Display.fillRect(0, BUTTON_ROW4_Y + BUTTON_HEIGHT + 10, M5.Display.width(), 40, 0); // Clear debug area
    M5.Display.setCursor(10, BUTTON_ROW4_Y + BUTTON_HEIGHT + 10);
    M5.Display.setTextColor(WHITE);
    M5.Display.print("GRBL: ");
    M5.Display.print(grblResponse);

    if (grblResponse == "ok") {
      grblReadyForNextCommand = true;
      commandSentTime = millis(); // Reset timeout timer on successful command
    } else if (grblResponse.startsWith("error")) {
      // An error occurred. Stop the plot and reset.
      isPlotting = false;
      grblReadyForNextCommand = true;
      commandSentTime = 0;
    }

    grblResponse = "";
    responseReady = false;
  }
}

void checkTimeout() {
    if (!grblReadyForNextCommand && (isPlotting || commandSentTime != 0) && (millis() - commandSentTime > commandTimeout)) {
        M5.Display.fillRect(0, BUTTON_ROW4_Y + BUTTON_HEIGHT + 10, M5.Display.width(), 40, RED);
        M5.Display.setCursor(10, BUTTON_ROW4_Y + BUTTON_HEIGHT + 10);
        M5.Display.setTextColor(WHITE);
        M5.Display.print("TIMEOUT: No 'ok' from GRBL!");
        isPlotting = false; // Stop the plot
        grblReadyForNextCommand = true; // Allow user to try again
        commandSentTime = 0; // Reset timer
    }
}

void sendCommand(const char* command) {
    SerialNano.print(command);
    grblReadyForNextCommand = false;
    commandSentTime = millis();
}

void handlePlotting() {
  if (!isPlotting || !grblReadyForNextCommand) {
    return;
  }

  switch (plottingState) {
    case PLOT_START_STROKE: {
      if (plottingStrokeIndex >= strokes.size()) {
        plottingState = PLOT_GO_HOME;
        return;
      }

      auto& stroke = strokes[plottingStrokeIndex];
      if (stroke.empty()) {
          plottingStrokeIndex++;
          return;
      }

      Point start_px = stroke[0];
      // Convert screen coordinates to G-code coordinates
      float gcode_x = (float)(start_px.x - drawArea.x) / drawArea.w * WORK_AREA_WIDTH_MM;
      float gcode_y = -1.0 * (float)(start_px.y - drawArea.y) / drawArea.h * WORK_AREA_HEIGHT_MM;

      char gcode_buffer[50];
      sprintf(gcode_buffer, "G0 X%.2f Y%.2f\n", gcode_x, gcode_y);
      sendCommand(gcode_buffer);

      plottingPointIndex = 1;
      plottingState = PLOT_PEN_DOWN;
      break;
    }

    case PLOT_PEN_DOWN: {
      sendCommand("M3 S1000\n");
      plottingState = PLOT_DRAWING;
      break;
    }

    case PLOT_DRAWING: {
      auto& stroke = strokes[plottingStrokeIndex];

      if (plottingPointIndex > 1) {
        Point p1 = stroke[plottingPointIndex - 2];
        Point p2 = stroke[plottingPointIndex - 1];
        M5.Display.drawLine(p1.x, p1.y, p2.x, p2.y, RED);
      }

      if (plottingPointIndex >= stroke.size()) {
        plottingState = PLOT_PEN_UP;
        return;
      }

      Point p_px = stroke[plottingPointIndex];
      // Convert screen coordinates to G-code coordinates
      float gcode_x = (float)(p_px.x - drawArea.x) / drawArea.w * WORK_AREA_WIDTH_MM;
      float gcode_y = -1.0 * (float)(p_px.y - drawArea.y) / drawArea.h * WORK_AREA_HEIGHT_MM;

      char gcode_buffer[50];
      // ADDED F1000 FEED RATE TO FIX ERROR 22
      sprintf(gcode_buffer, "G1 X%.2f Y%.2f F1000\n", gcode_x, gcode_y);
      sendCommand(gcode_buffer);

      plottingPointIndex++;
      break;
    }

    case PLOT_PEN_UP: {
      auto& stroke = strokes[plottingStrokeIndex];
      if (stroke.size() > 1) {
        Point p1 = stroke[stroke.size() - 2];
        Point p2 = stroke[stroke.size() - 1];
        M5.Display.drawLine(p1.x, p1.y, p2.x, p2.y, RED);
      }

      sendCommand("M5\n");
      plottingStrokeIndex++;
      plottingState = PLOT_START_STROKE;
      break;
    }

    case PLOT_GO_HOME: {
      sendCommand("G0 X0 Y0\n");
      plottingState = PLOT_IDLE;
      isPlotting = false;
      break;
    }

    case PLOT_IDLE:
    default:
      isPlotting = false;
      break;
  }
}

void handleJogging(int x, int y) {
    if (isPlotting) return; // Don't jog while plotting

    char jog_buffer[50];
    bool jogCommandSent = false;

    if (x_minus_large_b.contain(x, y)) {
        sprintf(jog_buffer, "G91 G0 X-%d\nG90\n", JOG_STEP_LARGE);
        jogCommandSent = true;
    } else if (x_minus_small_b.contain(x, y)) {
        sprintf(jog_buffer, "G91 G0 X-%d\nG90\n", JOG_STEP_SMALL);
        jogCommandSent = true;
    } else if (x_plus_small_b.contain(x, y)) {
        sprintf(jog_buffer, "G91 G0 X%d\nG90\n", JOG_STEP_SMALL);
        jogCommandSent = true;
    } else if (x_plus_large_b.contain(x, y)) {
        sprintf(jog_buffer, "G91 G0 X%d\nG90\n", JOG_STEP_LARGE);
        jogCommandSent = true;
    } else if (y_minus_large_b.contain(x, y)) {
        sprintf(jog_buffer, "G91 G0 Y-%d\nG90\n", JOG_STEP_LARGE);
        jogCommandSent = true;
    } else if (y_minus_small_b.contain(x, y)) {
        sprintf(jog_buffer, "G91 G0 Y-%d\nG90\n", JOG_STEP_SMALL);
        jogCommandSent = true;
    } else if (y_plus_small_b.contain(x, y)) {
        sprintf(jog_buffer, "G91 G0 Y%d\nG90\n", JOG_STEP_SMALL);
        jogCommandSent = true;
    } else if (y_plus_large_b.contain(x, y)) {
        sprintf(jog_buffer, "G91 G0 Y%d\nG90\n", JOG_STEP_LARGE);
        jogCommandSent = true;
    } else if (z_minus_button.contain(x, y)) {
        sprintf(jog_buffer, "G91 G0 Z-%d\nG90\n", JOG_STEP_Z);
        jogCommandSent = true;
    } else if (z_plus_button.contain(x, y)) {
        sprintf(jog_buffer, "G91 G0 Z%d\nG90\n", JOG_STEP_Z);
        jogCommandSent = true;
    }

    if (jogCommandSent) {
        SerialNano.print(jog_buffer);
        delay(150); // Debounce to prevent flooding
    }
}

void loop() {
  M5.update();
  handleSerial();
  checkTimeout();
  if(isPlotting) {
      handlePlotting();
  }

  auto touch = M5.Touch.getDetail();

  if (touch.isPressed()) {
    int x = touch.x;
    int y = touch.y;

    if (drawArea.contain(x, y)) {
      if (!isDrawing) {
        currentStroke.clear();
        isDrawing = true;
      }

      if (currentStroke.empty() || currentStroke.back().x != x || currentStroke.back().y != y) {
        currentStroke.push_back({x, y});
        if (currentStroke.size() > 1) {
          Point p1 = currentStroke[currentStroke.size() - 2];
          Point p2 = currentStroke.back();
          M5.Display.drawLine(p1.x, p1.y, p2.x, p2.y, WHITE);
        }
      }
    } else if (redrawButton.contain(x, y)) {
      if(isPlotting) return;
      strokes.clear();
      currentStroke.clear();
      M5.Display.clear();
      drawLayout();
    } else if (plotButton.contain(x, y)) {
      if (isDrawing && !currentStroke.empty()) {
        strokes.push_back(currentStroke);
        currentStroke.clear();
      }
      isDrawing = false;

      if (!isPlotting && !strokes.empty()) {
        drawStrokes(BLUE);
        isPlotting = true;
        plottingState = PLOT_START_STROKE;
        plottingStrokeIndex = 0;
        plottingPointIndex = 0;
        grblReadyForNextCommand = true;
      }
    } else if (setZeroButton.contain(x, y)) {
        if (grblReadyForNextCommand && !isPlotting) {
            sendCommand("G10 P0 L20 X0 Y0 Z0\n");
        }
    } else {
        // Handle Jogging if no other button was pressed
        handleJogging(x, y);
    }

  } else {
    if (isDrawing && !currentStroke.empty()) {
      strokes.push_back(currentStroke);
      currentStroke.clear();
    }
    isDrawing = false;
  }
}

void drawStrokes(uint16_t color) {
     Point lastPoint = {drawArea.x, drawArea.y};

     for (auto& stroke : strokes) {
       if (stroke.empty()) continue;

       Point startOfCurrentStroke = stroke[0];
       M5.Display.drawLine(lastPoint.x, lastPoint.y, startOfCurrentStroke.x, startOfCurrentStroke.y, DARKGRAY);

       if (stroke.size() >= 2) {
         for (size_t i = 0; i < stroke.size() - 1; ++i) {
           Point p1 = stroke[i];
           Point p2 = stroke[i+1];
           M5.Display.drawLine(p1.x, p1.y, p2.x, p2.y, color);
         }
       }
       lastPoint = stroke.back();
     }
     M5.Display.drawLine(lastPoint.x, lastPoint.y, drawArea.x, drawArea.y, DARKGRAY);
}

Credits

kazueda

1 project • 0 followers

Embed the widget on your own site

Cardboard One-Stroke Plotter

Cardboard One-Stroke Plotter

Things used in this project

Hardware components

Software apps and online services

Story

Introduction

Cardboard Plotter

Operation

Code

M5TabDrawtoGCode08162301.ino

Credits

kazueda

Comments

Related channels and tags
