Catch the Color

Test your reflexes: Pick the correct color as the LED's flash.

BeginnerShowcase (no instructions)3 hours767

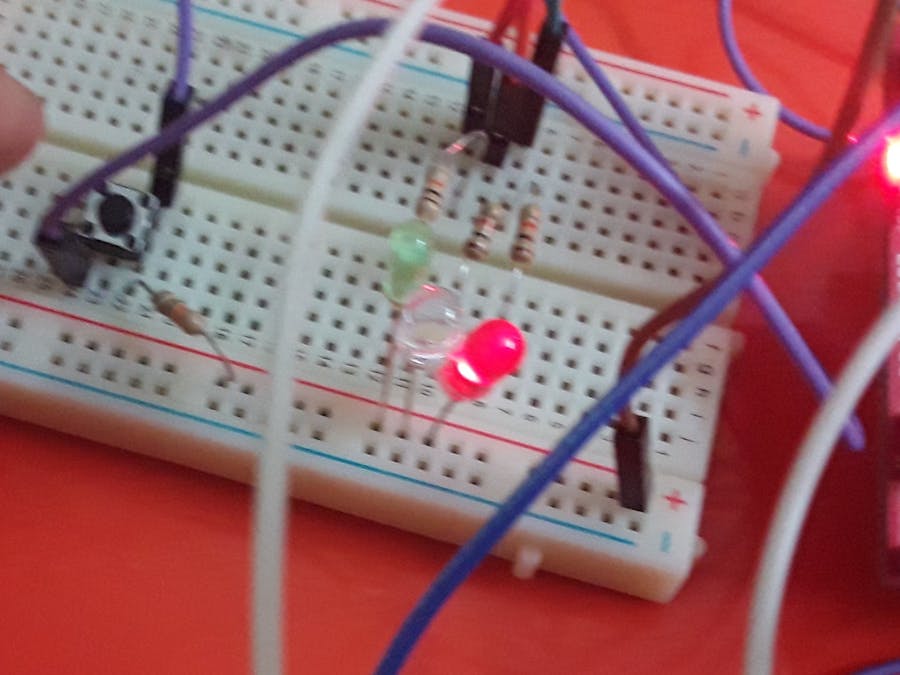

Catch the Color

Things used in this project

Hardware components

MSP-EXP430G2 MSP430 LaunchPad
Texas Instruments MSP-EXP430G2 MSP430 LaunchPad
×1
Standard LCD - 16x2 White on Blue
Adafruit Standard LCD - 16x2 White on Blue
×1
LED (generic)
LED (generic)
3 leds each 5mm and of three diffrent color
×3
Capacitor 100 nF
Capacitor 100 nF
×1
Resistor 10k ohm
Resistor 10k ohm
×1

Software apps and online services

Energia
Texas Instruments Energia

Story

Read more

Code

Catch_the_color

C/C++
The code is written in energia and works on basic loops and delays
/*
 Game -Catch The Color

  IDEA: A reaction timer based game which requires the immediate ttention of player to catch the color
  LOGIC: This sketch first prints introductorty statements if the game .
  Then the colour to be found is printed and game begins!
  If the color is found you win else you loose ...

 THE CIRCUIT:
 ==========================================
 LCD pin              Connect to
 ------------------------------------------
 01 - GND             GND, pot
 02 - VCC             +5V, pot
 03 - Contrast        Pot wiper
 04 - RS              Pin8 (P2.0)
 05 - R/W             GND
 06 - EN              Pin9 (P2.1)
 07 - DB0             GND
 08 - DB1             GND
 09 - DB2             GND
 10 - DB3             GND
 11 - DB4             Pin10 (P2.2)
 12 - DB5             Pin11 (P2.3)
 13 - DB6             Pin12 (P2.4)
 14 - DB7             Pin13 (P2.5)
 15 - BL+             +5V
 16 - BL-             GND
 ===========================================

=============================================
LED                     Connect to
---------------------------------------------
LED1(RED)   +ive             R1(10K)
LED1(RED)   -ive             GND
LED1(WHITE) +ive             R2(10K)
LED1(WHITE) -ive             GND
LED1(GREEN) +ive             R3(10K)
LED1(GREEN) -ive             GND

==============================================
RESISTOR                   Connect to
---------------------------------------------
R1                            Pin2(P1.0)
R1                            LED1
R2                            Pin3(P1.1)
R2                            LED2
R3                            Pin4(P1.2)
R3                            LED3
================================================
================================================
PUSH BUTTON                  Connect to
------------------------------------------------
PushButton(pullup)-p1        VCC
PushButton(pullup)-p2        VCC
PushButton(pullup)-p2        Pin4(P1.3)
================================================
 */

// include the library code:
#include <LiquidCrystal.h>
String string[3]= { "Red","White","Green" };// an array of string for choosing color
// initialize the library with the numbers of the interface pins
LiquidCrystal lcd(P2_0, P2_1, P2_2, P2_3, P2_4, P2_5);
//initializing the pins for leds
int LED1 = 2;
int LED2 = 3;
int LED3 = 4;
int c1=0;
// declaration of few intergral values for calculations
int c2=0;
int c3=0;
int i=0;
int j=0;
//intializing the pin for button
int pushbutton=5;

void setup() {
  // set up the LCD's number of columns and rows:
  lcd.begin(16, 2);
  //intializing mode of operation of pins
  pinMode(LED1, OUTPUT);
  pinMode(LED2, OUTPUT);
  pinMode(LED3, OUTPUT);
  pinMode(pushbutton,INPUT_PULLUP);
}

void loop() {
  // set the cursor to column 0, line 1
  // (note: line 1 is the second row, since counting begins with 0):
 lcd.print("Welcome To Game");
 delay(3000);
 lcd.clear();
 lcd.print("#CATCH THE COLOR");
 delay(3000);
 lcd.clear();
 lcd.print("  **Start**");
 delay(5000);
 lcd.clear();
c3=random(3);

lcd.print(">>Stop at color:");
 delay(3000);
 lcd.clear();
 lcd.print(string[c3]);
lcd.setCursor(1,0);
  delay(3000);
 //lcd.clear();

 c2=loop1();
 lcd.clear();
 main:
 if(c2>0)
{
if(c2==c3+1)
 {
   for(i=0;i<5;i++)
   {lcd.print("  **YOU WON**");
 delay(2500);
 lcd.clear();
delay(250); }
 }
  else
 {
   for(i=0;i<3;i++)
   {lcd.print("YOU LOST..");
 delay(2500);
 lcd.clear();
delay(500); }
 }
}
else
 { c2=0;
   while(c2==0)
   c2 =loop1();
   goto main ;
}
lcd.print("****************");
delay(3000);
lcd.clear();
}

int loop1() {
   digitalWrite(LED1, LOW);
digitalWrite(LED2, LOW);
 digitalWrite(LED1, LOW);
  int buttonstate= digitalRead(pushbutton);
  c2=0;
  digitalWrite(LED1, HIGH);   // turn the LED on (HIGH is the voltage level)
  digitalWrite(LED3, LOW);
  c2++;
  delay(100);
   buttonstate= digitalRead(pushbutton);
  // wait for a second
  if(buttonstate==HIGH)
    return(c2);
 else{
  digitalWrite(LED1, LOW);
digitalWrite(LED2, HIGH); // turn the LED on (HIGH is the voltage level)
   c2++;
  delay(100);
   buttonstate= digitalRead(pushbutton);
  if(buttonstate==HIGH)
    return(c2);
  else
{  // turn the LED off by making the voltage LOW   // wait for a second
 digitalWrite(LED2, LOW);
digitalWrite(LED3, HIGH);   // turn the LED on (HIGH is the voltage level)
 c2++;
delay(100);
buttonstate= digitalRead(pushbutton);
if(buttonstate==HIGH)
    return(c2);}

 }
 }
