nRF5340 Feather

Adafruit Feather Dual core nRF5340

This is an evaluation board the the nRF5340 Module I am currently working on. The module is using the integrated powersupply of the nRF53, wich is a dualcore M33 MCU with integrated 2.4Ghz radio.

The RF shielding is made in Fusion360

https://www.nordicsemi.com/Products/Low-power-short-range-wireless/nRF5340

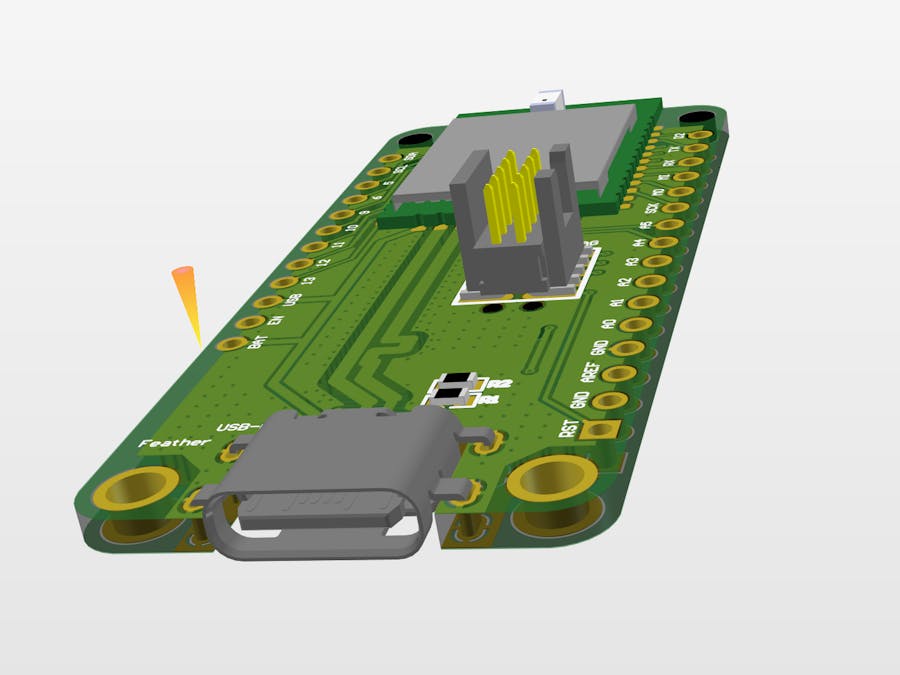

Top side

Backside

All you need to use the module, is an usb header, resistors for the 5V power on the CC pins, if using USBC. and a programmer interface unless you have an usb bootloader

The JTAG pin header, can be not placed and use JTAG probe pins instead. The TC2050 can be used instead of a 1.27mm pin header.

Hand solderable module

Module without the RF shielding, An update on the module will come next week!
