Posture Pal with Walabot

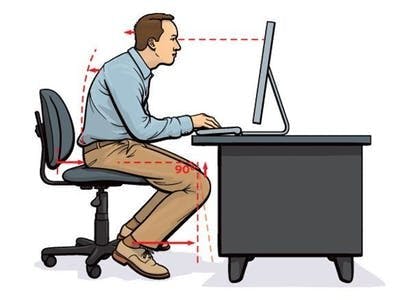

Prevent neck and back pain by monitoring your sitting posture with Walabot's distance sensor and an Android app.

IntermediateFull instructions provided8 hours2,139

Things used in this project

Story

Read more

Code

server.py

Python
Flask server for HTTP long polling the Walabot distance on Raspberry Pi. Note: run first.
$ python3 server.py
#!/usr/local/env python
import json
import time

from flask import Flask, jsonify, request, Response

app = Flask(__name__)

distance=0

@app.route('/set')
def set():
    global distance
    distance = request.args.get('distance')
    return jsonify(distance)

@app.route('/status')
def status():
    return Response(json.dumps({'status':distance}))

if __name__ == '__main__':
    app.run(host='0.0.0.0', port=3000)

distance.py

Python
Get distance to user from Walabot sensor on Raspberry Pi.
After running server.py:
$ python3 distance.py
from sys import platform
from os import system
import WalabotAPI
try:  # for Python 2
    import Tkinter as tk
except ImportError:  # for Python 3
    import tkinter as tk


MYPORT = 5002
import requests
import sys, time
from socket import *

class Walabot:

    def __init__(self):
        self.wlbt = WalabotAPI
        self.wlbt.Init()
        self.wlbt.SetSettingsFolder()
        self.isConnected = False
        self.isTargets = False

        self.rMin = self.WalabotParameter(self, "R     Min", 1, 1000, 10.0)
        self.rMax = self.WalabotParameter(self, "R     Max", 1, 1000, 100.0)
        self.rRes = self.WalabotParameter(self, "R     Res", 0.1, 10, 2.0)
        self.tMax = self.WalabotParameter(self, "Theta Max", 1, 90, 20.0)
        self.tRes = self.WalabotParameter(self, "Theta Res", 1, 10, 10.0)
        self.pMax = self.WalabotParameter(self, "Phi   Max", 1, 90, 45.0)
        self.pRes = self.WalabotParameter(self, "Phi   Res", 1, 10, 2.0)
        self.thld = self.WalabotParameter(self, "Threshold", 0.1, 100, 15.0)
        self.mti = self.WalabotParameterMTI(self)
        self.parameters = (
            self.rMin, self.rMax, self.rRes, self.tMax, self.tRes,
            self.pMax, self.pRes, self.thld, self.mti)

    class WalabotParameter(tk.Frame):
        """ The frame that sets each Walabot parameter line.
        """

        def __init__(self, master, varVal, minVal, maxVal, defaultVal):
            """ Init the Labels (parameter name, min/max value) and entry.
            """
            self.minVal, self.maxVal = minVal, maxVal
            self.var = tk.StringVar()
            self.var.set(defaultVal)
            self.var.trace("w", lambda a, b, c, var=self.var: self.validate())
            txt = "[{}, {}]".format(minVal, maxVal)

        def validate(self):
            """ Checks that the entered value is a valid number and between
                the min/max values. Change the font color of the value to red
                if False, else to black (normal).
            """
            num = self.var.get()
            try:
                num = float(num)
                if num < self.minVal or num > self.maxVal:
                    self.entry.config(fg="red")
                    return
                self.entry.config(fg="gray1")
            except ValueError:
                self.entry.config(fg="red")
                return

        def get(self):
            """ Returns the entry value as a float.
            """
            return float(self.var.get())

        def set(self, value):
            """ Sets the entry value according to a given one.
            """
            self.var.set(value)

        def changeState(self, state):
            """ Change the entry state according to a given one.
            """
            self.entry.configure(state=state)

    class WalabotParameterMTI(tk.Frame):
        """ The frame that control the Walabot MTI parameter line.
        """
        def __init__(self, master):
            self.mtiVar = tk.IntVar()
            self.mtiVar.set(0)

        def get(self):
            """ Returns the value of the pressed radiobutton.
            """
            return self.mtiVar.get()

        def set(self, value):
            """ Sets the pressed radiobutton according to a given value.
            """
            self.mtiVar.set(value)

        def changeState(self, state):
            """ Change the state of the radiobuttons according to a given one.
            """
            self.true.configure(state=state)
            self.false.configure(state=state)

    def getParameters(self):
        """ Return the values of all the parameters entries/radiobuttons.
        """
        rParams = (self.rMin.get(), self.rMax.get(), self.rRes.get())
        tParams = (-self.tMax.get(), self.tMax.get(), self.tRes.get())
        pParams = (-self.pMax.get(), self.pMax.get(), self.pRes.get())
        thldParam, mtiParam = self.thld.get(), self.mti.get()
        return rParams, tParams, pParams, thldParam, mtiParam


    def setParameters(self):
        """ Set the arena Parameters according given ones.
        """
        rParams = (self.rMin.get(), self.rMax.get(), self.rRes.get())
        tParams = (-self.tMax.get(), self.tMax.get(), self.tRes.get())
        pParams = (-self.pMax.get(), self.pMax.get(), self.pRes.get())
        thldParam, mtiParam = self.thld.get(), self.mti.get()

        self.wlbt.SetProfile(self.wlbt.PROF_SENSOR)
        self.wlbt.SetArenaR(self.rMin.get(), self.rMax.get(), self.rRes.get())
        self.wlbt.SetArenaTheta(-self.tMax.get(), self.tMax.get(), self.tRes.get())
        self.wlbt.SetArenaPhi(-self.pMax.get(), self.pMax.get(), self.pRes.get())
        self.wlbt.SetThreshold(thldParam)
        self.wlbt.SetDynamicImageFilter(mtiParam)
        self.wlbt.Start()
    def connect(self):
        try:
            self.wlbt.ConnectAny()
            self.isConnected = True
            self.setParameters()
        except self.wlbt.WalabotError as err:
            if err.code != 19:  # 'WALABOT_INSTRUMENT_NOT_FOUND'
                raise err

    def start(self):
        self.wlbt.Start()

    def get_targets(self):
        self.wlbt.Trigger()
        return self.wlbt.GetSensorTargets()

    def stop(self):
        self.wlbt.Stop()

    def disconnect(self):
        self.wlbt.Disconnect()

    def calibrate(self):
        """ Calibrate the Walabot.
        """
        self.wlbt.StartCalibration()
        while self.wlbt.GetStatus()[0] == self.wlbt.STATUS_CALIBRATING:
            self.wlbt.Trigger()

def print_targets(targets):
    system("cls" if platform == "win32" else "clear")  # clear the screen
    distance = str(targets[0].zPosCm)
    r = requests.get("http://localhost:3000/set?distance=" + distance)

    print(targets[0].zPosCm)

def main():
    root = tk.Tk()

    wlbt = Walabot()
    wlbt.connect()

    if not wlbt.isConnected:
        print("Not Connected")
    else:
        print("Connected")

    while True:
        print_targets(wlbt.get_targets())


if __name__ == '__main__':
    main()

(Optional) Raspberry Pi gist for cloning (includes server.py and distance.py)

On Rasbperry Pi with TKinter and Flask installed: $ git clone https://gist.github.com/justinshenk/aa1e1eb7ceb87fd82f0b655b5ad20c8a $ python3 server.py $ python3 distance.py

Android app for Walabot

Build app (Optional) - git clone https://github.com/justinshenk/Walabot-PosturePal
