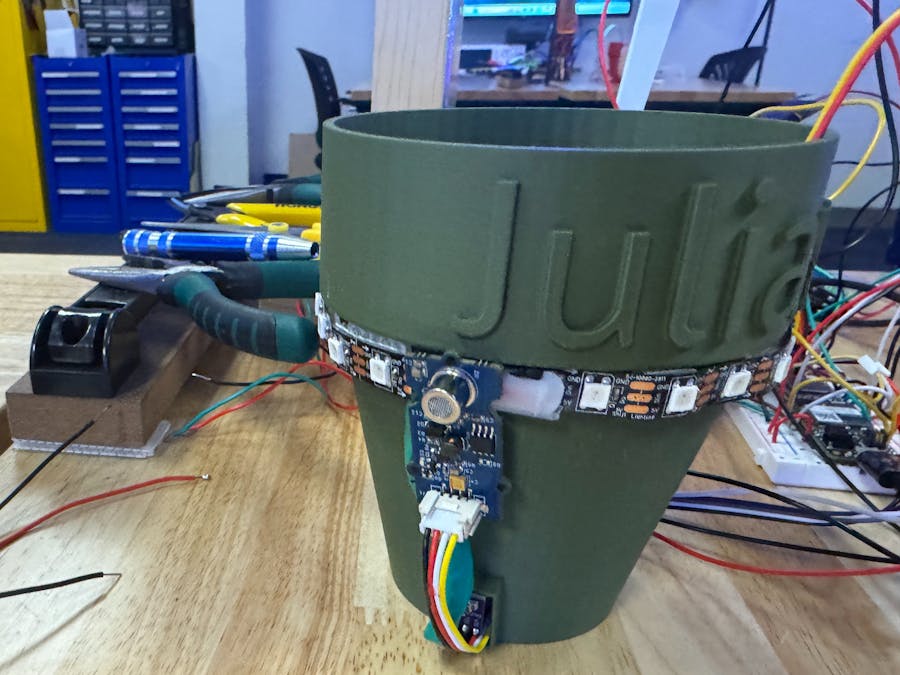

IoT Plant Watering System

/*
 * Project: waterPlant
 * Author: Julian  Mathias
 * Date: 13-NOV-24
 * For comprehensive documentation and examples, please visit:
 * https://docs.particle.io/firmware/best-practices/firmware-template/
 */

// Include Particle Device OS APIs
#include "Particle.h"
#include "IoTClassroom_CNM.h"
#include "Colors.h"
#include <DFRobot_PN532.h>
#include "Adafruit_GFX.h"
#include "Adafruit_SSD1306.h"
#include "Grove_4Digit_Display.h"
#include <neopixel.h>
#include "Button.h"
#include "DFRobotDFPlayerMini.h"
#include "credentials.h"
#include <Adafruit_MQTT.h>
#include "Adafruit_MQTT/Adafruit_MQTT_SPARK.h"
#include "Adafruit_MQTT/Adafruit_MQTT.h"
#include "JsonParserGeneratorRK.h"
#include "Air_Quality_Sensor.h"
#include "Adafruit_BME280.h"
#include "IoTTimer.h"


/************ Global State (you don't need to change this!) ******************/
TCPClient TheClient;

// Setup the MQTT client class by passing in the WiFi client and MQTT server and login details.
Adafruit_MQTT_SPARK mqtt(&TheClient,AIO_SERVER,AIO_SERVERPORT,AIO_USERNAME,AIO_KEY);

/****************************** Feeds ***************************************/
// Setup Feeds to publish or subscribe
// Notice MQTT paths for AIO follow the form: <username>/feeds/<feedname>//must include /feeds/ before the feedname!
Adafruit_MQTT_Publish pubFeedsoilMoisture = Adafruit_MQTT_Publish(&mqtt, AIO_USERNAME "/feeds/soilMoisture");
Adafruit_MQTT_Publish pubFeedroomTemperatue = Adafruit_MQTT_Publish(&mqtt, AIO_USERNAME "/feeds/roomTemperature");
Adafruit_MQTT_Publish pubFeedroomHumidity = Adafruit_MQTT_Publish(&mqtt, AIO_USERNAME "/feeds/roomHumidity");
Adafruit_MQTT_Publish pubFeedroomPressure = Adafruit_MQTT_Publish(&mqtt, AIO_USERNAME "/feeds/roomPressure");
Adafruit_MQTT_Publish pubFeedairQuality = Adafruit_MQTT_Publish(&mqtt, AIO_USERNAME "/feeds/airQuality");
Adafruit_MQTT_Subscribe dashboardButton = Adafruit_MQTT_Subscribe(&mqtt, AIO_USERNAME "/feeds/dashboardButton");

/************Declare Variables*************/
unsigned int last,lastTime; //unsigned means the value does not go negative. It will time out at approx 49 days.
int quality;
int bri = 35; //data type is int, bri is the name of the variable, and 35 is the initial value or assignment. bri is a mutable variable that can be changed later in the code.
int color;
int litPixel; //The pixels that are being lit up
float tempF;  // Global variable for temperature in Fahrenheit
float inHg;  // Global variable for pressure in inches of mercury
float tempC;
float pressPA;
float humidRH;
int status;
int currentTime;
int lastSecond;
int Moisture;
int i;
int webButtonState;


/************Declare Constants*************/
//Declorations are sequential, constants need to go before objects.
const int CLK = D4;
const int DIO = D5;
const int PIXELCOUNT = 19; //PIXELCOUNT name of constant, datatype is integer, initial value (assignment) will always hold 19
const int OLED_RESET=-1; //OLED_RESET is the name of the constant variable, it's a variable because it holds data, but it is not a regular variable and uses uppercase letters
const int hexAddressBME = 0x76; //I2C address of BME sensor. I2C can have 128 connections and the hexidicimal maps it.
const char degree = 0xF8;
const char percent = 0x25;
const int AUOT = A2; // Moisture sensor
String dateTime, timeOnly;
const int Pump = S0;
const int maxMoisture = 1173;
const int minMoisture = 3015;

//Define constants for NFC card reading
#define PN532_IRQ 2
#define POLLING 0
#define READ_BLOCK_NO 2


/************Declare Objects***************/
IoTTimer pumpTimer;  //IoTTimer is the class and pumpTimer is an object, or instance, of that class
Adafruit_NeoPixel pixel(PIXELCOUNT, SPI1, WS2812B); //Adafruit_NeoPixel is the class, pixel is the object, or instance, and can use mothods like pixel.begin() and pixel.setpixelcolor(). The first argument, PIXELCOUNT is defined below as a constant integer.
Adafruit_BME280 bme;
Button startCountdown(D3);//Button is class/type and startCountdown is the object and D3 is the argument
AirQualitySensor sensor(A1); //so confused???????? A0?
DFRobotDFPlayerMini myDFPlayer;//Default constructor (specicialized function initializes and doesn't need a value like a pin number, because it uses a default value from library
TM1637 tm1637(CLK,DIO);
bool keepCounting;//declares variable keepCounting, but does not initialize a value because it's a bool
bool nfcScanned = false;//declared variable nfcScanned, but initializes with value of false when program starts
Adafruit_SSD1306 display(OLED_RESET);
DFRobot_PN532_IIC nfc(PN532_IRQ, POLLING);
uint8_t dataRead[16] = {0};//unit8_t is datatype of variable, dataRead declares name of array that can hold 16 elements, the 0 initializes the array with the first element as 0 (zero initialization of array)

/************Declare Functions*************/
void MQTT_connect();
bool MQTT_ping();
void printDetail(uint8_t type, int value);//Tells compiler a function named printDetail exists. Semicolon indicates it is only a declaration. when printDetail() is called it has two arguments (parameters), uint8_t is unsigned 8-bit integer and int is integer
void displayNFCData();
bool countDown(bool restart = false, int countStart = 60);//bool is the return type, countdown is the name of the function and will return a datatype of true/false
void PixelFill (int startP, int endP, int color);

// Let Device OS manage the connection to the Particle Cloud
SYSTEM_MODE(AUTOMATIC);

// setup() runs once, when the device is first turned on
void setup() {
  Serial.begin(9600); //Enables serial monitor
  waitFor(Serial.isConnected, 10000);  //wait for Serial monitor. Serial, not serial1 is the USB main connection.
  Serial1.begin(9600);//Begins Serial 1, but no handshake needed

status = bme.begin(hexAddressBME);
  if (status == false) {
    Serial.printf("BME280 at address 0x%02X failed to start", hexAddressBME);
  }

    display.begin(SSD1306_SWITCHCAPVCC, 0x3C);
    display.display();
    display.clearDisplay();


    pixel.begin();
    pixel.setBrightness(bri); //bri variable can be changed in header from 0-255
    pixel.show(); //initialize all pixels off
    pixel.clear();

  myDFPlayer.begin(Serial1); //Initializes MP3 player

  Serial.printf("DFRobot DFPlayer Mini Demo\n");
  Serial.printf("Initializing DFPlayer ... (May take 3~5 seconds)\n");

  // Connect to Internet but not Particle Cloud
  //  WiFi.on();
  //  WiFi.connect();
  //  while(WiFi.connecting()) {
  //   Serial.printf(".");
  //  }
  //  Serial.printf("\n\n");

  // Setup MQTT subscription
    mqtt.subscribe(&dashboardButton);
    Time.zone (-7); //MST = -7, MDT = -6
    Particle.syncTime(); //Sync time with Particle Cloud

    tm1637.init();
    tm1637.set(7);
    tm1637.point(POINT_ON);

    keepCounting = false; //Initializes to 0 or off

  while (!nfc.begin()) {
    Serial.printf("NFC initialization failed. Retrying...\n");
    delay(1000);
  }
    Serial.printf("NFC initialized. Waiting for a card...\n");

pinMode (AUOT,INPUT);//  Moisture sensor
pinMode (Pump,OUTPUT); //  Relay that controls water pump

}

void loop() {

  MQTT_connect(); //Called in void loop to keep connection alive
  MQTT_ping();  //Called in void loop to keep connection alive

  dateTime = Time.timeStr(); //Current date/time from Particle
  timeOnly = dateTime.substring (11,19); //Extract Time from DataTime String
  if(millis()-lastTime>10000) {
  lastTime = millis();
  Serial.printf("Date and time is %s\n",dateTime.c_str());
    // display.setTextSize(1);
    // display.setTextColor(WHITE);
    // display.setCursor(0,16);
    // display.printf("Date and time is %s\n",dateTime.c_str());
    // display.clearDisplay();
    // display.display();


  // Read sensor data
  Moisture = analogRead(AUOT); // Read moisture sensor
  tempC = bme.readTemperature(); // Read temperature in Celsius
  pressPA = bme.readPressure(); // Read pressure in Pascals
  humidRH = bme.readHumidity(); // Read humidity in %RH

  // Convert temperature to Fahrenheit and pressure to inHg
  tempF = ((tempC * 9 / 5) + 32);
  inHg = (pressPA * 0.00029529983071445);

  if ((currentTime-lastSecond)>500) { //half second
    lastSecond = millis ();
    Serial.printf("Pressure %0.1f\n",inHg);
    Serial.printf("Humidity %0.1f %c\n",humidRH,0x25);
    Serial.printf("Temp %0.1f%cF\n",tempF,degree);
    Serial.printf("Moisture is %i\n",Moisture);
    display.setTextSize(1);
    display.setTextColor(WHITE);
    display.setCursor(0,16);
    display.printf("Temperature is %0.1f%c \n",tempF,degree);
    display.printf("Pressure is %0.01finHg \n",inHg);
    display.printf("Humidity is %0.02f%c \n", humidRH,percent);
    display.printf("Moisture is %i\n",Moisture);
    display.display();
    display.clearDisplay();
  }

  int quality = sensor.slope();

    //Serial.printf("Air quality %i\n",quality);
    //Serial.printf("Raw sensor input %0.2f\n",sensor.getValue());

    if (quality == AirQualitySensor::FORCE_SIGNAL) {
        Serial.printf("High pollution! Force signal active. Quality: %i\n", quality);
    } else if (quality == AirQualitySensor::HIGH_POLLUTION) {
        Serial.printf("High pollution! Quality: %i\n", quality);
    } else if (quality == AirQualitySensor::LOW_POLLUTION) {
        Serial.printf("Low pollution! Quality: %i\n", quality);
    } else if (quality == AirQualitySensor::FRESH_AIR) {
        Serial.printf("Fresh air. Quality: %i\n", quality);
    }

  // Check if soil moisture is below threshold and start countdown
  if ((Moisture>=1600)&&(Moisture<=1800)) {//half of the value after watered
    countDown(true, 600); // Start countdown value
    keepCounting = true;   // Set flag to keep counting down
    nfcScanned = false;    // Reset NFC scan flag
    //myDFPlayer.volume(1); // Set volume for audio feedback
    //myDFPlayer.playFolder(1, 1); // Play an audio file
    Serial.printf("Moisture level low. Starting countdown...\n");
  }

  // Continue counting down if the flag is set
  if (keepCounting) {
    keepCounting = countDown(); // Continue countdown
    if (!keepCounting) {        // If countdown finishes
      Serial.printf("Countdown complete.\n");
      if (!nfcScanned && ((Moisture>=1600)&&(Moisture<=1800))) { // If NFC not scanned and moisture still low
        myDFPlayer.volume(1);              // Set volume for audio feedback
        myDFPlayer.playFolder(1, 2);        // Play another audio file
        Serial.printf("NFC not scanned and moisture still low.\n");
      }
    }
  }
}

  // this is our 'wait for incoming subscription packets' busy subloop
  Adafruit_MQTT_Subscribe *subscription;
  while ((subscription = mqtt.readSubscription(100))) {
    if (subscription == &dashboardButton) {
      webButtonState = atoi((char *)dashboardButton.lastread);
      Serial.printf("button=%i\n",dashboardButton);
    }

    if (webButtonState == 1 && Moisture>=1600) { //This ensures that plant is not overwatered
      Serial.printf("Drinking\n");
      digitalWrite(Pump,HIGH);

    }

    if (webButtonState == 0) {
      Serial.printf("Water Stopped\n");
      digitalWrite(Pump,LOW);
      }
    }

  if (Moisture>=1800) {
    countDown(true, 600);
    keepCounting = true;
    nfcScanned = false; //Reset NFC scan flag
    //myDFPlayer.volume(1); // Start the player when countdown begins
    //myDFPlayer.playFolder(1, 1);
    //litPixel = ((PIXELCOUNT/1600.0)*Moisture);
    //PixelFill (0,litPixel,red);
}

if (keepCounting) {
      keepCounting = countDown();
    if (!keepCounting) {
      Serial.printf("Countdown is complete\n");
    if (!nfcScanned && Moisture>=2400) {
      //myDFPlayer.volume(1); //Set volume to 30 if NFC not scanned
      //myDFPlayer.playFolder(1, 2); //Plays the second MP3 in folder 1
      //litPixel = ((PIXELCOUNT/1600.0)*Moisture);
//for (int i=0; i<litPixel; litPixel++) {
   //pixel.setPixelColor(i,red);
//}
    //pixel.show();
    }
    //pixel.clear();
    //pixel.show();
     }
    }

  static unsigned long lastNfcScanTime = 0;
  unsigned long currentTime = millis();

  if (nfc.readData(dataRead, READ_BLOCK_NO) == 1) {
    Serial.printf("Block %d read success!\n", READ_BLOCK_NO);
    Serial.printf("Data read (string): %s\n", (char *)dataRead);
    displayNFCData();
  }
  else {
    Serial.printf("Block %d read failure!\n", READ_BLOCK_NO);
    }

  if (currentTime - lastNfcScanTime >= 100) { // 100ms delay between scans to reduce power consumption
    lastNfcScanTime = currentTime;

  if (nfc.scan() && Moisture<2600) {
    nfcScanned = true; // Set NFC scan flag
    digitalWrite (Pump,HIGH);
    pumpTimer.startTimer (500);
  }
  if (digitalRead(Pump) == HIGH && pumpTimer.isTimerReady()) {
    digitalWrite (Pump,LOW); //turn off the pump after 500ms
  }
  }

    if((millis()-lastTime > 6000)) {
    if (mqtt.Update()) { //Make sure MQTT connection is active
      Moisture = analogRead (A2);
      pubFeedsoilMoisture.publish(Moisture);
      Serial.printf("Publishing %i \n", Moisture);
      pubFeedairQuality.publish(quality);
      pubFeedroomHumidity.publish(humidRH);
      pubFeedroomPressure.publish(inHg);
      pubFeedroomTemperatue.publish(tempF);
      }

    lastTime = millis();

  }
}

  void displayNFCData() {

  color = 0X000FF;

   for (i=0; i<19; i++) { //order: initiallization, condition, incremement--where to start, where do you want to go, how do you want to get there
    pixel.setPixelColor (i,color);
    pixel.show();
  }

  pixel.clear();
  pixel.show();

  }

bool countDown(bool restart, int countStart) {
  static int count = 600;
  static unsigned long lastTime = 0;

  if (restart) {
    count = countStart;
  }

  if (millis() - lastTime > 600) {
    lastTime = millis();
    count--;

    int min10 = count / 600;
    int min01 = (count / 60) % 10;
    int sec10 = (count % 60) / 10;
    int sec01 = (count % 60) % 10;

    tm1637.display(0, min10);
    tm1637.display(1, min01);
    tm1637.display(2, sec10);
    tm1637.display(3, sec01);

    Serial.printf("Countdown: %02d:%02d\n", count / 60, count % 60);
  }

  if (count <= 0) {
    return false;
  }
  return true;
}

void MQTT_connect() { //Outside the void loop
  int8_t ret;

  //Return if already connected.
  if (mqtt.connected()) {
    return;
  }

 Serial.print("Connecting to MQTT... ");

 while ((ret = mqtt.connect()) != 0) { // connect will return 0 for connected
       Serial.printf("Error Code %s\n",mqtt.connectErrorString(ret));
       Serial.printf("Retrying MQTT connection in 5 seconds...\n");
       mqtt.disconnect();
      delay(5000);  // wait 5 seconds and try again
        }
   Serial.printf("MQTT Connected!\n");
 }

bool MQTT_ping() {
  static unsigned int last;
  bool pingStatus;

  if ((millis()-last)>120000) {
      Serial.printf("Pinging MQTT \n");
      pingStatus = mqtt.ping();
      if(!pingStatus) {
        Serial.printf("Disconnecting \n");
        mqtt.disconnect();
      }
      last = millis();
  }
  return pingStatus;
}
