Step Detection System By A Way With Arduino

Description

The purpose of the project is to detect the passing of cars and people at the entrance to an orchard and a warning beep inside this house.For this project it consists of 2 modules:

• Module detection step, either of people or cars.

• Module warning step.

The requirements are:

• The step detection module, being in the garden, must have a separate power supply, in this case we have put a solar panel and a battery.

• The module must sound warning when the detection module warn you.

• The detection module is at the entrance of the garden.

• The warning module is inside the house.

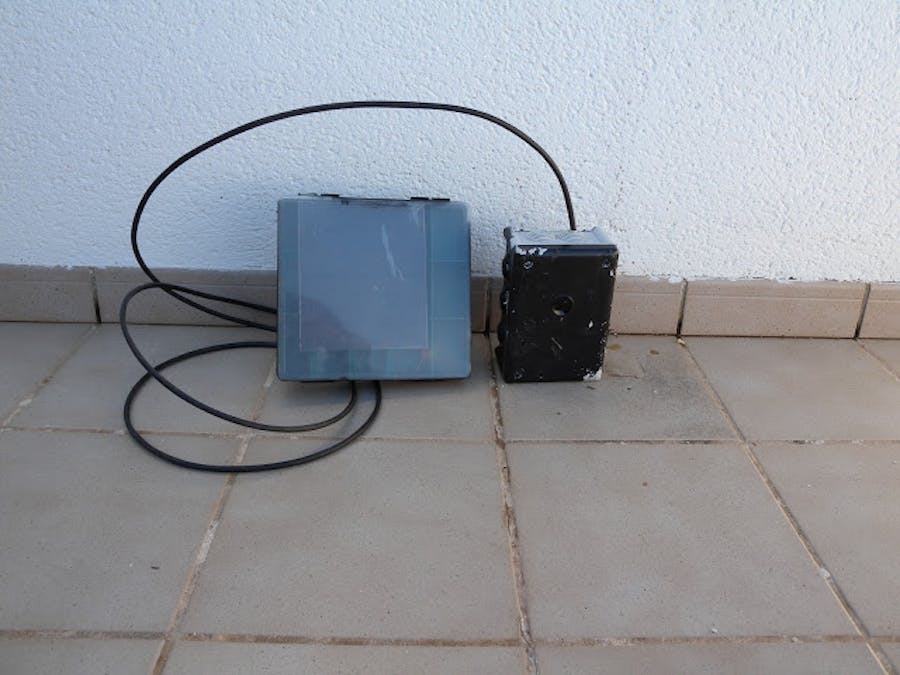

Detection module with solar panel

Instructions

Components used

The components used have been:

Detection module

• Arduino Nano

• PCB 5x7 cm

• 3W Solar Panel 138x160

• Battery 3.7 v 6600 mAh

• LiPo Rider Pro

• Step up power converter module 3.3v to 5v

• Ultrasonic Module Distance Measuring Transducer Sensor Waterproof JSN-SR04T

• APC220 RF wireless modules

Warning module

• Arduino Nano

• PCB 5x7 cm

• APC220 RF wireless modules

• Passive buzzer / relay.

Assembly of the circuit

The Fritzing scheme is as follows:

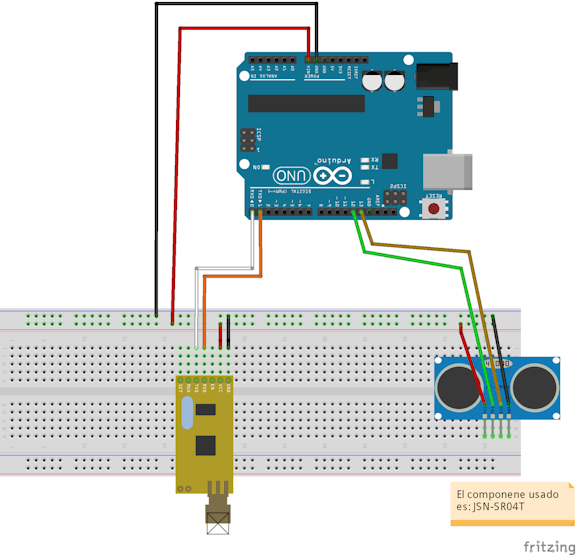

• Detection module

Detection module

In this scheme has not been added to the connection part of the Lipo Rider Pro, battery and solar panel, I not to have the designs for Fritzing.

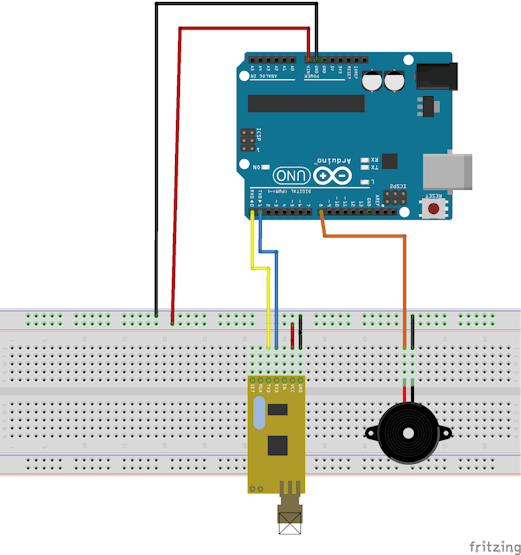

• Warning module

Warning module

Images of the system mounted inside the laboratory:

• Detection module

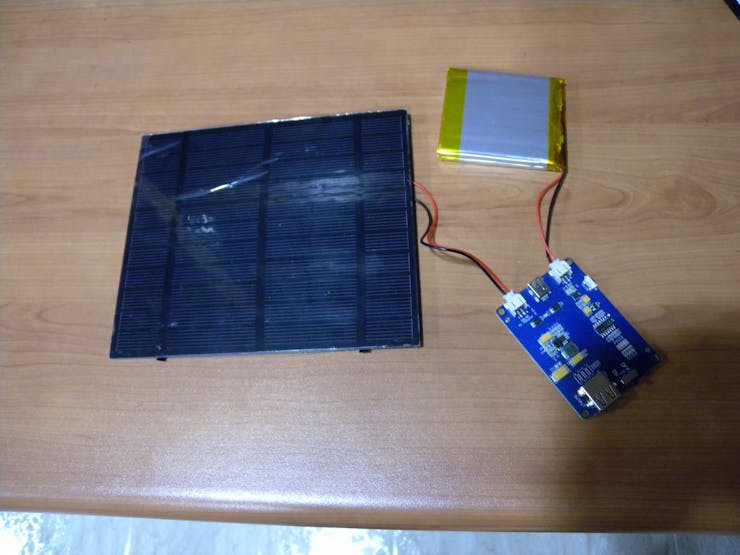

Solar panel with Lipo Rider Pro and battery:

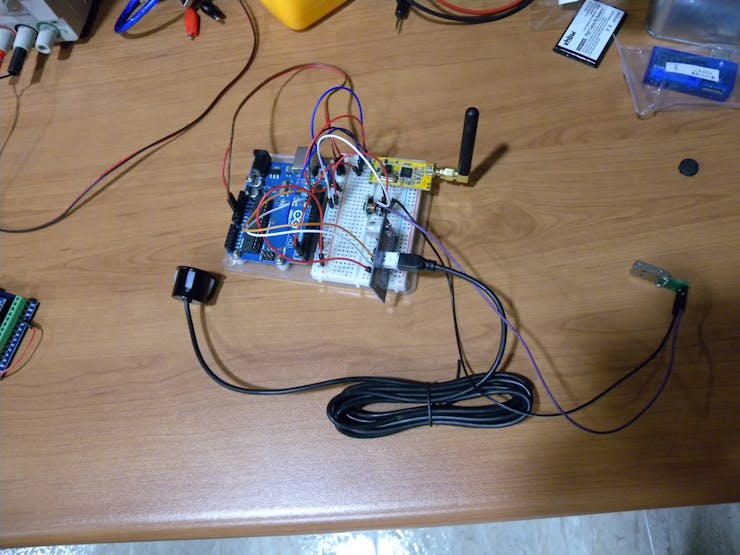

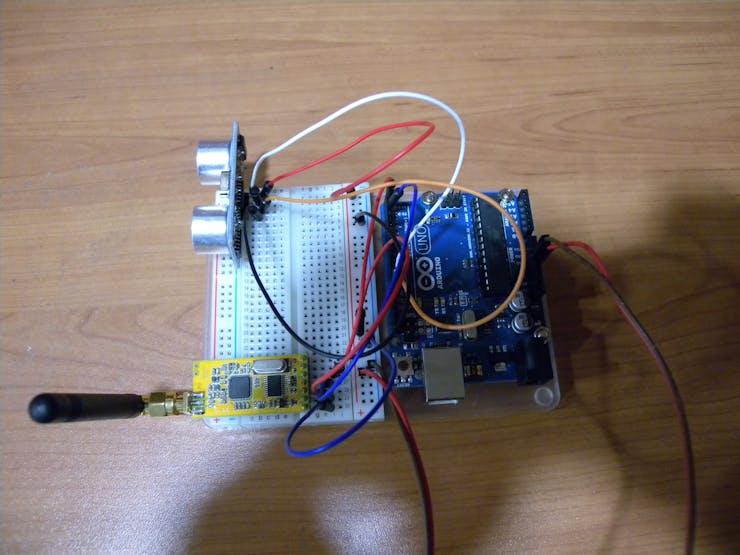

Detection module mounted on a breadboard with initial ultrasound detector:

Detection module mounted on a breadboard with final ultrasound detector:

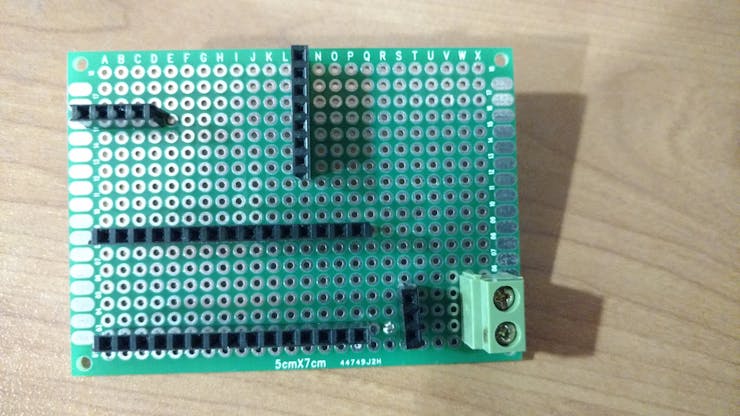

Top of the PCB detection module without connected components:

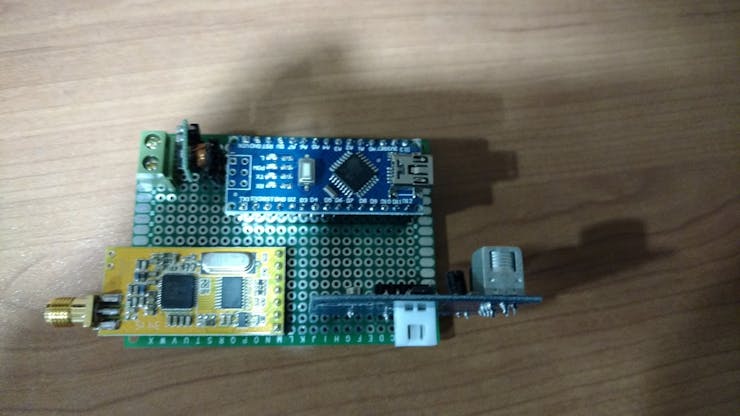

Top of the PCB detection module with connected components:

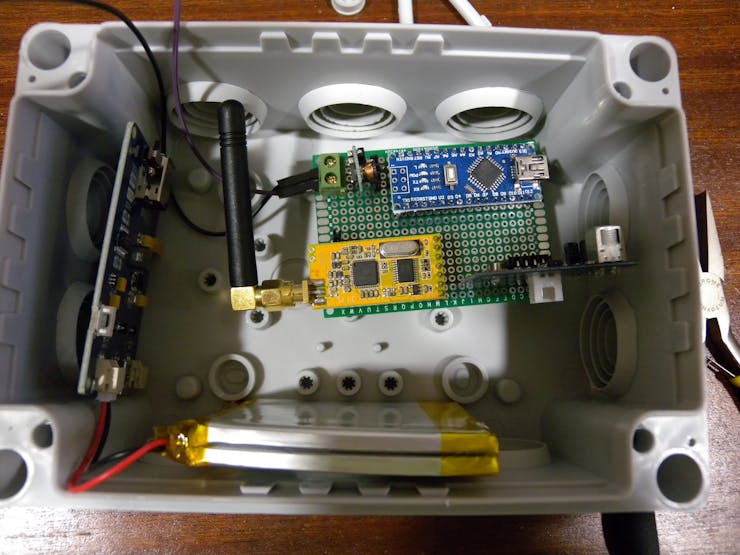

Detection module inside his waterproof case.

Warning module:

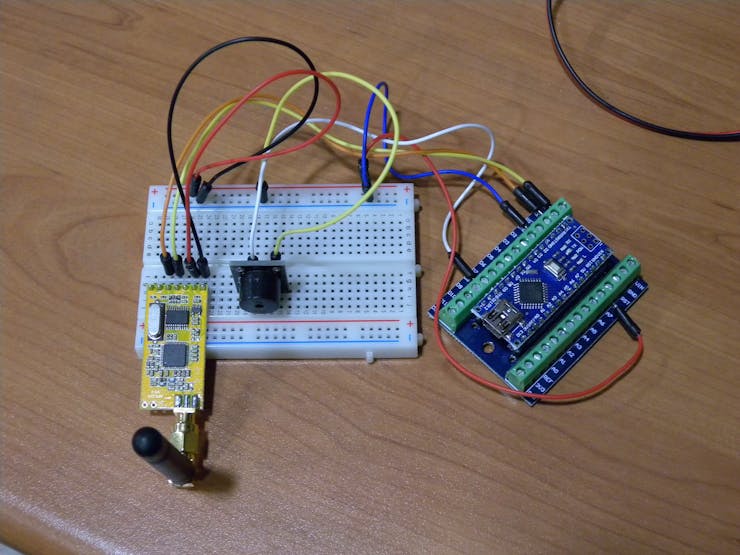

Warning module mounted on a breadboard:

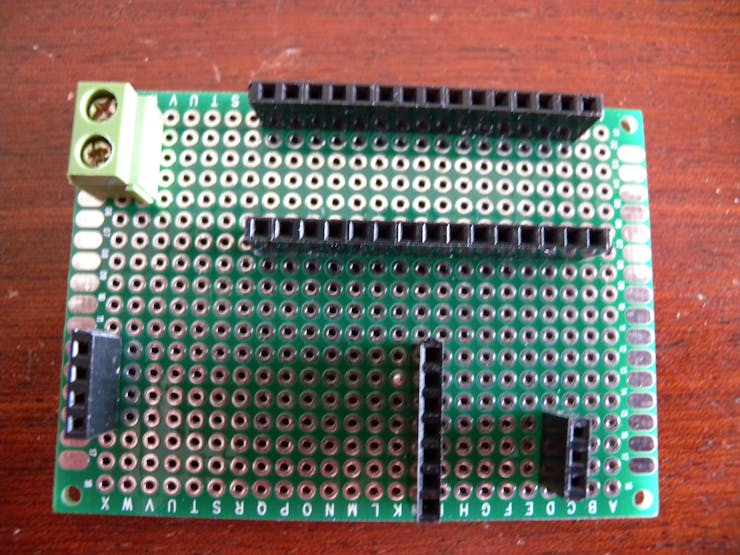

Top of the PCB warning module without connected components:

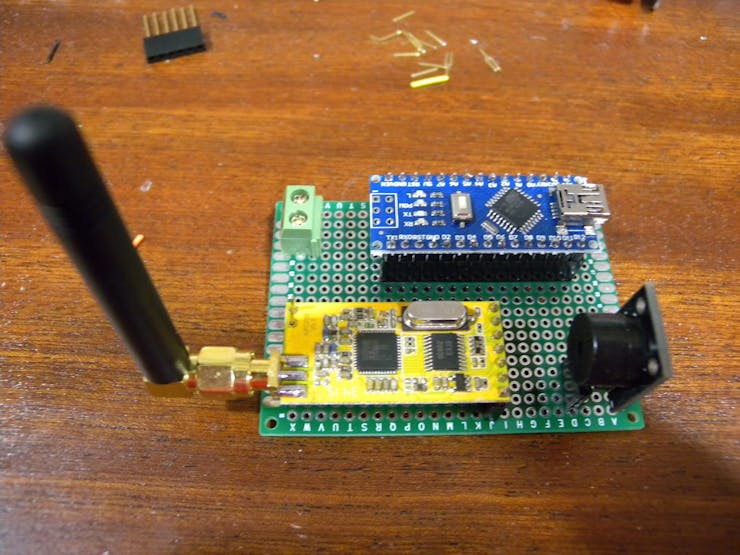

Top of the PCB warning module with connected components:

Warning module inside his waterproof case

Software

The libraries used have been:

• HCSR04Ultrasonic
