Accessing STM32 Backup Registers in nanoFramework

With the hardware. Stm32 library it's so easy to save and read STM32 backup registers. Great if you need to persist data between reboots.

BeginnerProtip6 minutes1,085
Accessing STM32 Backup Registers in nanoFramework

Things used in this project

Story

Read more

Code

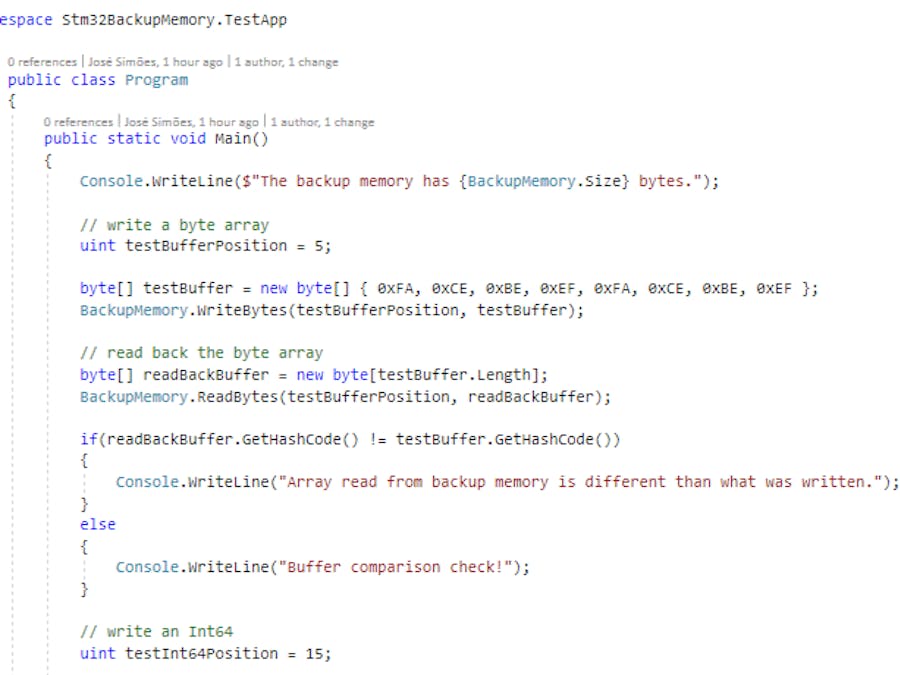

Sample app to write STM32 backup memory and read back.

C#
using System;
using System.Threading;
using nanoFramework.Hardware.Stm32;

namespace Stm32BackupMemory.TestApp
{
    public class Program
    {
        public static void Main()
        {
            Console.WriteLine($"The backup memory has {BackupMemory.Size} bytes.");

            // write a byte array
            uint testBufferPosition = 5;

            byte[] testBuffer = new byte[] { 0xFA, 0xCE, 0xBE, 0xEF, 0xFA, 0xCE, 0xBE, 0xEF };
            BackupMemory.WriteBytes(testBufferPosition, testBuffer);

            // read back the byte array
            byte[] readBackBuffer = new byte[testBuffer.Length];
            BackupMemory.ReadBytes(testBufferPosition, readBackBuffer);

            if(readBackBuffer.GetHashCode() != testBuffer.GetHashCode())
            {
                Console.WriteLine("Array read from backup memory is different than what was written.");
            }
            else
            {
                Console.WriteLine("Buffer comparison check!");
            }

            // write an Int64
            uint testInt64Position = 15;

            Int64 testInt64 = 9876543210;
            BackupMemory.WriteInt64(testInt64Position, testInt64);

            if (BackupMemory.ReadInt64(testInt64Position) != testInt64)
            {
                Console.WriteLine("Int64 read from backup memory is different than what was written.");
            }
            else
            {
                Console.WriteLine("Int64 comparison check!");
            }

            Thread.Sleep(Timeout.Infinite);
        }
    }
}
