Hardware components | ||||||
![]() |
| × | 1 | |||
![]() |
| × | 1 | |||
![]() |
| × | 1 | |||
![]() |
| × | 1 | |||
![]() |
| × | 1 | |||
![]() |
| × | 1 | |||
![]() |
| × | 1 | |||
Hand tools and fabrication machines | ||||||
| ||||||
![]() |
| |||||
| ||||||
| ||||||
![]() |
|

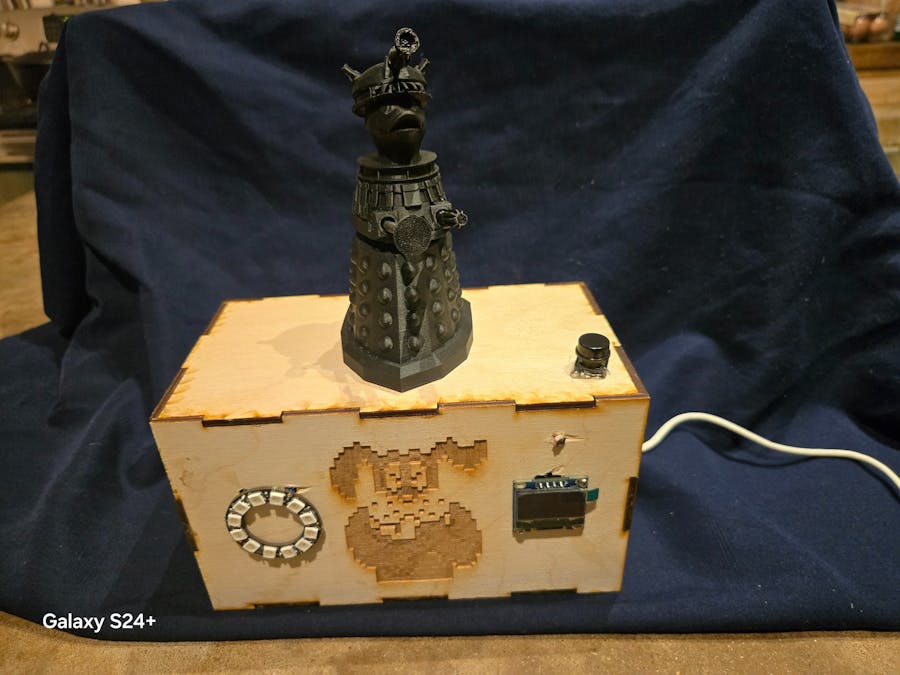

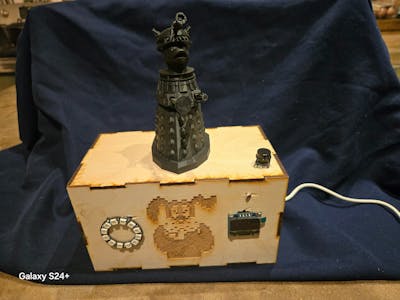

The Duckleks are coming, will you be the one to save us all? Or you can just check the temperature in the room or turn on lights with a laser gun and have a little light show and duck moving back and forth.
Duck hunt
C/C++The Duckleks are coming, will you be the one to save us all? Or you can just check the temperature in the room or turn on lights with a laser gun and have a little light show and duck moving back and forth.
#include "Particle.h"
#include "IoTclassroom_CNM.h"
#include <neopixel.h>
#include "color.h"
const int PIXELCOUNT = 45;
int bri = 65;
//const int(A0);
int pix;
int rnd_red;
int rnd_grn;
int rnd_blu;
Adafruit_NeoPixel pixel (PIXELCOUNT,SPI1,WS2812B);
bool OnOff; //use this to toggle between true or false (on or off)
const int BULB=3;
int color;
float volts;
int val;
const int potPin=A0;
const int MYWEMO=2;
Servo myser;
Button hueButton(D3); //create button object from button class
SYSTEM_MODE(MANUAL);
void setup() {
myser.attach(D13);
pixel.begin ();
pixel.setBrightness (bri);//value is over 225
pixel.show();
Serial.begin(9600);
waitFor(Serial.isConnected,15000);
WiFi.on();
WiFi.clearCredentials();
WiFi.setCredentials("IoTNetwork");
WiFi.connect();
while(WiFi.connecting()) {
Serial.printf(".");
}
Serial.printf("\n\n");
}
void loop() {
rnd_red =random (225);
rnd_grn =random (225);
rnd_blu =random (225);
for (int pix=0;pix<45;pix++){
pixel.setPixelColor (pix,rnd_red ,rnd_grn ,rnd_blu);
pixel.show();
if (hueButton.isClicked()){
delay(25);
OnOff = !OnOff;
Serial.printf("Setting color of bulb %i to color %06i\n",BULB,HueRainbow[color%7]);
setHue(BULB,OnOff,HueRainbow[color%7],random(32,255),255);
color++;
}
val = analogRead(potPin);
volts = (3.3/4095.0) * val;
Serial.printf("input=%0.1f\n",volts);
if (volts >=2.3){
myser.write(1);
Serial.printf("Turning on Weno# %i\n",MYWEMO);
wemoWrite(MYWEMO,HIGH);
}else{
myser.write(0);
Serial.printf("Turning off Wemo# %i\n",MYWEMO);
wemoWrite(MYWEMO,LOW);
}
}
}
#include "Particle.h"
#include "IoTclassroom_CNM.h"
#include <neopixel.h>
#include "color.h"
const int PIXELCOUNT = 45;
int bri = 65;
//const int(A0);
int pix;
int rnd_red;
int rnd_grn;
int rnd_blu;
Adafruit_NeoPixel pixel (PIXELCOUNT,SPI1,WS2812B);
bool OnOff; //use this to toggle between true or false (on or off)
const int BULB=3;
int color;
float volts;
int val;
const int potPin=A0;
const int MYWEMO=2;
Servo myser;
Button hueButton(D3); //create button object from button class
SYSTEM_MODE(MANUAL);
void setup() {
myser.attach(D13);
pixel.begin ();
pixel.setBrightness (bri);//value is over 225
pixel.show();
Serial.begin(9600);
waitFor(Serial.isConnected,15000);
WiFi.on();
WiFi.clearCredentials();
WiFi.setCredentials("IoTNetwork");
WiFi.connect();
while(WiFi.connecting()) {
Serial.printf(".");
}
Serial.printf("\n\n");
}
void loop() {
rnd_red =random (225);
rnd_grn =random (225);
rnd_blu =random (225);
for (int pix=0;pix<45;pix++){
pixel.setPixelColor (pix,rnd_red ,rnd_grn ,rnd_blu);
pixel.show();
if (hueButton.isClicked()){
delay(25);
OnOff = !OnOff;
Serial.printf("Setting color of bulb %i to color %06i\n",BULB,HueRainbow[color%7]);
setHue(BULB,OnOff,HueRainbow[color%7],random(32,255),255);
color++;
}
val = analogRead(potPin);
volts = (3.3/4095.0) * val;
Serial.printf("input=%0.1f\n",volts);
if (volts >=2.3){
myser.write(1);
Serial.printf("Turning on Weno# %i\n",MYWEMO);
wemoWrite(MYWEMO,HIGH);
}else{
myser.write(0);
Serial.printf("Turning off Wemo# %i\n",MYWEMO);
wemoWrite(MYWEMO,LOW);
}
}
}
