Horizontal platform

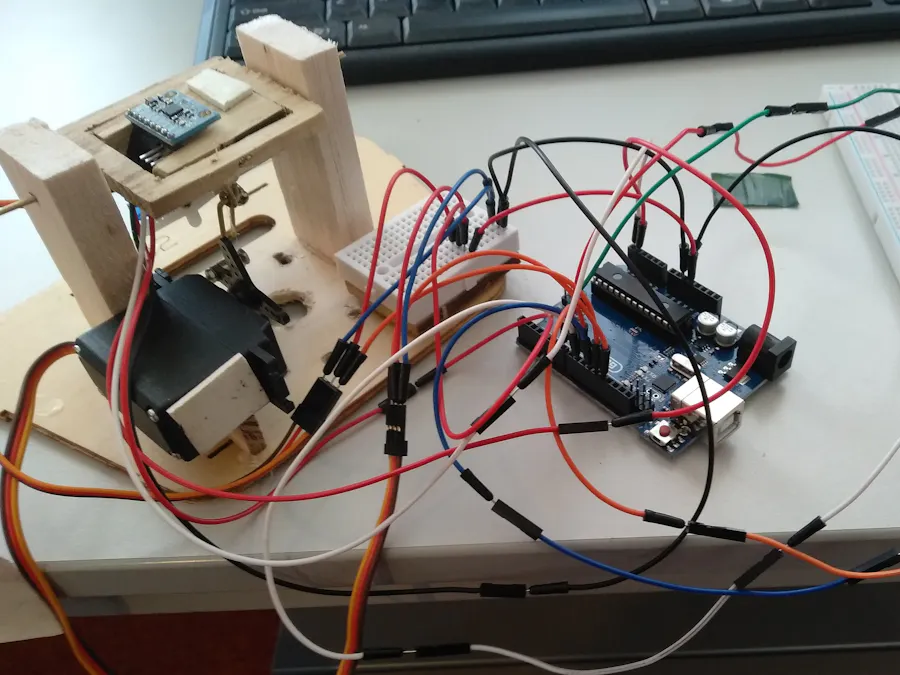

Two servos and a ITG/MPU together with a UNO can keep a platform horizontal while moving the frame around

IntermediateShowcase (no instructions)2,761
Horizontal platform

Things used in this project

Hardware components

Inertial Measurement Unit (IMU) (6 deg of freedom)
Inertial Measurement Unit (IMU) (6 deg of freedom)
×1
Arduino UNO
Arduino UNO
×1
SG90 Micro-servo motor
SG90 Micro-servo motor
×2
Breadboard (generic)
Breadboard (generic)
×1

Software apps and online services

Arduino IDE
Arduino IDE

Story

Read more

Schematics

horizontal platform

Code

servompu.ino

C/C++
#include<Wire.h>
#include <Servo.h>
#include <math.h>
const int MPU=0x68;
int16_t AcX,AcY,AcZ,Tmp,GyX,GyY,GyZ,servox,servoy,norm;
double pitch,roll;
Servo myservox;
Servo myservoy;

void setup(){
pinMode(7,OUTPUT);   // indicatie horizontaal;
pinMode(8,OUTPUT);   // indicatie pitch +;
pinMode(9,OUTPUT);   // indicatie pitch -;
pinMode(10,OUTPUT);   // indicatie roll +;
pinMode(11,OUTPUT);   // indicatie roll -;
myservox.attach(12);
myservoy.attach(13);
norm=2;
servox=90;    //middenpositie
servoy=90;    //tussen 0 en 179
myservox.write(servox);    //start op de middenpositie
myservoy.write(servoy);    //start op de middenpositie
Wire.begin();
Wire.beginTransmission(MPU);
Wire.write(0x6B);
Wire.write(0);
Wire.endTransmission(true);
//Serial.begin(9600);
}
void loop(){
Wire.beginTransmission(MPU);
Wire.write(0x3B);
Wire.endTransmission(false);
Wire.requestFrom(MPU,14,true);

int AcXoff,AcYoff,AcZoff,GyXoff,GyYoff,GyZoff;
int temp,toff;
double t,tx,tf;

//Acceleration data correction
AcXoff = -950;
AcYoff = -300;
AcZoff = 0;

//Temperature correction
toff = -1600;

//Gyro correction
GyXoff = 480;
GyYoff = 170;
GyZoff = 210;

//read accel data
AcX=(Wire.read()<<8|Wire.read()) + AcXoff;
AcY=(Wire.read()<<8|Wire.read()) + AcYoff;
AcZ=(Wire.read()<<8|Wire.read()) + AcYoff;

//read temperature data
temp=(Wire.read()<<8|Wire.read()) + toff;
tx=temp;
t = tx/340 + 36.53;
tf = (t * 9/5) + 32;

//read gyro data
GyX=(Wire.read()<<8|Wire.read()) + GyXoff;
GyY=(Wire.read()<<8|Wire.read()) + GyYoff;
GyZ=(Wire.read()<<8|Wire.read()) + GyZoff;

//get pitch/roll
getAngle(AcX,AcY,AcZ);
if (pitch<norm && pitch>-norm && roll<norm && roll>-norm)   // binnen de norm horizontaal
{
  digitalWrite(7, HIGH);
}
else
{
  digitalWrite(7, LOW);
}
if (pitch>norm)  // helt te veel voorover
{
  if (servox>0)
  {
   servox=servox-1;
   myservox.write(servox);
  }
  digitalWrite(8, HIGH);
}
else
{
  digitalWrite(8, LOW);
}

if (pitch<-norm)  // helt te veel achterover
{
  if (servox<179)
  {
   servox=servox+1;
   myservox.write(servox);
  }
  digitalWrite(9, HIGH);
}
else
{
  digitalWrite(9, LOW);
}
if (roll>norm)    // helt te veel naar links
{
  if (servoy<179)
  {
   servoy=servoy+1;
   myservoy.write(servoy);
  }
  digitalWrite(10, HIGH);
}
else
{
  digitalWrite(10, LOW);
}
if (roll<-norm)     // helt te veel naar rechts
{
  if (servoy>0)
  {
   servoy=servoy-1;
   myservoy.write(servoy);
  }

  digitalWrite(11, HIGH);
}
else
{
  digitalWrite(11, LOW);
}

//send the data out the serial port
//Serial.print("Angle: ");
//Serial.print("Pitch = "); Serial.print(pitch);
//Serial.print(" | Roll = "); Serial.print(roll);

//Serial.print("  Temp: ");
//Serial.print("Temp(F) = "); Serial.print(tf);
//Serial.print(" | Temp(C) = "); Serial.print(t);

//Serial.print("  Accel.: ");
//Serial.print("X = "); Serial.print(AcX);
//Serial.print(" | Y = "); Serial.print(AcY);
//Serial.print(" | Z = "); Serial.print(AcZ);

//Serial.print("  Gyroscope: ");
//Serial.print("X = "); Serial.print(GyX);
//Serial.print(" | Y = "); Serial.print(GyY);
//Serial.print(" | Z = "); Serial.println(GyZ);
//Serial.println(" ");
delay(20);
}

//convert the accel data to pitch/roll
void getAngle(int Vx,int Vy,int Vz) {
double x = Vx;
double y = Vy;
double z = Vz;

pitch = atan(x/sqrt((y*y) + (z*z)));
roll = atan(y/sqrt((x*x) + (z*z)));
//convert radians into degrees
pitch = pitch * (180.0/3.14);
roll = roll * (180.0/3.14) ;

}
