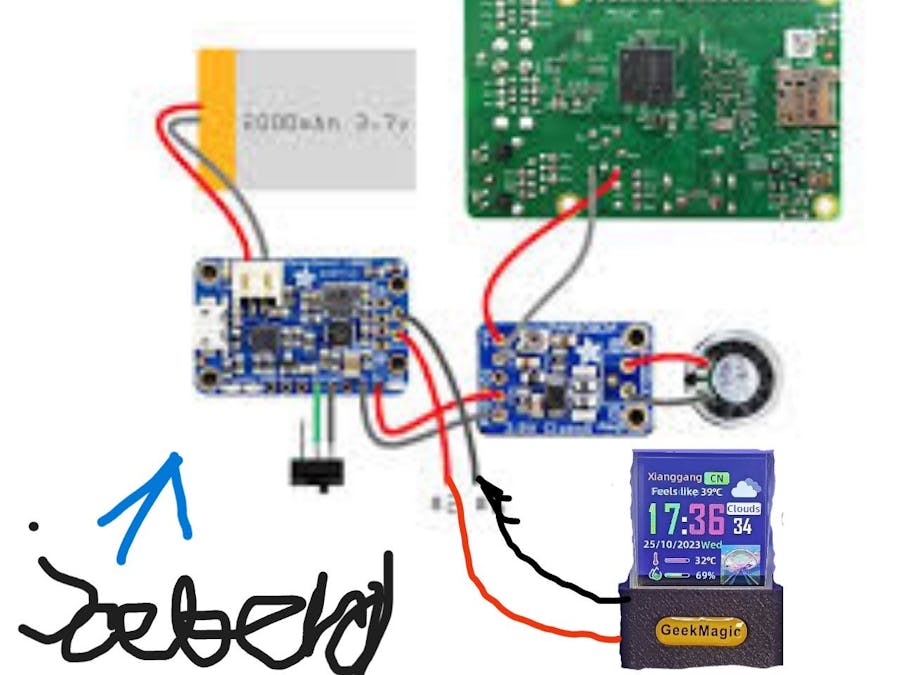

1. A portable video game console with a hologram function is a device that allows the user to enjoy the gameplay using holographic technology. The scheme of such a prefix may include the following components: 1. Main Module: This is the core of the device that provides the main functionality. It contains the processor, memory, graphics processor and operating system. 2. Display: The main screen of the set-top box, which displays game graphics and holograms. The display can be touch-sensitive to control gameplay. 3. Hologram projector: a special device that projects holograms onto an airy or transparent surface. The projector can be integrated into the set-top box itself or be a separate module. 4. Cameras: Devices that recognize user movements and gestures to control holograms and gameplay. Cameras can be placed around the screen or on other parts of the set-top box. 5. Communication modules: The set-top box can be equipped with Wi-Fi, Bluetooth and other modules for connecting to the Internet, data synchronization or playing in multiplayer mode. 6. Controls: To control the gameplay, the console can have various controls such as joysticks, buttons, touch panels or even voice control. 7. Battery: To ensure mobility, the set-top box is usually equipped with a built-in battery that allows you to play without connecting to a power source.
2. 1. Central Processing Unit (CPU): A high-performance mobile processor such as Intel Core i7 or AMD Ryzen 7 to provide enough power to run modern games and other computing tasks. 2. Graphics Processor (GPU): Powerful discrete graphics card such as Nvidia GeForce RTX or AMD Radeon RX series for graphics processing and smooth gaming graphics. 3. Random access memory (RAM): Usually 16 GB or more to provide enough memory for multitasking and running resource-demanding games. 4. Internal memory: SSD drive with enough space to store the operating system, applications and games. The volume can range from 256 GB to several terabytes. 5. Display: High-quality screen with Full HD or 4K resolution, providing bright and clear images. The screen size can range from 15 to 17 inches.
3. 6. Battery: Large battery capacity to ensure long battery life. The power can range from 60 to 100 watts per hour or more. 7. Smartwatch: Built-in smartwatch module with wristwatch display to display time, notifications, fitness data and other functions. This module can be integrated with the laptop's operating system and used to control some functions of the game or applications. 8. Keyboard and touchpad: Ergonomic and illuminated keyboard for comfortable typing and playing. The laptop will also have an integrated touchpad for easy cursor control. 9. Ports and connectors: Various ports for connecting external devices such as USB, HDMI, audio outputs, Ethernet, etc., to extend the functionality of the laptop. 10. Cooling: Cooling system with fans and heat pipes to maintain a low operating temperature of the components under intense load.
By JayJoeberg.
import json
from buject.Buject import Buject
import RPi.GPIO as GPIO
class MotorTest(Buject): #
def __init__(self, user_config=None):
super(MotorTest, self).__init__(user_config)
#
# GPIO
def on_ready(self):
GPIO.setmode(self.param["mode"])
GPIO.setwarnings(False)
# ,
#
#
# set_power
def incoming_request_set_power(self, message):
data = json.loads(message['data'])
if data['param']['value'] > 0: #
GPIO.setup(self.param['GPIO_reward'], GPIO.OUT, 0)
GPIO.setup(self.param['GPIO_forward'], GPIO.OUT, 1)
self.status['action'] = "forward"
elif data['param']['value'] == 0:
GPIO.setup(self.param['GPIO_forward'], GPIO.OUT, 0)
GPIO.setup(self.param['GPIO_reward'], GPIO.OUT, 0)
self.status['action'] = "stopped"
else:
GPIO.setup(self.param['GPIO_forward'], GPIO.OUT, 0)
GPIO.setup(self.param['GPIO_reward'], GPIO.OUT, 1)
self.status['action'] = "backward {0}%".format(self.status["power"])
# ,
if self.param['debug'] > 1:
self.log('Buject "{0}" {1}'.format(self.param['name'], self.status['action']))
{
"param": {
"name": {
"value": "MotorTest",
"description": " "
},
"parent": {
"value": "Buject",
"description": " , "
},
"buject": {
"value": "MotorTest",
"description": " = "
},
"GPIO_forward": {
"value": 0,
"description": " GPIO "
},
"GPIO_backward": {
"value": 0,
"description": " GPIO "
},
"GPIO_mode": {
"value": 11,
"description": "value for GPIO.setmode GPIO.BOARD=10 GPIO.BCM=11"
}
},
"incoming_request": {
"set_power": {
"name": "set_power",
"description": " ",
"param": {
"value": {
"description": " ",
"type": "int"
} } } } }
<!DOCTYPE html>
<html>
<head lang="en">
<meta charset="UTF-8">
<link rel="stylesheet" href="/static/jquery-ui-1.11.2/jquery-ui.css">
<script type="text/javascript" src="/static/jquery-2.1.3.min.js"></script>
<script type="text/javascript" src="/static/jquery-ui-1.11.2/jquery-ui.js"></script>
<script type="text/javascript" src="/static/bubot_socket.js"></script>
<title>BuBot</title>
<script>
function bubot_on_open() {
// ,
// WebSocketa
// , ui/studio ui/scout-->
}
function get_bubot_actions() {
// , ,
// .
// ui/studio ui/scout-->
return {};
}
$(function () {
//
$("#command_move_forward").button({}).mousedown(function () {
// ,
// 100%
// 0%-->
bubot_send_message('send_request', {'name': "set_move_motor_power",
'data': {'value': 100}});
}).mouseup(function () {
bubot_send_message('send_request', {'name': "set_move_motor_power",
'data': {'value': 0}});
});
})
</script>
</head>
<body class="ui-widget-content">
<button id="command_move_forward" class="command_button">forward</button>
<div id="console" class="ui-widget-content"></div>
</body>
</html>
{
"incoming_request": {
"console": {
"time": {},
"message": {}
}
},
"outgoing_request": {
"set_move_motor_power": {
"name": "set_power",
"buject": "move_motor",
"description": " ",
"param": {
"value": {
"description": " , > 0, < 0",
"type": "int"
}
}
},
"set_rotate_motor_power": {
"name": "set_power",
"buject": "rotate_motor",
"description": " ",
"param": {
"value": {
"description": " , > 0, < 0",
"type": "int"
} } } } }
{
"param": {
"name": {
"value": "scout_easy"
}
},
"depend_buject": { #
"move_motor": { # , ,
"param": {
"buject": { #
"value": "MotorTest"
},
"name": { #
"value": "move_motor"
},
"GPIO_forward": { #
"value": 20
},
"GPIO_reward": {
"value": 21
}
}
},
"rotate_motor": { #
"param": {
"buject": {
"value": "MotorTest"
},
"name": {
"value": "rotate_motor"
},
"GPIO_forward": {
"value": 13
},
"GPIO_reward": {
"value": 19
} } } } }
//include libraries:
#include "LedControl.h"
#include <FontLEDClock.h> // Font library
#include <Wire.h> // DS1307 clock
#include "RTClib.h" // DS1307 clock
#include <Button.h> // Button library by Alexander Brevig
// Setup LED Matrix
// pin 10 is connected to the DataIn on the display
// pin 12 is connected to the CLK on the display
// pin 11 is connected to LOAD on the display(cs)
LedControl lc = LedControl(10, 12, 11, 4); //sets the 3 pins as 12, 11 & 10 and then sets 4 displays (max is 8 displays)
//global variables
byte intensity = 7; // Default intensity/brightness (0-15)
byte clock_mode = 0; // Default clock mode. Default = 0 (basic_mode)
bool random_mode = 0; // Define random mode - changes the display type every few hours. Default = 0 (off)
byte old_mode = clock_mode; // Stores the previous clock mode, so if we go to date or whatever, we know what mode to go back to after.
bool ampm = 0; // Define 12 or 24 hour time. 0 = 24 hour. 1 = 12 hour
byte change_mode_time = 0; // Holds hour when clock mode will next change if in random mode.
unsigned long delaytime = 500; // We always wait a bit between updates of the display
int rtc[7]; // Holds real time clock output
char days[7][4] = {
"Sun", "Mon", "Tue", "Wed", "Thu", "Fri", "Sat"
}; //day array - used in slide, basic_mode and jumble modes (The DS1307 outputs 1-7 values for day of week)
char daysfull[7][9] = {
"Sunday", "Monday", "Tuesday", "Wed", "Thursday", "Friday", "Saturday"
};
char suffix[4][3] = {
"st", "nd", "rd", "th"
}; //date suffix array, used in slide, basic_mode and jumble modes. e,g, 1st 2nd ...
//define constants
#define NUM_DISPLAY_MODES 3 // Number display modes (conting zero as the first mode)
#define NUM_SETTINGS_MODES 4 // Number settings modes = 6 (conting zero as the first mode)
#define SLIDE_DELAY 20 // The time in milliseconds for the slide effect per character in slide mode. Make this higher for a slower effect
#define cls clear_display // Clear display
RTC_DS1307 ds1307; // Create RTC object
Button buttonA = Button(2, BUTTON_PULLUP); // Setup button A (using button library)
Button buttonB = Button(3, BUTTON_PULLUP); // Setup button B (using button library)
void setup() {
digitalWrite(2, HIGH); // turn on pullup resistor for button on pin 2
digitalWrite(3, HIGH); // turn on pullup resistor for button on pin 3
digitalWrite(4, HIGH); // turn on pullup resistor for button on pin 4
Serial.begin(9600); //start serial
//initialize the 4 matrix panels
//we have already set the number of devices when we created the LedControl
int devices = lc.getDeviceCount();
//we have to init all devices in a loop
for (int address = 0; address < devices; address++) {
/*The MAX72XX is in power-saving mode on startup*/
lc.shutdown(address, false);
/* Set the brightness to a medium values */
lc.setIntensity(address, intensity);
/* and clear the display */
lc.clearDisplay(address);
}
//Setup DS1307 RTC
#ifdef AVR
Wire.begin();
#else
Wire1.begin(); // Shield I2C pins connect to alt I2C bus on Arduino
#endif
ds1307.begin(); //start RTC Clock
if (! ds1307.isrunning()) {
Serial.println("RTC is NOT running!");
ds1307.adjust(DateTime(__DATE__, __TIME__)); // sets the RTC to the date & time this sketch was compiled
}
//Show software version & hello message
printver();
//enable red led
digitalWrite(13, HIGH);
}
void loop() {
//run the clock with whatever mode is set by clock_mode - the default is set at top of code.
switch (clock_mode){
case 0:
basic_mode();
break;
case 1:
small_mode();
break;
case 2:
slide();
break;
case 3:
word_clock();
break;
case 4:
setup_menu();
break;
}
}
//plot a point on the display
void plot (byte x, byte y, byte val) {
//select which matrix depending on the x coord
byte address;
if (x >= 0 && x <= 7) {
address = 3;
}
if (x >= 8 && x <= 15) {
address = 2;
x = x - 8;
}
if (x >= 16 && x <= 23) {
address = 1;
x = x - 16;
}
if (x >= 24 && x <= 31) {
address = 0;
x = x - 24;
}
if (val == 1) {
// lc.setLed(address, y, x, true);
lc.setLed(address, 7-y, x, true);
} else {
// lc.setLed(address, y, x, false);
lc.setLed(address, 7-y, x, false);
}
}
//clear screen
void clear_display() {
for (byte address = 0; address < 4; address++) {
lc.clearDisplay(address);
}
}
//fade screen down
void fade_down() {
//fade from global intensity to 1
for (byte i = intensity; i > 0; i--) {
for (byte address = 0; address < 4; address++) {
lc.setIntensity(address, i);
}
delay(30); //change this to change fade down speed
}
clear_display(); //clear display completely (off)
//reset intentsity to global val
for (byte address = 0; address < 4; address++) {
lc.setIntensity(address, intensity);
}
}
//power up led test & display software version number
void printver() {
byte i = 0;
char ver_a[9] = "Vers 1.0";
char ver_b[9] = " Hello! ";
//test all leds.
for (byte x = 0; x <= 31; x++) {
for (byte y = 0; y <= 7; y++) {
plot(x, y, 1);
}
}
delay(500);
fade_down();
while (ver_a[i]) {
puttinychar((i * 4), 1, ver_a[i]);
delay(35);
i++;
}
delay(700);
fade_down();
i = 0;
while (ver_b[i]) {
puttinychar((i * 4), 1, ver_b[i]);
delay(35);
i++;
}
delay(700);
fade_down();
}
// puttinychar
// Copy a 3x5 character glyph from the myfont data structure to display memory, with its upper left at the given coordinate
// This is unoptimized and simply uses plot() to draw each dot.
void puttinychar(byte x, byte y, char c)
{
byte dots;
if (c >= 'A' && c <= 'Z' || (c >= 'a' && c <= 'z') ) {
c &= 0x1F; // A-Z maps to 1-26
}
else if (c >= '0' && c <= '9') {
c = (c - '0') + 32;
}
else if (c == ' ') {
c = 0; // space
}
else if (c == '.') {
c = 27; // full stop
}
else if (c == ':') {
c = 28; // colon
}
else if (c == '\'') {
c = 29; // single quote mark
}
else if (c == '!') {
c = 30; // single quote mark
}
else if (c == '?') {
c = 31; // single quote mark
}
for (byte col = 0; col < 3; col++) {
dots = pgm_read_byte_near(&mytinyfont[c][col]);
for (char row = 0; row < 5; row++) {
if (dots & (16 >> row))
plot(x + col, y + row, 1);
else
plot(x + col, y + row, 0);
}
}
}
void putnormalchar(byte x, byte y, char c)
{
byte dots;
// if (c >= 'A' && c <= 'Z' || (c >= 'a' && c <= 'z') ) {
// c &= 0x1F; // A-Z maps to 1-26
// }
if (c >= 'A' && c <= 'Z' ) {
c &= 0x1F; // A-Z maps to 1-26
}
else if (c >= 'a' && c <= 'z') {
c = (c - 'a') + 41; // A-Z maps to 41-67
}
else if (c >= '0' && c <= '9') {
c = (c - '0') + 31;
}
else if (c == ' ') {
c = 0; // space
}
else if (c == '.') {
c = 27; // full stop
}
else if (c == '\'') {
c = 28; // single quote mark
}
else if (c == ':') {
c = 29; // clock_mode selector arrow
}
else if (c == '>') {
c = 30; // clock_mode selector arrow
}
else if (c >= -80 && c <= -67) {
c *= -1;
}
for (char col = 0; col < 5; col++) {
dots = pgm_read_byte_near(&myfont[c][col]);
for (char row = 0; row < 7; row++) {
//check coords are on screen before trying to plot
//if ((x >= 0) && (x <= 31) && (y >= 0) && (y <= 7)){
if (dots & (64 >> row)) { // only 7 rows.
plot(x + col, y + row, 1);
} else {
plot(x + col, y + row, 0);
}
//}
}
}
}
//small_mode
//show the time in small 3x5 characters with seconds display
void small_mode() {
char textchar[8]; // the 16 characters on the display
byte mins = 100; //mins
byte secs = rtc[0]; //seconds
byte old_secs = secs; //holds old seconds value - from last time seconds were updated o display - used to check if seconds have changed
cls();
//run clock main loop as long as run_mode returns true
while (run_mode()) {
get_time();
//check for button press
if (buttonA.uniquePress()) {
switch_mode();
return;
}
if (buttonB.uniquePress()) {
display_date();
return;
}
//if secs changed then update them on the display
secs = rtc[0];
if (secs != old_secs) {
//secs
char buffer[3];
itoa(secs, buffer, 10);
//fix - as otherwise if num has leading zero, e.g. "03" secs, itoa coverts this to chars with space "3 ".
if (secs < 10) {
buffer[1] = buffer[0];
buffer[0] = '0';
}
puttinychar( 20, 1, ':'); //seconds colon
puttinychar( 24, 1, buffer[0]); //seconds
puttinychar( 28, 1, buffer[1]); //seconds
old_secs = secs;
}
//if minute changes change time
if (mins != rtc[1]) {
//reset these for comparison next time
mins = rtc[1];
byte hours = rtc[2];
if (hours > 12) {
hours = hours - ampm * 12;
}
if (hours < 1) {
hours = hours + ampm * 12;
}
//byte dow = rtc[3]; // the DS1307 outputs 0 - 6 where 0 = Sunday0 - 6 where 0 = Sunday.
//byte date = rtc[4];
//set characters
char buffer[3];
itoa(hours, buffer, 10);
//fix - as otherwise if num has leading zero, e.g. "03" hours, itoa coverts this to chars with space "3 ".
if (hours < 10) {
buffer[1] = buffer[0];
//if we are in 12 hour mode blank the leading zero.
if (ampm) {
buffer[0] = ' ';
}
else {
buffer[0] = '0';
}
}
//set hours chars
textchar[0] = buffer[0];
textchar[1] = buffer[1];
textchar[2] = ':';
itoa (mins, buffer, 10);
if (mins < 10) {
buffer[1] = buffer[0];
buffer[0] = '0';
}
//set mins characters
textchar[3] = buffer[0];
textchar[4] = buffer[1];
//do seconds
textchar[5] = ':';
buffer[3];
secs = rtc[0];
itoa(secs, buffer, 10);
//fix - as otherwise if num has leading zero, e.g. "03" secs, itoa coverts this to chars with space "3 ".
if (secs < 10) {
buffer[1] = buffer[0];
buffer[0] = '0';
}
//set seconds
textchar[6] = buffer[0];
textchar[7] = buffer[1];
byte x = 0;
byte y = 0;
//print each char
for (byte x = 0; x < 6 ; x++) {
puttinychar( x * 4, 1, textchar[x]);
}
}
delay(50);
}
fade_down();
}
// basic_mode()
// show the time in 5x7 characters
void basic_mode()
{
cls();
char buffer[3]; //for int to char conversion to turn rtc values into chars we can print on screen
byte offset = 0; //used to offset the x postition of the digits and centre the display when we are in 12 hour mode and the clock shows only 3 digits. e.g. 3:21
byte x, y; //used to draw a clear box over the left hand "1" of the display when we roll from 12:59 -> 1:00am in 12 hour mode.
//do 12/24 hour conversion if ampm set to 1
byte hours = rtc[2];
if (hours > 12) {
hours = hours - ampm * 12;
}
if (hours < 1) {
hours = hours + ampm * 12;
}
//do offset conversion
if (ampm && hours < 10) {
offset = 2;
}
//set the next minute we show the date at
//set_next_date();
// initially set mins to value 100 - so it wll never equal rtc[1] on the first loop of the clock, meaning we draw the clock display when we enter the function
byte secs = 100;
byte mins = 100;
int count = 0;
//run clock main loop as long as run_mode returns true
while (run_mode()) {
//get the time from the clock chip
get_time();
//check for button press
if (buttonA.uniquePress()) {
switch_mode();
return;
}
if (buttonB.uniquePress()) {
display_date();
return;
}
//check whether it's time to automatically display the date
//check_show_date();
//draw the flashing : as on if the secs have changed.
if (secs != rtc[0]) {
//update secs with new value
secs = rtc[0];
//draw :
plot (15 - offset, 2, 1); //top point
plot (15 - offset, 5, 1); //bottom point
count = 400;
}
//if count has run out, turn off the :
if (count == 0) {
plot (15 - offset, 2, 0); //top point
plot (15 - offset, 5, 0); //bottom point
}
else {
count--;
}
//re draw the display if button pressed or if mins != rtc[1] i.e. if the time has changed from what we had stored in mins, (also trigggered on first entering function when mins is 100)
if (mins != rtc[1]) {
//update mins and hours with the new values
mins = rtc[1];
hours = rtc[2];
//adjust hours of ampm set to 12 hour mode
if (hours > 12) {
hours = hours - ampm * 12;
}
if (hours < 1) {
hours = hours + ampm * 12;
}
itoa(hours, buffer, 10);
//if hours < 10 the num e.g. "3" hours, itoa coverts this to chars with space "3 " which we dont want
if (hours < 10) {
buffer[1] = buffer[0];
buffer[0] = '0';
}
//print hours
//if we in 12 hour mode and hours < 10, then don't print the leading zero, and set the offset so we centre the display with 3 digits.
if (ampm && hours < 10) {
offset = 2;
//if the time is 1:00am clear the entire display as the offset changes at this time and we need to blank out the old 12:59
if ((hours == 1 && mins == 0) ) {
cls();
}
}
else {
//else no offset and print hours tens digit
offset = 0;
//if the time is 10:00am clear the entire display as the offset changes at this time and we need to blank out the old 9:59
if (hours == 10 && mins == 0) {
cls();
}
putnormalchar(1, 0, buffer[0]);
}
//print hours ones digit
putnormalchar(7 - offset, 0, buffer[1]);
//print mins
//add leading zero if mins < 10
itoa (mins, buffer, 10);
if (mins < 10) {
buffer[1] = buffer[0];
buffer[0] = '0';
}
//print mins tens and ones digits
putnormalchar(19 - offset, 0, buffer[0]);
putnormalchar(25 - offset, 0, buffer[1]);
}
}
fade_down();
}
//like basic_mode but with slide effect
void slide() {
byte digits_old[4] = {99, 99, 99, 99}; //old values we store time in. Set to somthing that will never match the time initially so all digits get drawn wnen the mode starts
byte digits_new[4]; //new digits time will slide to reveal
byte digits_x_pos[4] = {25, 19, 7, 1}; //x pos for which to draw each digit at
char old_char[2]; //used when we use itoa to transpose the current digit (type byte) into a char to pass to the animation function
char new_char[2]; //used when we use itoa to transpose the new digit (type byte) into a char to pass to the animation function
//old_chars - stores the 5 day and date suffix chars on the display. e.g. "mon" and "st". We feed these into the slide animation as the current char when these chars are updated.
//We sent them as A initially, which are used when the clocl enters the mode and no last chars are stored.
//char old_chars[6] = "AAAAA";
//plot the clock colon on the display
cls();
putnormalchar( 13, 0, ':');
byte old_secs = rtc[0]; //store seconds in old_secs. We compare secs and old secs. WHen they are different we redraw the display
//run clock main loop as long as run_mode returns true
while (run_mode()) {
get_time();
//check for button press
if (buttonA.uniquePress()) {
switch_mode();
return;
}
if (buttonB.uniquePress()) {
display_date();
return;
}
//if secs have changed then update the display
if (rtc[0] != old_secs) {
old_secs = rtc[0];
//do 12/24 hour conversion if ampm set to 1
byte hours = rtc[2];
if (hours > 12) {
hours = hours - ampm * 12;
}
if (hours < 1) {
hours = hours + ampm * 12;
}
//split all date and time into individual digits - stick in digits_new array
//rtc[0] = secs //array pos and digit stored
//digits_new[0] = (rtc[0]%10); //0 - secs ones
//digits_new[1] = ((rtc[0]/10)%10); //1 - secs tens
//rtc[1] = mins
digits_new[0] = (rtc[1] % 10); //2 - mins ones
digits_new[1] = ((rtc[1] / 10) % 10); //3 - mins tens
//rtc[2] = hours
digits_new[2] = (hours % 10); //4 - hour ones
digits_new[3] = ((hours / 10) % 10); //5 - hour tens
//rtc[4] = date
//digits_new[6] = (rtc[4]%10); //6 - date ones
//digits_new[7] = ((rtc[4]/10)%10); //7 - date tens
//draw initial screen of all chars. After this we just draw the changes.
//compare digits 0 to 3 (mins and hours)
for (byte i = 0; i <= 3; i++) {
//see if digit has changed...
if (digits_old[i] != digits_new[i]) {
//run 9 step animation sequence for each in turn
for (byte seq = 0; seq <= 8 ; seq++) {
//convert digit to string
itoa(digits_old[i], old_char, 10);
itoa(digits_new[i], new_char, 10);
//if set to 12 hour mode and we're on digit 2 (hours tens mode) then check to see if this is a zero. If it is, blank it instead so we get 2.00pm not 02.00pm
if (ampm && i == 3) {
if (digits_new[3] == 0) {
new_char[0] = ' ';
}
if (digits_old[3] == 0) {
old_char[0] = ' ';
}
}
//draw the animation frame for each digit
slideanim(digits_x_pos[i], 0, seq, old_char[0], new_char[0]);
delay(SLIDE_DELAY);
}
}
}
/*
//compare date digit 6 (ones) and (7) tens - if either of these change we need to update the date line. We compare date tens as say from Jan 31 -> Feb 01 then ones digit doesn't change
if ((digits_old[6] != digits_new[6]) || (digits_old[7] != digits_new[7])) {
//change the day shown. Loop below goes through each of the 3 chars in turn e.g. "MON"
for (byte day_char = 0; day_char <=2 ; day_char++){
//run the anim sequence for each char
for (byte seq = 0; seq <=8 ; seq++){
//the day (0 - 6) Read this number into the days char array. the seconds number in the array 0-2 gets the 3 chars of the day name, e.g. m o n
slideanim(6*day_char,8,seq,old_chars[day_char],days[rtc[3]][day_char]); //6 x day_char gives us the x pos for the char
delay(SLIDE_DELAY);
}
//save the old day chars into the old_chars array at array pos 0-2. We use this next time we change the day and feed it to the animation as the current char. The updated char is fed in as the new char.
old_chars[day_char] = days[rtc[3]][day_char];
}
//change the date tens digit (if needed) and ones digit. (the date ones digit wil alwaus change, but putting this in the 'if' loop makes it a bit neater code wise.)
for (byte i = 7; i >= 6; i--){
if (digits_old[i] != digits_new[i]) {
for (byte seq = 0; seq <=8 ; seq++){
itoa(digits_old[i],old_char,10);
itoa(digits_new[i],new_char,10);
slideanim(digits_x_pos[i],8,seq,old_char[0],new_char[0]);
delay(SLIDE_DELAY);
}
}
}
//print the day suffix "nd" "rd" "th" etc. First work out date 2 letter suffix - eg st, nd, rd, th
byte s = 3; //the pos to read our suffix array from.
byte date = rtc[4];
if(date == 1 || date == 21 || date == 31) {
s = 0;
}
else if (date == 2 || date == 22) {
s = 1;
}
else if (date == 3 || date == 23) {
s = 2;
}
for (byte suffix_char = 0; suffix_char <=1 ; suffix_char++){
for (byte seq = 0; seq <=8 ; seq++){
slideanim((suffix_char*6)+36,8,seq,old_chars[suffix_char+3],suffix[s][suffix_char]); // we pass in the old_char array char as the current char and the suffix array as the new char
delay(SLIDE_DELAY);
}
//save the suffic char in the old chars array at array pos 3 and 5. We use these chars next time we change the suffix and feed it to the animation as the current char. The updated char is fed in as the new char.
old_chars[suffix_char+3] = suffix[s][suffix_char];
}
}//end do date line
*/
//save digita array tol old for comparison next loop
for (byte i = 0; i <= 3; i++) {
digits_old[i] = digits_new[i];
}
}//secs/oldsecs
}//while loop
fade_down();
}
//called by slide
//this draws the animation of one char sliding on and the other sliding off. There are 8 steps in the animation, we call the function to draw one of the steps from 0-7
//inputs are are char x and y, animation frame sequence (0-7) and the current and new chars being drawn.
void slideanim(byte x, byte y, byte sequence, char current_c, char new_c) {
// To slide one char off and another on we need 9 steps or frames in sequence...
// seq# 0123456 <-rows of the display
// | |||||||
// seq0 0123456 START - all rows of the display 0-6 show the current characters rows 0-6
// seq1 012345 current char moves down one row on the display. We only see it's rows 0-5. There are at display positions 1-6 There is a blank row inserted at the top
// seq2 6 01234 current char moves down 2 rows. we now only see rows 0-4 at display rows 2-6 on the display. Row 1 of the display is blank. Row 0 shows row 6 of the new char
// seq3 56 0123
// seq4 456 012 half old / half new char
// seq5 3456 01
// seq6 23456 0
// seq7 123456
// seq8 0123456 END - all rows show the new char
//from above we can see...
//currentchar runs 0-6 then 0-5 then 0-4 all the way to 0. starting Y position increases by 1 row each time.
//new char runs 6 then 5-6 then 4-6 then 3-6. starting Y position increases by 1 row each time.
//if sequence number is below 7, we need to draw the current char
if (sequence < 7) {
byte dots;
// if (current_c >= 'A' && || (current_c >= 'a' && current_c <= 'z') ) {
// current_c &= 0x1F; // A-Z maps to 1-26
// }
if (current_c >= 'A' && current_c <= 'Z' ) {
current_c &= 0x1F; // A-Z maps to 1-26
}
else if (current_c >= 'a' && current_c <= 'z') {
current_c = (current_c - 'a') + 41; // A-Z maps to 41-67
}
else if (current_c >= '0' && current_c <= '9') {
current_c = (current_c - '0') + 31;
}
else if (current_c == ' ') {
current_c = 0; // space
}
else if (current_c == '.') {
current_c = 27; // full stop
}
else if (current_c == '\'') {
current_c = 28; // single quote mark
}
else if (current_c == ':') {
current_c = 29; //colon
}
else if (current_c == '>') {
current_c = 30; // clock_mode selector arrow
}
byte curr_char_row_max = 7 - sequence; //the maximum number of rows to draw is 6 - sequence number
byte start_y = sequence; //y position to start at - is same as sequence number. We inc this each loop
//plot each row up to row maximum (calculated from sequence number)
for (byte curr_char_row = 0; curr_char_row <= curr_char_row_max; curr_char_row++) {
for (byte col = 0; col < 5; col++) {
dots = pgm_read_byte_near(&myfont[current_c][col]);
if (dots & (64 >> curr_char_row))
plot(x + col, y + start_y, 1); //plot led on
else
plot(x + col, y + start_y, 0); //else plot led off
}
start_y++;//add one to y so we draw next row one down
}
}
//draw a blank line between the characters if sequence is between 1 and 7. If we don't do this we get the remnants of the current chars last position left on the display
if (sequence >= 1 && sequence <= 8) {
for (byte col = 0; col < 5; col++) {
plot(x + col, y + (sequence - 1), 0); //the y position to draw the line is equivalent to the sequence number - 1
}
}
//if sequence is above 2, we also need to start drawing the new char
if (sequence >= 2) {
//work out char
byte dots;
//if (new_c >= 'A' && new_c <= 'Z' || (new_c >= 'a' && new_c <= 'z') ) {
// new_c &= 0x1F; // A-Z maps to 1-26
//}
if (new_c >= 'A' && new_c <= 'Z' ) {
new_c &= 0x1F; // A-Z maps to 1-26
}
else if (new_c >= 'a' && new_c <= 'z') {
new_c = (new_c - 'a') + 41; // A-Z maps to 41-67
}
else if (new_c >= '0' && new_c <= '9') {
new_c = (new_c - '0') + 31;
}
else if (new_c == ' ') {
new_c = 0; // space
}
else if (new_c == '.') {
new_c = 27; // full stop
}
...
