Created March 18, 2021

Focus Assistant

A device which implements a similar concept like Microsoft Windows Focus Assist. It's main goal is to hide distractions from the user.

Intermediate20 hours34

Things used in this project

Hardware components

SparkFun Stepper motor driver board A4988

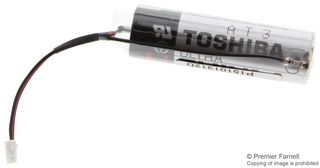

Battery, Linear Motors & Drives

Battery Holder, 18650 x 1

Seeed Studio Grove - I2C Touch Sensor(MPR121)

TaydaElectronics DC POWER JACK 2.1MM BARREL-TYPE PCB MOUNT

Limit Switch, 5 A

Adafruit Standard LCD - 16x2 White on Blue

Rocker Switch, Non Illuminated

SparkFun Power Cell - LiPo Charger/Booster

Raspberry Pi Pi Pico

Software apps and online services

MicroPython

Hand tools and fabrication machines

Soldering iron (generic)

Hot glue gun (generic)

Story

What is it?

Focus Assistant allows one to set a duration to lock distractions away from.

Some examples of distractions includes:

Mobile Phone/Earpieces when driving
Mobile Phone during lessons
Electronic Micro controller (Arduino/Pi Pico)
Food

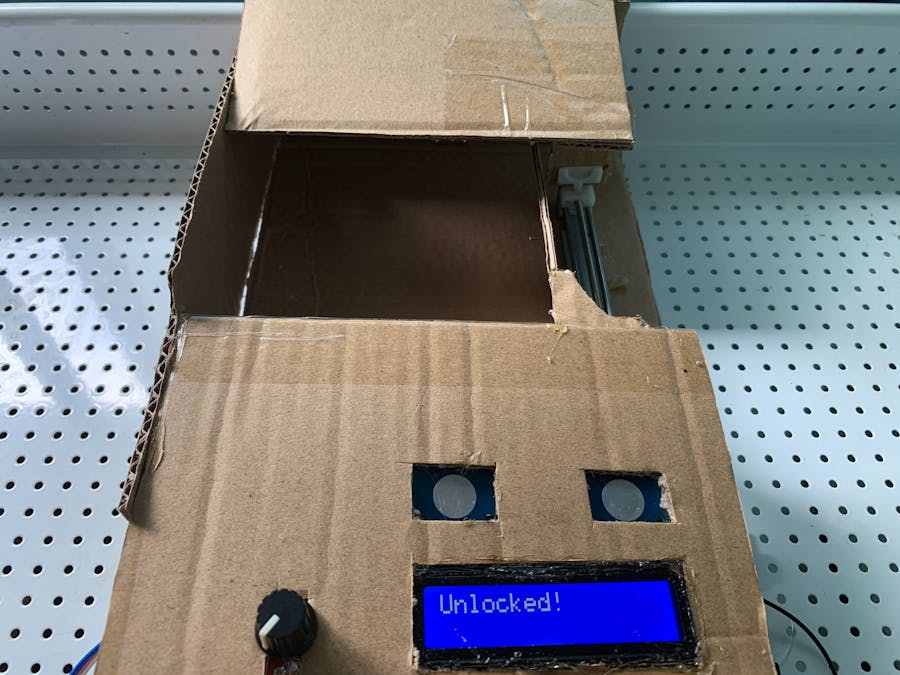

Focus Assistant have a linearly movable cover which can lock the items away for a given duration, selected by the user.

Animation of Cover

Process of Focus Assistant

Circuit

Circuits

Through the codes, i found out that 3300 steps is needed to move the cover 80mm, which is the maximum distance of the Linear Motor

Stepper Motor

When the code is first started, it will run calibrate the motor. By moving backwards if the limit switch is not pressed. Therefore, the code will know the position of the lock at any time. When step = 0, locked. When step = 3300, unlocked.

Power Consumption

Focus Assistant is powered by a 18650 Li-Po battery (2000mAh). This will allow it to run for 4 days continuously.

Without the Deep Sleep function, the micro controller will draw current even when it is idling.

In order to mitigate this issue, and increase the battery life of the product, I added a switch between the battery output and the VSYS (power input) of the Pi Pico. Hence, if the product is not used, we can cut the power to reduce power consumption.

Assuming that Focus Assistant is enabled for 6 Hours daily, it can last for 16 days on a single charge. A micro-USB port is also available at the side to allow for easy recharging.

With the inclusion of a switch, the program would have to remember if the unlock time, to prevent the user from simply resetting the code....which defeats the purpose of Focus Assistant. Fortunately, it is easy to do so with Pi Pico. We can simply create a text file to save the unlock time, which allows it to check if the duration have elapsed.

Unlocking prematurely

There might be sometimes where it is needed to access your distractions. However, to reduce the chances of doing so, we should make it difficult.

Of course, one can just tear the top of the prototype open. The actual product will be made of Medium-density fiberboard (MDF), making it impossible :)

Here are the steps: (hopefully, it's difficult enough!)

Opening up the electronics enclosure (pulling out wires for screen and capacitive buttons)
Crossing of Ground Pin and Run Pin (referring to the Pin Map)
Connecting a computer to Pi Pico through micro-USB
Deleting the saved "end-time" from Pi Pico
Resetting Pi Pico

Issues and improvements

As Pi Pico is released recently, not all of it's function are supported in MicroPython yet.

Features such as RTC, alarm and Low power mode are currently not included in the library.

As such, I have to find workarounds in order to make the code work as intended. This method have resulted in increased power consumption.

However, when reset, Pi Pico will also restart the real time clock time. Hence, the user should not reset it as Pi Pico will assume that the elapsed time = 0

Prototype Video!

Schematics

Code

MicroPython Code for Raspberry Pi Pico

from machine import *
import utime
from lcd_api import LcdApi
from pico_i2c_lcd import I2cLcd

I2C_ADDR     = 0x3F
I2C_NUM_ROWS = 2
I2C_NUM_COLS = 16

buttonl = Pin(6, Pin.IN, Pin.PULL_DOWN)
buttonr = Pin(7, Pin.IN, Pin.PULL_DOWN)
end_pin = Pin(8, Pin.IN, Pin.PULL_DOWN)
potentio = ADC(Pin(26))
dir_pin = Pin(9, Pin.OUT)
step_pin = Pin(10, Pin.OUT)
enable_pin = Pin(11, Pin.OUT)

buttons = [0, 0]
max_time = 60*6
firstrun = True
locked = False
end_time = [0, 0]




i2c = I2C(0, sda=machine.Pin(0), scl=machine.Pin(1), freq=400000)
lcd = I2cLcd(i2c, I2C_ADDR, I2C_NUM_ROWS, I2C_NUM_COLS)


def lcdWrite(location, data, clear = False):
    if clear:
        lcd.clear()
    if location == 1:
        lcd.move_to(0,0)
    elif location == 2:
        lcd.move_to(0,1)
    elif location == 3:
        lcd.move_to(15,0)
    elif location == 4:
        lcd.move_to(15,1)

    lcd.putstr(data)


def buttonStatus():
    global buttons

    if buttonl.value():
        waitPinChange(buttonl)
        buttons[0] = 1
    else:
        buttons[0] = 0

    if buttonr.value():
        waitPinChange(buttonr)
        buttons[1] = 1
    else:
        buttons[1] = 0

def stepper(lock):
    enable_pin.low()
    if lock:
        dir_pin.high()
    else:
        dir_pin.low()

    for i in range (3300):
        step_pin.high()
        utime.sleep_ms(1)
        step_pin.low()
        utime.sleep_ms(1)

    enable_pin.high()

def calibrate():
    lcdWrite(1, "Calibrating...", True)
    dir_pin.high()
    enable_pin.low()
#   move towards closed position
    while not end_pin.value():
        step_pin.high()
        utime.sleep_ms(2)
        step_pin.low()
        utime.sleep_ms(2)

    enable_pin.high()


def mintoHour(input_time):
    if input_time > 60:
        minute = input_time % 60
        hours = int(input_time/60)
        minutes = input_time % 60
        return [hours, minutes]
    else:
        return [0, input_time]

def getCurrentTime():
    time = utime.localtime()
    current_time = [time[3], time[4]]
    return current_time

def updateEndTime(input_time):
    global end_time
    time = getCurrentTime()
    duration = mintoHour(input_time)
    end_min = time[1] + duration [1]
    end_hour = time[0] + duration[0]

    if end_min >=60:
        end_min -= 60
        end_hour += 1
    if end_hour >24:
        end_hour = 24

    end_time = [end_hour, end_min]
    file = open("storage_data.txt", "w")
    file.write(str(end_hour) + ":" + str(end_min))
    file.close()


def timeDifference(start, end):
    output = [0, 0]
    output[0] = end[0] - start[0]
    output[1] = end[1] - start[1]
    if output[1] < 0:
        output[0] -= 1
        output[1] += 60
    return output

def prelock(duration, mode):
    lcd.clear()
    if mode == 1:
        lcdWrite(1, "Locking for:", True)
        lcdWrite(2, str(duration) + " Minutes")

    # time
    if mode == 2:
        lcdWrite(1, "Locking until:", True)
        lcdWrite(2, str(end_time[0]) + ":" + str(end_time[1]))
    stepper(False)
    lcdWrite(4, ">")
    updateEndTime(duration)

def lock():
    global locked
    stepper(True)
    print("Countdown")
    lcd.backlight_off()
    lcd.display_off()
    locked = True
    machine.idle()

def timeMode(time):
    prelock(time, 2)
    while True:
        buttonStatus()
        if buttons[0]:
            break
        if buttons[1]:
            lock()


def durationMode(duration):
    prelock(duration, 1)
    while True:
        buttonStatus()
        if buttons[0]:
            break
        if buttons[1]:
            lock()

def timeLCD(time):
    hours = str(time[0])
    minutes = str(time[1])
    if len(hours) == 1:
        hours = "0" + hours
    if len(minutes) == 1:
        minutes = "0" + minutes
    return(hours + ":" + minutes)

def timeMenu():
    global end_time
    lcdWrite(1, "Set Time", True)
    lcdWrite(3, ">")
    while True:
        buttonStatus()
        duration = int(potentio.read_u16()/65535 * max_time)
        updateEndTime(duration)
        if end_time[0] > 12:
            end_time[0] -= 12
        time = timeLCD(end_time)
        lcdWrite(2, "Unlock at " + time)
        utime.sleep(0.1)
        if buttons[0]:
            break
        if buttons[1]:
            timeMode(duration)
            break

def durationMenu():
    lcdWrite(1, "Set Duration", True)
    lcdWrite(3, ">")
    while True:
        buttonStatus()
        duration = int(potentio.read_u16()/65535 * max_time)
        hr = mintoHour(duration)
        lcdWrite(2, durationLCD(hr))
        utime.sleep(0.1)
        if buttons[0]:
            break
        if buttons[1]:
            durationMode(duration)
            break

def main():
    enable_pin.high()
#   driver sleeps
    calibrate()
    file = open("storage_data.txt")
    data = file.read()
    if len(data):
        global end_time
        global locked
        end_time = data.split(":")
        for i in range(2):
            end_time[i] = int(end_time[i])
        print(end_time)
        locked = True
        lcd.backlight_off()
        lcd.display_off()
    global firstrun
    while True:
        if firstrun:
            print("Main Menu")
            lcdWrite(1, "      Mode", True)
            lcdWrite(2, "<Time  Duration>")
            firstrun = False
        buttonStatus()

        if buttons[0]:
            timeMenu()
            firstrun = True

        elif buttons[1]:
            durationMenu()
            firstrun = True
        utime.sleep(0.1)

def waitPinChange(pin):
    # wait for pin to change value
    # it needs to be stable for a continuous 20ms
    cur_value = pin.value()
    active = 0
    while active < 20:
        if pin.value() != cur_value:
            active += 1
        else:
            active = 0
        utime.sleep_ms(1)

def unlockable():
    global locked
    locked = False
    open("storage_data.txt", "w").close()
    lcd.display_on()
    lcd.backlight_on()
    lcdWrite(1, "Unlocking...", True)
    stepper(False)
    lcdWrite(1, "Unlocked!", True)
    utime.sleep(20)
    reset()

def durationLCD(time):
    hrs = str(time[0])
    mins = str(time[1])
    if len(hrs) == 1:
        hrs = " " + hrs
    if len(mins) == 1:
        mins = " " + mins

    return(" " + str(hrs) + "Hrs  " + str(mins) + "Mins")


def displayTiming():
    current_time = getCurrentTime()
    time = timeDifference(current_time, end_time)
    if time[0] < 0:
        unlockable()

    lcd.display_on()
    lcd.backlight_on()
    lcdWrite(1, "Time Left:", True)
    lcdWrite(2, durationLCD(time))
    utime.sleep(4)
    lcd.backlight_off()
    lcd.display_off()


def callback(self):
    if locked:
        waitPinChange(buttonr)
        displayTiming()

buttonr.irq(trigger=Pin.IRQ_RISING, handler=callback)

main()

Credits

Jian Quan
