my research is about developing a robot to find mines bombs, it is called (Smartphone Controlled Arduino 2WD Robot Car to detect mine bomb).
The mines in the mine’s fields make the life of the people that searches for the mine in real danger, sometimes they sacrifice their life to find the mines, but if they use our robot, just the robot crashed in the danger situation.

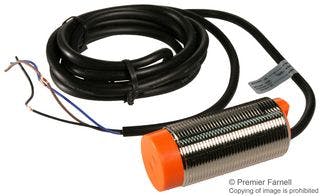

The robot programmed by (C) language, and controlled by smartphone, the robot can warn the user by speaker when it finds the mine, we used metal sensor to find the mines, because every mines contain some iron when it is created, by that iron we can find the mines and avoid other sacrifices for finding the mine bombs.
#include <AFMotor.h> //for motor sheild
#include <Servo.h> // for servo motor
#include <NewPing.h> //for obstical sensor
#include <TinyGPS++.h>
#include <SoftwareSerial.h>
SoftwareSerial serial_connection(12, 11); //RX=pin 12, TX=pin 11
TinyGPSPlus gps;
#define TRIG_PIN A2
#define ECHO_PIN A4
#define MAX_DISTANCE 100
//motors
AF_DCMotor motor1(3);
AF_DCMotor motor2(2);
//obstical sensor
NewPing sonar(TRIG_PIN, ECHO_PIN, MAX_DISTANCE);
int distance = 0;
//metal sensor
float metalDetected;
int monitoring;
int metalDetection = 0;
//servo motor
Servo servo;
int servo_position =0 ;
int pos=0;
//test
int ledPin = 13;
int state = 0;
int flag = 0;
void setup() {
// GPS();
pinMode(ledPin, OUTPUT);
digitalWrite(ledPin, LOW);
pinMode(8,OUTPUT);// for speaker
pinMode(5,OUTPUT);// for carLeds
pinMode(7,OUTPUT);// for carLeds
servo.attach (10);// Define the servo signal pins
Serial.begin(9600); // Default connection rate for my BT module
Serial.println("robot is srtarted");
serial_connection.begin(9600);//This opens up communications to the GPS
Serial.println("GPS is srtarted");
}
int readPing() { //it is used for ultrasonic obstical sensor
delay(70);
int cm = sonar.ping_cm();
if(cm==0)
{
cm = 250;
}
return cm;
}
void loop() {
int last_servo_position=0;
distance = readPing();
if(Serial.available() > 0){
state = Serial.read();
Serial.write(state);
flag=0;
}
//motor shield
if (state == 's') {
motor1.setSpeed(0);
motor2.setSpeed(0);
if(pos !=last_servo_position) {
servo.write(pos);
//last_servo_position = pos;
servo.detach();
}
if(flag == 0){
Serial.println("state: off");
flag = 1;
}
}
else if (state == 'w') { //forward
motor2.run(FORWARD);
motor2.setSpeed(255);
if(flag == 0){
Serial.println("state: on");
flag = 1;
}
}
else if (state == 'x') { //back
motor2.run(BACKWARD);
motor2.setSpeed(255);
if(flag == 0){
Serial.println("state: on");
flag = 1;
}
}
else if (state == 'd') { // left
motor1.run(FORWARD);
motor1.setSpeed(255);
if(flag == 0){
Serial.println("Left: on");
flag = 1;
}
}
else if (state == 'a') { //right
motor1.run(BACKWARD);
motor1.setSpeed(255);
if(flag == 0){
Serial.println("Right: on");
flag = 1;
}
}
else if (state == 'y') { //stop motor1 for left and right
motor1.setSpeed(0);
if(flag == 0){
Serial.println("motor1: on");
flag = 1;
}
}
else if (state == 'p') { //stop motor2 for forward and backward
motor2.setSpeed(0);
if(flag == 0){
Serial.println("motor2: of");
flag = 1;
}
}
else if (state == 'e') { //stop motor 1 to turn right or left
motor1.setSpeed(0);
if(flag == 0){
Serial.println("LED: of");
flag = 1;
}
}
// servo motor
else if (state == 'q')
{
servo.attach (10);
for (pos = 0; pos <= 180; pos += 1) { // goes from 0 degrees to 180 degrees
// in steps of 1 degree
servo.write(pos);
minesFinder();
ultrasonicSensor();
delay(15); // waits 15ms for the servo to reach the position
}
for (pos = 180; pos >= 0; pos -= 1) { // goes from 180 degrees to 0 degrees
servo.write(pos);
minesFinder();
ultrasonicSensor();
delay(15); // waits 15ms for the servo to reach the position
}
}
ultrasonicSensor();
minesFinder();
delay(50);
//Serial.println(monitoring);
}
void minesFinder()
{
monitoring = analogRead(metalDetection);
metalDetected = (float) monitoring*100/1024.0;
if (monitoring < 250)
{
Serial.println("mine bomb is Detected");
//GPS();
digitalWrite(8,HIGH);
digitalWrite(5,HIGH);
digitalWrite(7,HIGH);
delay(2000);
}
else{
//Serial.println("mine bomb is not Detected");
digitalWrite(8, LOW);
digitalWrite(5,LOW );
digitalWrite(7,LOW );
}
}
void ultrasonicSensor() // ultrasonic obstical sensor
{
distance = readPing();
if(distance<=15)
{
state='s';
// motor1.setSpeed(0);
//motor2.setSpeed(0);
Serial.println(distance);
}
}
void stopMotorServo()
{
int last_servo_position;
if(pos !=last_servo_position) {
servo.write(pos);
last_servo_position = pos;
}
}
void GPS()
{
while(serial_connection.available())//While there are characters to come from the GPS
{
gps.encode(serial_connection.read());//This feeds the serial NMEA data into the library one char at a time
}
if(gps.location.isUpdated())//This will pretty much be fired all the time anyway but will at least reduce it to only after a package of NMEA data comes in
{
//Get the latest info from the gps object which it derived from the data sent by the GPS unit
Serial.println("Satellite Count:");
Serial.println(gps.satellites.value());
Serial.println("Latitude:");
Serial.println(gps.location.lat(), 6);
Serial.println("Longitude:");
Serial.println(gps.location.lng(), 6);
Serial.println("Speed MPH:");
Serial.println(gps.speed.mph());
Serial.println("Altitude Feet:");
Serial.println(gps.altitude.feet());
Serial.println("");
}
}
