Drinking Game for the Brave

This is a 4-player reaction game penalizing the loser with a shot of liquor delivered to them on a conveyor.

IntermediateShowcase (no instructions)5,581
Drinking Game for the Brave

Things used in this project

Hardware components

Arduino UNO
Arduino UNO
The brains of the operation
×1
SparkFun EasyDriver - Stepper Motor Driver
Driver for stepper motor
×1
NeoPixel Ring: WS2812 5050 RGB LED
Adafruit NeoPixel Ring: WS2812 5050 RGB LED
4 Neopixel rings mounted around arcade buttons
×4
arcade style buttons
I used 4 different colors- red, blue, green , & yellow
×4
Rugged Metal Pushbutton with Blue LED Ring - 16mm Blue Momentary
Start button mounted on front panel
×1
Arduino MP3 Shield
Adafruit Arduino MP3 Shield
Mounts to Arduino
×1
Adafruit Stereo 20W Class D Audio Amplifier- MAX9744
Audio amplifier
×1
Adafruit RGB backlight negative LCD 16x2 + extras - RGB on black
RGB LCD display
×1
Adafruit I2C Controlled + Keypad Shield Kit for 16x2 LCD
I2C for display only used 2 wires
×1
Adafruit Acrylic Stand for 16x2 Character LCD
I used pieces of this as a bezel for the lcd display
×1
Nema17 59Ncm 2A 1.8°4-lead 48mm Stepper Motor
Stepper Motor
×1
MEAN WELL RD-65A Dual Output Enclosed Power Supply 5V 8 Amp and 12V
5V powers the Arduino & Neopixels, 12V powers the stepper driver & audio amp
×1
URBEST Inlet Module Plug 5A Fuse Switch Male Power Socket 10A 250V 3 Pin IEC320 C14
Back panel mount power plug socket and switch
×1
Gardner Bender GSW-61 Electrical Rotary Switch, SPST
Used for the front panel on/off switch
×1
Acoustic Audio AA321B Mountable Indoor Speakers 400 Watts Black Bookshelf Pair
pair of speakers
×1
Panel Mount 1K potentiometer (Breadboard Friendly) - 1K Linear
Mounted on front panel for audio volume
×1
Makerbeam
Makerbeam
I used MakerBeam XL 1000mm length & 100mm length to make the box
×1
Machifit 100-1000mm Black 2040 V-Slot Aluminum Profile Extrusion
Used for the conveyor rail
×1
Machfit Aluminum Nema 17 Stepper Motor Mount Plate
Mount for stepper motor
×1
5M GT2 Timing Belt With 16T GT2 Timing Pulley
timing belt & pulley
×1
Machifit Aluminum Idler Pulley Plate
Mount for idler pulley
×1
Machifit V-Slot V Gantry Plat Special Slide Plate Five Roulette for 2040 Aluminum Profile
slides on rail connected to timing belt
×1
BIQU Big Aluminum Alloy Gantry Plate+ Plastic Pulley Wheel with Bearing Set for 3D Printer
mounted on top of V-slot gantry for larger platform for shot glass
×1
Acrylic Sheets- 3 mm Thick
Panels: 4-108 mm Wide, 1008 mm Long; 2-108 mm Wide, 108 mm Long
×1

Hand tools and fabrication machines

Soldering iron (generic)
Soldering iron (generic)
soldering components
Multitool, Screwdriver
Multitool, Screwdriver
for mounting standoffs/hardware
Drill / Driver, Cordless
Drill / Driver, Cordless
Cutting holes in plexiglass
jig saw
cut out for display

Story

Read more

Schematics

Drinking Game

Code

Drinking Game For The Brave

Arduino
/***************************************************************
* GAME
* 4 players
* Drinking Game for the Brave - 08/01/2019
* This game consists of 4 players waiting for a light to illuminate and once illuminated
* players attempt to hit their button faster than their opponents. The loser is notified with visual
* & audio effects as well as a shot glass brought to them on a conveyer belt.
* This code is a monster mashed hodge podge from multiple original sources & example sketches.
* I edited what I needed to make this game work.
* I don't know what I'm doing but I'm learning the hard way!
* Thank you to Lotte and Arjan for their inspiring 2 person reaction game, and to Adafruit & SparkFun for
* both being wonderful resources in this amazing journey!
*****************************************************************/

#include <Wire.h>//This library allows you to communicate with I2C.
#include <Adafruit_RGBLCDShield.h> //library for Adafruit RGB LCD Shield
#include <Adafruit_NeoPixel.h> // library for Neopixels
#include <SPI.h>//Serial Peripheral Interface (SPI) is an interface bus commonly used to send data
//between microcontrollers and small peripherals such as shift registers, sensors, and SD cards.
//It uses separate clock & data lines, along with a select line to choose the device you wish to talk to.
#include <Adafruit_VS1053.h> //library for Adafruit music maker shield.
#include <SD.h>//The SD library allows for reading from and writing to SD cards.

#define SHIELD_RESET  -1      // VS1053 reset pin (unused!)
#define SHIELD_CS     7      // VS1053 chip select pin (output)
#define SHIELD_DCS    6      // VS1053 Data/command select pin (output)

#define CARDCS 4     // Card chip select pin
// DREQ should be an Int pin, see http://arduino.cc/en/Reference/attachInterrupt
#define DREQ 3       // VS1053 Data request, ideally an Interrupt pin

Adafruit_VS1053_FilePlayer musicPlayer = Adafruit_VS1053_FilePlayer(SHIELD_RESET, SHIELD_CS, SHIELD_DCS, DREQ, CARDCS);

#define LED_PIN 10 //Neopixel rings
#define LED_COUNT 24 //24 leds on  each ring
Adafruit_NeoPixel strip(LED_COUNT, LED_PIN, NEO_GRB + NEO_KHZ800);


Adafruit_RGBLCDShield lcd = Adafruit_RGBLCDShield();

//RGB LCD Shield
#define RED 0x1
#define YELLOW 0x3
#define GREEN 0x2
#define TEAL 0x6
#define BLUE 0x4
#define VIOLET 0x5
#define WHITE 0x7

//Declare pin functions on Arduino for the SparkFun EasyDriver Stepper Motor Driver
const int stp = 8;
const int dir = 9;
const int en = A2;


//Declare variables for functions (Neopixel effects)
char user_input;
int x;
int y;
int state;

const int switchStart = A0; //Start button
const int switchPin1 = 0; //Player 1 button (red)
const int switchPin2 = 5; //Player 2 button (blue)
const int switchPin3 = 2; //Player 3 button (green)
const int switchPin4 = A1; //Player 4 button (yellow)




int buttonStateP1 = 0; //Player 1 button tracking
int buttonStateP2 = 0; //Player 2 button tracking
int buttonStateP3 = 0; //Player 3 button tracking
int buttonStateP4 = 0; //Player 4 button tracking
int lastButtonStateP1 = 0; // Player 1 last button state (used to detect a button press)
int lastButtonStateP2 = 0; // Player 2 last button state (used to detect a button press)
int lastButtonStateP3 = 0; // Player 3 last button state (used to detect a button press)
int lastButtonStateP4 = 0; // Player 4 last button state (used to detect a button press)
int scoreP1 = 0; // Player 1 score tracking
int scoreP2 = 0; // Player 2 score tracking
int scoreP3 = 0; // Player 3 score tracking
int scoreP4 = 0; // Player 4 score tracking
boolean allDone = false; // Used to see if all players have pressed their buttons
boolean gameOn = false; // Keep track if the game is going on or not
boolean startButtonState = HIGH; // Start button initalization

boolean p1Done = false; // Keep track of Player 1's button press
boolean p2Done = false; // Keep track of Player 2's button press
boolean p3Done = false; // Keep track of Player 3's button press
boolean p4Done = false; // Keep track of Player 4's button press

long randomTime; // Hold the random time between the start of the game and the indicator light coming back on
long startTime; // When did the game start
long endTimeP1; // When did Player 1 press their button
long endTimeP2; // When did Player 2 press their button
long endTimeP3; // When did Player 3 press their button
long endTimeP4; // When did Player 4 press their button

float finalTimeP1; // Time elapsed between start of the game and Player 1 pressing their button
float finalTimeP2; // Time elapsed between start of the game and Player 2 pressing their button
float finalTimeP3; // Time elapsed between start of the game and Player 3 pressing their button
float finalTimeP4; // Time elapsed between start of the game and Player 4 pressing their button

void setup() {

  strip.begin();// INITIALIZE NeoPixel strip object (REQUIRED)
  strip.show();            // Turn OFF all pixels ASAP
  strip.setBrightness(50); // Set BRIGHTNESS to about 1/5 (max = 255)
  theaterChaseRainbow(50); // Rainbow-enhanced theaterChase variant
  strip.clear();
  strip.show();

  Serial.begin(9600);
  Serial.println("Adafruit VS1053 Library Test");

  // initialize the music player
  if (! musicPlayer.begin()) { // initialise the music player
     Serial.println(F("Couldn't find VS1053, do you have the right pins defined?"));
     while (1);
  }
  Serial.println(F("VS1053 found"));

  //musicPlayer.sineTest(0x44, 500);    // Make a tone to indicate VS1053 is working


  if (!SD.begin(CARDCS)) {
    Serial.println(F("SD failed, or not present"));
    while (1);  // don't do anything more
  }
  Serial.println("SD OK!");

  printDirectory(SD.open("/"), 0);

  // Set volume for left, right channels. lower numbers == louder volume!
  musicPlayer.setVolume(20,20);


  // This option uses a pin interrupt. No timers required! But DREQ
  // must be on an interrupt pin. For Uno/Duemilanove/Diecimilla
  // that's Digital #2 or #3
  // See http://arduino.cc/en/Reference/attachInterrupt for other pins
  // *** This method is preferred
  if (! musicPlayer.useInterrupt(VS1053_FILEPLAYER_PIN_INT))
    Serial.println(F("DREQ pin is not an interrupt pin"));


  pinMode(stp, OUTPUT);
  pinMode(dir, OUTPUT);
  pinMode(en, OUTPUT);
  pinMode(switchStart, INPUT_PULLUP);
  pinMode(switchPin1, INPUT_PULLUP);
  pinMode(switchPin2, INPUT_PULLUP);
  pinMode(switchPin3, INPUT_PULLUP);
  pinMode(switchPin4, INPUT_PULLUP);

  digitalWrite(en,HIGH);//disables stepper

  lcd.begin(16, 2); //lcd size 2 lines, 16 characters
  lcd.clear(); //clears previous data in display

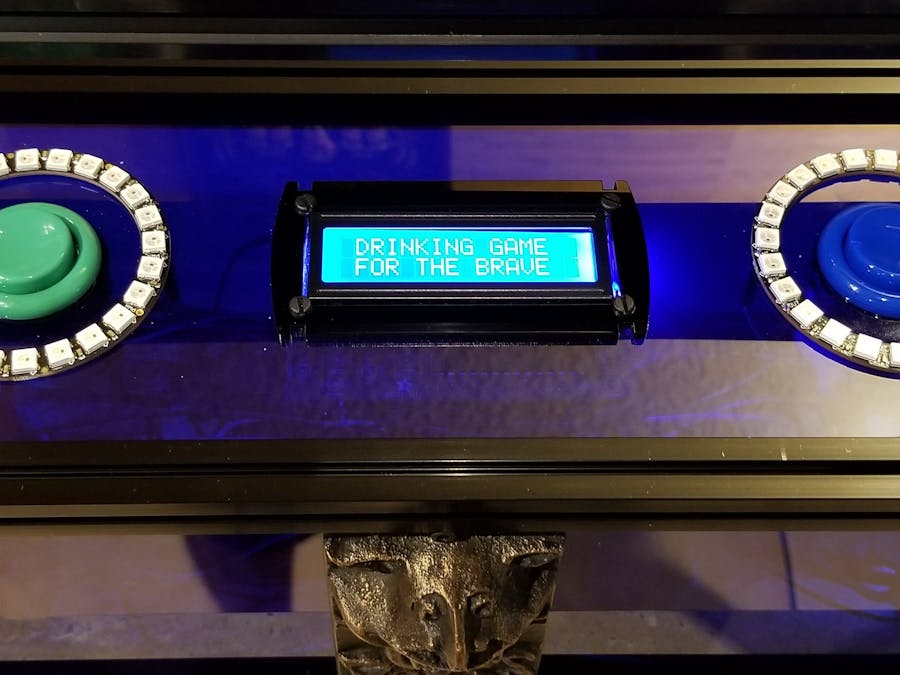

  lcd.print(" DRINKING GAME");
  lcd.setCursor(0,1); //set invisible cursor to the first column (column 0), second line (line 1)
  lcd.print(" FOR THE BRAVE");
  lcd.setBacklight(WHITE);

  musicPlayer.playFullFile("heathens.mp3");//Intro audio
}

void loop(){

  startButtonState = digitalRead(switchStart); // Listen for the start button to be pressed
  buttonStateP1 = digitalRead(switchPin1);
  buttonStateP2 = digitalRead(switchPin2);
  buttonStateP3 = digitalRead(switchPin3);
  buttonStateP4 = digitalRead(switchPin4);

  // if the start button has been pressed and there is no game already running, begin the game
  if (startButtonState == LOW && gameOn == false){
   Random();
  }

  //secret function to play Led Zeppelin album.
  if (buttonStateP1 == LOW && buttonStateP4 == LOW && gameOn == false) {
    musicPlayer.playFullFile("zeppelin.mp3");
  }

  //led effect when button pressed while game is not going.
  else if (buttonStateP1 == LOW && gameOn == false) {
   colorWipe(strip.Color(255,   0,   0), 10); // Red
   colorWipe(strip.Color(  0,   0,   0), 10); // off
   strip.show();
  }

  //led effect when button pressed while game is not going.
  else if (buttonStateP2 == LOW && gameOn == false) {
   colorWipe(strip.Color(0,0,255), 10); // blue
   colorWipe(strip.Color(  0,   0,   0), 10); // off
   strip.show();
  }

  //led effect when button pressed while game is not going.
  else if (buttonStateP3 == LOW && gameOn == false) {
   colorWipe(strip.Color(0,128,0), 10); // green
   colorWipe(strip.Color(  0,   0,   0), 10); // off
   strip.show();
  }

  //led effect when button pressed while game is not going.
  else if (buttonStateP4 == LOW && gameOn == false) {
   colorWipe(strip.Color(255,255,0), 10); // yellow
   colorWipe(strip.Color(  0,   0,   0), 10); // off
   strip.show();
  }
}


// Generate a random amount of time to delay between the beginning of the game until the LED comes back on
void Random(){

  if (! musicPlayer.startPlayingFile("/intense1.mp3")) {
  //  Serial.println("Could not open file intense1.mp3");
  while (1);
  }

  while (musicPlayer.playingMusic) {

  randomTime = random(4,10);
  randomTime = randomTime*1000;

  //Neopixel effects while waiting to press button
  colorWipe(strip.Color(255,   0,   0), 15); // Red
  colorWipe(strip.Color(  0, 255,   0), 15); // Green
  colorWipe(strip.Color(  0,   0, 255), 15); // Blue
  colorWipe(strip.Color(255, 255,   0), 15); // Yellow
  colorWipe(strip.Color(  0,   0,   0), 10); //off
  delay(1000);
  colorWipe(strip.Color(255,   0,   0), 15); // Red
  colorWipe(strip.Color(  0, 255,   0), 15); // Green
  colorWipe(strip.Color(  0,   0, 255), 15); // Blue
  colorWipe(strip.Color(255, 255,   0), 15); // Yellow
  colorWipe(strip.Color(  0,   0,   0), 10); //off
  delay(500);


  lcd.clear();
  lcd.setCursor(0,0);
  lcd.print("GET READY!");
  lcd.setBacklight(TEAL);
  lcd.setCursor(0,1);
  lcd.print("* * * * *");

  delay(randomTime);

  startGame();
 }
}

// Listen for the Players 1,2,3, & 4 buttons to be pressed
void startGame(){
  gameOn = true; // Declare a game currently running
  startTime = millis();
  colorWipe(strip.Color(192,192,192), 0);// silver // Turn on game LED indicating players should press their buttons as quickly as possible

  lcd.clear();
  lcd.setCursor(0,0);
  lcd.print("WHO WAS COUSIN");
  lcd.setBacklight(BLUE);
  lcd.setCursor(0,1);
  lcd.print("SLOW POKE??");

  while(p1Done == false || p2Done == false || p3Done == false || p4Done == false){
    buttonStateP1 = digitalRead(switchPin1);
    buttonStateP2 = digitalRead(switchPin2);
    buttonStateP3 = digitalRead(switchPin3);
    buttonStateP4 = digitalRead(switchPin4);

    // Listen for Player 1 button to be pressed and set Player 1 as done.
    if (buttonStateP1 == LOW && p1Done == false) {
      endTimeP1 = millis();
      p1Done = true;
    }
    // Listen for Player 2 button to be pressed and set Player 2 as done.
    if (buttonStateP2 == LOW && p2Done == false) {
      endTimeP2 = millis();
      p2Done = true;
    }
    // Listen for Player 3 button to be pressed and set Player 3 as done.
    if (buttonStateP3 == LOW && p3Done == false) {
      endTimeP3 = millis();
      p3Done = true;
    }
    // Listen for Player 4 button to be pressed and set Player 4 as done.
    if (buttonStateP4 == LOW && p4Done == false) {
      endTimeP4 = millis();
      p4Done = true;
    }
  }

  colorWipe(strip.Color(  0,   0,   0), 0); //off // Turn off the game LED
  strip.show();
  rainbow(10); // Flowing rainbow cycle along the whole strip
  endGame();
}

void endGame(){

  finalTimeP1 = (endTimeP1 - startTime); //Calculate how long it took Player 1 to push their button
  finalTimeP2 = (endTimeP2 - startTime); //Calculate how long it took Player 2 to push their button
  finalTimeP3 = (endTimeP3 - startTime); //Calculate how long it took Player 3 to push their button
  finalTimeP4 = (endTimeP4 - startTime); //Calculate how long it took Player 4 to push their button

 // Run if Player 1 lost the round
  if (finalTimeP1 > finalTimeP2 && finalTimeP1 > finalTimeP3 && finalTimeP1 > finalTimeP4){

   noInterrupts();
   musicPlayer.stopPlaying();
   delay(100);
   interrupts();
   delay(100);
   Player1StepMode();

   Player1LCDMode();

   Player1StepHome();
   musicPlayer.playFullFile("track006.mp3");
   theaterChaseRainbow(50);
   resetVariables();
  }

  // Run if Player 2 lost the round
  else if (finalTimeP2 > finalTimeP1 && finalTimeP2 > finalTimeP3 && finalTimeP2 > finalTimeP4){

   noInterrupts();
   musicPlayer.stopPlaying();
   delay(100);
   interrupts();
   delay(100);
   Player2StepMode();

   Player2LCDMode();

   Player2StepHome();
   theaterChaseRainbow(50);
   resetVariables();
  }

  // Run if Player 3 lost the round
  else if (finalTimeP3 > finalTimeP1 && finalTimeP3 > finalTimeP2 && finalTimeP3 > finalTimeP4){

   noInterrupts();
   musicPlayer.stopPlaying();
   delay(100);
   interrupts();
   delay(100);
   Player3StepMode();

   Player3LCDMode();

   Player3StepHome();
   theaterChaseRainbow(50);
   resetVariables();
  }

  // Run if Player 4 lost the round
  else if (finalTimeP4 > finalTimeP1 && finalTimeP4 > finalTimeP2 && finalTimeP4 > finalTimeP3){

   noInterrupts();
   musicPlayer.stopPlaying();
   delay(100);
   interrupts();
   delay(100);
   Player4StepMode();

   Player4LCDMode();

   Player4StepHome();
   theaterChaseRainbow(50);
   resetVariables();
  }

  //This assigns a loser in a tie
  else if (finalTimeP1 == finalTimeP2 && finalTimeP1 > finalTimeP3 && finalTimeP1 > finalTimeP4){
   noInterrupts();
   musicPlayer.stopPlaying();
   delay(100);
   interrupts();
   delay(100);
   Player2StepMode();

   Player2LCDMode();

   Player2StepHome();
   theaterChaseRainbow(50);
   resetVariables();
  }

  //This assigns a loser in a tie
  else if (finalTimeP1 == finalTimeP3 && finalTimeP1 > finalTimeP2 && finalTimeP1 > finalTimeP4){
   noInterrupts();
   musicPlayer.stopPlaying();
   delay(100);
   interrupts();
   delay(100);
   Player1StepMode();

   Player1LCDMode();

   Player1StepHome();
   musicPlayer.playFullFile("track006.mp3");
   theaterChaseRainbow(50);
   resetVariables();
  }

  //This assigns a loser in a tie
  else if (finalTimeP1 == finalTimeP4 && finalTimeP1 > finalTimeP2 && finalTimeP1 > finalTimeP3){

   noInterrupts();
   musicPlayer.stopPlaying();
   delay(100);
   interrupts();
   delay(100);
   Player4StepMode();

   Player4LCDMode();

   Player4StepHome();
   theaterChaseRainbow(50);
   resetVariables();
  }

  //This assigns a loser in a tie
  else if (finalTimeP2 == finalTimeP3 && finalTimeP2 > finalTimeP1 && finalTimeP2 > finalTimeP4){
   noInterrupts();
   musicPlayer.stopPlaying();
   delay(100);
   interrupts();
   delay(100);
   Player3StepMode();

   Player3LCDMode();

   Player3StepHome();
   theaterChaseRainbow(50);
   resetVariables();
  }

  //This assigns a loser in a tie
  else if (finalTimeP2 == finalTimeP4 && finalTimeP2 > finalTimeP1 && finalTimeP2 > finalTimeP3){
   noInterrupts();
   musicPlayer.stopPlaying();
   delay(100);
   interrupts();
   delay(100);
   Player2StepMode();

   Player2LCDMode();

   Player2StepHome();
   theaterChaseRainbow(50);
   resetVariables();
  }

  //This assigns a loser in a tie
  else if (finalTimeP3 == finalTimeP4 && finalTimeP3 > finalTimeP1 && finalTimeP3 > finalTimeP2){
   noInterrupts();
   musicPlayer.stopPlaying();
   delay(100);
   interrupts();
   delay(100);
   Player3StepMode();

   Player3LCDMode();

   Player3StepHome();
   theaterChaseRainbow(50);
   resetVariables();
  }

  //This assigns a loser in a tie
  else if (finalTimeP1 == finalTimeP2 && finalTimeP1 == finalTimeP3 && finalTimeP1 > finalTimeP4){
   noInterrupts();
   musicPlayer.stopPlaying();
   delay(100);
   interrupts();
   delay(100);
   Player1StepMode();

   Player1LCDMode();

   Player1StepHome();
   musicPlayer.playFullFile("track006.mp3");
   theaterChaseRainbow(50);
   resetVariables();
  }

  //This assigns a loser in a tie
  else if (finalTimeP1 == finalTimeP3 && finalTimeP1 == finalTimeP4 && finalTimeP1 > finalTimeP2){
   noInterrupts();
   musicPlayer.stopPlaying();
   delay(100);
   interrupts();
   delay(100);
   Player3StepMode();

   Player3LCDMode();

   Player3StepHome();
   theaterChaseRainbow(50);
   resetVariables();
  }

 //This assigns a loser in a tie
  else if (finalTimeP1 == finalTimeP2 && finalTimeP1 == finalTimeP4 && finalTimeP1 > finalTimeP3){
   noInterrupts();
   musicPlayer.stopPlaying();
   delay(100);
   interrupts();
   delay(100);
   Player2StepMode();

   Player2LCDMode();

   Player2StepHome();
   theaterChaseRainbow(50);
   resetVariables();
  }

  //This assigns a loser in a tie
  else if (finalTimeP2 == finalTimeP3 && finalTimeP2 == finalTimeP4 && finalTimeP2 > finalTimeP1){
   noInterrupts();
   musicPlayer.stopPlaying();
   delay(100);
   interrupts();
   delay(100);
   Player4StepMode();

   Player4LCDMode();

   Player4StepHome();
   theaterChaseRainbow(50);
   resetVariables();
  }

  //This assigns a loser in a tie
  else if (finalTimeP1 == finalTimeP2 && finalTimeP1 == finalTimeP3 && finalTimeP1 == finalTimeP4){
   noInterrupts();
   musicPlayer.stopPlaying();
   delay(100);
   interrupts();
   delay(100);
   Player1StepMode();

   Player1LCDMode();

   Player1StepHome();
   musicPlayer.playFullFile("track006.mp3");
   theaterChaseRainbow(50);
   resetVariables();
  }
}

//Moves shot glass to loser
void Player1StepMode(){
 digitalWrite(en,LOW); //enabled stepper
 digitalWrite(dir,LOW); //pin low to move "forward"

 for(x= 0; x<50; x++)  //Loop the forward stepping
  {
    digitalWrite(stp,HIGH); //Trigger one step forward
    delayMicroseconds(300);
    digitalWrite(stp,LOW); //Pull step pin low so it can be triggered again
    delayMicroseconds(300);
  }
 for(x= 0; x<10550; x++)  //Loop the forward stepping
  {
    digitalWrite(stp,HIGH); //Trigger one step forward
    delayMicroseconds(175);
    digitalWrite(stp,LOW); //Pull step pin low so it can be triggered again
    delayMicroseconds(175);
  }
 for(x= 0; x<50; x++)  //Loop the forward stepping
  {
    digitalWrite(stp,HIGH); //Trigger one step forward
    delayMicroseconds(300);
    digitalWrite(stp,LOW); //Pull step pin low so it can be triggered again
    delayMicroseconds(300);
  }
 delay(750);

 for(x= 0; x<50; x++)
  {
    digitalWrite(stp,HIGH); //Trigger one step forward
    delayMicroseconds(300);
    digitalWrite(stp,LOW); //Pull step pin low so it can be triggered again
    delayMicroseconds(300);
  }
 for(x= 0; x<4000; x++)
  {
    digitalWrite(stp,HIGH); //Trigger one step forward
    delayMicroseconds(175);
    digitalWrite(stp,LOW); //Pull step pin low so it can be triggered again
    delayMicroseconds(175);
  }

 for(x= 0; x<50; x++)
  {
    digitalWrite(stp,HIGH); //Trigger one step forward
    delayMicroseconds(300);
    digitalWrite(stp,LOW); //Pull step pin low so it can be triggered again
    delayMicroseconds(300);
  }
  delay(750);

  digitalWrite(dir,HIGH); //Pull direction pin high to move "reverse"
 for(x= 0; x<50; x++)  //Loop the stepping
  {
    digitalWrite(stp,HIGH); //Trigger one step forward/
    delayMicroseconds(300);
    digitalWrite(stp,LOW); //Pull step pin low so it can be triggered again
    delayMicroseconds(300);
  }
 for(x= 0; x<12050; x++)  //Loop the stepping
  {
    digitalWrite(stp,HIGH); //Trigger one step forward/
    delayMicroseconds(175);
    digitalWrite(stp,LOW); //Pull step pin low so it can be triggered again
    delayMicroseconds(175);
  }
 for(x= 0; x<50; x++)  //Loop the stepping
  {
    digitalWrite(stp,HIGH); //Trigger one step forward/
    delayMicroseconds(300);
    digitalWrite(stp,LOW); //Pull step pin low so it can be triggered again
    delayMicroseconds(300);
  }
  delay(1);
}

//Moves shot glass to loser
void Player2StepMode()
{
  digitalWrite(en,LOW); //enabled stepper
  digitalWrite(dir, LOW); //Pull direction pin low to move "forward"

  for(x= 0; x<50; x++)  //Loop the forward stepping
  {
    digitalWrite(stp,HIGH); //Trigger one step forward
    delayMicroseconds(300);
    digitalWrite(stp,LOW); //Pull step pin low so it can be triggered again
    delayMicroseconds(300);
  }

  for(x= 0; x<10550; x++)  //Loop the forward stepping
  {
    digitalWrite(stp,HIGH); //Trigger one step forward
    delayMicroseconds(175);
    digitalWrite(stp,LOW); //Pull step pin low so it can be triggered again
    delayMicroseconds(175);
  }
  for(x= 0; x<50; x++)  //Loop the forward stepping
  {
    digitalWrite(stp,HIGH); //Trigger one step forward
    delayMicroseconds(300);
    digitalWrite(stp,LOW); //Pull step pin low so it can be triggered again
    delayMicroseconds(300);
  }
  delay(750);

  digitalWrite(dir, HIGH); //Pull direction pin high to move "reverse"

  for(x= 0; x<50; x++)  //Loop the reverse stepping
  {
    digitalWrite(stp,HIGH); //Trigger one step forward
    delayMicroseconds(300);
    digitalWrite(stp,LOW); //Pull step pin low so it can be triggered again
    delayMicroseconds(300);
  }
   for(x= 0; x<3950; x++)  //Loop the reverse stepping
  {
    digitalWrite(stp,HIGH); //Trigger one step forward
    delayMicroseconds(175);
    digitalWrite(stp,LOW); //Pull step pin low so it can be triggered again
    delayMicroseconds(175);
  }
   for(x= 0; x<50; x++)  //Loop the reverse stepping
  {
    digitalWrite(stp,HIGH); //Trigger one step forward
    delayMicroseconds(300);
    digitalWrite(stp,LOW); //Pull step pin low so it can be triggered again
    delayMicroseconds(300);
  }
  delay(1);

}

//Moves shot glass to loser
void Player3StepMode()
{
  digitalWrite(en,LOW); //enabled
  digitalWrite(dir, LOW); //Pull direction pin low to move "forward"

  for(x= 0; x<50; x++)  //Loop the forward stepping
  {
    digitalWrite(stp,HIGH); //Trigger one step forward
    delayMicroseconds(300);
    digitalWrite(stp,LOW); //Pull step pin low so it can be triggered again
    delayMicroseconds(300);
  }
  for(x= 0; x<10550; x++)  //Loop the forward stepping
  {
    digitalWrite(stp,HIGH); //Trigger one step forward
    delayMicroseconds(175);
    digitalWrite(stp,LOW); //Pull step pin low so it can be triggered again
    delayMicroseconds(175);
  }
  for(x= 0; x<50; x++)  //Loop the forward stepping
  {
    digitalWrite(stp,HIGH); //Trigger one step forward
    delayMicroseconds(300);
    digitalWrite(stp,LOW); //Pull step pin low so it can be triggered again
    delayMicroseconds(300);
  }


  delay(750);

  digitalWrite(dir,LOW); //Pull direction pin low to move "forward"

  for(x= 0; x<50; x++)  //Loop the reverse stepping
  {
    digitalWrite(stp,HIGH); //Trigger one step forward
    delayMicroseconds(300);
    digitalWrite(stp,LOW); //Pull step pin low so it can be triggered again
    delayMicroseconds(300);
  }
  for(x= 0; x<4000; x++)  //Loop the reverse stepping
  {
    digitalWrite(stp,HIGH); //Trigger one step forward
    delayMicroseconds(175);
    digitalWrite(stp,LOW); //Pull step pin low so it can be triggered again
    delayMicroseconds(175);
  }
  for(x= 0; x<50; x++)  //Loop the reverse stepping
  {
    digitalWrite(stp,HIGH); //Trigger one step forward
    delayMicroseconds(300);
    digitalWrite(stp,LOW); //Pull step pin low so it can be triggered again
    delayMicroseconds(300);
  }

  delay(750);

  digitalWrite(dir, HIGH); //Pull direction pin high to move "reverse"

  for(x= 0; x<50; x++)  //Loop the forward stepping
  {
    digitalWrite(stp,HIGH); //Trigger one step forward
    delayMicroseconds(300);
    digitalWrite(stp,LOW); //Pull step pin low so it can be triggered again
    delayMicroseconds(300);
  }
  for(x= 0; x<4000; x++)  //Loop the forward stepping
  {
    digitalWrite(stp,HIGH); //Trigger one step forward
    delayMicroseconds(175);
    digitalWrite(stp,LOW); //Pull step pin low so it can be triggered again
    delayMicroseconds(175);
  }
  for(x= 0; x<50; x++)  //Loop the forward stepping
  {
    digitalWrite(stp,HIGH); //Trigger one step forward
    delayMicroseconds(300);
    digitalWrite(stp,LOW); //Pull step pin low so it can be triggered again
    delayMicroseconds(300);
  }

  delay(1);
}

//Moves shot glass to loser
void Player4StepMode()
{
  digitalWrite(en,LOW); //enabled
  digitalWrite(dir, LOW); //Pull direction pin low to move "forward"

  for(x= 0; x<50; x++)  //Loop the forward stepping
  {
    digitalWrite(stp,HIGH); //Trigger one step forward
    delayMicroseconds(300);
    digitalWrite(stp,LOW); //Pull step pin low so it can be triggered again
    delayMicroseconds(300);
  }
  for(x= 0; x<6500; x++)  //Loop the forward stepping
  {
    digitalWrite(stp,HIGH); //Trigger one step forward
    delayMicroseconds(175);
    digitalWrite(stp,LOW); //Pull step pin low so it can be triggered again
    delayMicroseconds(175);
  }
  for(x= 0; x<50; x++)  //Loop the forward stepping
  {
    digitalWrite(stp,HIGH); //Trigger one step forward
    delayMicroseconds(300);
    digitalWrite(stp,LOW); //Pull step pin low so it can be triggered again
    delayMicroseconds(300);
  }


  delay(750);

  digitalWrite(dir, LOW); //forward

  for(x= 0; x<50; x++)  //Loop the forward stepping
  {
    digitalWrite(stp,HIGH); //Trigger one step forward
    delayMicroseconds(300);
    digitalWrite(stp,LOW); //Pull step pin low so it can be triggered again
    delayMicroseconds(300);
  }
   for(x= 0; x<3950; x++)  //Loop the forward stepping
  {
    digitalWrite(stp,HIGH); //Trigger one step forward
    delayMicroseconds(175);
    digitalWrite(stp,LOW); //Pull step pin low so it can be triggered again
    delayMicroseconds(175);
  }
   for(x= 0; x<50; x++)  //Loop the forward stepping
  {
    digitalWrite(stp,HIGH); //Trigger one step forward
    delayMicroseconds(300);
    digitalWrite(stp,LOW); //Pull step pin low so it can be triggered again
    delayMicroseconds(300);
  }

  delay(750);

  digitalWrite(dir, LOW); //Pull direction pin low to move "forward"

  for(x= 0; x<50; x++)  //loop
  {
    digitalWrite(stp,HIGH); //Trigger one step forward
    delayMicroseconds(300);
    digitalWrite(stp,LOW); //Pull step pin low so it can be triggered again
    delayMicroseconds(300);
  }
  for(x= 0; x<4000; x++)  //loop
  {
    digitalWrite(stp,HIGH); //Trigger one step forward
    delayMicroseconds(175);
    digitalWrite(stp,LOW); //Pull step pin low so it can be triggered again
    delayMicroseconds(175);
  }
  for(x= 0; x<50; x++)  //loop
  {
    digitalWrite(stp,HIGH); //Trigger one step forward
    delayMicroseconds(300);
    digitalWrite(stp,LOW); //Pull step pin low so it can be triggered again
    delayMicroseconds(300);
  }

  delay(1);
}

//LCD & Neopixel function for loser
void Player1LCDMode(){//RED BUTTON
  if (! musicPlayer.startPlayingFile("/loser001.mp3")) {
  while (1);
  }

  while (musicPlayer.playingMusic) {

  lcd.clear();
  lcd.setCursor(0,0);
  lcd.print("RED PLAYER");
  lcd.setBacklight(RED);
  lcd.setCursor(0,1);
  lcd.print("DRINK UP");

  theaterChase(strip.Color(255,   0,   0), 50); // Red, half brightness
  colorWipe(strip.Color(255,   0,   0), 20); // Red
  colorWipe(strip.Color(  0,   0,   0), 20); // off
  theaterChase(strip.Color(255,   0,   0), 50); // Red, half brightness
  colorWipe(strip.Color(255,   0,   0), 20); // Red
  colorWipe(strip.Color(  0,   0,   0), 20); // off
  theaterChase(strip.Color(255,   0,   0), 50); // Red, half brightness
  colorWipe(strip.Color(  0,   0,   0), 0); //off // Turn off the game LED
  strip.show();
  }
  musicPlayer.softReset();
  delay(500);
  lcd.clear(); //clears previous data in display
  lcd.print(" DRINKING GAME");
  lcd.setCursor(0,1); //set invisible cursor to the first column (column 0), second line (line 1)
  lcd.print(" FOR THE BRAVE");
  lcd.setBacklight(WHITE);
  delay(1000);
}

//LCD & Neopixel function for loser
void Player2LCDMode(){//BLUE BUTTON

  if (! musicPlayer.startPlayingFile("/loser004.mp3")) {
  while (1);
  }

  while (musicPlayer.playingMusic) {

  lcd.clear();
  lcd.setCursor(0,0);
  lcd.print("BLUE PLAYER");
  lcd.setBacklight(BLUE);
  lcd.setCursor(0,1);
  lcd.print("SHOOT IT!");

  theaterChase(strip.Color(0,0,255), 50); // blue, half brightness
  colorWipe(strip.Color(0,0,255), 20); // blue
  colorWipe(strip.Color(  0,   0,   0), 20); // off
  theaterChase(strip.Color(0,0,255), 50); // blue, half brightness
  colorWipe(strip.Color(0,0,255), 20); // blue
  colorWipe(strip.Color(  0,   0,   0), 20); // off
  theaterChase(strip.Color(0,0,255), 50); // blue, half brightness
  colorWipe(strip.Color(  0,   0,   0), 0); //off // Turn off the game LED
  strip.show();
  }
  musicPlayer.softReset();
  delay(500);
  lcd.clear(); //clears previous data in display
  lcd.print(" DRINKING GAME");
  lcd.setCursor(0,1); //set invisible cursor to the first column (column 0), second line (line 1)
  lcd.print(" FOR THE BRAVE");
  lcd.setBacklight(WHITE);
  delay(1000);
}

//LCD & Neopixel function for loser
void Player3LCDMode(){//GREEN BUTTON

  if (! musicPlayer.startPlayingFile("/loser002.mp3")) {
  while (1);
  }

  while (musicPlayer.playingMusic) {

  lcd.clear();
  lcd.setCursor(0,0);
  lcd.print("GREEN PLAYER");
  lcd.setBacklight(GREEN);
  lcd.setCursor(0,1);
  lcd.print("DRINK UP");

  theaterChase(strip.Color(0,128,0), 50); // green, half brightness
  colorWipe(strip.Color(0,128,0), 20); // green
  colorWipe(strip.Color(  0,   0,   0), 20); // off
  theaterChase(strip.Color(0,128,0), 50); // green, half brightness
  colorWipe(strip.Color(0,128,0), 20); // green
  colorWipe(strip.Color(  0,   0,   0), 20); // off
  theaterChase(strip.Color(0,128,0), 50); // green, half brightness
  colorWipe(strip.Color(  0,   0,   0), 0); //off // Turn off the game LED
  strip.show();
  }
  musicPlayer.softReset();
  delay(500);
  lcd.clear(); //clears previous data in display
  lcd.print(" DRINKING GAME");
  lcd.setCursor(0,1); //set invisible cursor to the first column (column 0), second line (line 1)
  lcd.print(" FOR THE BRAVE");
  lcd.setBacklight(WHITE);
  delay(1000);
}

//LCD & Neopixel function for loser
void Player4LCDMode(){//YELLOW BUTTON

  if (! musicPlayer.startPlayingFile("/loser003.mp3")) {
  while (1);
  }

  while (musicPlayer.playingMusic) {

  lcd.clear();
  lcd.setCursor(0,0);
  lcd.print("YELLOW PLAYER");
  lcd.setBacklight(YELLOW);
  lcd.setCursor(0,1);
  lcd.print("SHOOT IT!");

  theaterChase(strip.Color(255,255,0), 50); // yellow, half brightness
  colorWipe(strip.Color(255,255,0), 20); // yellow
  colorWipe(strip.Color(  0,   0,   0), 20); // off
  theaterChase(strip.Color(255,255,0), 50); // yellow, half brightness
  colorWipe(strip.Color(255,255,0), 20); // yellow
  colorWipe(strip.Color(  0,   0,   0), 20); // off
  theaterChase(strip.Color(255,255,0), 50); // yellow, half brightness
  colorWipe(strip.Color(  0,   0,   0), 0); //off // Turn off the game LED
  strip.show();
  }
  musicPlayer.softReset();
  delay(500);
  lcd.clear(); //clears previous data in display
  lcd.print(" DRINKING GAME");
  lcd.setCursor(0,1); //set invisible cursor to the first column (column 0), second line (line 1)
  lcd.print(" FOR THE BRAVE");
  lcd.setBacklight(WHITE);
  delay(1000);
}

//Moves shot glass back to home position
void Player1StepHome()
{
  //Red Player Stepping
  digitalWrite(dir, HIGH); //Pull direction pin high to move "reverse"

  for(x= 0; x<2600; x++)  //Loop the forward stepping
  {
    digitalWrite(stp,HIGH); //Trigger one step forward
    delayMicroseconds(300);
    digitalWrite(stp,LOW); //Pull step pin low so it can be triggered again
    delayMicroseconds(300);
  }
}

//Moves shot glass back to home position
void Player2StepHome()
{
  //Blue Player Stepping
  digitalWrite(dir, HIGH); //Pull direction pin high to move "reverse"

  for(x= 0; x<6600; x++)  //Loop the forward stepping
  {
    digitalWrite(stp,HIGH); //Trigger one step forward
    delayMicroseconds(300);
    digitalWrite(stp,LOW); //Pull step pin low so it can be triggered again
    delayMicroseconds(300);
  }
}

//Moves shot glass back to home position
void Player3StepHome()
{
  //Green Player Stepping
  digitalWrite(dir, HIGH); //Pull direction pin high to move "reverse"

  for(x= 0; x<10650; x++)  //Loop the forward stepping
  {
    digitalWrite(stp,HIGH); //Trigger one step forward
    delayMicroseconds(300);
    digitalWrite(stp,LOW); //Pull step pin low so it can be triggered again
    delayMicroseconds(300);
  }
}

//Moves shot glass back to home position
void Player4StepHome()
{
  //Yellow Player Stepping
  digitalWrite(dir, HIGH); //Pull direction pin high to move "reverse"

  for(x= 0; x<14750; x++)  //Loop the forward stepping
  {
    digitalWrite(stp,HIGH); //Trigger one step forward
    delayMicroseconds(300);
    digitalWrite(stp,LOW); //Pull step pin low so it can be triggered again
    delayMicroseconds(300);
  }
}

//Neopixel effect
void colorWipe(uint32_t color, int wait) {
  for(int i=0; i<strip.numPixels(); i++) { // For each pixel in strip...
    strip.setPixelColor(i, color);         //  Set pixel's color (in RAM)
    strip.show();                          //  Update strip to match
    delay(wait);                           //  Pause for a moment
  }
}

//Neopixel effect
void rainbow(int wait) {

  for(long firstPixelHue = 0; firstPixelHue < 1*65536; firstPixelHue += 256) {
    for(int i=0; i<strip.numPixels(); i++) { // For each pixel in strip...

      int pixelHue = firstPixelHue + (i * 65536L / strip.numPixels());

      strip.setPixelColor(i, strip.gamma32(strip.ColorHSV(pixelHue)));
    }
    strip.show(); // Update strip with new contents
    delay(wait);  // Pause for a moment
  }
}

//Neopixel effect
void theaterChase(uint32_t color, int wait) {
  for(int a=0; a<20; a++) {  // Repeat 10 times...
    for(int b=0; b<3; b++) { //  'b' counts from 0 to 2...
      strip.clear();         //   Set all pixels in RAM to 0 (off)

      for(int c=b; c<strip.numPixels(); c += 3) {
        strip.setPixelColor(c, color); // Set pixel 'c' to value 'color'
      }
      strip.show(); // Update strip with new contents
      delay(wait);  // Pause for a moment
    }
  }
}

//Neopixel effect
void theaterChaseRainbow(int wait) {
  int firstPixelHue = 0;     // First pixel starts at red (hue 0)
  for(int a=0; a<15; a++) {  // Repeat 30 times...
    for(int b=0; b<3; b++) { //  'b' counts from 0 to 2...
      strip.clear();         //   Set all pixels in RAM to 0 (off)

      for(int c=b; c<strip.numPixels(); c += 3) {

        int      hue   = firstPixelHue + c * 65536L / strip.numPixels();
        uint32_t color = strip.gamma32(strip.ColorHSV(hue)); // hue -> RGB
        strip.setPixelColor(c, color); // Set pixel 'c' to value 'color'
      }
      strip.show();                // Update strip with new contents
      delay(wait);                 // Pause for a moment
      firstPixelHue += 65536 / 90; // One cycle of color wheel over 90 frames
    }
  }
}

//SD Card on musicmaker shield
void printDirectory(File dir, int numTabs) {
   while(true) {

     File entry =  dir.openNextFile();
     if (! entry) {
       // no more files
       //Serial.println("**nomorefiles**");
       break;
     }
     for (uint8_t i=0; i<numTabs; i++) {
       Serial.print('\t');
     }
     Serial.print(entry.name());
     if (entry.isDirectory()) {
       Serial.println("/");
       printDirectory(entry, numTabs+1);
     } else {
       // files have sizes, directories do not
       Serial.print("\t\t");
       Serial.println(entry.size(), DEC);
     }
     entry.close();
   }
}

//Resets back to initial state
void resetVariables(){
  digitalWrite(en,HIGH);//disabled
  musicPlayer.softReset();
  strip.clear();
  strip.show();
  buttonStateP1 = 0;
  buttonStateP2 = 0;
  buttonStateP3 = 0;
  buttonStateP4 = 0;
  lastButtonStateP1 = 0;
  lastButtonStateP2 = 0;
  lastButtonStateP3 = 0;
  lastButtonStateP4 = 0;
  startButtonState = HIGH;
  buttonStateP1 = HIGH;
  buttonStateP2 = HIGH;
  buttonStateP3 = HIGH;
  buttonStateP4 = HIGH;
  allDone = false;
  gameOn = false;
  p1Done = false;
  p2Done = false;
  p3Done = false;
  p4Done = false;
  randomTime = 0;
  startTime = 0;
  p1Done = false;
  p2Done = false;
  p3Done = false;
  p4Done = false;
  finalTimeP1 = 0;
  finalTimeP2 = 0;
  finalTimeP3 = 0;
  finalTimeP4 = 0;
}

Credits

jdmgolf123
0 projects • 2 followers

Comments
