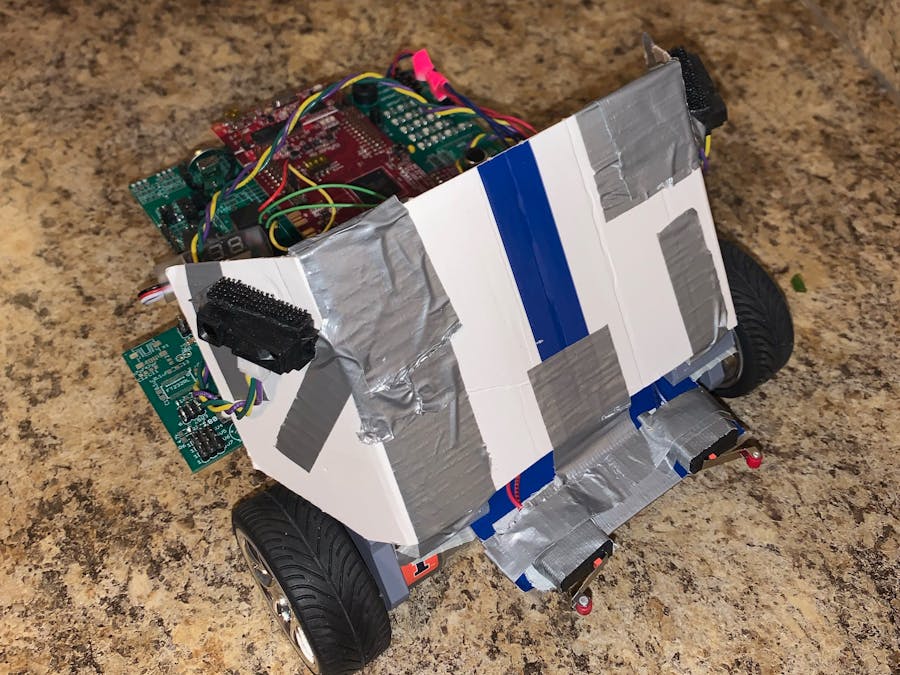

SE423 Final Project

//#############################################################################
// FILE:   Finalv2.c
//
// TITLE:  Butera-Final Project
//Wall-riding and obstacle voiding
//#############################################################################

// Included Files
#include <stdio.h>
#include <stdlib.h>
#include <stdarg.h>
#include <string.h>
#include <math.h>
#include <limits.h>
#include "F28x_Project.h"
#include "driverlib.h"
#include "device.h"
#include "f28379dSerial.h"
#include "LEDPatterns.h"
#include "song.h"
#include "dsp.h"
#include "fpu32/fpu_rfft.h"

#define PI          3.1415926535897932384626433832795
#define TWOPI       6.283185307179586476925286766559
#define HALFPI      1.5707963267948966192313216916398

// Interrupt Service Routines predefinition
__interrupt void cpu_timer0_isr(void);
__interrupt void cpu_timer1_isr(void);
__interrupt void cpu_timer2_isr(void);
__interrupt void SWI_isr(void);
__interrupt void SPIB_isr(void);
void setupSpib(void);
void init_eQEPs(void);
void setEPWM2A(float uLeft);
void setEPWM2B(float uRight);
float readEncLeft(void);
float readEncRight(void);
void serialRXA(serial_t *s, char data);

int16_t ReadSwitches(void);
__interrupt void ADCD_ISR(void);
void setDACA(float);
void setDACB(float);

// Count variables
uint32_t numTimer0calls = 0;
uint32_t numSWIcalls = 0;
uint32_t numRXA = 0;
uint16_t UARTPrint = 0;
uint16_t LEDdisplaynum = 0;
uint32_t increment = 0;
uint32_t timer = 0;

//dummy variables
int16_t temp = 0;
int16_t tempraw = 0;

//Sensor Readings
int16_t updownservoa = 0;
int16_t updownservob = 0;
float ADC1volts = 0;
float ADC2volts = 0;
uint16_t RC1Value = 1500;
uint16_t RC2Value = 1500;
uint16_t updown = 0;
float controlA = 0;
float controlB = 0;
int16_t updownA = 0;
int16_t updownB = 0;
float accelXreading = 0;
float accelYreading = 0;
float accelZreading = 0;
float gyroXreading = 0;
float gyroYreading = 0;
float gyroZreading = 0;

/////Lab6//////
//Motor and position variables
float LeftWheel = 0;
float LeftWheelDist = 0;
float RightWheel = 0;
float RightWheelDist = 0;
float LeftWheelDist_1 = 0;
float RightWheelDist_1 = 0;
float uLeft = 5;
float uRight = 5;
float VLeftK = 0;
float VRightK = 0;
float VRef = .25;
//EX3
float ErrorRightK = 0;
float ErrorRightK_1 = 0;
float ErrorLeftK = 0;
float ErrorLeftK_1 = 0;
float ILeftK = 0;
float ILeftK_1 = 0;
float IRightK = 0;
float IRightK_1 = 0;
float ULeftK = 0;
float URightK = 0;
float Kp = 3;
float Ki = 25;
//EX4
float KT = 3;
float turn = 0;
float et = 0;
//EX5
float Wr = 0.61;
float Rwh = 0.10625;
float thetaR = 0;
float thetaL = 0;
float thetaR_1 = 0;
float thetaL_1 = 0;
float thetaAvg = 0;
float phiR = 0;
float posX = 0;
float posY = 0;
float thetaRD = 0;
float thetaLD = 0;
float thetaAvgD = 0;
float posXD = 0;
float posYD = 0;
float posX_1 = 0;
float posY_1 = 0;
float posX_1D = 0;
float posY_1D = 0;

//Wall Sensor Variables//
int16_t MySwitches = 0;
int16_t adcd0result = 0;
int16_t adcd1result = 0;
float adcd1volts = 0;
float adcd0volts = 0;
float dacouta0 = 0;
float dacouta1 = 0;
uint32_t countvariable;
float rightdist = 0;
float leftdist = 0;
float refdist = 1;
float ewall = 0;
float turns = 0;
float kpwall = 1;

void main(void)
{
    // PLL, WatchDog, enable Peripheral Clocks
    // This example function is found in the F2837xD_SysCtrl.c file.
    InitSysCtrl();

    InitGpio();

    // Blue LED on LuanchPad
    GPIO_SetupPinMux(31, GPIO_MUX_CPU1, 0);
    GPIO_SetupPinOptions(31, GPIO_OUTPUT, GPIO_PUSHPULL);
    GpioDataRegs.GPASET.bit.GPIO31 = 1;

    // Red LED on LaunchPad
    GPIO_SetupPinMux(34, GPIO_MUX_CPU1, 0);
    GPIO_SetupPinOptions(34, GPIO_OUTPUT, GPIO_PUSHPULL);
    GpioDataRegs.GPBSET.bit.GPIO34 = 1;

    // LED1 and PWM Pin
    GPIO_SetupPinMux(22, GPIO_MUX_CPU1, 0);
    GPIO_SetupPinOptions(22, GPIO_OUTPUT, GPIO_PUSHPULL);
    GpioDataRegs.GPACLEAR.bit.GPIO22 = 1;

    // LED2
    GPIO_SetupPinMux(94, GPIO_MUX_CPU1, 0);
    GPIO_SetupPinOptions(94, GPIO_OUTPUT, GPIO_PUSHPULL);
    GpioDataRegs.GPCCLEAR.bit.GPIO94 = 1;

    // LED3
    GPIO_SetupPinMux(95, GPIO_MUX_CPU1, 0);
    GPIO_SetupPinOptions(95, GPIO_OUTPUT, GPIO_PUSHPULL);
    GpioDataRegs.GPCCLEAR.bit.GPIO95 = 1;

    // LED4
    GPIO_SetupPinMux(97, GPIO_MUX_CPU1, 0);
    GPIO_SetupPinOptions(97, GPIO_OUTPUT, GPIO_PUSHPULL);
    GpioDataRegs.GPDCLEAR.bit.GPIO97 = 1;

    // LED5
    GPIO_SetupPinMux(111, GPIO_MUX_CPU1, 0);
    GPIO_SetupPinOptions(111, GPIO_OUTPUT, GPIO_PUSHPULL);
    GpioDataRegs.GPDCLEAR.bit.GPIO111 = 1;

    // LED6
    GPIO_SetupPinMux(130, GPIO_MUX_CPU1, 0);
    GPIO_SetupPinOptions(130, GPIO_OUTPUT, GPIO_PUSHPULL);
    GpioDataRegs.GPECLEAR.bit.GPIO130 = 1;

    // LED7
    GPIO_SetupPinMux(131, GPIO_MUX_CPU1, 0);
    GPIO_SetupPinOptions(131, GPIO_OUTPUT, GPIO_PUSHPULL);
    GpioDataRegs.GPECLEAR.bit.GPIO131 = 1;

    // LED8
    GPIO_SetupPinMux(25, GPIO_MUX_CPU1, 0);
    GPIO_SetupPinOptions(25, GPIO_OUTPUT, GPIO_PUSHPULL);
    GpioDataRegs.GPACLEAR.bit.GPIO25 = 1;

    // LED9
    GPIO_SetupPinMux(26, GPIO_MUX_CPU1, 0);
    GPIO_SetupPinOptions(26, GPIO_OUTPUT, GPIO_PUSHPULL);
    GpioDataRegs.GPACLEAR.bit.GPIO26 = 1;

    // LED10
    GPIO_SetupPinMux(27, GPIO_MUX_CPU1, 0);
    GPIO_SetupPinOptions(27, GPIO_OUTPUT, GPIO_PUSHPULL);
    GpioDataRegs.GPACLEAR.bit.GPIO27 = 1;

    // LED11
    GPIO_SetupPinMux(60, GPIO_MUX_CPU1, 0);
    GPIO_SetupPinOptions(60, GPIO_OUTPUT, GPIO_PUSHPULL);
    GpioDataRegs.GPBCLEAR.bit.GPIO60 = 1;

    // LED12
    GPIO_SetupPinMux(61, GPIO_MUX_CPU1, 0);
    GPIO_SetupPinOptions(61, GPIO_OUTPUT, GPIO_PUSHPULL);
    GpioDataRegs.GPBCLEAR.bit.GPIO61 = 1;

    // LED13
    GPIO_SetupPinMux(157, GPIO_MUX_CPU1, 0);
    GPIO_SetupPinOptions(157, GPIO_OUTPUT, GPIO_PUSHPULL);
    GpioDataRegs.GPECLEAR.bit.GPIO157 = 1;

    // LED14
    GPIO_SetupPinMux(158, GPIO_MUX_CPU1, 0);
    GPIO_SetupPinOptions(158, GPIO_OUTPUT, GPIO_PUSHPULL);
    GpioDataRegs.GPECLEAR.bit.GPIO158 = 1;

    // LED15
    GPIO_SetupPinMux(159, GPIO_MUX_CPU1, 0);
    GPIO_SetupPinOptions(159, GPIO_OUTPUT, GPIO_PUSHPULL);
    GpioDataRegs.GPECLEAR.bit.GPIO159 = 1;

    // LED16
    GPIO_SetupPinMux(160, GPIO_MUX_CPU1, 0);
    GPIO_SetupPinOptions(160, GPIO_OUTPUT, GPIO_PUSHPULL);
    GpioDataRegs.GPFCLEAR.bit.GPIO160 = 1;

    //WIZNET Reset
    GPIO_SetupPinMux(0, GPIO_MUX_CPU1, 0);
    GPIO_SetupPinOptions(0, GPIO_OUTPUT, GPIO_PUSHPULL);
    GpioDataRegs.GPASET.bit.GPIO0 = 1;

    //ESP8266 Reset
    GPIO_SetupPinMux(1, GPIO_MUX_CPU1, 0);
    GPIO_SetupPinOptions(1, GPIO_OUTPUT, GPIO_PUSHPULL);
    GpioDataRegs.GPASET.bit.GPIO1 = 1;

    //SPIRAM  CS  Chip Select
    GPIO_SetupPinMux(19, GPIO_MUX_CPU1, 0);
    GPIO_SetupPinOptions(19, GPIO_OUTPUT, GPIO_PUSHPULL);
    GpioDataRegs.GPASET.bit.GPIO19 = 1;

    //DRV8874 #1 DIR  Direction
    GPIO_SetupPinMux(29, GPIO_MUX_CPU1, 0);
    GPIO_SetupPinOptions(29, GPIO_OUTPUT, GPIO_PUSHPULL);
    GpioDataRegs.GPASET.bit.GPIO29 = 1;

    //DRV8874 #2 DIR  Direction
    GPIO_SetupPinMux(32, GPIO_MUX_CPU1, 0);
    GPIO_SetupPinOptions(32, GPIO_OUTPUT, GPIO_PUSHPULL);
    GpioDataRegs.GPBSET.bit.GPIO32 = 1;

    //DAN28027  CS  Chip Select
    GPIO_SetupPinMux(9, GPIO_MUX_CPU1, 0);
    GPIO_SetupPinOptions(9, GPIO_OUTPUT, GPIO_PUSHPULL);
    GpioDataRegs.GPASET.bit.GPIO9 = 1;

    //MPU9250  CS  Chip Select
    GPIO_SetupPinMux(66, GPIO_MUX_CPU1, 0);
    GPIO_SetupPinOptions(66, GPIO_OUTPUT, GPIO_PUSHPULL);
    GpioDataRegs.GPCSET.bit.GPIO66 = 1;

    //WIZNET  CS  Chip Select
    GPIO_SetupPinMux(125, GPIO_MUX_CPU1, 0);
    GPIO_SetupPinOptions(125, GPIO_OUTPUT, GPIO_PUSHPULL);
    GpioDataRegs.GPDSET.bit.GPIO125 = 1;

    //PushButton 1
    GPIO_SetupPinMux(4, GPIO_MUX_CPU1, 0);
    GPIO_SetupPinOptions(4, GPIO_INPUT, GPIO_PULLUP);

    //PushButton 2
    GPIO_SetupPinMux(5, GPIO_MUX_CPU1, 0);
    GPIO_SetupPinOptions(5, GPIO_INPUT, GPIO_PULLUP);

    //PushButton 3
    GPIO_SetupPinMux(6, GPIO_MUX_CPU1, 0);
    GPIO_SetupPinOptions(6, GPIO_INPUT, GPIO_PULLUP);

    //PushButton 4
    GPIO_SetupPinMux(7, GPIO_MUX_CPU1, 0);
    GPIO_SetupPinOptions(7, GPIO_INPUT, GPIO_PULLUP);

    //Joy Stick Pushbutton
    GPIO_SetupPinMux(8, GPIO_MUX_CPU1, 0);
    GPIO_SetupPinOptions(8, GPIO_INPUT, GPIO_PULLUP);

    // Clear all interrupts and initialize PIE vector table:
    // Disable CPU interrupts
    DINT;

    // Initialize the PIE control registers to their default state.
    // The default state is all PIE interrupts disabled and flags
    // are cleared.
    // This function is found in the F2837xD_PieCtrl.c file.
    InitPieCtrl();

    // Disable CPU interrupts and clear all CPU interrupt flags:
    IER = 0x0000;
    IFR = 0x0000;

    // Initialize the PIE vector table with pointers to the shell Interrupt
    // Service Routines (ISR).
    // This will populate the entire table, even if the interrupt
    // is not used in this example.  This is useful for debug purposes.
    // The shell ISR routines are found in F2837xD_DefaultIsr.c.
    // This function is found in F2837xD_PieVect.c.
    InitPieVectTable();

    // Interrupts that are used in this example are re-mapped to
    // ISR functions found within this project
    EALLOW;  // This is needed to write to EALLOW protected registers
    PieVectTable.TIMER0_INT = &cpu_timer0_isr;
    PieVectTable.TIMER1_INT = &cpu_timer1_isr;
    PieVectTable.TIMER2_INT = &cpu_timer2_isr;
    PieVectTable.SCIA_RX_INT = &RXAINT_recv_ready;
    PieVectTable.SCIC_RX_INT = &RXCINT_recv_ready;
    PieVectTable.SCID_RX_INT = &RXDINT_recv_ready;
    PieVectTable.SCIA_TX_INT = &TXAINT_data_sent;
    PieVectTable.SCIC_TX_INT = &TXCINT_data_sent;
    PieVectTable.SCID_TX_INT = &TXDINT_data_sent;
    PieVectTable.ADCD1_INT = &ADCD_ISR;

    PieVectTable.EMIF_ERROR_INT = &SWI_isr;
    PieVectTable.SPIB_RX_INT = &SPIB_isr;
    EDIS;

    EALLOW; // Below are protected registers
    GpioCtrlRegs.GPAPUD.bit.GPIO2 = 1; // For EPWM2A
    GpioCtrlRegs.GPAPUD.bit.GPIO3 = 1; // For EPWM2B
    EDIS;    // This is needed to disable write to EALLOW protected registers

    //EPWM2A
    //motor function regs
    EPwm2Regs.TBCTL.bit.CTRMODE = 0;
    EPwm2Regs.TBCTL.bit.CLKDIV = 0;
    EPwm2Regs.TBCTL.bit.FREE_SOFT = 0x2;
    EPwm2Regs.TBCTL.bit.PHSEN =0;
    EPwm2Regs.TBCTR = 0x0;
    EPwm2Regs.TBPRD = 2500;
    EPwm2Regs.CMPA.bit.CMPA = 2500;
    EPwm2Regs.AQCTLA.bit.CAU= 0x1;
    EPwm2Regs.AQCTLA.bit.ZRO= 0x2;
    EPwm2Regs.TBPHS.bit.TBPHS =0;
    GPIO_SetupPinMux(2, GPIO_MUX_CPU1, 1);
    //EPWM2B
    EPwm2Regs.CMPB.bit.CMPB = 0;
    EPwm2Regs.AQCTLB.bit.CBU= 0x1;
    EPwm2Regs.AQCTLB.bit.ZRO= 0x2;
    GPIO_SetupPinMux(3, GPIO_MUX_CPU1, 1);

    EPwm5Regs.ETSEL.bit.SOCAEN = 0; // Disable SOC on A group
    EPwm5Regs.TBCTL.bit.CTRMODE = 3; // freeze counter
    EPwm5Regs.ETSEL.bit.SOCASEL = 0x2; // Select Event when counter equal to PRD
    EPwm5Regs.ETPS.bit.SOCAPRD = 01; // Generate pulse on 1st event (“pulse” is the same as “trigger”)
    EPwm5Regs.TBCTR = 0x0; // Clear counter
    EPwm5Regs.TBPHS.bit.TBPHS = 0x0000; // Phase is 0
    EPwm5Regs.TBCTL.bit.PHSEN = 0; // Disable phase loading
    EPwm5Regs.TBCTL.bit.CLKDIV = 0; // divide by 1 50Mhz Clock
    //    EPwm5Regs.TBPRD = 50000; // Set Period to 1ms sample. Input clock is 50MHz. ??????
    EPwm5Regs.TBPRD = 5000; // Set Period to .1ms sample. Input clock is 50MHz. ??????
    // Notice here that we are not setting CMPA or CMPB because we are not using the PWM signal
    EPwm5Regs.ETSEL.bit.SOCAEN = 1; //enable SOCA
    EPwm5Regs.TBCTL.bit.CTRMODE = 0; //unfreeze, and enter up

    EALLOW;
    //write configurations for all ADCs ADCA, ADCB, ADCC, ADCD
    AdcaRegs.ADCCTL2.bit.PRESCALE = 6; //set ADCCLK divider to /4
    AdcbRegs.ADCCTL2.bit.PRESCALE = 6; //set ADCCLK divider to /4
    AdccRegs.ADCCTL2.bit.PRESCALE = 6; //set ADCCLK divider to /4
    AdcdRegs.ADCCTL2.bit.PRESCALE = 6; //set ADCCLK divider to /4
    AdcSetMode(ADC_ADCA, ADC_RESOLUTION_12BIT, ADC_SIGNALMODE_SINGLE); //read calibration settings
    AdcSetMode(ADC_ADCB, ADC_RESOLUTION_12BIT, ADC_SIGNALMODE_SINGLE); //read calibration settings
    AdcSetMode(ADC_ADCC, ADC_RESOLUTION_12BIT, ADC_SIGNALMODE_SINGLE); //read calibration settings
    AdcSetMode(ADC_ADCD, ADC_RESOLUTION_12BIT, ADC_SIGNALMODE_SINGLE); //read calibration settings
    //Set pulse positions to late
    AdcaRegs.ADCCTL1.bit.INTPULSEPOS = 1;
    AdcbRegs.ADCCTL1.bit.INTPULSEPOS = 1;
    AdccRegs.ADCCTL1.bit.INTPULSEPOS = 1;
    AdcdRegs.ADCCTL1.bit.INTPULSEPOS = 1;
    //power up the ADCs
    AdcaRegs.ADCCTL1.bit.ADCPWDNZ = 1;
    AdcbRegs.ADCCTL1.bit.ADCPWDNZ = 1;
    AdccRegs.ADCCTL1.bit.ADCPWDNZ = 1;
    AdcdRegs.ADCCTL1.bit.ADCPWDNZ = 1;
    //delay for 1ms to allow ADC time to power up
    DELAY_US(1000);
    //Select the channels to convert and end of conversion flag
    //Many statements commented out, To be used when using ADCA or ADCB
    //ADCA//////
    AdcaRegs.ADCSOC0CTL.bit.CHSEL = 0x2; //SOC0 will convert Channel you choose Does not have to be A0
    AdcaRegs.ADCSOC0CTL.bit.ACQPS = 99; //sample window is acqps + 1 SYSCLK cycles = 500ns
    AdcaRegs.ADCSOC0CTL.bit.TRIGSEL = 0xD;// EPWM5 ADCSOCA or another trigger you choose will trigger SOC0
    AdcaRegs.ADCSOC1CTL.bit.CHSEL = 0x3; //SOC1 will convert Channel you choose Does not have to be A1
    AdcaRegs.ADCSOC1CTL.bit.ACQPS = 99; //sample window is acqps + 1 SYSCLK cycles = 500ns
    AdcaRegs.ADCSOC1CTL.bit.TRIGSEL = 0xD;// EPWM5 ADCSOCA or another trigger you choose will trigger SOC1
    AdcaRegs.ADCINTSEL1N2.bit.INT1SEL = 1; //set to last SOC that is converted and it will set INT1 flag ADCA1
    AdcaRegs.ADCINTSEL1N2.bit.INT1E = 1; //enable INT1 flag
    AdcaRegs.ADCINTFLGCLR.bit.ADCINT1 = 1; //make sure INT1 flag is cleared
    //ADCB
    AdcbRegs.ADCSOC0CTL.bit.CHSEL = 4; //SOC0 will convert Channel you choose Does not have to be B0
    AdcbRegs.ADCSOC0CTL.bit.ACQPS = 99; //sample window is acqps + 1 SYSCLK cycles = 500ns
    AdcbRegs.ADCSOC0CTL.bit.TRIGSEL = 0xD;// EPWM5 ADCSOCA or another trigger you choose will trigger SOC0
    //AdcbRegs.ADCSOC1CTL.bit.CHSEL = ???; //SOC1 will convert Channel you choose Does not have to be B1
    //AdcbRegs.ADCSOC1CTL.bit.ACQPS = 99; //sample window is acqps + 1 SYSCLK cycles = 500ns
    //AdcbRegs.ADCSOC1CTL.bit.TRIGSEL = ???;// EPWM5 ADCSOCA or another trigger you choose will trigger SOC1
    //AdcbRegs.ADCSOC2CTL.bit.CHSEL = ???; //SOC2 will convert Channel you choose Does not have to be B2
    //AdcbRegs.ADCSOC2CTL.bit.ACQPS = 99; //sample window is acqps + 1 SYSCLK cycles = 500ns
    //AdcbRegs.ADCSOC2CTL.bit.TRIGSEL = ???;// EPWM5 ADCSOCA or another trigger you choose will trigger SOC2
    //AdcbRegs.ADCSOC3CTL.bit.CHSEL = ???; //SOC3 will convert Channel you choose Does not have to be B3
    //AdcbRegs.ADCSOC3CTL.bit.ACQPS = 99; //sample window is acqps + 1 SYSCLK cycles = 500ns
    //AdcbRegs.ADCSOC3CTL.bit.TRIGSEL = ???;// EPWM5 ADCSOCA or another trigger you choose will trigger SOC3
    AdcbRegs.ADCINTSEL1N2.bit.INT1SEL = 0; //set to last SOC that is converted and it will set INT1 flag ADCB1
    AdcbRegs.ADCINTSEL1N2.bit.INT1E = 1; //enable INT1 flag
    AdcbRegs.ADCINTFLGCLR.bit.ADCINT1 = 1; //make sure INT1 flag is cleared
    //ADCD
    AdcdRegs.ADCSOC0CTL.bit.CHSEL = 0; // set SOC0 to convert pin D0
    AdcdRegs.ADCSOC0CTL.bit.ACQPS = 99; //sample window is acqps + 1 SYSCLK cycles = 500ns
    AdcdRegs.ADCSOC0CTL.bit.TRIGSEL = 0xD; // EPWM5 ADCSOCA will trigger SOC0
    AdcdRegs.ADCSOC1CTL.bit.CHSEL = 0x1; //set SOC1 to convert pin D1
    AdcdRegs.ADCSOC1CTL.bit.ACQPS = 99; //sample window is acqps + 1 SYSCLK cycles = 500ns
    AdcdRegs.ADCSOC1CTL.bit.TRIGSEL = 0xD; // EPWM5 ADCSOCA will trigger SOC1
    //AdcdRegs.ADCSOC2CTL.bit.CHSEL = ???; //set SOC2 to convert pin D2
    //AdcdRegs.ADCSOC2CTL.bit.ACQPS = 99; //sample window is acqps + 1 SYSCLK cycles = 500ns
    //AdcdRegs.ADCSOC2CTL.bit.TRIGSEL = ???; // EPWM5 ADCSOCA will trigger SOC2
    //AdcdRegs.ADCSOC3CTL.bit.CHSEL = ???; //set SOC3 to convert pin D3
    //AdcdRegs.ADCSOC3CTL.bit.ACQPS = 99; //sample window is acqps + 1 SYSCLK cycles = 500ns
    //AdcdRegs.ADCSOC3CTL.bit.TRIGSEL = ???; // EPWM5 ADCSOCA will trigger SOC3
    AdcdRegs.ADCINTSEL1N2.bit.INT1SEL = 1; //set to SOC1, the last converted, and it will set INT1 flag ADCD1
    AdcdRegs.ADCINTSEL1N2.bit.INT1E = 1; //enable INT1 flag
    AdcdRegs.ADCINTFLGCLR.bit.ADCINT1 = 1; //make sure INT1 flag is cleared
    EDIS;

    // Enable DACA and DACB outputs
    EALLOW;
    DacaRegs.DACOUTEN.bit.DACOUTEN = 1;//enable dacA output-->uses ADCINA0
    DacaRegs.DACCTL.bit.LOADMODE = 0;//load on next sysclk
    DacaRegs.DACCTL.bit.DACREFSEL = 1;//use ADC VREF as reference voltage
    DacbRegs.DACOUTEN.bit.DACOUTEN = 1;//enable dacB output-->uses ADCINA1
    DacbRegs.DACCTL.bit.LOADMODE = 0;//load on next sysclk
    DacbRegs.DACCTL.bit.DACREFSEL = 1;//use ADC VREF as reference voltage
    EDIS;

    // Initialize the CpuTimers Device Peripheral. This function can be
    // found in F2837xD_CpuTimers.c
    InitCpuTimers();

    // Configure CPU-Timer 0, 1, and 2 to interrupt every second:
    // 200MHz CPU Freq, 1 second Period (in uSeconds)
    ConfigCpuTimer(&CpuTimer0, 200, 1000);
    ConfigCpuTimer(&CpuTimer1, 200, 20000);
    ConfigCpuTimer(&CpuTimer2, 200, 4000);

    // Enable CpuTimer Interrupt bit TIE
    CpuTimer0Regs.TCR.all = 0x4000;
    CpuTimer1Regs.TCR.all = 0x4000;
    CpuTimer2Regs.TCR.all = 0x4000;

    init_serial(&SerialA,115200,serialRXA);
//    init_serial(&SerialC,115200,serialRXC);
//    init_serial(&SerialD,115200,serialRXD);

    setupSpib();
    init_eQEPs();
//    setEPWM2A(uLeft);
//    setEPWM2B(uRight);
    // ---------------------------------------------------------------------------

    IER |= M_INT1;
    IER |= M_INT8;  // SCIC SCID
    IER |= M_INT9;  // SCIA
    IER |= M_INT12;
    IER |= M_INT13;
    IER |= M_INT14;
    IER |= M_INT6;





    // Enable TINT0 in the PIE: Group 1 interrupt 7
    PieCtrlRegs.PIEIER1.bit.INTx7 = 1;
    // Enable SWI in the PIE: Group 12 interrupt 9
    PieCtrlRegs.PIEIER12.bit.INTx9 = 1;
    //Exercise2 SPIB
    PieCtrlRegs.PIEIER6.bit.INTx3 = 1;
    PieCtrlRegs.PIEIER1.bit.INTx6 = 1;

    // Enable global Interrupts and higher priority real-time debug events
    EINT;  // Enable Global interrupt INTM
    ERTM;  // Enable Global realtime interrupt DBGM


    // IDLE loop. Just sit and loop forever (optional):

    while(1)
    {
        if (UARTPrint == 1 ) {
             //serial_printf(&SerialA,"RightWheelVel: %.3f LeftWheelVel: %.3f\r\n",VRightK, VLeftK);
             //serial_printf(&SerialA,"AccelX: %.4f AccelY: %.4f AccelZ: %.4f GyroX: %.4f GyroY: %.4f GyroZ: %.4f\r\n",accelXreading,accelYreading,accelZreading,gyroXreading,gyroYreading,gyroZreading);
             //serial_printf(&SerialA," PosX: %.2f PosY: %.2f Bearing: %.2f\r\n",posX,posY,phiR);
            serial_printf(&SerialA,"Volt RightDist :%f Volt LeftDist:%f\r\n", rightdist, leftdist);
            UARTPrint = 0;
        }
    }
}

int16_t ReadSwitches(void){
    int16_t switchvariable = 0;
    if (GpioDataRegs.GPADAT.bit.GPIO4 == 0) {
        switchvariable = switchvariable|0x1;
        //GPIO4 is High/3.3V
    }
    if (GpioDataRegs.GPADAT.bit.GPIO5 == 0) {
        switchvariable = switchvariable|0x2;
        //GPIO5 is High/3.3V
    }
    return switchvariable;
}

//Exercise4
void setupSpib(void) //Call this function in main() somewhere after the DINT; line of code.
{

    GPIO_SetupPinMux(9, GPIO_MUX_CPU1, 0); // Set as GPIO9 and used as DAN28027 SS
    GPIO_SetupPinOptions(9, GPIO_OUTPUT, GPIO_PUSHPULL); // Make GPIO9 an Output Pin
    GpioDataRegs.GPASET.bit.GPIO9 = 1; //Initially Set GPIO9/SS High so DAN28027 is not selected
    GPIO_SetupPinMux(66, GPIO_MUX_CPU1, 0); // Set as GPIO66 and used as MPU-9250 SS
    GPIO_SetupPinOptions(66, GPIO_OUTPUT, GPIO_PUSHPULL); // Make GPIO66 an Output Pin
    GpioDataRegs.GPCSET.bit.GPIO66 = 1; //Initially Set GPIO66/SS High so MPU-9250 is not selected
    GPIO_SetupPinMux(63, GPIO_MUX_CPU1, 15); //Set GPIO63 pin to SPISIMOB
    GPIO_SetupPinMux(64, GPIO_MUX_CPU1, 15); //Set GPIO64 pin to SPISOMIB
    GPIO_SetupPinMux(65, GPIO_MUX_CPU1, 15); //Set GPIO65 pin to SPICLKB

    EALLOW;
    GpioCtrlRegs.GPBPUD.bit.GPIO63 = 0; // Enable Pull-ups on SPI PINs Recommended by TI for SPI Pins
    GpioCtrlRegs.GPCPUD.bit.GPIO64 = 0;
    GpioCtrlRegs.GPCPUD.bit.GPIO65 = 0;
    GpioCtrlRegs.GPBQSEL2.bit.GPIO63 = 3; // Set I/O pin to asynchronous mode recommended for SPI
    GpioCtrlRegs.GPCQSEL1.bit.GPIO64 = 3; // Set I/O pin to asynchronous mode recommended for SPI
    GpioCtrlRegs.GPCQSEL1.bit.GPIO65 = 3; // Set I/O pin to asynchronous mode recommended for SPI
    EDIS;
    //Step 1.
    // cut and paste here all the SpibRegs initializations you found for part 3. Make sure the TXdelay in
    //between each transfer to 0. Also don’t forget to cut and paste the GPIO settings for GPIO9, 63, 64, 65,
    //66 which are also a part of the SPIB setup.
    SpibRegs.SPICCR.bit.SPICHAR = 0xF;
    SpibRegs.SPIFFCT.bit.TXDLY = 0x00;
    SpibRegs.SPICCR.bit.SPISWRESET = 1; // Put SPI in Reset
    SpibRegs.SPICTL.bit.CLK_PHASE = 1; //This happens to be the mode for both the DAN28027 and
    SpibRegs.SPICCR.bit.CLKPOLARITY = 0; //The MPU-9250, Mode 01.
    SpibRegs.SPICTL.bit.MASTER_SLAVE = 1; // Set to SPI Master
    SpibRegs.SPICCR.bit.SPICHAR = 0xF; // Set to transmit and receive 16 bits each write to SPITXBUF
    SpibRegs.SPICTL.bit.TALK = 1; // Enable transmission
    SpibRegs.SPIPRI.bit.FREE = 1; // Free run, continue SPI operation
    SpibRegs.SPICTL.bit.SPIINTENA = 0; // Disables the SPI interrupt
    SpibRegs.SPIBRR.bit.SPI_BIT_RATE = 0x32; // Set SCLK bit rate to 1 MHz so 1us period. SPI base clock is
    // 50MHZ. And this setting divides that base clock to create SCLK’s period
    SpibRegs.SPISTS.all = 0x0000; // Clear status flags just in case they are set for some reason
    SpibRegs.SPIFFTX.bit.SPIRST = 1;// Pull SPI FIFO out of reset, SPI FIFO can resume transmit or receive.
    SpibRegs.SPIFFTX.bit.SPIFFENA = 1; // Enable SPI FIFO enhancements
    SpibRegs.SPIFFTX.bit.TXFIFO = 0; // Write 0 to reset the FIFO pointer to zero, and hold in reset
    SpibRegs.SPIFFTX.bit.TXFFINTCLR = 1; // Write 1 to clear SPIFFTX[TXFFINT] flag just in case it is set
    SpibRegs.SPIFFRX.bit.RXFIFORESET = 0; // Write 0 to reset the FIFO pointer to zero, and hold in reset
    SpibRegs.SPIFFRX.bit.RXFFOVFCLR = 1; // Write 1 to clear SPIFFRX[RXFFOVF] just in case it is set
    SpibRegs.SPIFFRX.bit.RXFFINTCLR = 1; // Write 1 to clear SPIFFRX[RXFFINT] flag just in case it is set
    SpibRegs.SPIFFRX.bit.RXFFIENA = 1; // Enable the RX FIFO Interrupt. RXFFST >= RXFFIL
    SpibRegs.SPIFFCT.bit.TXDLY = 0x00; //Set delay between transmits to 16 spi clocks. Needed by DAN28027
    SpibRegs.SPICCR.bit.SPISWRESET = 1; // Pull the SPI out of reset
    SpibRegs.SPIFFTX.bit.TXFIFO = 1; // Release transmit FIFO from reset.
    SpibRegs.SPIFFRX.bit.RXFIFORESET = 1; // Re-enable receive FIFO operation
    SpibRegs.SPICTL.bit.SPIINTENA = 1; // Enables SPI interrupt. !! I don’t think this is needed. Need to Test
    SpibRegs.SPIFFRX.bit.RXFFIL = 0x10; //Interrupt Level to 16 words or more received into FIFO causes
    //-----------------------------------------------------------------------------------------------------------------
    //Step 2.
    // perform a multiple 16 bit transfer to initialize MPU-9250 registers 0x13,0x14,0x15,0x16
    // 0x17, 0x18, 0x19, 0x1A, 0x1B, 0x1C 0x1D, 0x1E, 0x1F. Use only one SS low to high for all these writes
    // some code is given, most you have to fill you yourself.
    GpioDataRegs.GPCCLEAR.bit.GPIO66 = 1; // Slave Select Low
    // Perform the number of needed writes to SPITXBUF to write to all 13 registers. Remember we are
    //sending 16 bit transfers, so two registers at a time after the first 16 bit transfer.
    // To address 00x13 write 0x00

    // To address 00x14 write 0x00
    // To address 00x15 write 0x00

    // To address 00x16 write 0x00
    // To address 00x17 write 0x00

    // To address 00x18 write 0x00
    // To address 00x19 write 0x13

    // To address 00x1A write 0x02
    // To address 00x1B write 0x00

    // To address 00x1C write 0x08
    // To address 00x1D write 0x06

    // To address 00x1E write 0x00
    // To address 00x1F write 0x00

    SpibRegs.SPITXBUF = (0x1300 | 0x0000); //13
    SpibRegs.SPITXBUF = (0x0000 | 0x0000); //1415
    SpibRegs.SPITXBUF = (0x0000 | 0x0000); //1617
    SpibRegs.SPITXBUF = (0x0000 | 0x0013); //1819
    SpibRegs.SPITXBUF = (0x0200 | 0x0000); //ab
    SpibRegs.SPITXBUF = (0x0800 | 0x0006); //cd
    SpibRegs.SPITXBUF = (0x0000 | 0x0000); //ef

    // wait for the correct number of 16 bit values to be received into the RX FIFO
    while(SpibRegs.SPIFFRX.bit.RXFFST !=7);
    GpioDataRegs.GPCSET.bit.GPIO66 = 1; // Slave Select High
    temp = SpibRegs.SPIRXBUF;
    temp = SpibRegs.SPIRXBUF;
    temp = SpibRegs.SPIRXBUF;
    temp = SpibRegs.SPIRXBUF;
    temp = SpibRegs.SPIRXBUF;
    temp = SpibRegs.SPIRXBUF;
    temp = SpibRegs.SPIRXBUF;
    DELAY_US(10); // Delay 10us to allow time for the MPU-2950 to get ready for next transfer.
    //Step 3.
    // perform a multiple 16 bit transfer to initialize MPU-9250 registers 0x23,0x24,0x25,0x26
    // 0x27, 0x28, 0x29. Use only one SS low to high for all these writes
    // some code is given, most you have to fill you yourself.
    GpioDataRegs.GPCCLEAR.bit.GPIO66 = 1; // Slave Select Low
    // Perform the number of needed writes to SPITXBUF to write to all 13 registers
    // To address 00x23 write 0x00

    // To address 00x24 write 0x40
    // To address 00x25 write 0x8C

    // To address 00x26 write 0x02
    // To address 00x27 write 0x88

    // To address 00x28 write 0x0C
    // To address 00x29 write 0x0A
    SpibRegs.SPITXBUF = (0x2300 | 0x0000); //23
    SpibRegs.SPITXBUF = (0x4000 | 0x008C); //2425
    SpibRegs.SPITXBUF = (0x0200 | 0x0088); //2627
    SpibRegs.SPITXBUF = (0x0C00 | 0x000A); //2829


    // wait for the correct number of 16 bit values to be received into the RX FIFO
    while(SpibRegs.SPIFFRX.bit.RXFFST !=4);
    //have to send the 4 bits from above
    GpioDataRegs.GPCSET.bit.GPIO66 = 1; // Slave Select High
    temp = SpibRegs.SPIRXBUF;
    temp = SpibRegs.SPIRXBUF;
    temp = SpibRegs.SPIRXBUF;
    temp = SpibRegs.SPIRXBUF;
    DELAY_US(10); // Delay 10us to allow time for the MPU-2950 to get ready for next transfer.
    //Step 4.
    // perform a single 16 bit transfer to initialize MPU-9250 register 0x2A
    GpioDataRegs.GPCCLEAR.bit.GPIO66 = 1;
    // Write to address 0x2A the value 0x81
    SpibRegs.SPITXBUF = (0x2A00 | 0x0081); //2A
    // wait for one byte to be received
    while(SpibRegs.SPIFFRX.bit.RXFFST !=1);
    GpioDataRegs.GPCSET.bit.GPIO66 = 1;
    temp = SpibRegs.SPIRXBUF;
    DELAY_US(10);
    // The Remainder of this code is given to you and you do not need to make any changes.
    GpioDataRegs.GPCCLEAR.bit.GPIO66 = 1;
    SpibRegs.SPITXBUF = (0x3800 | 0x0001); // 0x3800 //Write to 38 a value of 1 - could be 0x3801
    while(SpibRegs.SPIFFRX.bit.RXFFST !=1);
    GpioDataRegs.GPCSET.bit.GPIO66 = 1;
    temp = SpibRegs.SPIRXBUF;
    DELAY_US(10);
    GpioDataRegs.GPCCLEAR.bit.GPIO66 = 1;
    SpibRegs.SPITXBUF = (0x3A00 | 0x0001); // 0x3A00
    while(SpibRegs.SPIFFRX.bit.RXFFST !=1);
    GpioDataRegs.GPCSET.bit.GPIO66 = 1;
    temp = SpibRegs.SPIRXBUF;
    DELAY_US(10);
    GpioDataRegs.GPCCLEAR.bit.GPIO66 = 1;
    SpibRegs.SPITXBUF = (0x6400 | 0x0001); // 0x6400
    while(SpibRegs.SPIFFRX.bit.RXFFST !=1);
    GpioDataRegs.GPCSET.bit.GPIO66 = 1;
    temp = SpibRegs.SPIRXBUF;
    DELAY_US(10);
    GpioDataRegs.GPCCLEAR.bit.GPIO66 = 1;
    SpibRegs.SPITXBUF = (0x6700 | 0x0003); // 0x6700
    while(SpibRegs.SPIFFRX.bit.RXFFST !=1);
    GpioDataRegs.GPCSET.bit.GPIO66 = 1;
    temp = SpibRegs.SPIRXBUF;
    DELAY_US(10);
    GpioDataRegs.GPCCLEAR.bit.GPIO66 = 1;
    SpibRegs.SPITXBUF = (0x6A00 | 0x0020); // 0x6A00
    while(SpibRegs.SPIFFRX.bit.RXFFST !=1);
    GpioDataRegs.GPCSET.bit.GPIO66 = 1;
    temp = SpibRegs.SPIRXBUF;
    DELAY_US(10);
    GpioDataRegs.GPCCLEAR.bit.GPIO66 = 1;
    SpibRegs.SPITXBUF = (0x6B00 | 0x0001); // 0x6B00
    while(SpibRegs.SPIFFRX.bit.RXFFST !=1);
    GpioDataRegs.GPCSET.bit.GPIO66 = 1;
    temp = SpibRegs.SPIRXBUF;
    DELAY_US(10);
    GpioDataRegs.GPCCLEAR.bit.GPIO66 = 1;
    SpibRegs.SPITXBUF = (0x7500 | 0x0071); // 0x7500
    while(SpibRegs.SPIFFRX.bit.RXFFST !=1);
    GpioDataRegs.GPCSET.bit.GPIO66 = 1;
    temp = SpibRegs.SPIRXBUF;
    DELAY_US(10);
    GpioDataRegs.GPCCLEAR.bit.GPIO66 = 1;
    SpibRegs.SPITXBUF = (0x7700 | 0x00EB); // 0x7700
    while(SpibRegs.SPIFFRX.bit.RXFFST !=1);
    GpioDataRegs.GPCSET.bit.GPIO66 = 1;
    temp = SpibRegs.SPIRXBUF;
    DELAY_US(10);
    GpioDataRegs.GPCCLEAR.bit.GPIO66 = 1;
    SpibRegs.SPITXBUF = (0x7800 | 0x0012); // 0x7800
    while(SpibRegs.SPIFFRX.bit.RXFFST !=1);
    GpioDataRegs.GPCSET.bit.GPIO66 = 1;
    temp = SpibRegs.SPIRXBUF;
    DELAY_US(10);
    GpioDataRegs.GPCCLEAR.bit.GPIO66 = 1;
    SpibRegs.SPITXBUF = (0x7A00 | 0x0010); // 0x7A00
    while(SpibRegs.SPIFFRX.bit.RXFFST !=1);
    GpioDataRegs.GPCSET.bit.GPIO66 = 1;
    temp = SpibRegs.SPIRXBUF;
    DELAY_US(10);
    GpioDataRegs.GPCCLEAR.bit.GPIO66 = 1;
    SpibRegs.SPITXBUF = (0x7B00 | 0x00FA); // 0x7B00
    while(SpibRegs.SPIFFRX.bit.RXFFST !=1);
    GpioDataRegs.GPCSET.bit.GPIO66 = 1;
    temp = SpibRegs.SPIRXBUF;
    DELAY_US(10);
    GpioDataRegs.GPCCLEAR.bit.GPIO66 = 1;
    SpibRegs.SPITXBUF = (0x7D00 | 0x0021); // 0x7D00
    while(SpibRegs.SPIFFRX.bit.RXFFST !=1);
    GpioDataRegs.GPCSET.bit.GPIO66 = 1;
    temp = SpibRegs.SPIRXBUF;
    DELAY_US(10);
    GpioDataRegs.GPCCLEAR.bit.GPIO66 = 1;
    SpibRegs.SPITXBUF = (0x7E00 | 0x0050); // 0x7E00
    while(SpibRegs.SPIFFRX.bit.RXFFST !=1);
    GpioDataRegs.GPCSET.bit.GPIO66 = 1;
    temp = SpibRegs.SPIRXBUF;
    DELAY_US(50);
    // Clear SPIB interrupt source just in case it was issued due to any of the above initializations.
    SpibRegs.SPIFFRX.bit.RXFFOVFCLR=1; // Clear Overflow flag
    SpibRegs.SPIFFRX.bit.RXFFINTCLR=1; // Clear Interrupt flag
    PieCtrlRegs.PIEACK.all = PIEACK_GROUP6;
}

// SWI_isr,  Using this interrupt as a Software started interrupt
__interrupt void SWI_isr(void) {

    // These three lines of code allow SWI_isr, to be interrupted by other interrupt functions
    // making it lower priority than all other Hardware interrupts.
    PieCtrlRegs.PIEACK.all = PIEACK_GROUP12;
    asm("       NOP");                    // Wait one cycle
    EINT;                                 // Clear INTM to enable interrupts



    // Insert SWI ISR Code here.......


    numSWIcalls++;

    DINT;

}

//for possible debug and referencing DAC
void setDACA(float dacouta0) {
    if (dacouta0 > 3.0) dacouta0 = 3.0;
    if (dacouta0 < 0.0) dacouta0 = 0.0;
    DacaRegs.DACVALS.bit.DACVALS = 1365.0*dacouta0; // perform scaling of 0-3 to 0-4095
}
void setDACB(float dacouta1) {
    if (dacouta1 > 3.0) dacouta1 = 3.0;
    if (dacouta1 < 0.0) dacouta1 = 0.0;
    DacbRegs.DACVALS.bit.DACVALS = 1365.0*dacouta1; // perform scaling of 0-3 to 0-4095
}

//adcd1 pie interrupt
__interrupt void ADCD_ISR (void)
{
    //value received from ADCIN0 and ADCIN1 for IR sensors
    adcd0result = AdcdResultRegs.ADCRESULT0;
    adcd1result = AdcdResultRegs.ADCRESULT1;

    // Here covert ADCIND0, ADCIND1 to volts
    //convert voltage from IR into usable distance
    adcd0volts = adcd0result*(3.0/4095.0);
    rightdist = 3.0 - adcd0volts;
    setDACA (rightdist);

    adcd1volts = adcd1result*(3.0/4095.0);
    leftdist = 3.0 - adcd1volts;
    setDACB (leftdist);

//    //State Machine Wall Ride
//    ewall = refdist - rightdist;
//    turns = kpwall * ewall;


    // Here write values to DAC channels
    // Print ADCIND0 and ADCIND1’s voltage value to TeraTerm every 100ms
    countvariable++;
    if ((countvariable % 100)==0){
        UARTPrint = 1;
    }
    AdcdRegs.ADCINTFLGCLR.bit.ADCINT1 = 1; //clear interrupt flag
    PieCtrlRegs.PIEACK.all = PIEACK_GROUP1;
}

//car accel and gyro sensor variables
int16_t spivalue1 = 0;
int16_t ADC1 = 0;
int16_t ADC2 = 0;
int16_t accelXraw = 0;
int16_t accelYraw = 0;
int16_t accelZraw = 0;
int16_t TIMER = 0;
int16_t gyroXraw = 0;
int16_t gyroYraw = 0;
int16_t gyroZraw = 0;

__interrupt void SPIB_isr(void){
    spivalue1 = SpibRegs.SPIRXBUF ; // Read first 16 bits value off RX FIFO. Probably is zero since no chip
    accelXraw = SpibRegs.SPIRXBUF ; // Read second 16 bits value off RX FIFO. Again probably zero
    accelYraw = SpibRegs.SPIRXBUF ; // Read third 16 bits value off RX FIFO. Again probably zero
    accelZraw = SpibRegs.SPIRXBUF ;
    TIMER = SpibRegs.SPIRXBUF ;
    gyroXraw = SpibRegs.SPIRXBUF ;
    gyroYraw = SpibRegs.SPIRXBUF ;
    gyroZraw = SpibRegs.SPIRXBUF ;
    accelXreading = accelXraw*(4.0/32767.0);
    accelYreading = accelYraw*(4.0/32767.0);
    accelZreading = accelZraw*(4.0/32767.0);
    gyroXreading = gyroXraw*(250.0/32767.0);
    gyroYreading = gyroYraw*(250.0/32767.0);
    gyroZreading = gyroZraw*(250.0/32767.0);

//    ADC1volts = ADC1*(3.3/4095.0);
//    ADC2volts = ADC2*(3.3/4095.0);

    GpioDataRegs.GPCSET.bit.GPIO66 = 1; // Set GPIO 9 high to end Slave Select. Now to Scope. Later to deselect
    //DAN28027
    // Later when actually communicating with the DAN28027 do something with the data. Now do nothing.
    SpibRegs.SPIFFRX.bit.RXFFOVFCLR = 1; // Clear Overflow flag just in case of an overflow
    SpibRegs.SPIFFRX.bit.RXFFINTCLR = 1; // Clear RX FIFO Interrupt flag so next interrupt will happen
    PieCtrlRegs.PIEACK.all = PIEACK_GROUP6; // Acknowledge INT6 PIE interrupt

    // This function is called each time a char is recieved over UARTA.
}
void init_eQEPs(void) {
    // setup eQEP1 pins for input
    EALLOW;
    //Disable internal pull-up for the selected output pins for reduced power consumption
    GpioCtrlRegs.GPAPUD.bit.GPIO20 = 1; // Disable pull-up on GPIO20 (EQEP1A)
    GpioCtrlRegs.GPAPUD.bit.GPIO21 = 1; // Disable pull-up on GPIO21 (EQEP1B)
    GpioCtrlRegs.GPAQSEL2.bit.GPIO20 = 2; // Qual every 6 samples
    GpioCtrlRegs.GPAQSEL2.bit.GPIO21 = 2; // Qual every 6 samples
    EDIS;
    // This specifies which of the possible GPIO pins will be EQEP1 functional pins.
    // Comment out other unwanted lines.
    GPIO_SetupPinMux(20, GPIO_MUX_CPU1, 1);
    GPIO_SetupPinMux(21, GPIO_MUX_CPU1, 1);
    EQep1Regs.QEPCTL.bit.QPEN = 0; // make sure eqep in reset
    EQep1Regs.QDECCTL.bit.QSRC = 0; // Quadrature count mode
    EQep1Regs.QPOSCTL.all = 0x0; // Disable eQep Position Compare
    EQep1Regs.QCAPCTL.all = 0x0; // Disable eQep Capture
    EQep1Regs.QEINT.all = 0x0; // Disable all eQep interrupts
    EQep1Regs.QPOSMAX = 0xFFFFFFFF; // use full range of the 32 bit count
    EQep1Regs.QEPCTL.bit.FREE_SOFT = 2; // EQep uneffected by emulation suspend in Code Composer
    EQep1Regs.QPOSCNT = 0;
    EQep1Regs.QEPCTL.bit.QPEN = 1; // Enable EQep

    // setup QEP2 pins for input
    EALLOW;
    //Disable internal pull-up for the selected output pinsfor reduced power consumption
    GpioCtrlRegs.GPBPUD.bit.GPIO54 = 1; // Disable pull-up on GPIO54 (EQEP2A)
    GpioCtrlRegs.GPBPUD.bit.GPIO55 = 1; // Disable pull-up on GPIO55 (EQEP2B)
    GpioCtrlRegs.GPBQSEL2.bit.GPIO54 = 2; // Qual every 6 samples
    GpioCtrlRegs.GPBQSEL2.bit.GPIO55 = 2; // Qual every 6 samples
    EDIS;
    GPIO_SetupPinMux(54, GPIO_MUX_CPU1, 5); // set GPIO54 and eQep2A
    GPIO_SetupPinMux(55, GPIO_MUX_CPU1, 5); // set GPIO54 and eQep2B
    EQep2Regs.QEPCTL.bit.QPEN = 0; // make sure qep reset
    EQep2Regs.QDECCTL.bit.QSRC = 0; // Quadrature count mode
    EQep2Regs.QPOSCTL.all = 0x0; // Disable eQep Position Compare
    EQep2Regs.QCAPCTL.all = 0x0; // Disable eQep Capture
    EQep2Regs.QEINT.all = 0x0; // Disable all eQep interrupts
    EQep2Regs.QPOSMAX = 0xFFFFFFFF; // use full range of the 32 bit count.
    EQep2Regs.QEPCTL.bit.FREE_SOFT = 2; // EQep uneffected by emulation suspend
    EQep2Regs.QPOSCNT = 0;
    EQep2Regs.QEPCTL.bit.QPEN = 1; // Enable EQep
}
float readEncLeft(void) {
    int32_t raw = 0;
    uint32_t QEP_maxvalue = 0xFFFFFFFFU; //4294967295U
    raw = EQep1Regs.QPOSCNT;
    if (raw >= QEP_maxvalue/2) raw -= QEP_maxvalue; // I don't think this is needed and never true
    // 5 North South magnet poles in the encoder disk so 5 square waves per one revolution of the
    // DC motor's back shaft. Then Quadrature Decoder mode multiplies this by 4 so 20 counts per one rev
    // of the DC motor's back shaft. Then the gear motor's gear ratio is 30:1.
    //5*4*30
//    LeftWheel = raw*((TWOPI)/600);//Converts 360 to radians
//    LeftWheelDist = LeftWheel/9.5//how many radians per foot
    return (raw*((TWOPI)/600));
}
float readEncRight(void) {
    int32_t raw = 0;
    uint32_t QEP_maxvalue = 0xFFFFFFFFU; //4294967295U -1 32bit signed int
    raw = EQep2Regs.QPOSCNT;
    if (raw >= QEP_maxvalue/2) raw -= QEP_maxvalue; // I don't think this is needed and never true
    // 5 North South magnet poles in the encoder disk so 5 square waves per one revolution of the
    // DC motor's back shaft. Then Quadrature Decoder mode multiplies this by 4 so 20 counts per one rev
    // of the DC motor's back shaft. Then the gear motor's gear ratio is 30:1.
//    RightWheel = raw*((TWOPI)/600);
//    RightWheelDist = RightWheel/9.5//how many radians per foot
    return (raw*((TWOPI)/600));
}

//A Motor
//limiting values for safety regs
void setEPWM2A(float U){
    if(U>10){
        U=10;
        }
    else if(U<-10){
        U=-10;
    }

    EPwm2Regs.CMPA.bit.CMPA = (EPwm2Regs.TBPRD / 20.0) * (U + 10.0);
}
//2B
void setEPWM2B(float U){
    if(U>10){
        U=10;
        }
    else if(U<-10){
        U=-10;
    }

    EPwm2Regs.CMPB.bit.CMPB = (EPwm2Regs.TBPRD / 20.0) * (U + 10.0);
}

// cpu_timer0_isr - CPU Timer0 ISR
__interrupt void cpu_timer0_isr(void)
{
    MySwitches = ReadSwitches();
    CpuTimer0.InterruptCount++;
    if ((CpuTimer0.InterruptCount % 20) == 0) {
        UARTPrint = 1;}

    numTimer0calls++;

    //Read feedback quadrature encoder
    RightWheel = readEncRight();
    LeftWheel = -readEncLeft();
    RightWheelDist = RightWheel/9.5;
    LeftWheelDist = LeftWheel/9.5;
    VLeftK = (LeftWheelDist - LeftWheelDist_1)/.004;
    VRightK = (RightWheelDist - RightWheelDist_1)/.004;
    RightWheelDist_1 = RightWheelDist;
    LeftWheelDist_1 = LeftWheelDist;
    //Control
    //ErrorLeftK = VRef - VLeftK;//ek
    //ErrorRightK = VRef - VRightK;
    //ex4
    et = turn + (VLeftK-VRightK);
    ErrorLeftK = VRef - VLeftK - KT*et;//ek
    ErrorRightK = VRef - VRightK + KT*et;
    ILeftK = ILeftK_1 + ((ErrorLeftK + ErrorLeftK_1)/2.0)*.004;//Ik
    IRightK = IRightK_1 + ((ErrorRightK + ErrorRightK_1)/2.0)*.004;
    ULeftK = (Kp*ErrorLeftK+Ki*ILeftK);
    URightK = (Kp*ErrorRightK+Ki*IRightK);

    //POS
    thetaR =  RightWheelDist*9.5;
    thetaL =  LeftWheelDist*9.5;
    thetaRD = (thetaR - thetaR_1)/0.004;
    thetaLD = (thetaL - thetaL_1)/0.004;
    phiR = (Rwh/Wr)*(thetaR-thetaL);
    thetaAvg = 0.5*(thetaR + thetaL);
    thetaAvgD = 0.5*(thetaRD+thetaLD);
    posXD = Rwh*thetaAvgD*cos(phiR);
    posYD = Rwh*thetaAvgD*sin(phiR);
...

This file has been truncated, please download it to see its full contents.
