LM35 Temperature Sensor Caliberation and Monitoring

This project help you understand how to calibrate analog sensor values to standard units.

IntermediateShowcase (no instructions)3 hours3,761

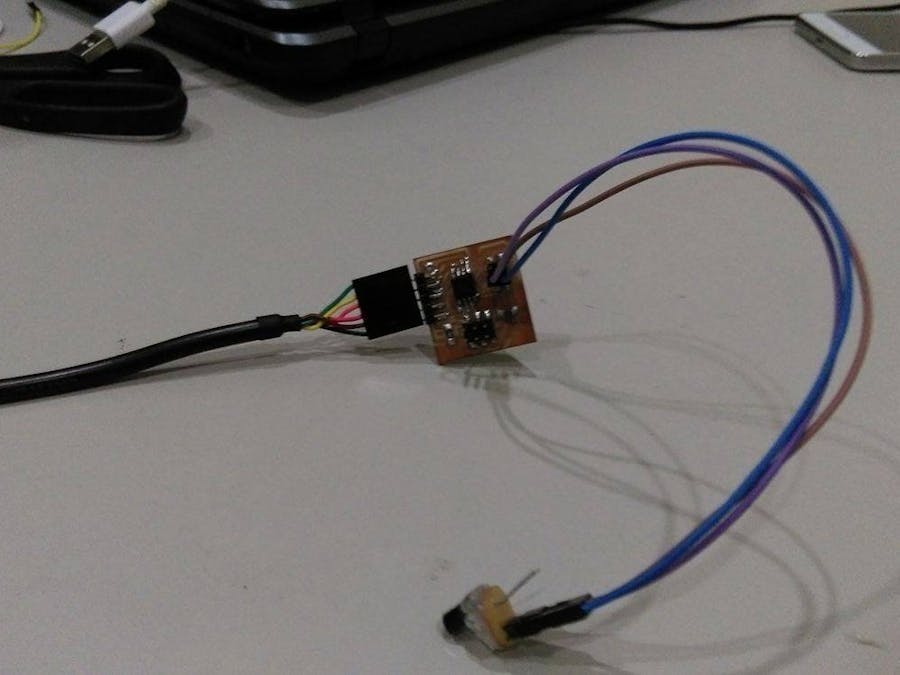

LM35 Temperature Sensor Caliberation and Monitoring

Things used in this project

Hardware components

Temperature Sensor

SparkFun FTDI Basic Breakout - 5V

Microchip ATtiny85

ATtiny 44

Story

I used Two Point Caliberation Method using an Ice-Water bath and Boiling Water for the two referances this is a linear temperature sensor thats why it will give good result in this method.

We know water boils at 100 Degree Celcius and Triple Point is 0.01 Degree Celcius:

Reference Low = 0.01 Degree Celcius

Reference High =100 Degree Celcius

My Readings

Raw Low = 848

Raw High = 868

Raw Range = 20

Put these values in Two Point Calibration Equation:

CorrectedValue = (((RawValue – RawLow) * ReferenceRange) / RawRange) + ReferenceLow

Detailed Video of the Process:

Schematics

Code

Arduino Code - for ATtiny44

/* Reading Data from LM35 Temperature Sensor
Muhammed Jaseel P
Fablab Trivandrum
*/
#include <SoftwareSerial.h>
   #define Rx 4
   #define Tx 3
   SoftwareSerial ftdi(Rx,Tx);
   void setup() {
   ftdi.begin(9600);
  }
   void loop()
  {
    if(ftdi.available() ){
    ftdi.println("Temperature in Degree Celcious");
    int RawValue  = analogRead(A1);//Raw Data from Sensor
    int CorrectedValue=((RawValue-848)*4.995)+0.01; // Caliberated Result
    ftdi.println(CorrectedValue);
    delay(2000);
    }
    }

Credits

Muhammed Jaseel

4 projects • 20 followers

I am a Maker and Developer
