Accelerometer (ADXL 345) Interfacing with PC (Python GUI)

I interfaced ADXL 345 Accelerometer to PC using ATTiny45 Microcontroller.

IntermediateProtip3 hours2,128

Accelerometer (ADXL 345) Interfacing with PC (Python GUI)

Things used in this project

Hardware components

ADXL 345

Microchip ATtiny85

you can use both ATtiny 45 and 85

SparkFun Electronics LilyPad FTDI Basic Breakout - 5V

for interfacing with PC

Story

Hi Makers,

What I am going to do

I want to make an accelerometer board that will communicate with a GUI.

I have an ADXL 345 accelerometer, I am going to interface with Attiny45 and communicate to GUI via serial using I2C.

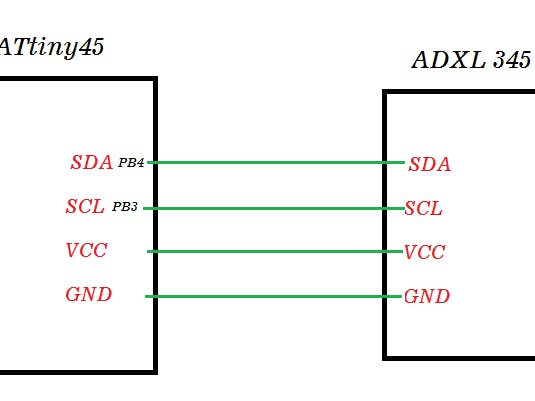

I2C Connection Between ADXL 345 and ATtiny45

What is I2C?

The Inter-integrated Circuit (I2C) Protocol is a protocol intended to allow multiple “slave” digital integrated circuits (“chips”) to communicate with one or more “master” chips, I2C connection requires only 2 wires (SDA and SCL) it is very useful in low pin microcontrollers.

Wiring Diagram

I designed circuit in eagle, I used pinhead Component library for adding 6 Pin header for my accelerometer board.

I milled PCB using Roland Modela Milling Machine.

I used this C code: http://academy.cba.mit.edu/classes/input_devices/accel/hello.ADXL343.c

And this Python code: http://academy.cba.mit.edu/classes/input_devices/accel/hello.ADXL343.py

This is the final working video.

Schematics

Code

//
// hello.ADXL343.c
//
// ADXL343 accelerometer hello-world
//    9600 baud FTDI interface
//
// Neil Gershenfeld 11/8/15
// (c) Massachusetts Institute of Technology 2015
//
// This work may be reproduced, modified, distributed,
// performed, and displayed for any purpose. Copyright is
// retained and must be preserved. The work is provided
// as is; no warranty is provided, and users accept all
// liability.
//

#include <avr/io.h>
#include <util/delay.h>

#define output(directions,pin) (directions |= pin) // set port direction for output
#define input(directions,pin) (directions &= (~pin)) // set port direction for input
#define set(port,pin) (port |= pin) // set port pin
#define clear(port,pin) (port &= (~pin)) // clear port pin
#define pin_test(pins,pin) (pins & pin) // test for port pin
#define bit_test(byte,bit) (byte & (1 << bit)) // test for bit set
#define bit_delay_time 102 // bit delay for 9600 with overhead
#define bit_delay() _delay_us(bit_delay_time) // RS232 bit delay
#define half_bit_delay() _delay_us(bit_delay_time/2) // RS232 half bit delay

#define serial_port PORTB
#define serial_direction DDRB
#define serial_pin_out (1 << PB2)

#define I2C_slave_address 0x53 // ADXL345 alt address
#define I2C_delay() _delay_us(5)
#define SCL_pin (1 << PB3)
#define SCL_pins PINB
#define SCL_port PORTB
#define SCL_direction DDRB
#define SDA_pin (1 << PB4)
#define SDA_pins PINB
#define SDA_port PORTB
#define SDA_direction DDRB

void SCL_write(char bit) {
   //
   // write SCL bit
   //
   if (bit == 0) {
      output(SCL_direction,SCL_pin);
      clear(SCL_port,SCL_pin);
      }
   else {
      input(SCL_direction,SCL_pin);
      while (pin_test(SCL_pins,SCL_pin) == 0); // check for clock stretching
      }
   }

void SDA_write(char bit) {
   //
   // write SDA bit
   //
   if (bit == 0) {
      output(SDA_direction,SDA_pin);
      clear(SDA_port,SDA_pin);
      }
   else
      input(SDA_direction,SDA_pin);
   }

void I2C_init() {
   //
   // initialize I2C lines
   //
   SDA_write(1);
   SCL_write(1);
   }

char I2C_master_write_byte(unsigned char byte) {
   //
   // master write I2C byte
   //
   unsigned char bit;
   //
   // loop over bits
   //
   for (bit = 0; bit < 8; ++bit) {
      if ((byte & 0x80) == 0)
         SDA_write(0);
      else
         SDA_write(1);
      SCL_write(1);
      I2C_delay();
      SCL_write(0);
      I2C_delay();
      byte <<= 1;
      }
   //
   // check for ACK
   //
   SDA_write(1);
   SCL_write(1);
   I2C_delay();
   if (pin_test(SDA_pins,SDA_pin) != 0) {
      //
      // no ACK, return 1
      //
      return 1;
      }
   //
   // yes ACK, return 0
   //
   SCL_write(0);
   I2C_delay();
   return 0;
   }

char I2C_master_write(unsigned char* data, unsigned char nbytes, unsigned char slave_address) {
   //
   // I2C master write
   //
   unsigned char index,ret,slave_address_write;
   //
   // send start
   //
   SDA_write(0);
   I2C_delay();
   SCL_write(0);
   I2C_delay();
   //
   // send slave address
   //
   slave_address_write = slave_address << 1;
   if (I2C_master_write_byte(slave_address_write) != 0)
      //
      // no ACK, return 1
      //
      return 1;
   //
   // loop over bytes
   //
   for (index = 0; index < nbytes; ++index) {
      ret = I2C_master_write_byte(data[index]);
      if (ret != 0)
         //
         // no ACK, return 1
         //
         break;
      //
      // yes ACK, continue
      //
      }
   //
   // send stop
   //
   SCL_write(1);
   I2C_delay();
   SDA_write(1);
   I2C_delay();
   return ret;
   }

void I2C_master_read_byte(unsigned char* data, unsigned char index, unsigned char nbytes) {
   //
   // master read I2C byte
   //
   unsigned char byte,bit;
   SDA_write(1);
   byte = 0;
   //
   // loop over bits
   //
   for (bit = 0; bit < 8; ++bit)  {
      SCL_write(1);
      I2C_delay();
      if (pin_test(SDA_pins,SDA_pin) != 0)
         byte |= (1 << (7-bit));
      SCL_write(0);
      I2C_delay();
      }
   data[index] = byte;
   if (index < (nbytes-1)) {
      //
      // not done, send ACK
      //
      SDA_write(0);
      SCL_write(1);
      I2C_delay();
      SCL_write(0);
      SDA_write(1);
      I2C_delay();
      }
   else {
      //
      // done, send NACK
      //
      SDA_write(1);
      SCL_write(1);
      I2C_delay();
      SCL_write(0);
      I2C_delay();
      }
   }

char I2C_master_read(unsigned char* data, unsigned char nbytes, unsigned char slave_address) {
   //
   // I2C master read
   //
   unsigned char index,slave_address_read;
   //
   // send start
   //
   SDA_write(0);
   I2C_delay();
   SCL_write(0);
   I2C_delay();
   //
   // send slave address
   //
   slave_address_read = (slave_address << 1) + 1;
   if (I2C_master_write_byte(slave_address_read) == 1)
      //
      // no ACK, return 1
      //
      return 1;
   //
   // loop over bytes
   //
   for (index = 0; index < nbytes; ++index)
      I2C_master_read_byte(data,index,nbytes);
   //
   // send stop
   //
   SCL_write(1);
   I2C_delay();
   SDA_write(1);
   I2C_delay();
   return 0;
   }

void put_char(volatile unsigned char *port, unsigned char pin, char txchar) {
   //
   // send character in txchar on port pin
   //    assumes line driver (inverts bits)
   //
   // start bit
   //
   clear(*port,pin);
   bit_delay();
   //
   // unrolled loop to write data bits
   //
   if bit_test(txchar,0)
      set(*port,pin);
   else
      clear(*port,pin);
   bit_delay();
   if bit_test(txchar,1)
      set(*port,pin);
   else
      clear(*port,pin);
   bit_delay();
   if bit_test(txchar,2)
      set(*port,pin);
   else
      clear(*port,pin);
   bit_delay();
   if bit_test(txchar,3)
      set(*port,pin);
   else
      clear(*port,pin);
   bit_delay();
   if bit_test(txchar,4)
      set(*port,pin);
   else
      clear(*port,pin);
   bit_delay();
   if bit_test(txchar,5)
      set(*port,pin);
   else
      clear(*port,pin);
   bit_delay();
   if bit_test(txchar,6)
      set(*port,pin);
   else
      clear(*port,pin);
   bit_delay();
   if bit_test(txchar,7)
      set(*port,pin);
   else
      clear(*port,pin);
   bit_delay();
   //
   // stop bit
   //
   set(*port,pin);
   bit_delay();
   //
   // char delay
   //
   bit_delay();
   }

int main(void) {
   //
   // main
   //
   unsigned char data[6];
   unsigned char ret;
   //
   // set clock divider to /1
   //
   CLKPR = (1 << CLKPCE);
   CLKPR = (0 << CLKPS3) | (0 << CLKPS2) | (0 << CLKPS1) | (0 << CLKPS0);
   //
   // initialize output pins
   //
   set(serial_port, serial_pin_out);
   output(serial_direction, serial_pin_out);
   //
   // main loop
   //
   I2C_init();
   data[0] = 0x2D; // POWER_CTL register
   data[1] = 8; // turn on measure bit
   ret = I2C_master_write(data,2,I2C_slave_address);
   while (1) {
      /*
      //
      // read device ID
      //
      data[0] = 0x00; // device ID register
      ret = I2C_master_write(data,1,I2C_slave_address);
      ret = I2C_master_read(data,1,I2C_slave_address);
      put_char(&serial_port,serial_pin_out,data[0]);
      */
      //
      // send framing
      //
      put_char(&serial_port,serial_pin_out,1);
      put_char(&serial_port,serial_pin_out,2);
      put_char(&serial_port,serial_pin_out,3);
      put_char(&serial_port,serial_pin_out,4);
      //
      // read and send data
      //
      data[0] = 0x32; // X0 register
      ret = I2C_master_write(data,1,I2C_slave_address);
      ret = I2C_master_read(data,6,I2C_slave_address);
      put_char(&serial_port,serial_pin_out,data[0]);
      put_char(&serial_port,serial_pin_out,data[1]);
      put_char(&serial_port,serial_pin_out,data[2]);
      put_char(&serial_port,serial_pin_out,data[3]);
      put_char(&serial_port,serial_pin_out,data[4]);
      put_char(&serial_port,serial_pin_out,data[5]);
      }
   }

#
# hello.reflect.45.py
#
# receive and display synchronous light reflection
# hello.light.45.py serial_port
#
# Neil Gershenfeld
# CBA MIT 10/25/12
#
# (c) Massachusetts Institute of Technology 2012
# Permission granted for experimental and personal use;
# license for commercial sale available from MIT
#

from Tkinter import *
import serial

WINDOW = 600 # window size
eps = 0.9 # filter time constant
filter = 0.0 # filtered value
nloop = 100.0 # number of loops accumulated
amp = 25.0 # difference amplitude

def idle(parent,canvas):
   global filter, eps
   #
   # idle routine
   #
   byte2 = 0
   byte3 = 0
   byte4 = 0
   ser.flush()
   while 1:
      #
      # find framing
      #
      byte1 = byte2
      byte2 = byte3
      byte3 = byte4
      byte4 = ord(ser.read())
      if ((byte1 == 1) & (byte2 == 2) & (byte3 == 3) & (byte4 == 4)):
         break
   on_low = ord(ser.read())
   on_high = ord(ser.read())
   on_value = (256*on_high + on_low)/nloop
   x = int(.25*WINDOW + (.9-.25)*WINDOW*on_value/1024.0)
   canvas.itemconfigure("text_on",text="on %.1f"%on_value)
   canvas.coords('rect1_on',.25*WINDOW,.05*WINDOW,x,.2*WINDOW)
   canvas.coords('rect2_on',x,.05*WINDOW,.9*WINDOW,.2*WINDOW)
   off_low = ord(ser.read())
   off_high = ord(ser.read())
   off_value = (256*off_high + off_low)/nloop
   x = int(.25*WINDOW + (.9-.25)*WINDOW*off_value/1024.0)
   canvas.itemconfigure("text_off",text="off %.1f"%off_value)
   canvas.coords('rect1_off',.25*WINDOW,.25*WINDOW,x,.4*WINDOW)
   canvas.coords('rect2_off',x,.25*WINDOW,.9*WINDOW,.4*WINDOW)
   filter = (1-eps)*filter + eps*amp*(on_value-off_value)
   x = int(.25*WINDOW + (.9-.25)*WINDOW*filter/1024.0)
   canvas.itemconfigure("text_diff",text="diff %.1f"%filter)
   canvas.coords('rect1_diff',.25*WINDOW,.45*WINDOW,x,.6*WINDOW)
   canvas.coords('rect2_diff',x,.45*WINDOW,.9*WINDOW,.6*WINDOW)
   canvas.update()
   parent.after_idle(idle,parent,canvas)

#
#  check command line arguments
#
if (len(sys.argv) != 2):
   print "command line: hello.light.45.py serial_port"
   sys.exit()
port = sys.argv[1]
#
# open serial port
#
ser = serial.Serial(port,9600)
ser.setDTR()
#
# set up GUI
#
root = Tk()
root.title('hello.reflect.45.py (q to exit)')
root.bind('q','exit')
canvas = Canvas(root, width=WINDOW, height=.65*WINDOW, background='white')
#
canvas.create_text(.125*WINDOW,.125*WINDOW,text=".33",font=("Helvetica", 24),tags="text_on",fill="#0000b0")
canvas.create_rectangle(.25*WINDOW,.05*WINDOW,.3*WINDOW,.2*WINDOW, tags='rect1_on', fill='#b00000')
canvas.create_rectangle(.3*WINDOW,.05*WINDOW,.9*WINDOW,.2*WINDOW, tags='rect2_on', fill='#0000b0')
#
canvas.create_text(.125*WINDOW,.325*WINDOW,text=".33",font=("Helvetica", 24),tags="text_off",fill="#0000b0")
canvas.create_rectangle(.25*WINDOW,.25*WINDOW,.3*WINDOW,.4*WINDOW, tags='rect1_off', fill='#b00000')
canvas.create_rectangle(.3*WINDOW,.25*WINDOW,.9*WINDOW,.4*WINDOW, tags='rect2_off', fill='#0000b0')
#
canvas.create_text(.125*WINDOW,.525*WINDOW,text=".33",font=("Helvetica", 24),tags="text_diff",fill="#0000b0")
canvas.create_rectangle(.25*WINDOW,.45*WINDOW,.3*WINDOW,.6*WINDOW, tags='rect1_diff', fill='#b00000')
canvas.create_rectangle(.3*WINDOW,.45*WINDOW,.9*WINDOW,.6*WINDOW, tags='rect2_diff', fill='#0000b0')
canvas.pack()
#
# start idle loop
#
root.after(100,idle,root,canvas)
root.mainloop()

Credits

Muhammed Jaseel

4 projects • 20 followers

I am a Maker and Developer

Accelerometer (ADXL 345) Interfacing with PC (Python GUI)

Things used in this project

Hardware components

Story

What I am going to do

I2C Connection Between ADXL 345 and ATtiny45

Custom parts and enclosures

Eagle File board

Eagle file Schematics

Schematics

Eagle Screenshot

Code

Neil's C Code

Neil'a Python Code

Credits

Muhammed Jaseel

Comments

Embed the widget on your own site

Accelerometer (ADXL 345) Interfacing with PC (Python GUI)

Accelerometer (ADXL 345) Interfacing with PC (Python GUI)

Things used in this project

Hardware components

Story

What I am going to do

I2C Connection Between ADXL 345 and ATtiny45

Custom parts and enclosures

Eagle File board

Eagle file Schematics

Schematics

Eagle Screenshot

Code

Neil's C Code

Neil'a Python Code

Credits

Muhammed Jaseel

Comments

Related channels and tags
