Marine signalling light using the Morse symbols

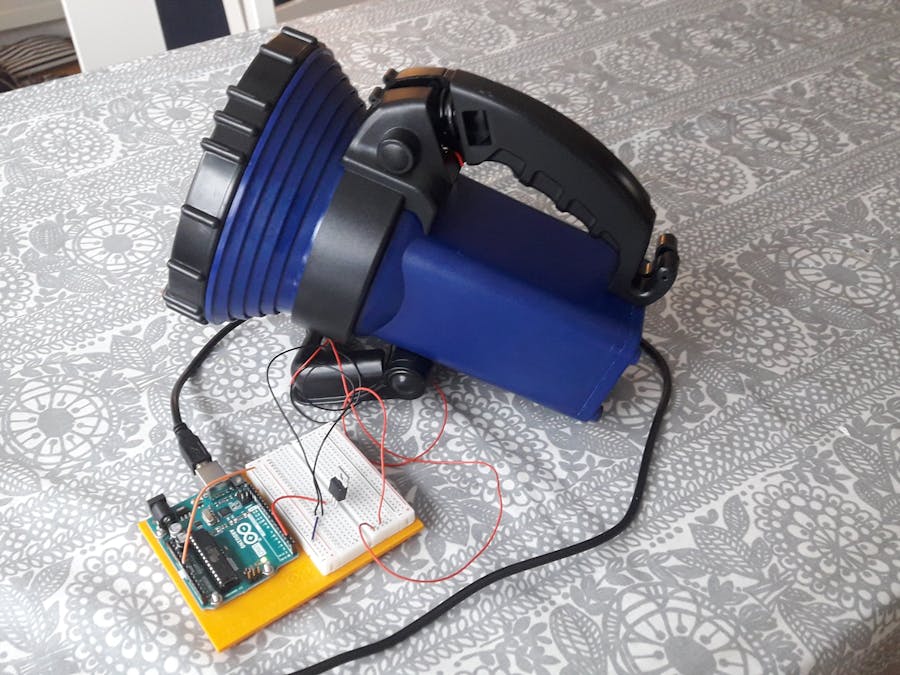

How you can upgrade your searching light in your boat as an signaling light too. You can use computer or even mobile phone as a terminal.

BeginnerShowcase (no instructions)616
Marine signalling light using the Morse symbols

Things used in this project

Hardware components

Arduino UNO
Arduino UNO
×1
Power MOSFET N-Channel
Power MOSFET N-Channel
×1
USB OTG cable for cell phone
×1

Software apps and online services

Serial USB Terminal by Kai Morich

Story

Read more

Schematics

MOSFET

See forexample Arduino Starter Kit project 09 motorized pinwheel but I use digital pin number 2..

Code

Maritime Signalling Light Software

Arduino
You can send signals with your mobile phone with signalling light using Morse code.
//                      MARITIME SIGNALLING LIGHT SOFTWARE
//
//                     Tested with Arduino Uno and Nano Every
//
// The International Code of Signals (ICS) is an international system of signals and codes
// for use by vessels to communicate important messages regarding safety of navigation and
// related matters. Signals can be sent by flaghoist, signal lamp ("blinker"), flag
// semaphore, radiotelegraphy, and radiotelephony. The International Code is the most
// recent evolution of a wide variety of maritime flag signalling systems.
//
// See International Code of Signals, 2005 ed. (IMO IA994E), IMO  International Maritime
// Organization, 2005, ISBN 978-92-801-4198-6
//
// This program can be used for flashing light signalling by morse codes.
// You don't have to be familiar with morse code in order to send a message.
//
// You need an Arduino, a mosfet, signalling lamp and computer / or mobile phone with
// USB OTG cable and for example Kai Morich's (Gerhart-Hauptmann-Str. 13, 68766 Hockenheim,
// Germany) "Serial USB Terminal" -program for Android phones from Google Play.
//
// I found no signalling lamp for my boat so I made it by myself.
//
// Jarmo Kiuru OH8JK - Oulu, Finland.

const int mosfet = 2; // The pin the mosfet is connected to.


void setup() {
    // Initialize digital pin as an output.
    pinMode(mosfet, OUTPUT);

}

void loop() {

    // Delays of morse code - you can adjust for your needs.
    const int dotMorse = 300; //A dot is one unit
    const int dashMorse = 900; //A dash is three units
    const int breakMorse = 300; //The space between same letter is one unit
    const int spaceletterMorse = 900; //The space between letters is three units
    const int breakwordsMorse = 2100; //The space between words is seven units

    String merkki = "";
    char lahete[] = "";
    char MorseCode[8] = "";

    // HOX! SMALL LETTERS
    char LATIN_CHARACTERS[] = {
        // Numbers
        '0', '1', '2', '3', '4',
        '5', '6', '7', '8', '9',
        // Letters
        'a', 'b', 'c', 'd', 'e',
        'f', 'g', 'h', 'i', 'j',
        'k', 'l', 'm', 'n', 'o',
        'p', 'q', 'r', 's', 't',
        'u', 'v', 'w', 'x', 'y', 'z',
        // Special
        '.', '?', '@', ' '
    };

    //MORSE_CHARACTERS are all eight letters long filled with spaces at the end
    String MORSE_CHARACTERS[] = {
        // Numbers
        "-----   ", ".----   ", "..---   ", "...--   ", "....-   ",
        ".....   ", "-....   ", "--...   ", "---..   ", "----.   ",
        // Letters
        ".-      ",    "-...    ",  "-.-.    ",  "-..     ", ".       ",
        "..-.    ",  "--.     ",   "....    ",  "..      ",  ".---    ",
        "-.-     ",   ".-..    ",  "--      ",    "-.      ",  "---     ",
        ".--.    ",  "--.-    ",  ".-.     ",   "...     ",  "-       ",
        "..-     ",   "...-    ",  ".--     ",   "-..-    ", "-.--    ",  "--..    ",
        // Special
        ".-.-.-  ", "..--..  ", ".--.-.  ", "        "
    };


  // This opens the serial port.
  Serial.begin(9600);
  delay(10);                        // Wait for a 1/100 second

  // Here the program get a character from the terminal via serial port.
  merkki = Serial.readString();
  delay(10);                        // Wait for a 1/100 second



  // This goes thru all latin characters and finds out what you have typed in.
  for (int h=0; h < merkki.length(); h++) {
      merkki.toCharArray(lahete, merkki.length());
              for (int i=0; i < 40; i++) {

                    // This converts MORSE_CHARACTERS as an char array and place the array into variabel MorseCode.
                    MORSE_CHARACTERS[i].toCharArray(MorseCode, 8);

                    // When this if sentence finds a match to what you have typed in it sends it using the Morse code.
                    if (LATIN_CHARACTERS[i] == lahete[h]) {
                    Serial.print("     ");
                    Serial.print(LATIN_CHARACTERS[i]);
                    Serial.print("     ");

                        for (int j=0; j < 8; j = j+1) {

                        if (MorseCode[j] == '-') {
                          digitalWrite(mosfet, HIGH);
                          Serial.print('-');
                          delay(dashMorse);
                          digitalWrite(mosfet, LOW);
                          delay(breakMorse);
                        }
                        else if (MorseCode[j] == '.') {
                          digitalWrite(mosfet, HIGH);
                          Serial.print('.');
                          delay(dotMorse);
                          digitalWrite(mosfet, LOW);
                          delay(breakMorse);
                        }
                        else if (MorseCode[j] == ' ') {

                              // If MorseCode's first character is space then it separates two words.
                              if (MorseCode[j] == ' ' && j == 0) {
                              digitalWrite(mosfet, LOW);
                              delay(breakwordsMorse);
                              }

                          // All Morse symbols are eight character long and when the program finds first space
                          // it interrupts the for sentence.
                          break;
                        }
                        }
                          Serial.println();
                          delay(spaceletterMorse);
        }
  }
}
}
