C++ LCD Display Driver for IOT2020

Hitachi LCD displays are used in many designs. If you're building a C++ project, this driver class can help.

BeginnerProtip1 hour3,945

Things used in this project

Hardware components

Siemens SIMATIC IOT2020

Adafruit Standard LCD - 16x2 White on Blue

Story

Introduction

The Hitachi type LCD displays are used in many designs. They work with an Arduino sketch on the IOT2020. If you're building a C++ project, this driver class can help.

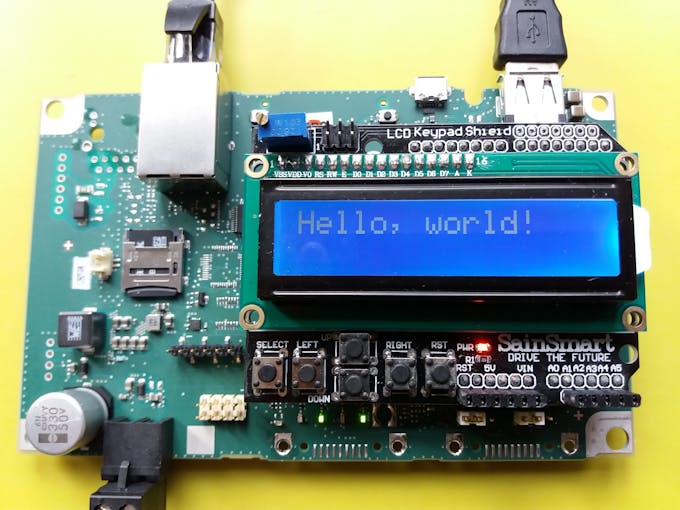

A Sainsmart LCD Keypad shield runs the library

The full source code is attached. It contains an example that uses the SainSmart LCD shield - because I happen to have that one. It works with the typical one and two row LCD displays. Check that the pins you're passing to the init() method match the ones of your design. If you are able to use your display on the Arduino UNO, use the same pin numbers here (I don't use the RW pin, so no need to pass that one).

Methods

void init( uint32_t u_rs, uint32_t u_enable, uint32_t u_d0,
uint32_t u_d1, uint32_t u_d2,
uint32_t u_d3)
void begin(uint32_t cols, uint32_t lines, uint32_t dotsize)
void setCursor(uint32_t col, uint32_t row)
void print(const std::string& input)

Example

#include <iostream>
using namespace std;
#include "mraa.hpp"
#include "Lcd.h"
using namespace mraa;
using namespace lcd_hitachi;
int main(void) {
	cout << "Hello IOT2000." << endl;
	Lcd* lcd = new Lcd();
	lcd->init(8, 9, 4, 5, 6, 7);
	lcd->begin(16,2, 0);
	lcd->setCursor(0,0); // move to the beginning of the first line
	lcd->print("Hello, world!");
	delete lcd;
	return MRAA_SUCCESS;
}

The library that is used as the inspiration for this work has the following license (full version in the attached source). Please adhere to this:

GNU Lesser General Public License
Copyright (C) 2006-2008 Hans-Christoph Steiner. All rights reserved.
Copyright (c) 2010 Arduino LLC. All right reserved.

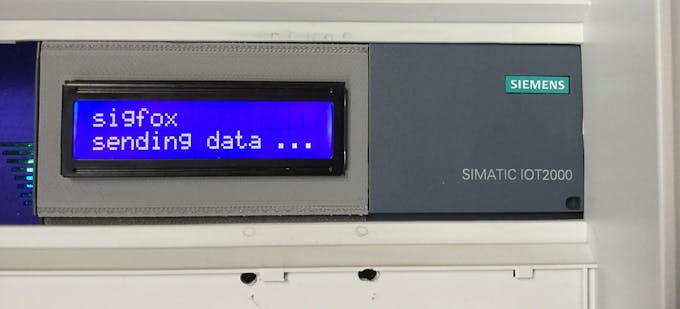

Here you can see such an LCD display built into a 3d printed cover designed by Frederick Vandenbosch:

Typical 16*2 LCD Mounted in Frederick's 3d printed cover

Have fun!

Edit: updated to use a separate source file for the driver .h and .cpp - the version 1.0.0 of the Siemens Eclipse plugin supported a single source file. This is fixed in 1.1.0

/*
 * Lcd.h
 *
 *  Created on: 20 mrt. 2017
 *      Author: jancu
 */

#ifndef LCD_H_
#define LCD_H_

#include "mraa.hpp"

namespace lcd_hitachi {


/**
 *
 * This code ported from:
 *
 * = Liquid Crystal Library for Arduino =

This library allows an Arduino board to control LiquidCrystal displays (LCDs) based on the Hitachi HD44780 (or a compatible) chipset, which is found on most text-based LCDs.

For more information about this library please visit us at
http://www.arduino.cc/en/Reference/LiquidCrystal

== License ==

Copyright (C) 2006-2008 Hans-Christoph Steiner. All rights reserved.
Copyright (c) 2010 Arduino LLC. All right reserved.

This library is free software; you can redistribute it and/or
modify it under the terms of the GNU Lesser General Public
License as published by the Free Software Foundation; either
version 2.1 of the License, or (at your option) any later version.

This library is distributed in the hope that it will be useful,
but WITHOUT ANY WARRANTY; without even the implied warranty of
MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU
Lesser General Public License for more details.

You should have received a copy of the GNU Lesser General Public
License along with this library; if not, write to the Free Software
Foundation, Inc., 51 Franklin St, Fifth Floor, Boston, MA 02110-1301 USA
 *
 */





class Lcd {
public:
	Lcd();

	~Lcd();

	void init( uint32_t u_rs,  uint32_t u_enable,  uint32_t u_d0,
			uint32_t u_d1,  uint32_t u_d2,
			uint32_t u_d3);

	void begin(uint32_t cols, uint32_t lines, uint32_t dotsize);

	void setCursor(uint32_t col, uint32_t row);

	void print(const std::string& input);

private:
	mraa::Gpio* _rs = NULL;
	mraa::Gpio* _enable = NULL;
	mraa::Gpio* _d0 = NULL;
	mraa::Gpio* _d1 = NULL;
	mraa::Gpio* _d2 = NULL;
	mraa::Gpio* _d3 = NULL;
	uint32_t _lcd_bitmode;
	uint32_t _numlines;
	uint32_t _currline;
	uint32_t _displayfunction;
	uint32_t _displaycontrol;
	uint32_t _displaymode;
	mraa::Gpio* _data_pins[8];

	void write4bits(uint32_t value);

	void write8bits(uint32_t value);

	void clear();

	void display();

	void lcdSetCursor(uint32_t col, uint32_t row);

	void lcdPrint(const char *str);

	/**
	 * set the direction of a given pin without altering other pins
	 * on the same port
	 *
	 */
	void command(uint32_t value);

	void send(uint32_t value, uint32_t mode);

	uint32_t lcdWrite(uint32_t value);

	void pulseEnable(void);

	/**
	 * delay for the given number of microseconds, for 80MHz processor
	 */
	void lcdDelayMicroSeconds(uint32_t us);

};

}

#endif /* LCD_H_ */

/*
 * Lcd.cpp
 *
 *  Created on: 20 mrt. 2017
 *      Author: jancu
 */

#include "Lcd.h"
using namespace mraa;

namespace lcd_hitachi {

// commands
#define LCD_CLEARDISPLAY 0x01
#define LCD_RETURNHOME 0x02
#define LCD_ENTRYMODESET 0x04
#define LCD_DISPLAYCONTROL 0x08
#define LCD_CURSORSHIFT 0x10
#define LCD_FUNCTIONSET 0x20
#define LCD_SETCGRAMADDR 0x40
#define LCD_SETDDRAMADDR 0x80

// flags for display entry mode
#define LCD_ENTRYRIGHT 0x00
#define LCD_ENTRYLEFT 0x02
#define LCD_ENTRYSHIFTINCREMENT 0x01
#define LCD_ENTRYSHIFTDECREMENT 0x00

// flags for display on/off control
#define LCD_DISPLAYON 0x04
#define LCD_DISPLAYOFF 0x00
#define LCD_CURSORON 0x02
#define LCD_CURSOROFF 0x00
#define LCD_BLINKON 0x01
#define LCD_BLINKOFF 0x00

// flags for display/cursor shift
#define LCD_DISPLAYMOVE 0x08
#define LCD_CURSORMOVE 0x00
#define LCD_MOVERIGHT 0x04
#define LCD_MOVELEFT 0x00

// flags for function set
#define LCD_8BITMODE 0x10
#define LCD_4BITMODE 0x00
#define LCD_2LINE 0x08
#define LCD_1LINE 0x00
#define LCD_5x10DOTS 0x04
#define LCD_5x8DOTS 0x00


Lcd::Lcd() {
	_lcd_bitmode = 0;
	_numlines=0;
	_currline=0;
	_displaycontrol = 0;
	_displaymode = 0;
	_displayfunction = 0;
}


Lcd::~Lcd()  {
	if (_rs) {
		delete _rs;
		_rs = NULL;
	}
	if (_enable) {
		delete _enable;
		_enable = NULL;
	}
	if (_d0) {
		delete _d0;
		_d0 = NULL;
	}
	if (_d1) {
		delete _d1;
		_d1 = NULL;
	}
	if (_d2) {
		delete _d2;
		_d2 = NULL;
	}
	if (_d3) {
		delete _d3;
		_d3 = NULL;
	}

}

void Lcd::init( uint32_t u_rs,  uint32_t u_enable,  uint32_t u_d0,
		uint32_t u_d1,  uint32_t u_d2,
		uint32_t u_d3) {
	_rs = 	new Gpio(u_rs, true, false),
			_rs->dir(mraa::DIR_OUT);
	_enable = new Gpio(u_enable, true, false);
	_enable->dir(mraa::DIR_OUT);
	_d0 = new Gpio(u_d0, true, false);
	_d0->dir(mraa::DIR_OUT);
	_d1 = new Gpio(u_d1, true, false);
	_d1->dir(mraa::DIR_OUT);
	_d2 = new Gpio(u_d2, true, false);
	_d2->dir(mraa::DIR_OUT);
	_d3 = new Gpio(u_d3, true, false);
	_d3->dir(mraa::DIR_OUT);
	_data_pins[0] = _d0;
	_data_pins[1] = _d1;
	_data_pins[2] = _d2;
	_data_pins[3] = _d3;

	// if we call this version of lcdInit, we're in 4 bit mode
	_lcd_bitmode = LCD_4BITMODE;

	// the mode is set to fixed character matrix, rows and bitmode(4/8)
	_displayfunction = LCD_4BITMODE | LCD_1LINE | LCD_5x8DOTS;




}
void Lcd::begin(uint32_t cols, uint32_t lines, uint32_t dotsize) {
	if (lines > 1) {
		_displayfunction |= LCD_2LINE;
	}
	_numlines = lines;
	_currline = 0;

	// for some 1 line displays you can select a 10 pixel high font
	if ((dotsize != 0) && (lines == 1)) {
		_displayfunction |= LCD_5x10DOTS;
	}

	// SEE PAGE 45/46 FOR INITIALIZATION SPECIFICATION!
	// according to datasheet, we need at least 40ms after power rises above 2.7V
	// before sending commands. Arduino can turn on way befer 4.5V so we'll wait 50
	lcdDelayMicroSeconds(50000);

	// Now we pull both RS and R/W low to begin commands
	_rs->write(0);
	_enable->write(0);
	// no rw pin unless needed

	//put the LCD into 4 bit or 8 bit mode
	if (! (_displayfunction & LCD_8BITMODE)) {
		// this is according to the hitachi HD44780 datasheet
		// figure 24, pg 46

		// we start in 8bit mode, try to set 4 bit mode
		write4bits(0x03);
		lcdDelayMicroSeconds(4500); // wait min 4.1ms

		// second try
		write4bits(0x03);
		lcdDelayMicroSeconds(4500); // wait min 4.1ms

		// third go!
		write4bits(0x03);
		lcdDelayMicroSeconds(150);

		// finally, set to 4-bit interface
		write4bits(0x02);
	} else {
		// this is according to the hitachi HD44780 datasheet
		// page 45 figure 23

		// Send function set command sequence
		command(LCD_FUNCTIONSET | _displayfunction);
		lcdDelayMicroSeconds(4500);  // wait more than 4.1ms

		// second try
		command(LCD_FUNCTIONSET | _displayfunction);
		lcdDelayMicroSeconds(150);

		// third go
		command(LCD_FUNCTIONSET | _displayfunction);
	}

	// finally, set # lines, font size, etc.
	command(LCD_FUNCTIONSET | _displayfunction);

	// turn the display on with no cursor or blinking default
	_displaycontrol = LCD_DISPLAYON | LCD_CURSOROFF | LCD_BLINKOFF;
	display();

	// clear it off
	clear();

	// Initialize to default text direction (for romance languages)
	_displaymode = LCD_ENTRYLEFT | LCD_ENTRYSHIFTDECREMENT;
	// set the entry mode
	command(LCD_ENTRYMODESET | _displaymode);



}
void Lcd::setCursor(uint32_t col, uint32_t row) {

	uint32_t row_offsets[] = { 0x00, 0x40, 0x14, 0x54 };
	if ( row >= _numlines ) {
		row = _numlines-1;    // we count rows starting w/0
	}

	command(LCD_SETDDRAMADDR | (col + row_offsets[row]));

}

void Lcd::print(const std::string& input) {

	for(std::string::size_type i = 0; i < input.size(); ++i) {
	    lcdWrite(input[i]);
	}
}

void Lcd::write4bits(uint32_t value) {
	uint32_t i;
	for (i = 0; i < 4; i++) {
		_data_pins[i]->dir(mraa::DIR_OUT);
		_data_pins[i]->write((value >> i) & 0x01);
	}

	pulseEnable();
}

void Lcd::write8bits(uint32_t value) {
	int i;
	for (i = 0; i < 8; i++) {
		_data_pins[i]->dir(mraa::DIR_OUT);
		_data_pins[i]->write((value >> i) & 0x01);
	}

	pulseEnable();
}

void Lcd::clear() {
	command(LCD_CLEARDISPLAY);  // clear display, set cursor position to zero
	lcdDelayMicroSeconds(2000);  // this command takes a long time!
}

void Lcd::display() {
	_displaycontrol |= LCD_DISPLAYON;
	command(LCD_DISPLAYCONTROL | _displaycontrol);
}

void Lcd::lcdSetCursor(uint32_t col, uint32_t row) {
	int row_offsets[] = { 0x00, 0x40, 0x14, 0x54 };
	if ( row >= _numlines ) {
		row = _numlines-1;    // we count rows starting w/0
	}

	command(LCD_SETDDRAMADDR | (col + row_offsets[row]));
/*	// TODO implement lcdSetCursor()
	printf("\n*** start lcdSetCursor()");
	printf("\nThe cursor moves to row %u and column %u", row, col);
	printf("\n*** stop lcdSetCursor()");*/
}

void Lcd::lcdPrint(const char *str) {
	  while (*str)
		  lcdWrite(*str++);
/*	// TODO implement lcdPrint()
	printf("\n*** start lcdPrint()");
	printf("\nlcd print: %s", str);
	printf("\n*** stop lcdPrint()");*/
}

/**
 * set the direction of a given pin without altering other pins
 * on the same port
 *
 */
void Lcd::command(uint32_t value) {
	send(value, 0);
}

void Lcd::send(uint32_t value, uint32_t mode) {
	_rs->write(mode);

  // rw pin removed, add later if needed

  if (_displayfunction & LCD_8BITMODE) {
    write8bits(value);
  } else {
    write4bits(value>>4);
    write4bits(value);
  }
}

uint32_t Lcd::lcdWrite(uint32_t value) {
	send(value, 1);
	return 1; // assume sucess
}

void Lcd::pulseEnable(void) {
	_enable->write(0);
	lcdDelayMicroSeconds(1);
	_enable->write(1);
	lcdDelayMicroSeconds(1);    // enable pulse must be >450ns
	_enable->write(0);
	lcdDelayMicroSeconds(100);   // commands need > 37us to settle
}

/**
 * delay for the given number of microseconds, for 80MHz processor
 */
void Lcd::lcdDelayMicroSeconds(uint32_t us) {
	usleep(us);
}



} /* namespace lcd_hitachi */

#include <iostream>
using namespace std;
#include "mraa.hpp"
#include "Lcd.h"

using namespace mraa;
using namespace lcd_hitachi;

int main(int argc, char* argv[]) {

	std::string *sText= NULL;
	std::string sEmpty("                ");

	cout << "Hello IOT2000." << endl;


	Lcd* lcd = new Lcd();

	lcd->init(8, 9, 4, 5, 6, 7);
	lcd->begin(16,2, 0);

	if (argc > 1) {
		lcd->setCursor(0,0); // move to the beginning of the first line
		sText = new std::string(argv[1]);
		lcd->print(*sText);
		delete sText;
		if (argc > 2) {
			lcd->setCursor(0,1); // move to the beginning of the second line
			sText = new std::string(argv[2]);
			lcd->print(*sText);
			delete sText;
		}
//	}else { // clean screen
//
//			lcd->setCursor(0,0); // move to the beginning of the first line
//			lcd->print(sEmpty);
//			lcd->setCursor(0,0); // move to the beginning of the first line
//			lcd->print(sEmpty);
//
	}




	delete lcd;


	return MRAA_SUCCESS;
}

Credits

Jan Cumps

22 projects • 23 followers

C++ LCD Display Driver for IOT2020

Things used in this project

Hardware components

Story

Introduction

Methods

Example

Code

Lcd driver header file

Lcd driver source file

Lcd driver Example code

Linux Command Line Utility

Credits

Jan Cumps

Comments

Embed the widget on your own site

C++ LCD Display Driver for IOT2020

C++ LCD Display Driver for IOT2020

Things used in this project

Hardware components

Story

Introduction

Methods

Example

Code

Lcd driver header file

Lcd driver source file

Lcd driver Example code

Linux Command Line Utility

Credits

Jan Cumps

Comments

Related channels and tags
