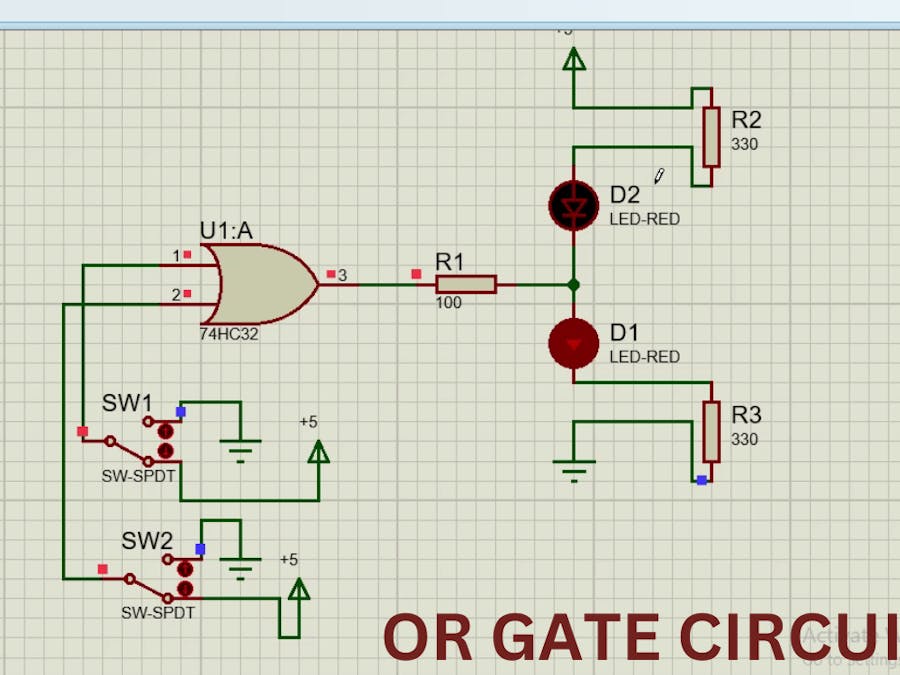

In this Article, we learn about how to make OR Gate Circuit in proteus.

In the Last Post, we learned about How to Interfacing Relay Module with ESP32

I hope you appreciate my work, Let’s Discuss about Today project.

Components required:

1. OR gate IC (74HC32)

2. Resistor (100R, 330)

3. LED

4. Connecting wires

What is OR Gate:

An OR gate is a fundamental logic gate in digital electronics. It performs a logical OR operation on input signals. In simpler terms, it has two or more inputs and produces an output that is true (or high) if at least one of its inputs is true. The output is false (or low) only if all its inputs are false. The symbol for an OR gate is typically depicted as an inclusive 'V' shape with inputs on the flat end and an output on the pointed end.

Usages:

1. Logic Operations

2. Data Processing

3. Memory Systems

4. Signal Routing

5. Safety Circuits

VideoTutorialLink
