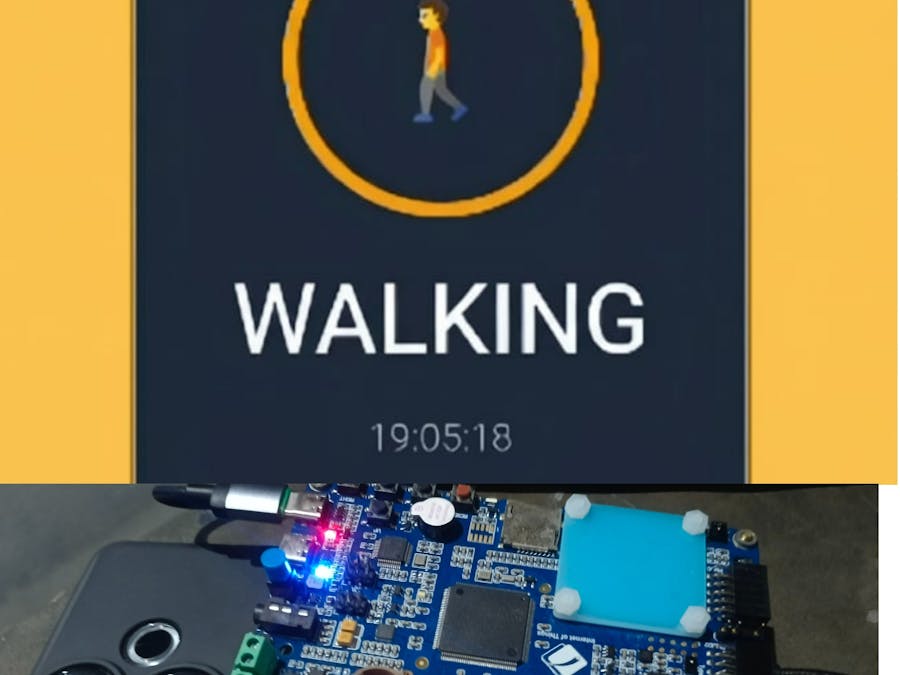

Wearable Activity Tracker

// --- CONFIGURATION ---
const CONFIG = {
    SENSITIVITY: 16384.0,
    THRESH_WALK: 0.03,
    THRESH_RUN: 0.30,
    WINDOW_SIZE: 5,
    API_URL: "/raw-data" // We now fetch RAW data, not decisions change this into "http://localhost:5000/raw-data" when on device
};

// --- STATE MANAGEMENT ---
let magnitudeBuffer = []; // Replaces Python's deque
let currentActivity = "WAITING";
let varianceHistory = new Array(50).fill(0);
let lastProcessedId = null;

// --- MATH HELPERS (Replacing Numpy) ---
function calculateStandardDeviation(array) {
    if (array.length === 0) return 0;
    const n = array.length;
    const mean = array.reduce((a, b) => a + b) / n;
    const variance = array.map(x => Math.pow(x - mean, 2)).reduce((a, b) => a + b) / n;
    return Math.sqrt(variance);
}

function calculateMagnitude(x, y, z) {
    // Normalization logic from Python
    const gx = x / CONFIG.SENSITIVITY;
    const gy = y / CONFIG.SENSITIVITY;
    const gz = z / CONFIG.SENSITIVITY;
    return Math.sqrt(gx * gx + gy * gy + gz * gz);
}

// --- MAIN LOOP (Replaces Python 'while True') ---
async function processLoop() {
    try {
        // 1. Fetch RAW Data (You need a tiny endpoint that just returns the latest MongoDB doc)
        // For testing without backend, we can simulate raw data here.
        const response = await fetch(CONFIG.API_URL);
        const doc = await response.json();

        // 2. Check for New Data
        if (doc._id !== lastProcessedId) {
            lastProcessedId = doc._id;

            // 3. Process Data (The Python Logic)
            const mag = calculateMagnitude(doc.accel.x, doc.accel.y, doc.accel.z);
            magnitudeBuffer.push(mag);

            // Update UI with real-time buffering status
            updateUI(mag, doc.timestamp);

            // 4. Decision Window Logic
            if (magnitudeBuffer.length >= CONFIG.WINDOW_SIZE) {
                // Calculate Variance
                const variance = calculateStandardDeviation(magnitudeBuffer);

                // Determine Activity
                if (variance > CONFIG.THRESH_RUN) currentActivity = "RUNNING";
                else if (variance > CONFIG.THRESH_WALK) currentActivity = "WALKING";
                else currentActivity = "IDLE";

                console.log(Decision: ${currentActivity} (Var: ${variance.toFixed(4)}));

                // Clear Buffer (Non-overlapping window)
                magnitudeBuffer = [];

                // Save for chart
                updateChart(variance);
            }
        }
    } catch (error) {
        console.log("Waiting for data stream...", error);
    }
}

// --- UI UPDATES ---
const ui = {
    text: document.getElementById('activity-text'),
    var: document.getElementById('variance'),
    buf: document.getElementById('buffer'),
    time: document.getElementById('timestamp'),
    wrapper: document.getElementById('main-wrapper'),
    icon: document.getElementById('icon')
};

function updateUI(currentMag, timestamp) {
    // Calculate interim variance for display
    const currentVar = calculateStandardDeviation(magnitudeBuffer);

    ui.text.innerText = currentActivity;
    ui.var.innerText = currentVar.toFixed(4);
    ui.buf.innerText = ${magnitudeBuffer.length} / ${CONFIG.WINDOW_SIZE};

    // Format Timestamp
    const date = new Date(parseInt(timestamp));
    ui.time.innerText = date.toLocaleTimeString();

    // Theme Logic
    ui.wrapper.className = theme-${currentActivity};
    if (currentActivity === "WALKING") ui.icon.innerText = "🚶";
    else if (currentActivity === "RUNNING") ui.icon.innerText = "🏃";
    else ui.icon.innerText = "🛑";
}

// --- CHARTING ---
const ctx = document.getElementById('chart').getContext('2d');
function updateChart(newVariance) {
    varianceHistory.push(newVariance);
    varianceHistory.shift();

    const w = ctx.canvas.width = ctx.canvas.parentElement.clientWidth;
    const h = ctx.canvas.height = ctx.canvas.parentElement.clientHeight;

    ctx.clearRect(0, 0, w, h);
    ctx.beginPath();
    ctx.strokeStyle = '#38bdf8';
    ctx.lineWidth = 2;

    const step = w / varianceHistory.length;
    const max = 0.5;

    varianceHistory.forEach((val, i) => {
        const x = i * step;
        const y = h - (Math.min(val, max) / max) * h;
        if(i===0) ctx.moveTo(x, y); else ctx.lineTo(x, y);
    });
    ctx.stroke();
}

// --- INITIALIZATION ---
// Start the loop every 1 second (1000ms)
setInterval(processLoop, 1000);

// Simulation Mode (If no backend available)
let simStep = 0;
function runSimulation() {
    simStep++;
    // Fake raw data stream
    const rawData = {
        id: "sim" + simStep,
        timestamp: Date.now(),
        accel: {
            // Simulate random movement or stillness
            x: (Math.sin(simStep/10) * 5000) + Math.random()*500,
            y: 500,
            z: 16384
        }
    };

    // Inject into the processing loop manually for demo
    lastProcessedId = rawData._id;
    const mag = calculateMagnitude(rawData.accel.x, rawData.accel.y, rawData.accel.z);
    magnitudeBuffer.push(mag);
    updateUI(mag, rawData.timestamp);

    if (magnitudeBuffer.length >= CONFIG.WINDOW_SIZE) {
        const variance = calculateStandardDeviation(magnitudeBuffer);
        if (variance > CONFIG.THRESH_WALK) currentActivity = "WALKING";
        else currentActivity = "IDLE";
        magnitudeBuffer = [];
        updateChart(variance);
    }
}
// Uncomment this to test PWA without any backend:
// setInterval(runSimulation, 1000);

/*
 * Copyright (c) 2006-2021, RT-Thread Development Team
 *
 * SPDX-License-Identifier: Apache-2.0
 *
 * Change Logs:
 * Date           Author       Notes
 * 2023-5-10      ShiHao       first version
 */

#include <rtthread.h>
#include <rtdevice.h>
#include <board.h>
#include <stdlib.h>
#include <string.h>
#include <stdint.h>
#include <time.h>
#include <netdb.h>
#include <sys/socket.h>
#include <sys/errno.h>
#include <arpa/inet.h>
#include <netdev.h>
#include "paho_mqtt.h"
#include <wlan_mgnt.h>
#include "icm20608.h"

#define DBG_TAG "main"
#define DBG_LVL DBG_LOG
#include <rtdbg.h>

/* Used to confirm the flashed firmware matches this build */
#define FW_BUILD_TAG "PING_IP_20251219B"

/**
 * MQTT URI farmat:
 * domain mode
 * tcp://broker.emqx.io:1883
 *
 * ipv4 mode
 * tcp://192.168.10.1:1883
 * ssl://192.168.10.1:1884
 *
 * ipv6 mode
 * tcp://[fe80::20c:29ff:fe9a:a07e]:1883
 * ssl://[fe80::20c:29ff:fe9a:a07e]:1884
 */
#define MQTT_URI "tcp://mde3bba0.ala.dedicated.aws.emqxcloud.com:1883"
#define MQTT_USERNAME "spark1"
#define MQTT_PASSWORD "spark1"
#define MQTT_SUBTOPIC "/mqtt/sensor/"
#define MQTT_PUBTOPIC "/mqtt/sensor/"

#define WIFI_SSID     "POCO"
#define WIFI_PASSWORD "123456789"

#define ICM20608_I2C_BUS_NAME "i2c2"
#define ICM20608_PUB_PERIOD_MS 1000

#define ICM_THREAD_STACK_SIZE 2048
#define ICM_THREAD_PRIORITY   20
#define ICM_THREAD_TICK       10

/* define MQTT client context */
static MQTTClient client;
static void mq_start(void);
static void mq_publish(const char *send_str);
static void icm20608_entry(void *parameter);
static void start_icm20608_thread(void);

char sup_pub_topic[48] = {0};

/* 连接成功的回调函数 */
static void wlan_connect_handler(int event, struct rt_wlan_buff *buff, void *parameter)
{
    rt_kprintf("%s\n", _FUNCTION_);
    if ((buff != RT_NULL) && (buff->len == sizeof(struct rt_wlan_info)))
    {
        rt_kprintf("ssid : %s \n", ((struct rt_wlan_info *)buff->data)->ssid.val);
    }
}

/* 连接失败的回调函数 */
static void wlan_connect_fail_handler(int event, struct rt_wlan_buff *buff, void *parameter)
{
    rt_kprintf("%s\n", _FUNCTION_);
    if ((buff != RT_NULL) && (buff->len == sizeof(struct rt_wlan_info)))
    {
        rt_kprintf("ssid : %s \n", ((struct rt_wlan_info *)buff->data)->ssid.val);
    }
}

int main(void)
{
    LOG_I("FW build: %s", FW_BUILD_TAG);
    start_icm20608_thread();

    /* 注册 wlan 回调函数 */
    rt_wlan_register_event_handler(RT_WLAN_EVT_READY, (void (*)(int, struct rt_wlan_buff *, void *))mq_start, RT_NULL);
    /* 初始化自动连接功能 */
    rt_wlan_set_mode(RT_WLAN_DEVICE_STA_NAME, RT_WLAN_STATION);
    rt_wlan_config_autoreconnect(RT_TRUE);
    if (rt_wlan_connect(WIFI_SSID, WIFI_PASSWORD) != RT_EOK)
    {
        LOG_W("wifi connect request failed (ssid=%s)", WIFI_SSID);
    }
    /*  */
    rt_wlan_register_event_handler(RT_WLAN_EVT_STA_CONNECTED, wlan_connect_handler, RT_NULL);
    rt_wlan_register_event_handler(RT_WLAN_EVT_STA_CONNECTED_FAIL, wlan_connect_fail_handler, RT_NULL);

    return 0;
}

static void mqtt_sub_callback(MQTTClient *c, MessageData *msg_data)
{
    *((char *)msg_data->message->payload + msg_data->message->payloadlen) = '\0';
    LOG_D("Topic: %.*s receive a message: %.*s",
          msg_data->topicName->lenstring.len,
          msg_data->topicName->lenstring.data,
          msg_data->message->payloadlen,
          (char *)msg_data->message->payload);

    return;
}

static void mqtt_sub_default_callback(MQTTClient *c, MessageData *msg_data)
{
    *((char *)msg_data->message->payload + msg_data->message->payloadlen) = '\0';
    LOG_D("mqtt sub default callback: %.*s %.*s",
          msg_data->topicName->lenstring.len,
          msg_data->topicName->lenstring.data,
          msg_data->message->payloadlen,
          (char *)msg_data->message->payload);
    return;
}

static void mqtt_connect_callback(MQTTClient *c)
{
    LOG_I("Start to connect mqtt server");
}

static void mqtt_online_callback(MQTTClient *c)
{
    LOG_D("Connect mqtt server success");
    LOG_D("Publish message: Hello,RT-Thread! to topic: %s", sup_pub_topic);
    mq_publish("Hello,RT-Thread!");
}

static void mqtt_offline_callback(MQTTClient *c)
{
    LOG_I("Disconnect from mqtt server");
}

/* Set system time for TLS certificate validation */
static void set_system_time(void)
{
    /* Set time to December 19, 2025, 12:00:00 UTC */
    /* This is needed because soft RTC starts at epoch (1970) */
    /* and TLS certificate validation will fail without correct time */
    time_t now;
    struct tm tm_now = {0};

    tm_now.tm_year = 2025 - 1900;  /* Years since 1900 */
    tm_now.tm_mon = 12 - 1;         /* Month 0-11 */
    tm_now.tm_mday = 29;
    tm_now.tm_hour = 12;
    tm_now.tm_min = 0;
    tm_now.tm_sec = 0;

    now = mktime(&tm_now);
    if (now != (time_t)-1)
    {
        /* Use RT-Thread's RTC device to set time */
        rt_device_t rtc_dev = rt_device_find("rtc");
        if (rtc_dev != RT_NULL)
        {
            rt_device_control(rtc_dev, RT_DEVICE_C
