Particle Photon Responds to Detected Moisture

As soon as moisture is detected on a sensor, the Photon triggers information to the user via IFTTT.

EasyFull instructions provided1.5 hours61
Particle Photon Responds to Detected Moisture

Things used in this project

Story

Read more

Schematics

MyWaterWarner

Mywaterwarner steckplatine hhzjpglbu8

Github

Code

MyWaterWarner v1.1

C/C++
// Double-Switch with Particle Photon - works without Libaries - tested with v0.7.0-rc.3
// Ingo Lohs, v1.1 v. 15.12.2018
// Projekt, um eine Flüssigkeit in einem Rohr bzw. Becken zu detektieren und eine Signalisierung via IFTTT abzugeben
// Einsatz bei Peter Ens

    /*
             -----[    ]-----
     2xVCC  -|VIN        3V3|-
     2xGND  -|GND        RST|-
            -|TX        VBAT|-
            -|RX         GND|-
            -|WKP         D7|-
            -|DAC         D6|-
            -|A5          D5|-
            -|A4          D4|- SwitchSensor_Rohr DIGITAL-PIN > Becken
            -|A3          D3|-
            -|A2          D2|-
            -|A1          D1|- SCL
            -|A0          D0|- SDA = SwitchSensor_Rohr DIGITAL-PIN > Rohr
              \____________/

    */

// **************

const int SwitchSensor_Rohr = D0;   // Sensor mit VCC/GND/DIGITAL-PIN an PIN D0 vom Photon
const int SwitchSensor_Becken = D4; // Sensor mit VCC/GND/DIGITAL-PIN an PIN D4 vom Photon
const int internalLED = D7;
bool firstfire_switch_Rohr = true;
bool firstfire_switch_Becken = true;
unsigned long lastmillis = 0; // time for interation the loop

void setup() {
 pinMode(SwitchSensor_Rohr,INPUT);
 pinMode(SwitchSensor_Becken,INPUT);
 pinMode(internalLED,OUTPUT);
 Serial.begin(9600);
}

void loop()
{
    if ((millis() - lastmillis) > 1000) {
        lastmillis = millis();
        readData_Switch_Rohr();
        readData_Switch_Becken();
    }
}

void readData_Switch_Rohr() {

/*

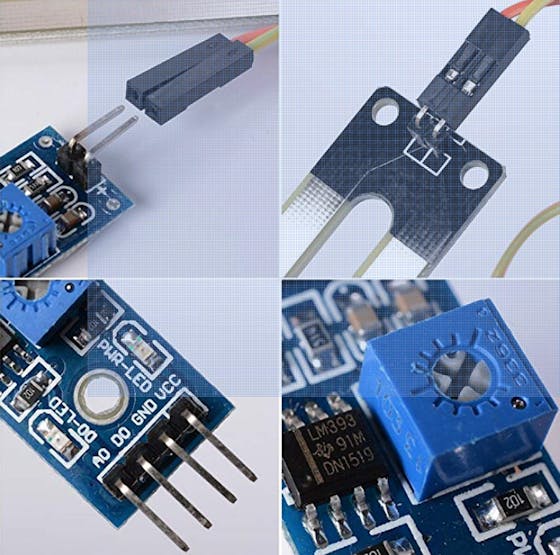

https://www.amazon.de/gp/product/B00ZR3B60I
Betriebsspannung 3.3V-5V.
PCB Größe: 3cm * 1.6cm.
Stromleuchte (rot) und digitale Schalt-Ausgangsanzeige (grün).
*/

  int proximity_Rohr = digitalRead(SwitchSensor_Rohr);

    if (proximity_Rohr == 1)
    {
    Serial.println("Alles ok - Switch am Rohr open");
    digitalWrite(internalLED, LOW);
    firstfire_switch_Rohr = true;
    }
    else if ((proximity_Rohr == 0) and (firstfire_switch_Rohr == true))
    {
    Serial.println("1. Alarm - Switch am Rohr closed");
    digitalWrite(internalLED, HIGH);
    firstfire_switch_Rohr = false;
    Particle.publish("myWaterWarner", "Wasseraustritt am Rohr", PRIVATE);
    }
    else if ((proximity_Rohr == 0) and (firstfire_switch_Rohr == false))
    {
    Serial.println("2. Alarm - Switch am Rohr closed a while");
    digitalWrite(internalLED, HIGH);
    firstfire_switch_Rohr = false;
    }
    else
    {
    Serial.println("Switch ERROR Reading Value - am Rohr");
    digitalWrite(internalLED, HIGH);
    delay(500);
    digitalWrite(internalLED, LOW);
    delay(500);
    }

}


void readData_Switch_Becken() {

/*
https://www.amazon.de/gp/product/B00ZR3B60I
Betriebsspannung 3.3V-5V.
PCB Größe: 3cm * 1.6cm.
Stromleuchte (rot) und digitale Schalt-Ausgangsanzeige (grün).
*/

  int proximity_Becken = digitalRead(SwitchSensor_Becken);

    if (proximity_Becken == 1)
    {
    Serial.println("Alles ok - Switch am Becken open");
    digitalWrite(internalLED, LOW);
    firstfire_switch_Becken = true;
    }
    else if ((proximity_Becken == 0) and (firstfire_switch_Becken == true))
    {
    Serial.println("1. Alarm - Switch am Becken closed");
    digitalWrite(internalLED, HIGH);
    firstfire_switch_Becken = false;
    Particle.publish("myWaterWarner", "Wasseraustritt am Becken", PRIVATE);
    }
    else if ((proximity_Becken == 0) and (firstfire_switch_Becken == false))
    {
    Serial.println("2. Alarm - Switch am Becken closed a while");
    digitalWrite(internalLED, HIGH);
    firstfire_switch_Becken = false;
    }
    else
    {
    Serial.println("Switch ERROR Reading Value - am Becken");
    digitalWrite(internalLED, HIGH);
    delay(500);
    digitalWrite(internalLED, LOW);
    delay(500);
    }

}
