Kit and Modules has been kindly sponsored by 52pi.com

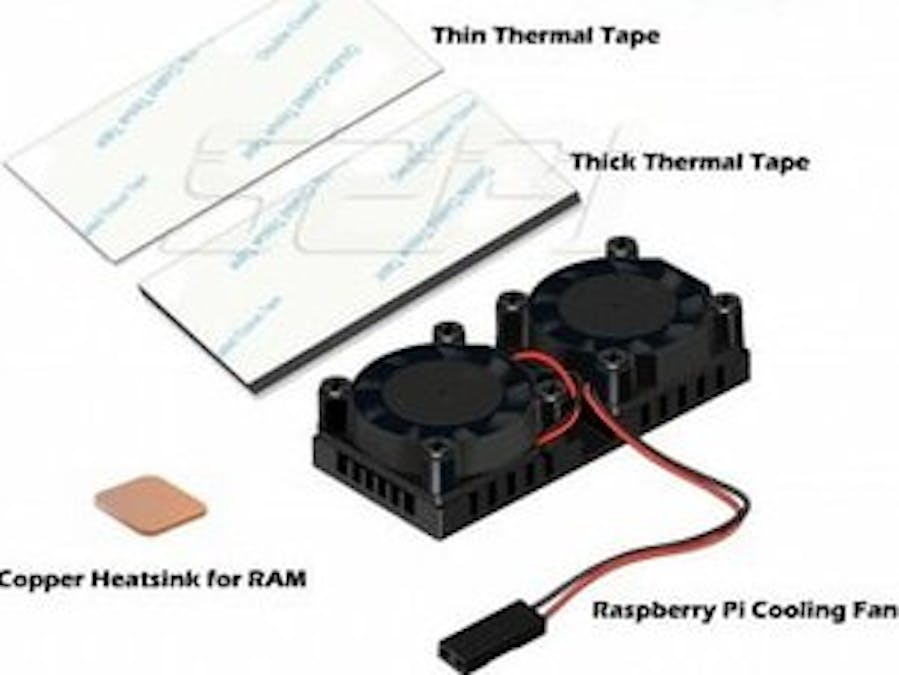

Dual Fan SpecificationsGeneral
Type: Cooling Fan
Architecture: For Raspberry Pi
Rotation Speed: 7500 rotations/minute
Heat Dissipation/Temperature Drop: 5°C- 20°C
Power
Operating Voltage: +5 volts
Operating Current: 200 mA
Weight and Size Dimensions
Wire Length: 8 cm
Product Weight: 19g
Product Size (L x W x H): 56 x 24.7 x 12.4 mm
Red Wire - VCC (+)
Black Wire - GND (-)
From a maker's point of view, this dual cooling fan is actually a very effective cooling source because of reasons which includes:
1. The additional aluminium heatsink fitted below the dual fan itself, which adds on to the excessive temperature drop it can make.
2. The low current consumption it uses for a major result in cooling the Raspberry Pi.
3. The fact that it has two fans in one product together then having two extra, separate fans which will take up more current and power from your Pi.
4. The sturdy and durable plastic used in making this product which protects it from outside damage.
General
Type: Thermal Tape
Architecture: For Raspberry Pi
Power
Not applicable due to the thermal tape not being an electronic device.
Weight and Size Dimensions
Product Weight (Thin Thermal Tape): 1g
Product Weight (Thick Thermal Tape): 7g
Product Size (L x W x H) (Thin Thermal Tape): 55 x 24 x 0.3 mm
Product Size (L x W x H) (Thick Thermal Tape): 55 x 24 x 1.5 mm
Even though this product isn't very effective in heat reduction, it provides an excellent adhesive between chips and heatsinks. Some of its features include:
1. A very durable adhesive to stick on any surface securely, with ease.
2. The fact that this tape increasingly speeds up heat transfer from the chip to the material above. The thermal tape, furthermore, is an amazing conductor of heat. This factor boosts cooling and heat dissipation as an end result.
General
Type: Heatsink (Copper)
Architecture: For Raspberry Pi
Heat Dissipation/Temperature Drop: 2°C- 5°C
Power
Not applicable due to the copper heatsink not being an electronic device.
Weight and Size Dimensions
Product Weight: 1g
Product Size (L x W x H): 11.8 x 11.8 x 1 mm
At a first glance, this product may seem very small in size, but it incorporates numerous attributes such as:
1. An effective heat dissipation technology, where this heatsink can enable a user to run a high-powered software with the RAM chip not overheating.
2. The heatsink's size, as it is very small that it can still fit into your Raspberry Pi case with this component on the RAM chip.
Check it out here: goo.gl/43qTNG
Sponsor Link:UTSource.net Reviews
It is a trustworthy website for ordering electronic components with cheap price and excellent quality.
Amazing OpportunitiesAlso, be sure to check out PCBWay, a leading manufacturer and distributor in PCB design and manufacturing. They have amazing prices and excellent quality in their services, so don't miss out on them! Plus, PCBWay has an amazing website, online Gerber viewer function and a gift shop so make sure to check out their links below:
PCBWay Free Online Gerber Viewer Function: https://www.pcbway.com/project/OnlineGerberViewer.html
PCBWay Gift Shop: https://www.pcbway.com/project/gifts.html
Be sure to check out the setups for these products by clicking here.
Enjoy! Contact us for any inquiries!
