Module has been kindly sponsored by ICStation.com
Product SpecificationsGeneral
Type: Ambient Light Sensor
Architecture: For Arduino
Communication Interface: Analog Voltage
Wavelength: 570nm
Detection Angle: +/-60°
Illumination Range: 1 - 1000 lux
Operating Temperature: -40°C - 85°C
Maximum Sensitivity: 570nm
Output Signal: Analog
Power
Operating Voltage: +3.3 - +5 volts
Output Current: 20mA
Collector - Emitter voltage: +1.5/+6 volts
Weight and Size Dimensions
Product Weight: 1g
Product Size (L x W x H): 20 x 8 x 7 mm

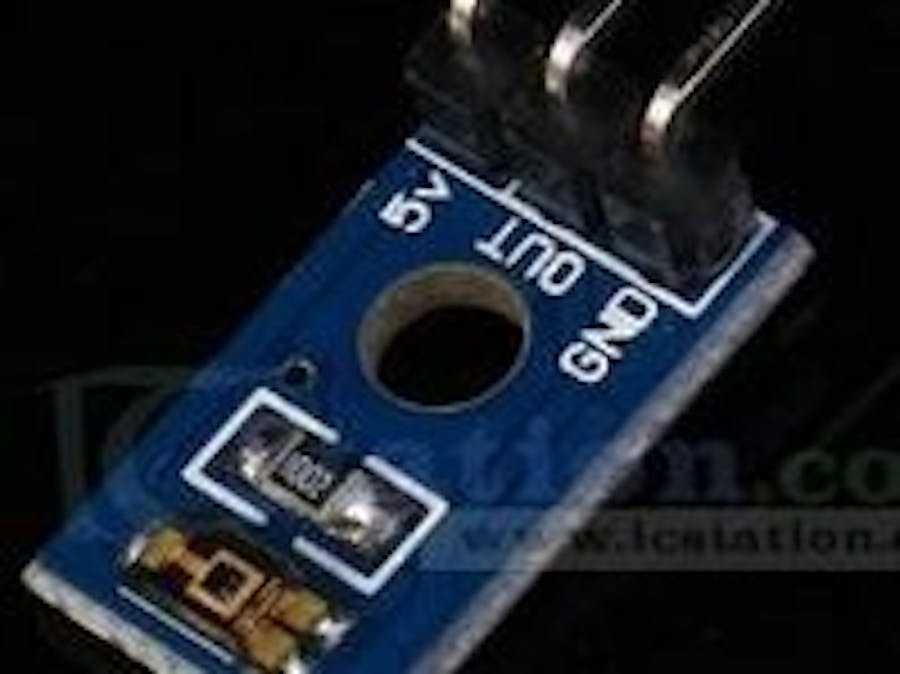

5v - VCC (+)
OUT - Signal
GND - GND (-)
This product is easily one of my favourites to add to a project due to these reasons:
1. It's small and compact, so it can fit into small enclosures.
2. It's really accurate and can be used for a variety of projects like backlights in mobile phones.
3. It has pre-soldered pins, for convenience.
4. The software interface of this product is simple, therefore, the code used is very basic.
5. The hardware is simple, making it not so complex since it only has three pins (Signal, VCC & GND).
Check out the product here: http://www.icstation.com/product_info.php?aid=294&products_id=11480
For purchases from ICStation, use this code for a discount:
Code: Simics
Discount Amount: 15% off
Max. Use: 1 (one per user)
Amount Limit: 300
UTSource.net Reviews
It is a trustworthy website for ordering electronic components with cheap price and excellent quality.
Amazing OpportunitiesAlso, be sure to check out PCBWay, a leading manufacturer and distributor in PCB design and manufacturing. They have amazing prices and excellent quality in their services, so don't miss out on them! Plus, PCBWay has an amazing website, online Gerber viewer function and a gift shop so make sure to check out their links below:
PCBWay Free Online Gerber Viewer Function: https://www.pcbway.com/project/OnlineGerberViewer.html
PCBWay Gift Shop: https://www.pcbway.com/project/gifts.html
Be sure to check out the Arduino TEMT6000 Ambient Light Sensor Project by clicking here.
Enjoy! Contact us for any inquiries!
