LED Strobe Light Circuit by PCBGOGO

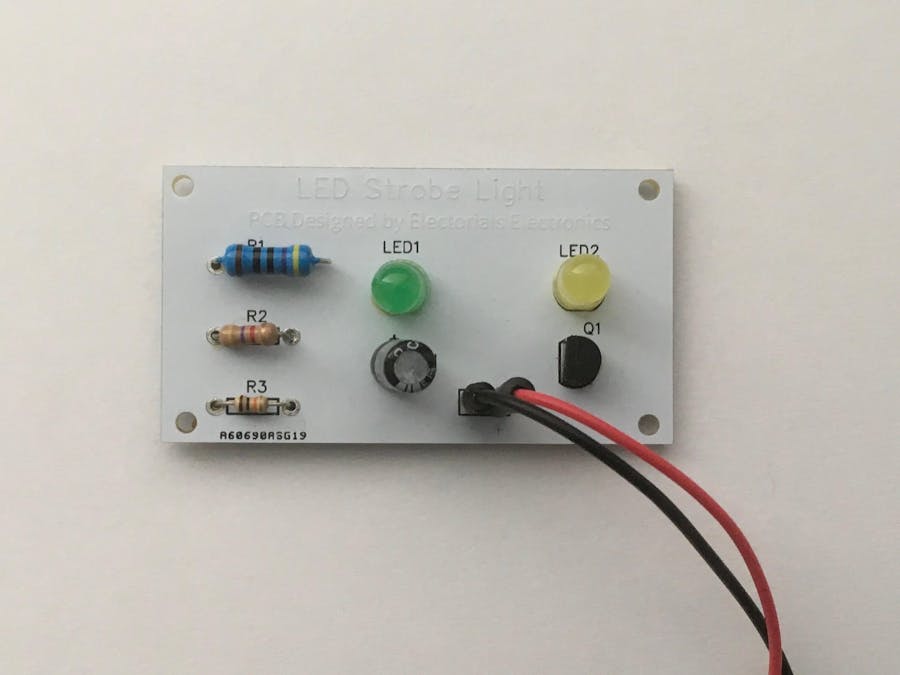

A simple transistor circuit composed of one LED oscillating while another one stays brightly turned on. This project does require soldering.

BeginnerFull instructions provided20 minutes265
LED Strobe Light Circuit by PCBGOGO

Things used in this project

Hardware components

Through Hole Resistor, 470 ohm
Through Hole Resistor, 470 ohm
×1
Resistor 220 ohm
Resistor 220 ohm
×1
Resistor 10k ohm
Resistor 10k ohm
×1
Capacitor 1 µF
Capacitor 1 µF
×1
LED, Super Bright
LED, Super Bright
2 LEDs of any colour.
×2
AA Batteries
AA Batteries
Or any other form of a +6 volts power supply.
×4

Software apps and online services

EasyEDA

Hand tools and fabrication machines

Soldering iron (generic)
Soldering iron (generic)
Solder Flux, Soldering
Solder Flux, Soldering
Optional.
Solder Wire, Lead Free
Solder Wire, Lead Free
Or any other type of solder wire.
