LCD Trainer Kit

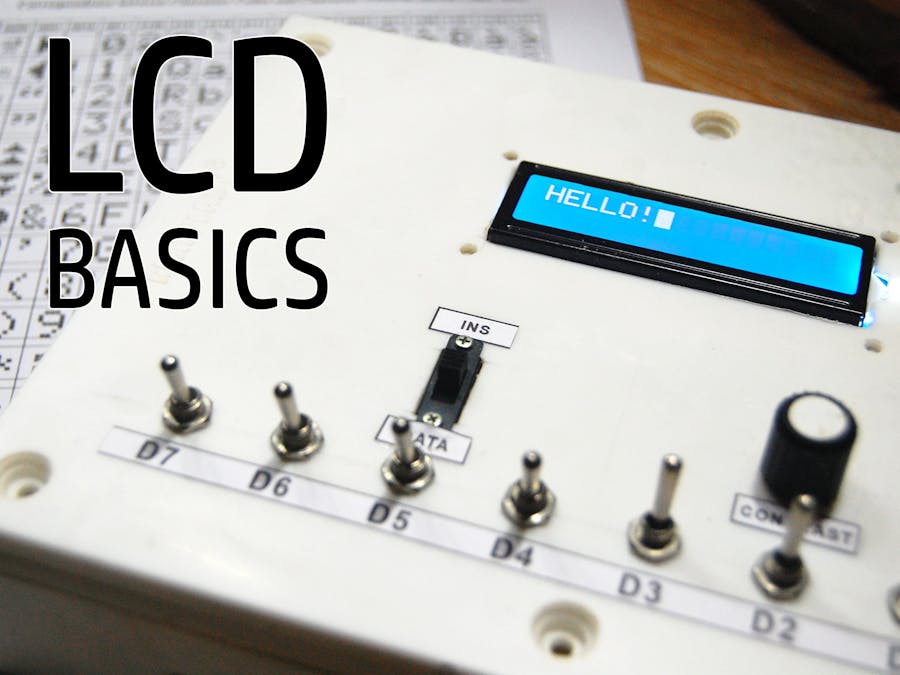

A trainer kit to understand how LCD displays work. The aim of this kit is to know how microcontroller communicates with such devices.

BeginnerShowcase (no instructions)2 hours404
LCD Trainer Kit

Things used in this project

Hardware components

RGB Backlight LCD - 16x2
Adafruit RGB Backlight LCD - 16x2
×1
Adafruit Toggle Switch (SPDT)
×8
Adafruit Push Button
×1
Slide Switch
Slide Switch
×1
Single Turn Potentiometer- 100k ohms
Single Turn Potentiometer- 100k ohms
×1
Adafruit Micro USB Breakout Board
×1
Project Enclosure
×1
