PowerShell GPIO Using Arduino USB Support In Windows 10

PowerShell script can use an Arduino connected via USB as a general purpose IO (GPIO) device.

BeginnerProtip30 minutes6,738

PowerShell GPIO Using Arduino USB Support In Windows 10

Things used in this project

Hardware components

Arduino UNO

RGB Diffused Common Cathode

Software apps and online services

Microsoft Windows 10

Story

Windows PowerShell is a great automation tool for system administrators. Windows 10 includes PowerShell and support for directly connected Arduino devices via USB (drivers are automatically installed).

There is a fantastic store app you can download to interact with the Arduino: https://www.microsoft.com/store/apps/9nblggh2041m

But I wanted to control the Arduino from PowerShell. Before writing any code I always search on http://github.com and, sure enough, someone had already created a C# assembly to provide a wrapper to make it easy.

https://github.com/SolidSoils/Arduino has the DLL and information on the sketch to install. I have created a blog post on installing the required sketch here https://ianmorrish.wordpress.com/category/v-ise/arduino/

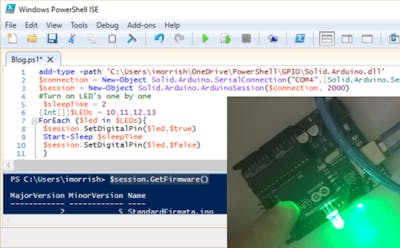

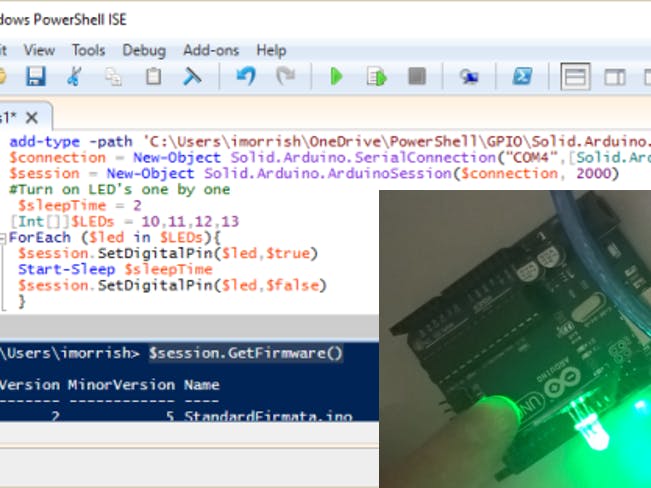

Then it is a simple matter of using PowerShell as follows.

Code

PowerShell Example

add-type -path '\Documents\WindowsPowerShell\Solid.Arduino.dll'
#You may have to confirm which virtual Com port your Arduino is connected to from the devices view.
$connection = New-Object Solid.Arduino.SerialConnection("COM4",[Solid.Arduino.SerialBaudRate]::Bps_57600)
$session = New-Object Solid.Arduino.ArduinoSession($connection, 2000)
#Turn on LED's one by one
 $sleepTime = 2
[Int[]]$LEDs = 11,12,13 #list the output ports you have connected LED's to
ForEach ($led in $LEDs){
 $session.SetDigitalPin($led,$true)
 Start-Sleep $sleepTime
 $session.SetDigitalPin($led,$false)
}

Credits

Ian Morrish

1 project • 0 followers

Thanks to Solid Soils Solutions.
