Getting Started With Sonoff RF

Overview

Home automation is "The Internet of Things". The way that all of our devices and appliances will be networked together to provide us with a seamless control over all aspects of our home and more.

Sonoff is a low-cost, affordable device that help you to step into the amazing smart home.It is a WiFi wireless switch that can connect to appliance of different types and brands. Sonoff sends data to cloud platform through the WiFi Router, which enables you to remotely control all appliances with the App eWeLink on your smart phone.

Sonoff makes all your home appliances smart, as long as your phone has network you can remotely turn on or turn off your appliances from anywhere at any time. And by setting timing schedules for your appliances, you can maintain a carefree life.

Sonoff RF is a Sonoff version with an 433MHz RF receiver module inside. It can be paired with the RF remote controller, which enables you to control your appliances indoors.

The App eWeLink enables you to control your devices easily. You can download the iOS version in App Store and the Android version in Google Play.

Features

• Support WiFi network.

• Support 433MHz RF remote.

• Support status tracking, home appliances status timely feedback to your App.

• Support remotely turn on or off added devices.

• Support Max 8 timing tasks for each added device.

• Support numerous WiFi smart switches one smart phone.

• Easy installation, easy handling and can be activated immediately and stably.

Specification

• Voltage range: 90-250v AC(50/60Hz)

• Max current: 10A

• Max Wattage: 2200 watts

• Dimensions: (L)88*(W)38*(H)23mm

• Color: White

• Humidity: 5%-95%

• Wireless Frequency: 2.4Ghz

• Working Temp: ﹣20℃-75℃

Compare different versions

Hardware

How to install the Sonoff WiFi wireless switch?

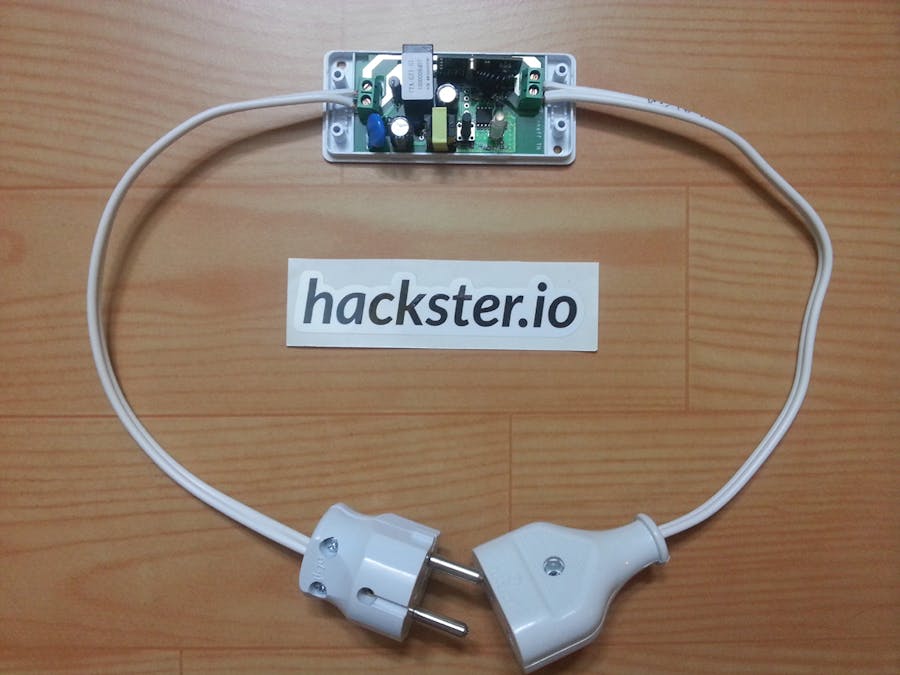

Preparation: Switch off all related electricity source first. Connect the Sonoff with your appliances, cable connections are as below:

Attention: The power input L N cables must connect with the “INPUT” side. The electricity output L N cables must connect with "OUTPUT" side. Remember DON`T mistaken the directions!

The two terminal connector ports at "INPUT" can connect to input cable L and N randomly, and the two terminal connector ports at "OUTPUT" side can connect to output cable L and N randomly.

Pair with 433Mhz RF remote controller without WiFi

If the Sonoff  you buy has 433Mhz RF receiver inside, then you can pair them with the RF Remote controller. Quickly press "SET" button on Sonoff twice, the red LED on Sonoff will flash one time, then press one of the ABCD buttons on the controller once for a few seconds to pair with. If you pair it with A, then you can press A to turn on/off your device.

To cancel the pairing, you need to fast press the"SET" button on Sonoff 3 times.

APP Operation

1. Download the APP to your smart phone

• Download the Android version APP from Here Or search eWeLink on Google Play.

• Download the iOS version APP from Here Or search eWeLink on App store.

2. Install the APP to your smart phone

3. Register a new account

• You`ll need to enter your phone No. and password (at least 8 characters). Enter SMS verification code to register.

4. Login with your account.

5. Add devices

Android Version eWeLink

• For Android version, you must open the WiFi on your phone before add device.

• Then long press the “SET” button on Sonoff until the green LED indicator fast blinks(you can use your finger to press directly).

• Click “+” to add devices.

• Then click “Start searching”, it will auto-search and connect the “ITEAD10000xxx” WiFi around you.

• Select your WiFi account and enter password(If no password, keep it blank), click remember so that next time you don’t need to fill in again.

• Click “next” to name your device, then tap on“next” you will add the device successfully.

• Now you can control sonoff.

iOS Version eWeLink

• For iOS version, you`ll need to long press the ''SET'' button on Sonoff until the green LED indicator fast blinks.

• Click ''+'' to add new device.

• Then open phone Setting > WiFi > connect the WiFi begins with ITEAD, enter default password 12345678.

• Go back to the App to confirm.

• Then enter your WiFi router SSID and password.(If no password, keep it blank)

• Finally, name your device and submit.

• Now you can control sonoff.

NOTE: If you see the new added device is offline, please wait for a moment. If it keeps offline, please power off the device, then power it up, if everything is ok, it will become online on the App.

Other Products:

• Slampher : Slampher is a WiFi wireless light holder that can connect to light bulbs with E27 screw base. Slampher sends data to cloud platform through WiFi Router, which enables you to remotely control all light bulbs with the App eWeLink on your smart phone.

• Sonoff WiFi : Sonoff WiFi is a version of Sonoff RF without 433Mhz RF remote function.

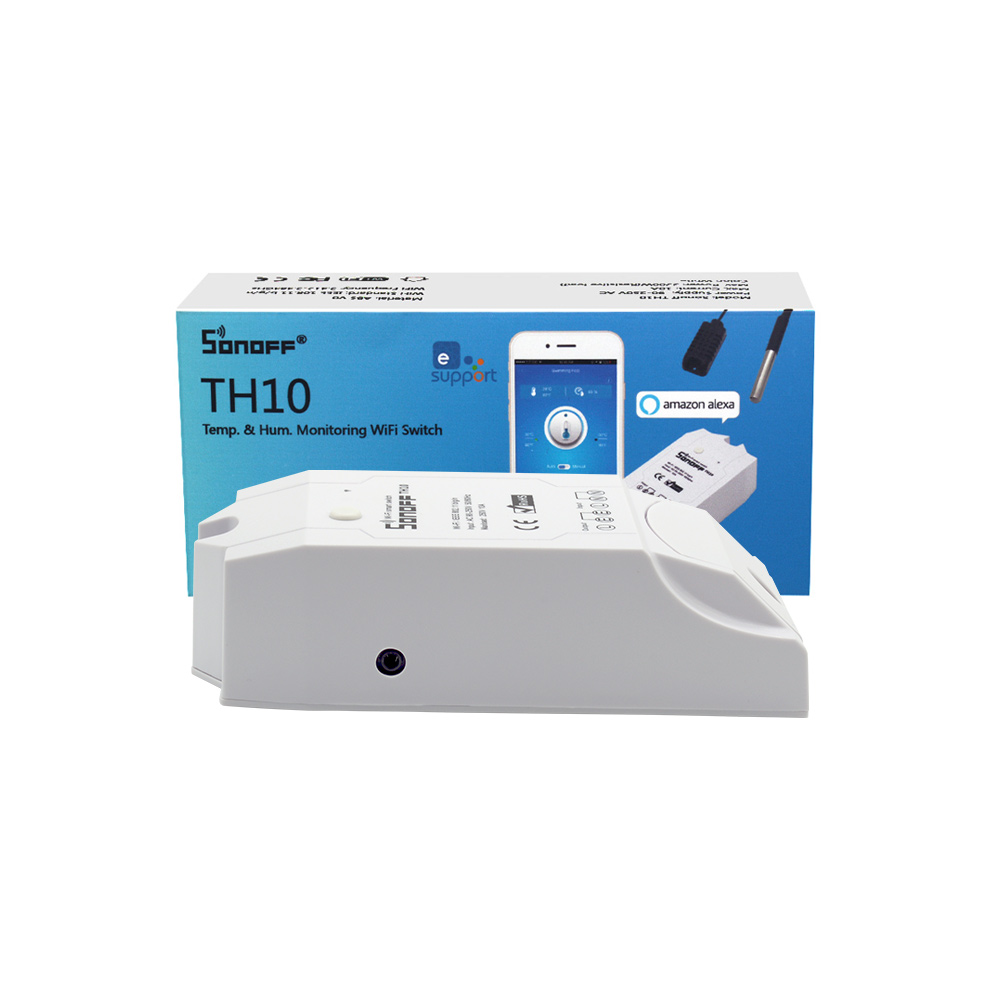

• Sonoff TH : Sonoff TH (Temperature & Humidity) is a Sonoff version that can monitor and set temperature and humidity through the APP.
