Hardware components | ||||||
![]() |
| × | 1 | |||
![]() |
| × | 2 | |||
![]() |
| × | 1 | |||
| × | 20 | ||||
![]() |
| × | 1 | |||
![]() |
| × | 2 | |||
| × | 1 | ||||
![]() |
| × | 3 | |||
Software apps and online services | ||||||
![]() |
|
When the little button is pressed, the blue light turns on for a second, and turns off.
Then a timer of a random time goes off, and when the timer is up, the blue light is on, the person who clicks their button the fastest, wins.

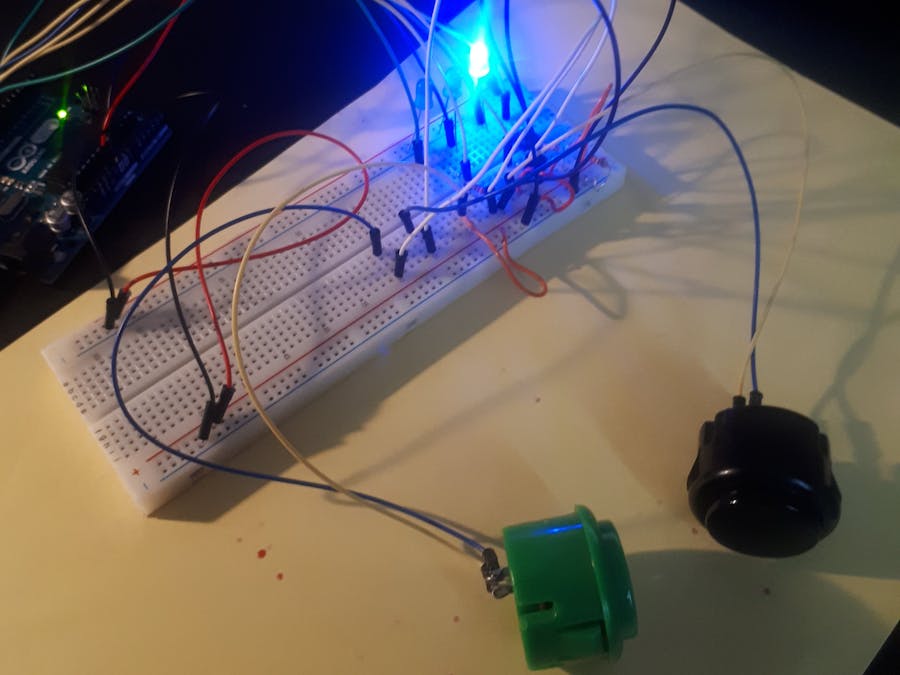

simple setup
(There is a timer and a score board, and you can acces that like this : tools -> serial motor. It also says get ready and who wins.)
/******************************************************************
* GAME
* 2 players
* reaction time
* Version 1.0 11/11/2018 By Lotte and Arjan
/*****************************************************************/
const int switchPin1 = 10; //Player 1 button
const int switchPin2 = 8; //Player 2 button
int switchStart = 12; //Start button
int ledPin = 11 ; //Game start LED
int ledPinP1 = 9 ; //Player 1 win indicator
int ledPinP2 = 7 ; //Player 2 win indicator
int buttonStateP1 = 0; //Player 1 button tracking
int buttonStateP2 = 0; //Player 2 button tracking
int lastButtonStateP1 = 0; // Player 1 last button state (used to detect a button press)
int lastButtonStateP2 = 0; // Player 2 last button state (used to detect a button press)
int scoreP1 = 0; // Player 1 score tracking
int scoreP2 = 0; // Player 2 score tracking
boolean bothDone = false; // Used to see if both players have pressed their buttons
boolean gameOn = false; // Keep track if the game is going on or not
boolean startButtonState = LOW; // Start button initalization
boolean p1Done = false; // Keep track of Player 1's button press
boolean p2Done = false; // Keep track of Player 1's button press
boolean welcomeMsg = false; // Keep track if the welcome message has already been displayed
long randomTime; // Hold the random time between the start of the game and the indicator light coming back on
long startTime; // When did the game start
long endTimeP1; // When did Player 1 press their button
long endTimeP2; // When did Player 2 press their button
float finalTimeP1; // Time elapsed between start of the game and Player 1 pressing their button
float finalTimeP2; // Time elapsed between start of the game and Player 2 pressing their button
float winningTime; // Time between the winning and losing player's time
void setup()
{
pinMode(switchPin1, INPUT);
pinMode(switchPin2, INPUT);
pinMode(ledPin, OUTPUT); // Game start LED
pinMode(ledPinP1, OUTPUT); // Player 1 win LED
pinMode(ledPinP2, OUTPUT); // Player 1 win LED
Serial.begin(9600);
}
void loop(){
// Print a welcome message, the current player's score, and set that the welcome message has been displayed
if (welcomeMsg == false){
Serial.println(" ");
Serial.println("Press the start button to begin");
Serial.println("Scoreboard:");
Serial.print("Player 1 - ");
Serial.println(scoreP1);
Serial.print("Player 2 - ");
Serial.println(scoreP2);
welcomeMsg = true;
}
startButtonState = digitalRead(switchStart); // Listen for the start button to be pressed
// if the start button has been pressed and there is no game already running, begin the game
if (startButtonState == HIGH && gameOn == false){
Random();
}
}
// Generate a random ammount of time to delay between the begining of the game intil the LED comes back on
void Random(){
Serial.println(" ");
Serial.println("Get ready!");
randomTime = random(4,10);
randomTime = randomTime*1000;
digitalWrite(ledPin, HIGH); // Turn the game LED on and off to indicate a game is about to start
delay(1000);
digitalWrite(ledPin, LOW);
delay(randomTime);
startGame();
}
// Listen for the Player 1 and Player 2 buttons to be pressed
void startGame(){
gameOn = true; // Declare a game currently running
startTime = millis();
digitalWrite(ledPin, HIGH); // Turn on game LED indicating players should press their buttons as quickly as possible
while(p1Done == false || p2Done == false){
buttonStateP1 = digitalRead(switchPin1);
buttonStateP2 = digitalRead(switchPin2);
// Listen for Player 1 button to be pressed and set Player 1 as done.
if (buttonStateP1 == HIGH && p1Done == false) {
endTimeP1 = millis();
p1Done = true;
}
// Listen for Player 2 button to be pressed and set Player 2 as done.
if (buttonStateP2 == HIGH && p2Done == false) {
endTimeP2 = millis();
p2Done = true;
}
}
endGame();
}
void endGame(){
digitalWrite(ledPin, LOW); // Turn off the game LED
finalTimeP1 = (endTimeP1 - startTime); //Calculate how long it took Player to push their button
finalTimeP2 = (endTimeP2 - startTime); //Calculate how long it took Player to push their button
Serial.print("P1 time:");
Serial.println(finalTimeP1/1000); // Display Player 1's final time in seconds
Serial.print("P2 time:");
Serial.println(finalTimeP2/1000); // Display Player 2's final time in seconds
if (endTimeP1 < endTimeP2){ // Run if Player 1 won the round
digitalWrite(ledPinP1, HIGH);
winningTime = (endTimeP2 - startTime) - (endTimeP1 - startTime);
scoreP1 = scoreP1 + 1;
Serial.print("P1 won by:");
Serial.println(winningTime/1000);
digitalWrite(ledPinP1, HIGH);
digitalWrite(ledPinP2, LOW);
}
else{
Serial.print("P2 won by:"); // Run if Player 2 won te round
winningTime = (endTimeP1 - startTime) - (endTimeP2 - startTime);
scoreP2 = scoreP2 + 1;
Serial.println(winningTime/1000);
digitalWrite(ledPinP2, HIGH);
digitalWrite(ledPinP1, LOW);
}
delay(5000);
digitalWrite(ledPinP1, LOW); // Turn of Player 1's LED
digitalWrite(ledPinP2, LOW); // Turn of Player 2's LED
// Reset all variables to restart the game
buttonStateP1 = 0;
buttonStateP2 = 0;
lastButtonStateP1 = 0;
lastButtonStateP2 = 0;
bothDone = false;
gameOn = false;
startButtonState = LOW;
p1Done = false;
p2Done = false;
randomTime = 0;
startTime = 0;
endTimeP1 = 0;
endTimeP2 = 0;
finalTimeP1 = 0;
finalTimeP2 = 0;
winningTime = 0;
welcomeMsg = false;
}
