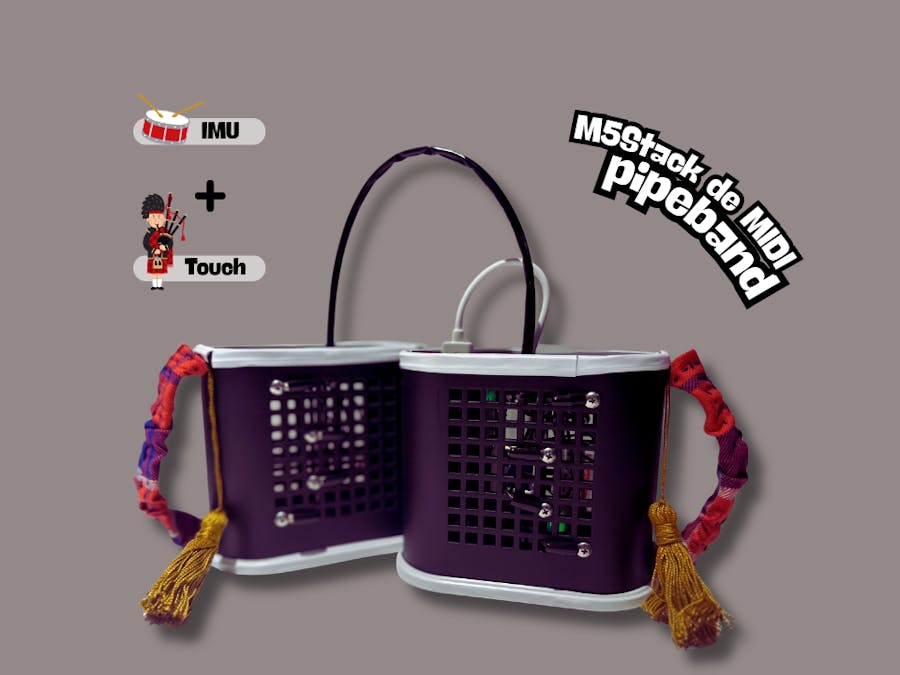

M5Stack de MIDI Pipe Band

A one-person MIDI pipe band built with M5Stack: touchpads play bagpipe notes, and IMUs trigger snare rolls—no PC required.

BeginnerWork in progress15 hours105

Things used in this project

Hardware components

M5Stack ATOMS3 Dev Kit

M5Stack MIDI Synthesizer Unit

M5Stack ATOMIC DIY Proto Kit for ATOM series

Adafruit Capacitive Touch Sensor Breakout - MPR121

Software apps and online services

PlatformIO IDE

Hand tools and fabrication machines

Soldering iron (generic)

Story

When I first decided to make a DIY electronic instrument, the choice was obvious to me: it had to be the bagpipes. I’ve only just begun practicing with a chanter, so I’m still a beginner — but that made it even more exciting to try building my own version.

And then I thought: if I’m already using M5Stack, why stop at the pipes? Why not add drums and make it a full pipe band, all in one device?

The real turning point was discovering the M5Unit Synth (SAM2695). I instantly loved the idea that this tiny module could turn almost anything into a musical instrument. That became the heart of this project.

So here it is: M5Stack de MIDI Pipe Band for Fun. Touch sensors play the chanter, IMU gestures trigger snare rolls, and the Synth Unit brings the sound to life. It’s not about building a professional instrument — it’s about exploring, experimenting, and having fun with music and electronics.

Here’s a quick demo performance of *Amazing Grace* on this setup:

Amazing Grace – very first trial, shared as a demo for the contest

Who knows? Maybe one day this project will march with others at a Maker Faire, as a true DIY pipe band.

Code

M5Stack de MIDI Pipe Band for Fun

#include <M5Unified.h>
#include <Wire.h>
#include <Adafruit_MPR121.h>
#include <math.h>

#define MPR121_SDA 2
#define MPR121_SCL 1
#define SYNTH_TX   5
#define MIDI_BAUD  31250

#define PIPE_CHANNEL 1
#define DRUM_CHANNEL 10
#define PIPE_PROGRAM 110  // Bagpipe (1-based)

Adafruit_MPR121 cap = Adafruit_MPR121();
uint16_t last_touched = 0;
uint8_t pipe_notes[9] = {55, 57, 59, 60, 62, 64, 65, 67, 69}; // Low G〜High A

float ax, ay, az;

// ==== Roll state (non-blocking) ====
bool rollActive = false;
unsigned long rollEndAt = 0;
unsigned long nextTickAt = 0;
unsigned long noteOffAt  = 0;
unsigned long lastRollTrig = 0;

// ==== Tunables ====
const int   ROLL_INTERVAL_MS = 55;   // 連打間隔（細かさ）
const int   ROLL_DURATION_MS = 450;  // ロール継続時間
const int   NOTE_LEN_MS      = 18;   // 各打の長さ
int         COOLDOWN_MS      = 60;   // 連発抑制

// ==== jerk（速い変化）検出用 二重EMA（X/Y/Z） ====
float emaX_fast=0, emaX_slow=0, emaY_fast=0, emaY_slow=0, emaZ_fast=0, emaZ_slow=0;
bool  emaInited = false;
const float ALPHA_FAST = 0.30f;  // 速く追従
const float ALPHA_SLOW = 0.02f;  // ゆっくり追従
float JERK_TRIG_MAG = 0.60f;     // 合成jerkのしきい値（0.5〜0.8で調整）

// パターン管理
int patternStep = 0;                // どのステップか
unsigned long patternNextAt = 0;    // 次の動作時間

// 調整パラメータ
const int HIT_VELOCITY = 100;       // スネア強さ
const int HIT_INTERVAL = 120;       // か → か の間隔 (ms)
const int GAP_AFTER_ROLL = 200;     // 1セット終わって次に行く間隔 (ms)

// テンポ設定
int BPM = 120;
int BEAT_MS = 60000 / BPM;

// 1拍休み
const int KAKA_REST_MS = BEAT_MS;   // 4分音符休む

// ===== MIDI helpers =====
void sendNoteOn(uint8_t channel, uint8_t note, uint8_t velocity) {
  Serial1.write(0x90 | ((channel - 1) & 0x0F));
  Serial1.write(note & 0x7F);
  Serial1.write(velocity & 0x7F);
}
void sendNoteOff(uint8_t channel, uint8_t note, uint8_t velocity) {
  Serial1.write(0x80 | ((channel - 1) & 0x0F));
  Serial1.write(note & 0x7F);
  Serial1.write(velocity & 0x7F);
}
void sendProgramChange(uint8_t program, uint8_t channel) {
  Serial1.write(0xC0 | ((channel - 1) & 0x0F));
  Serial1.write(program & 0x7F);
}

void startRoll(unsigned long now) {
  rollActive = true;
  rollEndAt  = now + ROLL_DURATION_MS;
  nextTickAt = now;
  noteOffAt  = 0;
}

void setup() {
  auto cfg = M5.config();
  M5.begin(cfg);
  Serial.begin(115200);

  Wire.begin(MPR121_SDA, MPR121_SCL);
  if (!cap.begin(0x5A)) {
    Serial.println("MPR121 not found.");
    while (1);
  }

  Serial1.begin(MIDI_BAUD, SERIAL_8N1, -1, SYNTH_TX);
  sendProgramChange(PIPE_PROGRAM - 1, PIPE_CHANNEL);

  M5.Imu.begin();

  // EMA初期化
  if (M5.Imu.getAccel(&ax, &ay, &az)) {
    emaX_fast = emaX_slow = ax;
    emaY_fast = emaY_slow = ay;
    emaZ_fast = emaZ_slow = az;
    emaInited = true;
  }
}

void loop() {
  M5.update();

  // --- タッチ（バグパイプ） ---
  uint16_t curr_touched = cap.touched();
  for (uint8_t i = 0; i < 9; i++) {
    if ((curr_touched & (1 << i)) && !(last_touched & (1 << i))) {
      sendNoteOn(PIPE_CHANNEL, pipe_notes[i], 100);
    } else if (!(curr_touched & (1 << i)) && (last_touched & (1 << i))) {
      sendNoteOff(PIPE_CHANNEL, pipe_notes[i], 100);
    }
  }
  last_touched = curr_touched;

  // --- IMU & ロール判定 ---
  if (M5.Imu.getAccel(&ax, &ay, &az)) {
    unsigned long now = millis();

    if (!emaInited) {
      emaX_fast = emaX_slow = ax;
      emaY_fast = emaY_slow = ay;
      emaZ_fast = emaZ_slow = az;
      emaInited = true;
    }

    // 二重EMAで高域強調（jerk）
    emaX_fast += ALPHA_FAST * (ax - emaX_fast);
    emaX_slow += ALPHA_SLOW * (ax - emaX_slow);
    emaY_fast += ALPHA_FAST * (ay - emaY_fast);
    emaY_slow += ALPHA_SLOW * (ay - emaY_slow);
    emaZ_fast += ALPHA_FAST * (az - emaZ_fast);
    emaZ_slow += ALPHA_SLOW * (az - emaZ_slow);

    float jerkX = emaX_fast - emaX_slow;
    float jerkY = emaY_fast - emaY_slow;
    float jerkZ = emaZ_fast - emaZ_slow;
    float jerkMag = sqrtf(jerkX*jerkX + jerkY*jerkY + jerkZ*jerkZ);

    // 発火トリガ
    if (!rollActive && patternStep == 0 &&
        (now - lastRollTrig) > COOLDOWN_MS &&
        (jerkMag > JERK_TRIG_MAG)) {

      // まず 1発目「か」
      Serial1.write(0x99); Serial1.write(38); Serial1.write(HIT_VELOCITY);
      Serial1.write(0x89); Serial1.write(38); Serial1.write(0);

      patternStep   = 1;
      patternNextAt = now + HIT_INTERVAL;  // 次の「か」の時間
      lastRollTrig  = now;
    }
  }

  // === パターン進行 ===
  if (patternStep > 0 && millis() >= patternNextAt) {
    unsigned long now = millis();

    if (patternStep == 1) {
      // 1回目：1発目「か」
      Serial1.write(0x99); Serial1.write(38); Serial1.write(HIT_VELOCITY);
      Serial1.write(0x89); Serial1.write(38); Serial1.write(0);

      // 次は休符
      patternStep   = 2;
      patternNextAt = now + KAKA_REST_MS;

    } else if (patternStep == 2) {
      // 休符明け → 2発目「か」
      Serial1.write(0x99); Serial1.write(38); Serial1.write(HIT_VELOCITY);
      Serial1.write(0x89); Serial1.write(38); Serial1.write(0);

      // 次は休符
      patternStep   = 3;
      patternNextAt = now + KAKA_REST_MS;

    } else if (patternStep == 3) {
      // 休符明け → ロール開始
      startRoll(now);
      patternStep = 4;

    } else if (patternStep == 4) {
      // 1回目ロール終了待ち
      if (!rollActive) {
        patternStep   = 5;
        patternNextAt = now + GAP_AFTER_ROLL; // セット間休み
      }

    } else if (patternStep == 5) {
      // 2回目：1発目「か」
      Serial1.write(0x99); Serial1.write(38); Serial1.write(HIT_VELOCITY);
      Serial1.write(0x89); Serial1.write(38); Serial1.write(0);

      patternStep   = 6;
      patternNextAt = now + KAKA_REST_MS;

    } else if (patternStep == 6) {
      // 休符明け → 2発目「か」
      Serial1.write(0x99); Serial1.write(38); Serial1.write(HIT_VELOCITY);
      Serial1.write(0x89); Serial1.write(38); Serial1.write(0);

      patternStep   = 7;
      patternNextAt = now + KAKA_REST_MS;

    } else if (patternStep == 7) {
      // 休符明け → 2回目ロール開始
      startRoll(now);
      patternStep = 8;

    } else if (patternStep == 8) {
      // 2回目ロール終了待ち
      if (!rollActive) {
        patternStep = 0; // 完了
      }
    }
  }

  // --- ロール実行（非ブロッキング） ---
  if (rollActive) {
    unsigned long now = millis();

    // 前回のNote OFF
    if (noteOffAt && now >= noteOffAt) {
      Serial1.write(0x89); Serial1.write(38); Serial1.write(0);
      noteOffAt = 0;
    }

    // 次のNote ON
    if (now >= nextTickAt) {
      Serial1.write(0x99); Serial1.write(38); Serial1.write(100);
      noteOffAt  = now + NOTE_LEN_MS;
      nextTickAt = now + ROLL_INTERVAL_MS;
    }

    // 終了判定
    if (now >= rollEndAt) {
      rollActive = false;
      if (noteOffAt) {
        Serial1.write(0x89); Serial1.write(38); Serial1.write(0);
        noteOffAt = 0;
      }
    }
  }

  // --- ウォッチドッグ（万一の詰み防止） ---
  static unsigned long rollWatch = 0;
  if (rollActive) {
    if (!rollWatch) rollWatch = millis();
    if (millis() - rollWatch > 1000) {
      rollActive = false; noteOffAt = 0;
      Serial1.write(0x89); Serial1.write(38); Serial1.write(0);
      rollWatch = 0;
    }
  } else {
    rollWatch = 0;
  }
}
