Digital Taxi Fare Meter using Arduino

Tired of your friends always asking for rides and not giving you gas money? Problem solved!

IntermediateFull instructions provided3 hours26
Digital Taxi Fare Meter using Arduino

Things used in this project

Hardware components

Andium Uno R3
×1

Software apps and online services

Arduino IDE
Arduino IDE

Story

Read more

Schematics

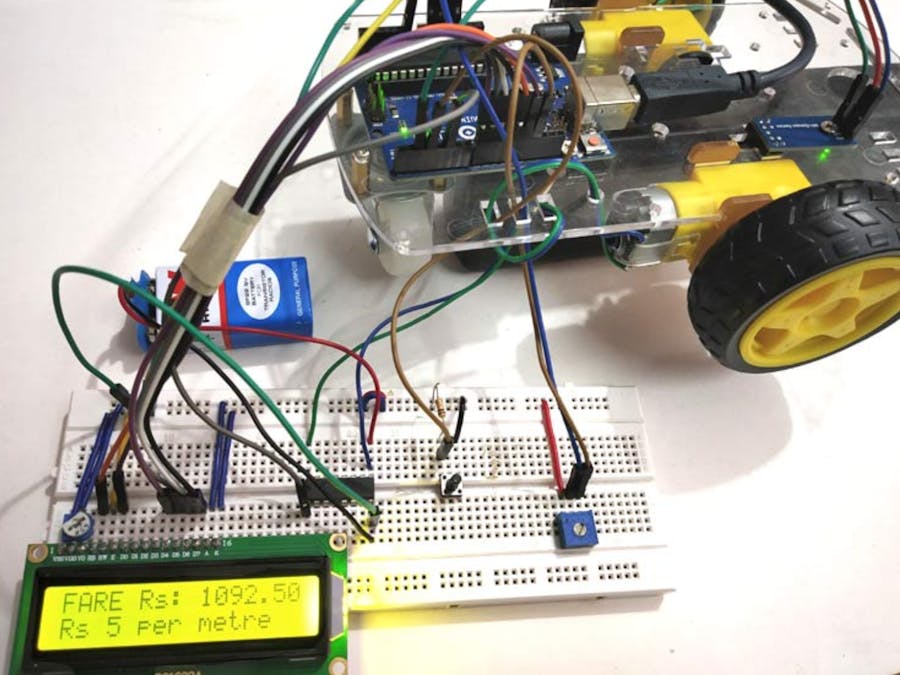

Project Photos

Code

Taxi Full Code

Arduino
#include "TimerOne.h"                      //Include Timer1 library for using Timer1 functions
#include <LiquidCrystal.h>                 //Include LCD library for using LCD display functions

const int rs = 12, en = 13, d4 = 8, d5 = 9, d6 = 10, d7 = 11;   //Define the LCD pins
LiquidCrystal lcd(rs, en, d4, d5, d6, d7);

volatile unsigned int counter=0;
volatile unsigned int rotation=0;
float rotationinm=0;
unsigned int speed=0;

void count()  // ISR for counts from the speed sensor
{
  counter++;  //increase the counter value by one
  rotation++; //Increase the rotation value by one
  delay(10);
}

void timerIsr()
{
 detachInterrupt(digitalPinToInterrupt(2));          //Stops the interrupt pin 2
 Timer1.detachInterrupt();                           //Stops the timer1 interrupt

 lcd.clear();

 float speed = (counter / 20.0)* 60.0;              //Calcukate speed in minute (20-No of slots in Encoder Wheel)
 float rotations = 230*( rotation / 20);            //Calculate distance in cm (230-Circumference of the wheel assumed 20- No of slots)
 rotationinm = rotations/100;

 lcd.setCursor(0,0);
 lcd.print("Dist(m):");
 lcd.print(rotationinm);                            //Display rotationinm at LCD
 lcd.setCursor(0,1);
 lcd.print("Speed(RPM):");
 lcd.print(speed);                                  //Dsiplay speed in RPM

  counter=0;                                        //Reset counter to 0

  int analogip = analogRead(A0);                   // Analog read from pin A0
  int motorspeed = map(analogip,0,1023,0,255);     //convert digital vales 0-1023 to 0-255
  analogWrite(5,motorspeed);                      //Sets PWM value at pin 5

 Timer1.attachInterrupt( timerIsr );                        //Starts timer1 again
 attachInterrupt(digitalPinToInterrupt(2), count, RISING);  //Attaches interrupt at pin2 again
}

void generatefare()                           //ISR to generate the fareamount
{
   detachInterrupt(digitalPinToInterrupt(2)); //Disables the Interrupt pin at 2
   Timer1.detachInterrupt();                  //Disables the Timer1 interrupt
   float rupees = rotationinm*5;              //Muliply 5 with distance travelled (Rs 5 per meter )
   lcd.clear();                               //Clears LCD
   lcd.setCursor(0,0);
   lcd.print("FARE Rs: ");
   lcd.print(rupees);                        //Display fare amount
   lcd.setCursor(0,1);
   lcd.print("Rs 5 per metre");
}

void setup()
{
  pinMode(A0,INPUT);                 //Sets pin A0 as INPUT
  pinMode(5,OUTPUT);                 //Sets pin 5 as OUTPUT

  lcd.begin(16,2);                   //Sets LCD as 16x2 type
  lcd.setCursor(0,0);                //The following code displays welcome messages
  lcd.print("CIRCUIT DIGEST");
  lcd.setCursor(0,1);
  lcd.print("WELCOME TO TAXI");
  delay(3000);
  lcd.clear();
  lcd.print("LETS START :)");
  delay(1000);
  lcd.clear();

  Timer1.initialize(1000000);          //Initilize timer1 for 1 second
  Timer1.attachInterrupt( timerIsr );  //ISR routine to be called for every one second

  attachInterrupt(digitalPinToInterrupt(2), count, RISING);     // Pin 2 as Interrupt pin with count ISR is called when LOW to RIGH happens.
  attachInterrupt(digitalPinToInterrupt(3), generatefare, HIGH); //Pin 3 as Interrupt pin with generatefare ISR is called when HIGH is detected.
