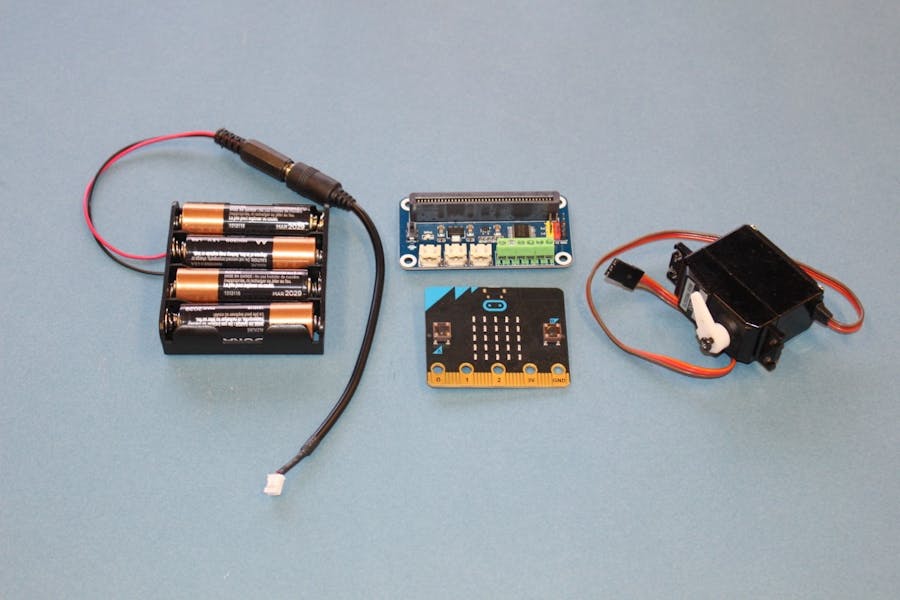

Motor/Servo Driver With BBC micro:bit

This tutorial will show you how to use a Servo motor/servo board with a micro:bit to power multiple servo motors. This board will make it possible to run more powerful servo motors than the micro servo motor that you can run directly from the micro:bit.

Technical information for the Servo Driver board is here: https://github.com/sbcshop/pxt-servo-microbit

Step 1: Insert the Micro:bit

Insert the BBC micro:bit board into the long slot on the Servo Driver board. The LEDs should be facing the outer edge of the board as shown above.

Step 2: Connect a Power Supply

Connect a power supply. This can be a battery pack or an A/C adapter. The power supply needs to have a JST connector. The first photo shows some options for power supplies.

Many power supplies have a barrel jack. You will need an adapter like the one shown above. It is called a Barrel Jack to 2-pin JST connector.

Your power supply should provide sufficient voltage to power your motor. The Servo Motor Driver board can take voltages up to 12V.

Look for the brown 2-pin jack labelled GND/VCC and plug the power supply in there.

Step 3: Attach a Servo Motor

Look for the pins on the left side of the board in the area with black, red, and yellow pins. The pins are labelled "GND", "5V", and "S" at the top, and P0, P1, and P2 on the side.

Here, we'll plug a motor into pin 0 (P0). Match the wires on the servo to the colors on the board. These colors may vary, but ground is usually black or brown, power is usually red, and signal can be white or yellow.

Step 4: Use MakeCode to Program Your Servo

Now we need some code to have the micro:bit run the motor we have connected to the Servo Motor Diver board.

Open MakeCode and start a new project. (We are assuming that you have worked through the first few MakeCode tutorials). We are going to tell our servo motor to move back and forth 4 times when we press button A on the micro:bit. Drag the block "On Button A pressed" from the "Input menu".

Next, add a loop. Drag a green "repeat" block from the "Loops" menu and snap it into the purple "on button A pressed" block. So when we press button A, we're going to do something 4 times …

Step 5: Send Instructions to the Servo Motor

We need to add some blocks to run our motor.

• Clicked on the "Advanced" option at the bottom of the menu items.
• Select the item that says "Pins".
• Drag the red block that says "servo write pin... to..." and snap it into the repeat block. Our servo is plugged into Pin 0 (P0), so select P0, and change the degree setting to 0.
• Add a light blue "pause" block (found in the Basic menu) and change it to 500 ms (milliseconds).
• Then add another red servo block to move the servo to position 180 degrees,
• Add another pause block.

Looking at the complete code, it reads, "when I press button A, do this 4 times: move the servo to position 0 degrees, wait 500 milliseconds, move the servo to position 180, wait 500 milliseconds."

Click on Button A on the simulated micro:bit to see the servo move.

Step 6: Download the Code to Your Micro:bit

Plug the micro:bit into your computer using a USB cable. Click the download button, and drag the.hex file to the micro:bit.

[If you don't know how to do this, see the MakeCode quick guide.]

When you press button A on the micro:bit, your servo should run! Experiment by changing your code to use different settings for the servo positions, different numbers in the repeat loop, and different pause times.

Step 7: Run Something Cool With Your Servos!

We use our motors to run paper machines from our Paper Mechatronics projects. Check out the website to build your own machines and then hook them up to your servo motors. Have fun!
