Building Off-Grid Meshtastic Networks with Elecrow's ThinkNode M1, M2, and CrowPanel Advance

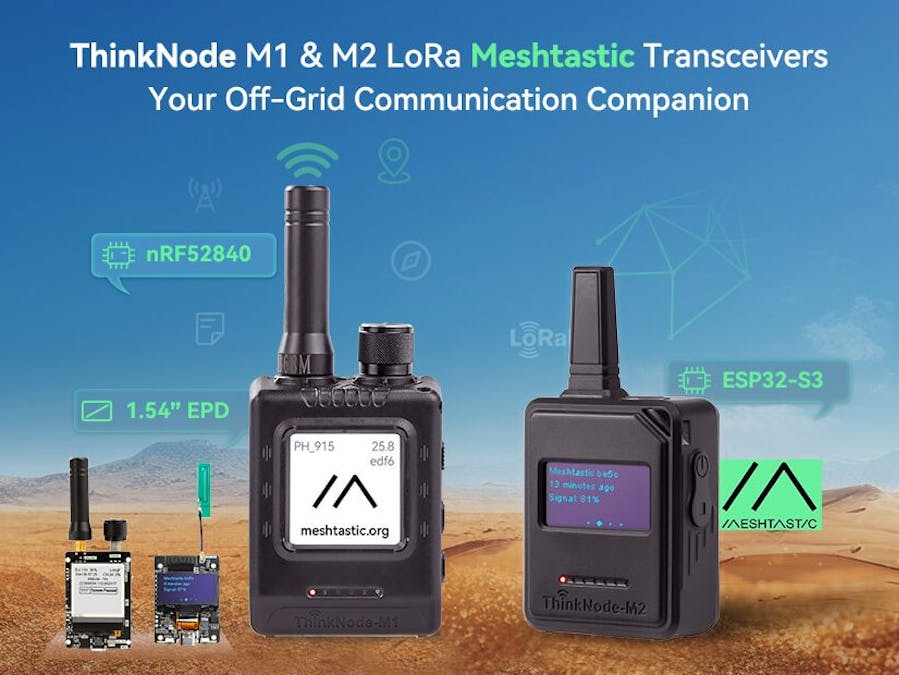

Off-grid communication systems are increasingly important for outdoor activities, emergency response, and areas without reliable cellular coverage. Meshtastic provides a practical solution using LoRa radio technology to create mesh networks that don't depend on traditional infrastructure. Elecrow offers three devices designed specifically for Meshtastic applications: the ThinkNode M1, ThinkNode M2, and CrowPanel Advance 3.5-inch display.

What is Meshtastic?

Meshtastic is an open-source project that creates mesh networks using LoRa (Long Range) radio technology. Unlike traditional communication systems that rely on centralized infrastructure, Meshtastic devices automatically relay messages through other nodes in the network, extending range and providing redundancy.

Messages can hop from device to device, covering distances without cellular towers or internet connections. This makes it useful for search and rescue operations, hiking groups, disaster response, and neighborhood emergency communication networks.

ThinkNode M1: Extended Battery Life Focus

The ThinkNode M1 uses a Nordic nRF52840 processor and SX1262 LoRa chip. It's designed for longer operation times with a focus on power efficiency.

Battery Life Performance

The ThinkNode M1's power management is based on its 1200mAh rechargeable battery combined with the power-efficient nRF52840 processor and low-power EPD display. Real-world testing shows:

Battery Life:

• GPS disabled: 96-120 hours (4-5 days)
• GPS enabled: ~24 hours

The 1.54-inch EPD display contributes significantly to these numbers. Unlike LCD or OLED screens that consume power continuously, the EPD only draws current when updating. Once information is displayed, it remains visible without power consumption - ideal for showing your last message, coordinates, or network status.

The GPS module is the largest power consumer. When enabled for position tracking, it reduces battery life to approximately 24 hours. With GPS disabled, the device can run for 4-5 days on typical Meshtastic usage patterns (periodic beacons, occasional messages).

Additional Features

The M1 includes a built-in GPS module for positioning, useful for outdoor activities and emergency response. It comes with a protective case and external LoRa antenna. The device operates on the 868 MHz frequency band.

ThinkNode M2: Introduction to Meshtastic

If you're new to Meshtastic or looking for a development-friendly platform, the ThinkNode M2 is a practical starting point. Powered by the ESP32-S3 processor, the M2 provides good capability while being approachable for developers.

Battery Performance Analysis

The M2 includes a 1000mAh battery and does NOT include GPS, which affects power consumption differently than the M1:

Battery Life:

• Typical usage: 12/24 hours
• Low power mode: Multiple days with minimal activity.

The ESP32-S3 typically consumes more power than the nRF52840 in active mode, but the absence of GPS significantly reduces overall power draw. The 1.3-inch OLED display consumes more power than EPD during updates but allows faster screen refreshes and better visibility in varying light conditions.

Development-Friendly Design

The M2's ESP32-S3 processor makes it familiar to developers already using Arduino IDE, PlatformIO, or ESP-IDF. This makes it practical for makers who want to experiment with Meshtastic while building custom applications on top of the mesh network.

The 1.3-inch OLED display provides clear information display suitable for real-time monitoring of network activity, message status, and device diagnostics. Unlike the M1's EPD, the OLED offers faster updates and better visibility in various lighting conditions.

Flexibility by Design

The M2 ships with a case and is ready to use out of the box. Its ESP32-S3 platform makes it suitable for developers who want to experiment with Meshtastic or build custom applications on top of the mesh network.

The familiar development environment and standard form factor make it practical for integration into various projects. Note that the M2 does NOT have GPS, so positioning data must come from other sources if needed.

CrowPanel Advance 3.5": Versatile Display Option

The CrowPanel Advance 3.5-inch display provides a larger interface for Meshtastic networks. It's an HMI (Human-Machine Interface) solution that expands interaction possibilities for mesh network applications.

Touch Interface Features

The 3.5-inch IPS capacitive touchscreen with 480×320 resolution provides more display area compared to smaller OLED displays. This allows for graphical maps showing network nodes, touch-based message composition, and network configuration interfaces.

The ESP32-S3-WROOM-1-N16R8 module includes dual-core 32-bit processors running at up to 240MHz, with 8MB PSRAM and 16MB Flash. This processing power supports more complex user interfaces and applications than smaller devices.

Voice Features

The CrowPanel includes voice capabilities through its built-in microphone and speaker. The device supports voice command interaction, voice recognition, and speech synthesis. Users can speak Meshtastic messages instead of typing them, or have the device announce incoming messages audibly for hands-free operation.

The voice capabilities provide accessibility options for users with visual impairments or situations where looking at a screen isn't practical.

Development Support

The CrowPanel supports multiple development environments: Arduino IDE, ESP-IDF, MicroPython, and the LVGL graphics library. This compatibility allows development using different tools and frameworks. LVGL support enables creation of graphical user interfaces.

The device also supports various communication protocols beyond Meshtastic, including Zigbee, additional LoRa configurations, NF2401, Matter, Thread, and Wi-Fi 6. This makes it suitable for IoT projects that need to work with different communication technologies.

Using These Devices Together

These three devices can be combined to create a Meshtastic communication system:

Base Station Setup

Use the CrowPanel as a base station, providing a graphical interface to monitor network health, compose messages, and manage your mesh network. The larger display suits permanent installations.

Mobile Communication

ThinkNode M1 devices work for mobile users who need longer battery life. The extended operation time suits hikers, emergency responders, or users who need communication away from power sources.

Development and Integration

ThinkNode M2 devices work for custom applications, sensor integration, or deployments where the standard case doesn't fit. The ESP32-S3 and familiar development environment support prototyping and deployment.

Practical Project Ideas

Emergency Communication Network

Set up a neighborhood emergency communication system with CrowPanel displays at key locations (fire stations, community centers) and distribute ThinkNode devices to residents. The long battery life of the M1 ensures communication remains available during power outages.

Hiking Group Coordination

Equip hiking groups with M1 devices for their extended range and battery life, while using M2 devices integrated into vehicles for base camp communication. The GPS capabilities of the M1 ensure location tracking where needed.

Farm or Ranch Management

Deploy M2 devices with custom sensors throughout a large property, with CrowPanel displays in the main buildings providing graphical monitoring of conditions, livestock, and equipment status across the entire operation.

Event Coordination

Use the voice features of the CrowPanel for hands-free communication during events, while M1 devices provide reliable communication for staff spread across large venues.

Getting Started

All three devices come with Meshtastic firmware pre-installed, so you can start building your network immediately. The Meshtastic mobile app (available for both iOS and Android) connects via Bluetooth to configure devices, send messages, and monitor network status.

For developers, the combination of familiar ESP32 development environments and comprehensive documentation makes it easy to extend functionality or integrate custom sensors and applications.

Summary

Elecrow's ThinkNode M1, M2, and CrowPanel Advance provide different options for Meshtastic networks. The M1 offers extended battery life for longer operations, the M2 provides a development-friendly platform for custom applications, and the CrowPanel offers a larger interface for user interaction.

These devices support building off-grid communication networks that don't depend on traditional infrastructure. All three come with pre-installed Meshtastic firmware and can be configured using the standard Meshtastic mobile app.https://www.elecrow.com/
