DC Power Unit for Breadboard

The Challenge

When experimenting with electronics, how do you power your breadboard? Most people use batteries, power adapters, or regulated power supplies, but each comes with significant drawbacks. Batteries are disposable and costly over time. Power adapters provide fixed voltages without adjustment capability. Regulated power supplies are bulky and impractical for portable work.

I wanted to create a more convenient breadboard power solution that could be easily used anywhere. Today, USB has evolved to support USB Power Delivery (PD) specification, enabling power delivery of up to 100W. Furthermore, USB-PD chargers supporting Extended Power Range (EPR) can provide voltages up to 48V/240W. USB-PD chargers are extremely compact, affordable, and widely available. I thought it would be simple and convenient to create a breadboard power supply using these USB-PD chargers.

The Vision

The DC Power Unit for Breadboard was conceived from a vision to create a compact, intelligent power distribution system that could:

• Bridge the gap between USB-PD sources and breadboard development needs
• Provide precise voltage control from 0V to 30V*1 with 10mV resolution
• Deliver high current capabilities up to 5A when supported by the source
• Offer real-time monitoring and data logging capabilities
• Maintain safety through comprehensive protection systems
• Enable remote monitoring and control through modern IoT connectivity

*1 Requires a 30V EPR-compatible USB-PD charger.

How It Works

Hardware Foundation

ESP32-S3-WROOM-1-N16R8: The intelligent heart of the system, providing:

• WiFi connectivity for remote monitoring and control
• Powerful processing capabilities for real-time PID control
• Rich peripheral support for sensors and displays
• Low power consumption for efficient operation

AP33772S USB-PD Controller: The power negotiation specialist that:

• Communicates with USB-PD sources using the PD protocol
• Supports both Standard Power Range (SPR) and Extended Power Range (EPR)
• Enumerates available Power Data Objects (PDOs) from connected sources
• Provides comprehensive protection features (UVP, OVP, OCP)
• Enables precise voltage and current requests

INA228 Current Sensor: The precision measurement engine offering:

• High-resolution current and voltage monitoring with 195µV resolution
• Shunt-based current measurement for accuracy
• Temperature compensation for drift correction
• Real-time power calculation capabilities

SSD1331 Color OLED: The user interface providing:

• Real-time display of voltage, current, power, and temperature
• WiFi connection status and battery level indicators
• Error messages and system status
• Intuitive visual feedback for user interactions

MOSFET Power Control: Efficiently manages power delivery:

Touch Interface Innovation

The capacitive touch interface provides intuitive control:

• Up/Down Touch: Voltage adjustment in 100mV steps (1V steps on long press)
• Left/Right Touch: Fine voltage adjustment in 10mV steps
• Center Touch: Output enable/disable (long press) and error message clearing (short press)
• Calibration: Up+Down combination for automatic offset calibration

Dual Output Flexibility

The system supports two output configurations:

• Single Positive Output: Standard positive voltage output with ground reference
• Dual Positive/Negative Output: Split voltage configuration providing ±V/2 from a single setting

**Note: If you use 21V or higher voltage, input voltage is 28v or higher, and differential voltage is over 3V and output current is over 3A, the MOSFET device is in the high consumption state and the unit temperature may rise over 80 degrees Celsius. Please be careful about the temperature. You can set the maximum temperature in the configuration file. The default value is 80 degrees Celsius. If the temperature exceeds the limit, the output will be disabled automatically. I recommend using less than 0.7A current at 21V or higher voltage. Otherwise, if you set the output voltage to 27V or higher, the temperature rise is not a problem.**

**Note: This unit uses a micro controller and a USB PD controller. These controllers need the power to operate. Therefore, if you use a over current, the power source may be shut down by the over current protection of the PD charger. In this case, This unit cannot operate and will be turned off. Please use the current within the specification of your PD charger.**

The Software Architecture

The software components is developed in Rust using the ESP-IDF framework, leveraging its strengths for embedded systems:

main.rs         - Core system orchestration and sensor interfacing
usbpd.rs        - AP33772S driver wrapper with ESP32 integration
displayctl.rs   - OLED display management and user interface
currentlogs.rs  - Data logging with intelligent buffer management
touchpad.rs     - Capacitive touch sensor interface
pidcont.rs      - PID controller for voltage regulation
wifi.rs         - WiFi connectivity and network management
transfer.rs     - InfluxDB data transmission with retry logic
syslogger.rs    - System logging and diagnostics

Advanced Control Systems

PID Controller: Maintains precise output voltage through:

• Proportional control for immediate response
• Integral control for steady-state accuracy
• Derivative control for stability and overshoot prevention
• Automatic reset on voltage overshoot detection (>110% of setpoint)

PDO-Aware Limiting: The system intelligently:

• Enumerates available PDOs from connected sources
• Applies the most restrictive limits between configuration and PDO capabilities
• Prevents exceeding source capabilities while maximizing available power

NVS Memory Management: Persistent storage capabilities:

• Saves last used voltage setting for convenience
• Stores calibration data for accuracy across power cycles
• Maintains configuration parameters in non-volatile storage

The Data Pipeline

Local Intelligence

The system continuously:

• Samples voltage and current at 10ms intervals for responsive control
• Calculates power consumption in real-time
• Monitors temperature for thermal protection
• Manages buffer storage during network outages

Network Connectivity

When WiFi is available:

• Transmits measurement data to InfluxDB time-series database
• Provides remote monitoring capabilities through web dashboards
• Enables historical analysis and trend monitoring
• Supports multiple device monitoring for larger installations

Intelligent Buffer Management

During network outages:

• Automatically stores measurements in local memory
• Provides visual feedback of buffer utilization
• Resumes logging automatically when connectivity returns
• Prevents data loss during intermittent connectivity

Safety and Protection Systems

Multi-Layer Protection

• Hardware Protection: AP33772S built-in UVP, OVP, and OCP
• Software Monitoring: Continuous temperature and current monitoring
• User-Configurable Limits: Maximum current, power, and temperature settings
• PDO Compliance**: Automatic limiting to source capabilities
• Emergency Shutdown: Immediate output disable on fault conditions

Temperature Management

• Real-Time Monitoring: Continuous temperature sensing with 0.05°C resolution
• Configurable Limits: User-settable maximum temperature threshold (default 80°C)
• Automatic Protection: Output disable when temperature limits are exceeded
• Visual Feedback: Temperature display and warning messages

Schematic Diagram

Schematic diagrams are created using Kicad. "Sheet1" to "Sheet5" are the schematic diagrams of the main board and the adaptor boards.

Sheet1: USB PD Controller and Power Regulator Circuit

AP33772S USB-PD Controller is used for the USB PD communication and power negotiation. This controller is connected to the ESP32 microcontroller via I2C interface with Voltage level shifter.

Sheet2: ESP32 Microcontroller and SSD1331 OLED Display Circuit

SSD1331 Color OLED display is connected to the ESP32 microcontroller via SPI interface. GPIO(IO1, IO2, IO3, IO4, IO5) are used for the touch interface. Just connect the IO1 to IO5 to the touch pads.

Sheet3: Power Path Management, Current Sensor and Temperature Sensor Circuit

INA228 current sensor is used for the current and voltage measurement. The shunt resistor (5mΩ) is connected to the INA228. ESP32 Controller has the PWM output for the MOSFET gate driver. The PWM signal is connected to the LPF(Low Pass Filter) and OPAmp(Operational Amplifier) circuit for the voltage control. The OpAmp is used for the voltage follower to drive the MOSFET gate. The first OpAmp is gain =11 and the second OpAmp is gain =1.1. The output voltage is controlled by the PWM duty cycle. The temperature sensor (LM35) is used for the temperature measurement. The output of the temperature sensor is connected to the OpAmp (gain=2) and then connected to the ADC of the ESP32. The output voltage is feedback to the OpAmp and INA228 for the voltage and current measurement.

Sheet4: Adaptor Circuit for Single Voltage Output Configuration

Sheet5: Adaptor Circuit for Dual Voltage (Positive and Negative) Output Configuration

The output voltage is divided into two by the voltage divider circuit. The output voltage is ±V/2.

PCBs Design

I designed a custom PCBs by Kicad.

The Main PCB has the ESP32-S3-WROOM-1-N16R8 module, AP33772S USB-PD controller, INA228 current sensor, SSD1331 color OLED display, MOSFET power control circuit, and other components. The main PCB has one connector for the adaptor board and the USB-C connector for the USB-PD input.

The Adaptor PCB has the output connector and the power path management circuit. There are two types of adaptor boards. One is for the single voltage output configuration, and the other is for the dual voltage (positive and negative) output configuration. You can choose the adaptor board according to your application. The main PCB and the adaptor PCB are connected by a 12-pin connector.

Adaptor PCB for Single Voltage Output Configuration

Adaptor PCB for Dual Voltage (Positive and Negative) Output Configuration

How to order the PCB

After it is designed, I ordered PCBWay (https://www.pcbway.com/) to manufacture my board. It is pretty easy to order the board. Click the "Add Gerber File" button, and you can upload the Gerber file. Then, you can choose solder mask color. I chose the Matte Black color I like this one. The board is manufactured in only few days. I am very satisfied with the board. I think the PCBWay's board price is very reasonable to with the service.

After assembly, the board looks like this. Heat sink is attached to the back of the MOSFETs using thermal adhesive tape.

How to build from code and Install to the unit.

Using Ubuntu 22.04.3 LTS and ESP-IDF V5.4.2

Prerequisites

Ensure that your system meets the following requirements before proceeding with the installation:

• Operating System: Linux-based distribution
• Required Packages: git, python3, python3-pip, gcc, build-essential, curl, pkg-config, libudev-dev, libtinfo5, clang, libclang-dev, llvm-dev, udev, libssl-dev, python3.10-venv

Installation Steps

1. System Update and Package Installation

Update your system and install the necessary packages using:

sudo apt update && sudo apt -y install git python3 python3-pip gcc build-essential curl pkg-config libudev-dev libtinfo5 clang libclang-dev llvm-dev udev libssl-dev python3.10-venv

2. Rust Installation

Install Rust programming language and Cargo package manager:

curl --proto '=https' --tlsv1.2 -sSf https://sh.rustup.rs | sh

After installation, activate Rust by sourcing the environment:

. "$HOME/.cargo/env"

3. Additional Tools Installation

Install the following Rust tools:

• ldproxy
• espup
• cargo-espflash

Use the following commands:

cargo install ldproxy
cargo install espup
cargo install cargo-espflash

At this time (2025-07-25), espup cannot be compiled. If you get an error, please use the following command to install the toolchain.

cargo install cargo-binstall
cargo binstall espup

4. ESP Environment Setup

Run the following command to install and update the Espressif Rust ecosystem:

espup install
espup update

Set up environment variables:

. ./export-esp.sh

5. Udev Rules Configuration

Configure udev rules for device permissions:

sudo sh -c 'echo "SUBSYSTEMS==\"usb\", ATTRS{idVendor}==\"303a\", ATTRS{idProduct}==\"1001\", MODE=\"0666\"" > /etc/udev/rules.d/99-esp32.rules'
sudo udevadm control --reload-rules
sudo udevadm trigger

6. Clone Repository

Clone the DC Power Unit repository:

git clone https://github.com/hnz1102/dcpower.git
cd dcpower/code

7. Setting WiFi SSID, Password, etc.

Change the following configuration file: `cfg.toml`

You have to set the following parameters: WiFi SSID, Password, InfluxDB Server IP Address, InfluxDB API Key, and InfluxDB API with your ORG.

You can get the API Key from the InfluxDB Web Console. Please see the 'How to Install the InfluxDB and Configure the Dashboard' section No.3.

[dcpowerunit]
wifi_ssid = "<Your AP SSID>"  # Set your AP SSID
wifi_psk = "<Your AP Password>" # Set your AP Password
influxdb_server = "<InfluxDB Server IP Address:Port>" # Set your InfluxDB Server IP Address and Port ex. 192.168.1.100:8086
pid_kp = "0.0000005"
pid_ki = "0.00002"
pid_kd = "0.1"
pwm_offset = "0"
pd_config_offset = "1.5"
shunt_resistance = "0.005"
shunt_temp_coefficient = "50"
max_current_limit = "5.2"
max_power_limit = "100.0"
max_temperature_limit = "75" # Set the maximum temperature limit in degrees Celsius. Default is 75 degrees.
influxdb_api_key = "<InfluxDB API KEY>" # Set your InfluxDB API Key
influxdb_api = "/api/v2/write?org=<ORG>&bucket=LOGGER&precision=ns" # Set your InfluxDB API with your ORG and BUCKET
influxdb_tag = "dcpowerunit"  # Tag for InfluxDB measurements
influxdb_measurement = "dcpowerunit" # Measurement name for InfluxDB
syslog_server = "<Syslog Server IP Address:Port>" # Set your Syslog Server IP Address and Port ex. 192.168.2.140:514
syslog_enable = "false" # Set to "true" to enable syslog

8. Build and Flash

Build the project:

cargo build --release

9. Flash the Firmware

Connect the DC Power Unit to your PC using a USB cable. Then, flash the firmware:

cargo espflash flash --release --monitor

If your device is not detected, power on the device and during the boot, press the `BOOT` button.

Then, run the flash command again.

10. Monitor the Output

After flashing the firmware, the console shows the booting messages and system initialization including:

• WiFi connection status
• AP33772S USB-PD controller initialization
• Available PDO (Power Data Object) detection
• Touch interface activation
• OLED display initialization

Chip type: esp32s3 (revision v0.2)
Crystal frequency: 40 MHz
Flash size: 16MB
Features: WiFi, BLE, Embedded Flash
MAC address: 80:65:99:b8:8e:90
App/part. size: 1,383,760/1,536,000 bytes, 90.09%
[00:00:00] [========================================]      14/14      0x0      Verifying... OK!
[00:00:00] [========================================]       1/1       0x8000   Skipped! (checksum matches)
[00:00:15] [========================================]     864/864     0x10000  Verifying... OK!
[2025-09-15T07:23:38Z INFO ] Flashing has completed!
Commands:
CTRL+R Reset chip
CTRL+C Exit
ESP-ROM:esp32s3-20210327
Build:Mar 27 2021
rst:0x15 (USB_UART_CHIP_RESET),boot:0x8 (SPI_FAST_FLASH_BOOT)
Saved PC:0x40378d03
0x40378d03 - setup_priv_desc$isra$0
at ??:??
SPIWP:0xee
mode:DIO, clock div:2
load:0x3fce2810,len:0x1564
load:0x403c8700,len:0x4
load:0x403c8704,len:0xd24
load:0x403cb700,len:0x2ed4
entry 0x403c8928
I (27) boot: ESP-IDF v5.4.2 2nd stage bootloader
I (27) boot: compile time Sep 15 2025 07:22:33
I (27) boot: Multicore bootloader
I (28) boot: chip revision: v0.2
I (30) boot: efuse block revision: v1.3
I (34) boot.esp32s3: Boot SPI Speed : 40MHz
I (38) boot.esp32s3: SPI Mode       : DIO
I (41) boot.esp32s3: SPI Flash Size : 16MB
I (45) boot: Enabling RNG early entropy source...
I (50) boot: Partition Table:
I (52) boot: ## Label            Usage          Type ST Offset   Length
I (59) boot:  0 nvs              WiFi data        01 02 00009000 00006000
I (65) boot:  1 phy_init         RF data          01 01 0000f000 00001000
I (72) boot:  2 factory          factory app      00 00 00010000 00177000
I (78) boot: End of partition table
I (81) esp_image: segment 0: paddr=00010020 vaddr=3c0f0020 size=4b244h (307780) map
I (164) esp_image: segment 1: paddr=0005b26c vaddr=3fc9c700 size=04dach ( 19884) load
I (170) esp_image: segment 2: paddr=00060020 vaddr=42000020 size=e89e8h (952808) map
I (404) esp_image: segment 3: paddr=00148a10 vaddr=3fca14ac size=00bfch ( 3068) load
I (406) esp_image: segment 4: paddr=00149614 vaddr=40374000 size=186f0h (100080) load
I (437) esp_image: segment 5: paddr=00161d0c vaddr=600fe000 size=0001ch ( 28) load
I (447) boot: Loaded app from partition at offset 0x10000
I (447) boot: Disabling RNG early entropy source...
I (457) octal_psram: vendor id    : 0x0d (AP)
I (457) octal_psram: dev id       : 0x02 (generation 3)
I (458) octal_psram: density      : 0x03 (64 Mbit)
I (460) octal_psram: good-die     : 0x01 (Pass)
I (464) octal_psram: Latency      : 0x01 (Fixed)
I (468) octal_psram: VCC          : 0x01 (3V)
I (472) octal_psram: SRF          : 0x01 (Fast Refresh)
I (477) octal_psram: BurstType    : 0x01 (Hybrid Wrap)
I (482) octal_psram: BurstLen     : 0x01 (32 Byte)
I (487) octal_psram: Readlatency  : 0x02 (10 cycles@Fixed)
I (492) octal_psram: DriveStrength: 0x00 (1/1)
I (497) MSPI Timing: PSRAM timing tuning index: 5
I (500) esp_psram: Found 8MB PSRAM device
I (504) esp_psram: Speed: 80MHz
I (507) cpu_start: Multicore app
I (522) cpu_start: Pro cpu start user code
I (522) cpu_start: cpu freq: 160000000 Hz
I (522) app_init: Application information:
I (522) app_init: Project name:     libespidf
I (526) app_init: App version:      100adf2
I (530) app_init: Compile time:     Sep 15 2025 07:22:02
I (535) app_init: ELF file SHA256:  000000000...
I (539) app_init: ESP-IDF:          v5.4.2
I (543) efuse_init: Min chip rev:     v0.0
I (547) efuse_init: Max chip rev:     v0.99
I (551) efuse_init: Chip rev:         v0.2
I (555) heap_init: Initializing. RAM available for dynamic allocation:
I (561) heap_init: At 3FCA6A48 len 00042CC8 (267 KiB): RAM
I (566) heap_init: At 3FCE9710 len 00005724 (21 KiB): RAM
I (571) heap_init: At 3FCF0000 len 00008000 (32 KiB): DRAM
I (576) heap_init: At 600FE01C len 00001FCC (7 KiB): RTCRAM
I (582) esp_psram: Adding pool of 8192K of PSRAM memory to heap allocator
I (589) spi_flash: detected chip: gd
I (592) spi_flash: flash io: dio
W (595) pcnt(legacy): legacy driver is deprecated, please migrate to `driver/pulse_cnt.h`
W (602) i2c: This driver is an old driver, please migrate your application code to adapt `driver/i2c_master.h`
W (612) timer_group: legacy driver is deprecated, please migrate to `driver/gptimer.h`
I (620) sleep_gpio: Configure to isolate all GPIO pins in sleep state
I (626) sleep_gpio: Enable automatic switching of GPIO sleep configuration
I (633) main_task: Started on CPU0
I (643) esp_psram: Reserving pool of 32K of internal memory for DMA/internal allocations
I (643) main_task: Calling app_main()
I (653) gpio: GPIO[15]| InputEn: 0| OutputEn: 0| OpenDrain: 0| Pullup: 0| Pulldown: 0| Intr:0
I (653) gpio: GPIO[16]| InputEn: 0| OutputEn: 0| OpenDrain: 0| Pullup: 0| Pulldown: 0| Intr:0
I (663) gpio: GPIO[46]| InputEn: 0| OutputEn: 0| OpenDrain: 0| Pullup: 0| Pulldown: 0| Intr:0
I (683) pp: pp rom version: e7ae62f
I (683) net80211: net80211 rom version: e7ae62f
I (693) wifi:wifi driver task: 3fcc44a0, prio:23, stack:6656, core=0
I (693) wifi:wifi firmware version: bea31f3
I (693) wifi:wifi certification version: v7.0
I (693) wifi:config NVS flash: disabled
I (693) wifi:config nano formatting: disabled
I (703) wifi:Init data frame dynamic rx buffer num: 32
I (703) wifi:Init static rx mgmt buffer num: 5
I (713) wifi:Init management short buffer num: 32
I (713) wifi:Init dynamic tx buffer num: 32
I (723) wifi:Init static tx FG buffer num: 2
I (723) wifi:Init static rx buffer size: 1600
I (723) wifi:Init static rx buffer num: 10
I (733) wifi:Init dynamic rx buffer num: 32
I (733) wifi_init: rx ba win: 6
I (733) wifi_init: accept mbox: 6
I (743) wifi_init: tcpip mbox: 32
I (743) wifi_init: udp mbox: 6
I (743) wifi_init: tcp mbox: 6
I (753) wifi_init: tcp tx win: 5760
I (753) wifi_init: tcp rx win: 5760
I (753) wifi_init: tcp mss: 1440
I (763) wifi_init: WiFi IRAM OP enabled
I (763) wifi_init: WiFi RX IRAM OP enabled
I (773) phy_init: phy_version 701,f4f1da3a,Mar  3 2025,15:50:10
I (803) wifi:mode : sta (80:65:99:b8:8e:90)
I (803) wifi:enable tsf
I (3313) wifi:new:<8,0>, old:<1,0>, ap:<255,255>, sta:<8,0>, prof:1, snd_ch_cfg:0x0
I (3313) wifi:state: init -> auth (0xb0)
I (3313) wifi:state: auth -> assoc (0x0)
I (3323) wifi:state: assoc -> run (0x10)
I (3333) wifi:connected with Buffalo-G-1AD0, aid = 4, channel 8, BW20, bssid = c4:3c:ea:df:1a:d0
I (3333) wifi:security: WPA2-PSK, phy: bgn, rssi: -51
I (3333) wifi:pm start, type: 1
I (3333) wifi:dp: 1, bi: 102400, li: 3, scale listen interval from 307200 us to 307200 us
I (3343) wifi:set rx beacon pti, rx_bcn_pti: 0, bcn_timeout: 25000, mt_pti: 0, mt_time: 10000
I (3423) wifi:AP's beacon interval = 102400 us, DTIM period = 1
I (5353) esp_netif_handlers: sta ip: 192.168.2.142, mask: 255.255.255.0, gw: 192.168.2.1
I (9063) wifi:<ba-add>idx:0 (ifx:0, c4:3c:ea:df:1a:d0), tid:0, ssn:3, winSize:64
I (13373) wifi:<ba-add>idx:1 (ifx:0, c4:3c:ea:df:1a:d0), tid:2, ssn:0, winSize:64
I (13383) gpio: GPIO[18]| InputEn: 0| OutputEn: 0| OpenDrain: 0| Pullup: 0| Pulldown: 0| Intr:0
I (13393) gpio: GPIO[9]| InputEn: 0| OutputEn: 0| OpenDrain: 0| Pullup: 0| Pulldown: 0| Intr:0

How to Install the influxDB and Configure the Dashboard

1. Download influxDB(https://docs.influxdata.com/influxdb/v2.7/install/?t=Linux) and Install.

$ wget https://dl.influxdata.com/influxdb/releases/influxdb2-2.7.0-amd64.deb
$ sudo dpkg -i influxdb2-2.7.0-amd64.deb
$ sudo service influxdb start

2. Configure the influxDB

Connect to the 'http://<influxDB installed PC Address>:8086'

Click `GET STARTED` and set `Username`, `Password`, `Initial Organization Name`, and `Initial Bucket Name`

After set them, click `CONTINUE`.

3. Copy the operator API token.

You can see the operator API token on the browser. YOU WON'T BE ABLE TO SEE IT AGAIN!

If you want to get new API token, click `API Tokens` menu form `Sources` Icon, then click `GENERATE API TOKEN` and select `All access token`, click `Save`.

You can see a new API token and get it.

After copy the token, click `CONFIGURE LATER`.

4. Import the Dashboard Template.

Click the `Dashboard` icon, and select `Import Dashboard` from the `CREATE DASHBOARD` menu.

Drop the `influxdb/dc_power_station.json` file to `Drop a file here`, then click `IMPORT JSON AS DASHBOARD`.

You can see the `DC POWER STATION` pannel on the Dashboards page.

Click this panel, and You can see the dashboard.

If you want to customize the dashboard design, click configure mark. You can change the graph design.

Conclusion

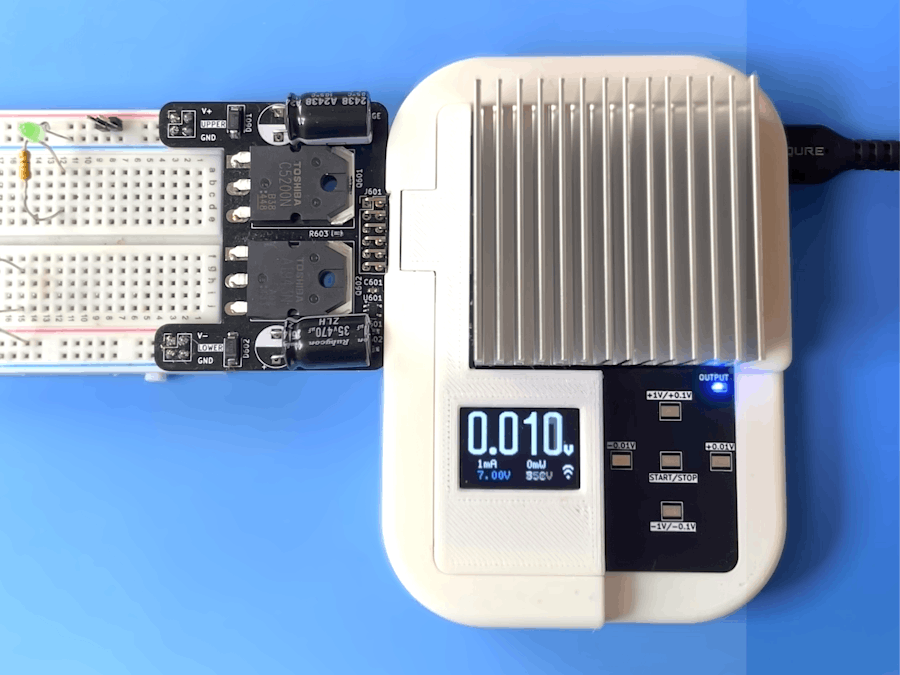

The DC Power Unit for Breadboard will give you a compact, intelligent, and flexible power solution for your electronics projects. USB-PD chargers are ubiquitous, affordable, and capable of delivering high power in a small form factor. This Unit can provide precise voltage control, real-time monitoring, and robust safety features, all accessible remotely via WiFi.

Finally, I would like to thank PCBWay for their support of the custom PCB board.

LICENSE

This source code is licensed under MIT. Other Hardware Schematic documents are licensed under CC-BY-SA V4.0.
