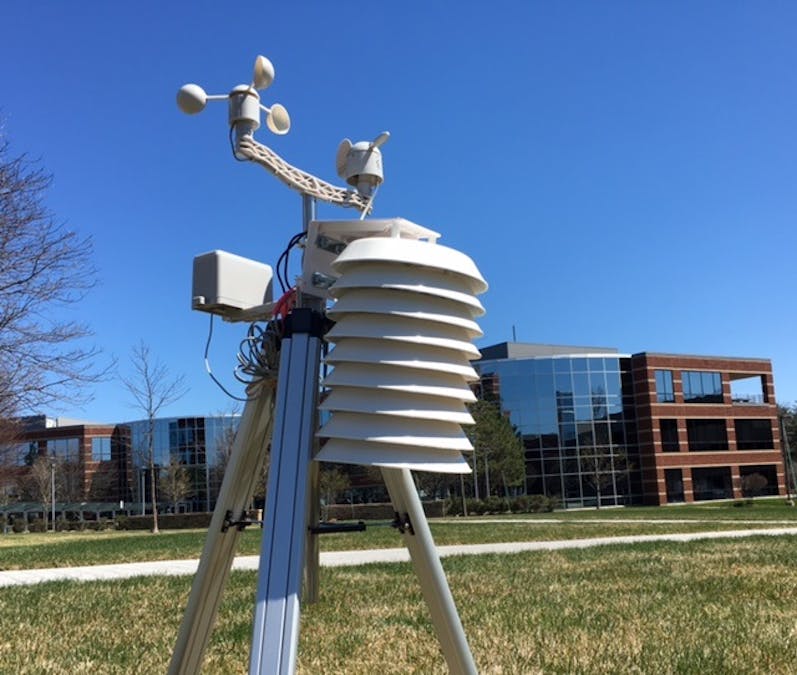

Things used in this project

Hardware components:
Compare particleelectron
Particle Electron
×1
13630 01a
SparkFun Photon Weather Shield
×1
SparkFun Weather Meters
×1
Solar Radiation Shield
×1
Software apps and online services:
Particle Build (Web IDE)
Particle CLI
ThingSpeak
H5g3etjnacmazg8oq17z
MATLAB
MATLAB ThingSpeak Support Toolbox

Code

WeatherStation.inoC/C++
This is a template for creating an app in Particle Build. Copy and paste the code to your ino file. Enter your ThingSpeak channel number and write API key on line 26.
// This #include statement was automatically added by the Particle IDE.
#include "SparkFun_Photon_Weather_Shield_Library/SparkFun_Photon_Weather_Shield_Library.h"

// Add math to get sine and cosine for wind vane
#include <math.h>

/*
  *****************************************************************************************
  **** Visit https://www.thingspeak.com to sign up for a free account and create
  **** a channel.  The video tutorial http://community.thingspeak.com/tutorials/thingspeak-channels/
  **** has more information. You need to change this to your channel, and your write API key
  **** IF YOU SHARE YOUR CODE WITH OTHERS, MAKE SURE YOU REMOVE YOUR WRITE API KEY!!
  **** To learn more about ThingSpeak, see the introductory video: http://www.mathworks.com/videos/introduction-to-thingspeak-107749.html
  *****************************************************************************************/
//unsigned long thingspeakChannelNumber = 90538;
//char thingSpeakWriteAPIKey[] = "Your key here";

// Each time we loop through the main loop, we check to see if it's time to capture the sensor readings
unsigned int sensorCapturePeriod = 100;
unsigned int timeNextSensorReading;

// Each time we loop through the main loop, we check to see if it's time to publish the data we've collected
unsigned int publishPeriod = 60000;
unsigned int timeNextPublish;

String api_key = "Your API Key"; // Replace this string with a valid ThingSpeak Write API Key.
String field1 = "";
String field2 = "";  // i.e. field2 is null
String field3 = "";
String field4 = "";
String field5 = "";
String field6 = "";
String field7 = "";
String field8 = "";
String lat = "";
String lon = "";
String el = "";
String status = "";

void setup() {
    //initializeThingSpeak();
    initializeTempHumidityAndPressure();
    initializeRainGauge();
    initializeAnemometer();
    initializeWindVane();

    // Schedule the next sensor reading and publish events
    timeNextSensorReading = millis() + sensorCapturePeriod;
    timeNextPublish = millis() + publishPeriod;
}

void loop() {

    // Capture any sensors that need to be polled (temp, humidity, pressure, wind vane)
    // The rain and wind speed sensors use interrupts, and so data is collected "in the background"
    if(timeNextSensorReading <= millis()) {
        captureTempHumidityPressure();
        captureWindVane();

        // Schedule the next sensor reading
        timeNextSensorReading = millis() + sensorCapturePeriod;
    }

    // Publish the data collected to Particle and to ThingSpeak
    if(timeNextPublish <= millis()) {

        // Get the data to be published
        float tempF = getAndResetTempF();
        float humidityRH = getAndResetHumidityRH();
        float pressureKPa = getAndResetPressurePascals() / 1000.0;
        float rainInches = getAndResetRainInches();
        float gustMPH;
        float windMPH = getAndResetAnemometerMPH(&gustMPH);
        float windDegrees = getAndResetWindVaneDegrees();

        FuelGauge fuel;
        float voltage = fuel.getVCell();

        // Publish the data
        publishToParticle(tempF,humidityRH,pressureKPa,rainInches,windMPH,gustMPH,windDegrees);
        publishToThingSpeak(tempF,humidityRH,pressureKPa,rainInches,windMPH,gustMPH,windDegrees,voltage);

        // Schedule the next publish event
        timeNextPublish = millis() + publishPeriod;
    }

    delay(10);
}

void publishToParticle(float tempF,float humidityRH,float pressureKPa,float rainInches,float windMPH,float gustMPH,float windDegrees) {
    Particle.publish("weather",
                        String::format("%0.1f°F, %0.0f%%, %0.2f kPa, %0.2f in, Avg:%0.0fmph, Gust:%0.0fmph, Dir:%0.0f°.",
                            tempF,humidityRH,pressureKPa,rainInches,windMPH,gustMPH,windDegrees),
                        60 , PRIVATE);
}


void publishToThingSpeak(float tempF,float humidityRH,float pressureKPa,float rainInches,float windMPH,float gustMPH,float windDegrees,float voltage) {
    // To write multiple fields, you set the various fields you want to send

    field1 = String(tempF,1);
    field2 = String(humidityRH,0);
    field3 = String(pressureKPa,1);
    field4 = String(rainInches,1);
    field5 = String(windMPH,1);
    field6 = String(gustMPH,1);
    field7 = String(windDegrees, 0);
    field8 = String(voltage,1);

    String TSjson;
    createTSjson(TSjson);
    Particle.publish("TSwriteall",TSjson,60,PRIVATE);

}

//===========================================================
// Temp, Humidity and Pressure
//===========================================================
// The temperature, humidity, and pressure sensors are on board
// the weather station board, and use I2C to communicate.  The sensors are read
// frequently by the main loop, and the results are averaged over the publish cycle

//Create Instance of HTU21D or SI7021 temp and humidity sensor and MPL3115A2 barometric sensor
Weather sensor;

void initializeTempHumidityAndPressure() {
    //Initialize the I2C sensors and ping them
    sensor.begin();
    //Set to Barometer Mode
    sensor.setModeBarometer();
    // Set Oversample rate
    sensor.setOversampleRate(7);
    //Necessary register calls to enble temp, baro and alt
    sensor.enableEventFlags();

    return;
}

float humidityRHTotal = 0.0;
unsigned int humidityRHReadingCount = 0;
float tempFTotal = 0.0;
unsigned int tempFReadingCount = 0;
float pressurePascalsTotal = 0.0;
unsigned int pressurePascalsReadingCount = 0;

void captureTempHumidityPressure() {
  // Read the humidity and pressure sensors, and update the running average
  // The running (mean) average is maintained by keeping a running sum of the observations,
  // and a count of the number of observations

  // Measure Relative Humidity from the HTU21D or Si7021
  float humidityRH = sensor.getRH();

  //If the result is reasonable, add it to the running mean
  if(humidityRH > 0 && humidityRH < 105) // It's theoretically possible to get supersaturation humidity levels over 100%
  {
      // Add the observation to the running sum, and increment the number of observations
      humidityRHTotal += humidityRH;
      humidityRHReadingCount++;
  }

  // Measure Temperature from the HTU21D or Si7021
  // Temperature is measured every time RH is requested.
  // It is faster, therefore, to read it from previous RH
  // measurement with getTemp() instead with readTemp()
  float tempF = sensor.getTempF();

  //If the result is reasonable, add it to the running mean
  if(tempF > -50 && tempF < 150)
  {
      // Add the observation to the running sum, and increment the number of observations
      tempFTotal += tempF;
      tempFReadingCount++;
  }

  //Measure Pressure from the MPL3115A2
  float pressurePascals = sensor.readPressure();

  //If the result is reasonable, add it to the running mean
  // What's reasonable? http://findanswers.noaa.gov/noaa.answers/consumer/kbdetail.asp?kbid=544
  if(pressurePascals > 80000 && pressurePascals < 110000)
  {
      // Add the observation to the running sum, and increment the number of observations
      pressurePascalsTotal += pressurePascals;
      pressurePascalsReadingCount++;
  }

  return;
}

float getAndResetTempF()
{
    if(tempFReadingCount == 0) {
        return 0;
    }
    float result = tempFTotal/float(tempFReadingCount);
    tempFTotal = 0.0;
    tempFReadingCount = 0;
    return result;
}

float getAndResetHumidityRH()
{
    if(humidityRHReadingCount == 0) {
        return 0;
    }
    float result = humidityRHTotal/float(humidityRHReadingCount);
    humidityRHTotal = 0.0;
    humidityRHReadingCount = 0;
    return result;
}


float getAndResetPressurePascals()
{
    if(pressurePascalsReadingCount == 0) {
        return 0;
    }
    float result = pressurePascalsTotal/float(pressurePascalsReadingCount);
    pressurePascalsTotal = 0.0;
    pressurePascalsReadingCount = 0;
    return result;
}

//===========================================================================
// Rain Guage
//===========================================================================
int RainPin = D2;
volatile unsigned int rainEventCount;
unsigned int lastRainEvent;
float RainScaleInches = 0.011; // Each pulse is .011 inches of rain

void initializeRainGauge() {
  pinMode(RainPin, INPUT_PULLUP);
  rainEventCount = 0;
  lastRainEvent = 0;
  attachInterrupt(RainPin, handleRainEvent, FALLING);
  return;
  }

void handleRainEvent() {
    // Count rain gauge bucket tips as they occur
    // Activated by the magnet and reed switch in the rain gauge, attached to input D2
    unsigned int timeRainEvent = millis(); // grab current time

    // ignore switch-bounce glitches less than 10mS after initial edge
    if(timeRainEvent - lastRainEvent < 10) {
      return;
    }

    rainEventCount++; //Increase this minute's amount of rain
    lastRainEvent = timeRainEvent; // set up for next event
}

float getAndResetRainInches()
{
    float result = RainScaleInches * float(rainEventCount);
    rainEventCount = 0;
    return result;
}

//===========================================================================
// Wind Speed (Anemometer)
//===========================================================================

// The Anemometer generates a frequency relative to the windspeed.  1Hz: 1.492MPH, 2Hz: 2.984MPH, etc.
// We measure the average period (elaspsed time between pulses), and calculate the average windspeed since the last recording.

int AnemometerPin = D3;
float AnemometerScaleMPH = 1.492; // Windspeed if we got a pulse every second (i.e. 1Hz)
volatile unsigned int AnemoneterPeriodTotal = 0;
volatile unsigned int AnemoneterPeriodReadingCount = 0;
volatile unsigned int GustPeriod = UINT_MAX;
unsigned int lastAnemoneterEvent = 0;

void initializeAnemometer() {
  pinMode(AnemometerPin, INPUT_PULLUP);
  AnemoneterPeriodTotal = 0;
  AnemoneterPeriodReadingCount = 0;
  GustPeriod = UINT_MAX;  //  The shortest period (and therefore fastest gust) observed
  lastAnemoneterEvent = 0;
  attachInterrupt(AnemometerPin, handleAnemometerEvent, FALLING);
  return;
  }

void handleAnemometerEvent() {
    // Activated by the magnet in the anemometer (2 ticks per rotation), attached to input D3
     unsigned int timeAnemometerEvent = millis(); // grab current time

    //If there's never been an event before (first time through), then just capture it
    if(lastAnemoneterEvent != 0) {
        // Calculate time since last event
        unsigned int period = timeAnemometerEvent - lastAnemoneterEvent;
        // ignore switch-bounce glitches less than 10mS after initial edge (which implies a max windspeed of 149mph)
        if(period < 10) {
          return;
        }
        if(period < GustPeriod) {
            // If the period is the shortest (and therefore fastest windspeed) seen, capture it
            GustPeriod = period;
        }
        AnemoneterPeriodTotal += period;
        AnemoneterPeriodReadingCount++;
    }

    lastAnemoneterEvent = timeAnemometerEvent; // set up for next event
}

float getAndResetAnemometerMPH(float * gustMPH)
{
    if(AnemoneterPeriodReadingCount == 0)
    {
        *gustMPH = 0.0;
        return 0;
    }
    // Nonintuitive math:  We've collected the sum of the observed periods between pulses, and the number of observations.
    // Now, we calculate the average period (sum / number of readings), take the inverse and muliple by 1000 to give frequency, and then mulitply by our scale to get MPH.
    // The math below is transformed to maximize accuracy by doing all muliplications BEFORE dividing.
    float result = AnemometerScaleMPH * 1000.0 * float(AnemoneterPeriodReadingCount) / float(AnemoneterPeriodTotal);
    AnemoneterPeriodTotal = 0;
    AnemoneterPeriodReadingCount = 0;
    *gustMPH = AnemometerScaleMPH  * 1000.0 / float(GustPeriod);
    GustPeriod = UINT_MAX;
    return result;
}


//===========================================================
// Wind Vane
//===========================================================
void initializeWindVane() {
    return;
}

// For the wind vane, we need to average the unit vector components (the sine and cosine of the angle)
int WindVanePin = A0;
float windVaneCosTotal = 0.0;
float windVaneSinTotal = 0.0;
unsigned int windVaneReadingCount = 0;

void captureWindVane() {
    // Read the wind vane, and update the running average of the two components of the vector
    unsigned int windVaneRaw = analogRead(WindVanePin);

    float windVaneRadians = lookupRadiansFromRaw(windVaneRaw);
    if(windVaneRadians > 0 && windVaneRadians < 6.14159)
    {
        windVaneCosTotal += cos(windVaneRadians);
        windVaneSinTotal += sin(windVaneRadians);
        windVaneReadingCount++;
    }
    return;
}

float getAndResetWindVaneDegrees()
{
    if(windVaneReadingCount == 0) {
        return 0;
    }
    float avgCos = windVaneCosTotal/float(windVaneReadingCount);
    float avgSin = windVaneSinTotal/float(windVaneReadingCount);
    float result = atan(avgSin/avgCos) * 180.0 / 3.14159;
    windVaneCosTotal = 0.0;
    windVaneSinTotal = 0.0;
    windVaneReadingCount = 0;
    // atan can only tell where the angle is within 180 degrees.  Need to look at cos to tell which half of circle we're in
    if(avgCos < 0) result += 180.0;
    // atan will return negative angles in the NW quadrant -- push those into positive space.
    if(result < 0) result += 360.0;

   return result;
}

float lookupRadiansFromRaw(unsigned int analogRaw)
{
    // The mechanism for reading the weathervane isn't arbitrary, but effectively, we just need to look up which of the 16 positions we're in.
    if(analogRaw >= 2200 && analogRaw < 2400) return (3.14);//South
    if(analogRaw >= 2100 && analogRaw < 2200) return (3.53);//SSW
    if(analogRaw >= 3200 && analogRaw < 3299) return (3.93);//SW
    if(analogRaw >= 3100 && analogRaw < 3200) return (4.32);//WSW
    if(analogRaw >= 3890 && analogRaw < 3999) return (4.71);//West
    if(analogRaw >= 3700 && analogRaw < 3780) return (5.11);//WNW
    if(analogRaw >= 3780 && analogRaw < 3890) return (5.50);//NW
    if(analogRaw >= 3400 && analogRaw < 3500) return (5.89);//NNW
    if(analogRaw >= 3570 && analogRaw < 3700) return (0.00);//North
    if(analogRaw >= 2600 && analogRaw < 2700) return (0.39);//NNE
    if(analogRaw >= 2750 && analogRaw < 2850) return (0.79);//NE
    if(analogRaw >= 1510 && analogRaw < 1580) return (1.18);//ENE
    if(analogRaw >= 1580 && analogRaw < 1650) return (1.57);//East
    if(analogRaw >= 1470 && analogRaw < 1510) return (1.96);//ESE
    if(analogRaw >= 1900 && analogRaw < 2000) return (2.36);//SE
    if(analogRaw >= 1700 && analogRaw < 1750) return (2.74);//SSE
    if(analogRaw > 4000) return(-1); // Open circuit?  Probably means the sensor is not connected
    Particle.publish("error", String::format("Got %d from Windvane.",analogRaw), 60 , PRIVATE);
    return -1;
}

// Function to build the 'json' to trigger the Webhook.  To save characters the string only includes parameters that are not null.

void createTSjson(String &dest)
{
  // dest = "{ \"k\":\"" + api_key + "\", \"1\":\""+ field1 +"\", \"2\":\""+ field2 +"\",\"3\":\""+ field3 +"\",\"4\":\""+ field4 +"\",\"5\":\""+ field5 +"\",\"6\":\""+ field6 +"\",\"7\":\""+ field7 +"\",\"8\":\""+ field8 +"\",\"a\":\""+ lat +"\",\"o\":\""+ lon +"\",\"e\":\""+ el +"\", \"s\":\""+ status +"\"}";

    dest = "{";

    if(field1.length()>0){
        dest = dest + "\"1\":\""+ field1 +"\",";
    }

    if(field2.length()>0){
        dest = dest + "\"2\":\""+ field2 +"\",";
    }

    if(field3.length()>0){
        dest = dest + "\"3\":\""+ field3 +"\",";
    }

    if(field4.length()>0){
        dest = dest + "\"4\":\""+ field4 +"\",";
    }

    if(field5.length()>0){
        dest = dest + "\"5\":\""+ field5 +"\",";
    }

    if(field6.length()>0){
        dest = dest + "\"6\":\""+ field6 +"\",";
    }

    if(field7.length()>0){
        dest = dest + "\"7\":\""+ field7 +"\",";
    }

    if(field8.length()>0){
        dest = dest + "\"8\":\""+ field8 +"\",";
    }

    if(lat.length()>0){
        dest = dest + "\"a\":\""+ lat +"\",";
    }

    if(lon.length()>0){
        dest = dest + "\"o\":\""+ lon +"\",";
    }

    if(el.length()>0){
        dest = dest + "\"e\":\""+ el +"\",";
    }

    if(status.length()>0){
        dest = dest + "\"s\":\""+ status +"\",";
    }

    dest = dest + "\"k\":\"" + api_key + "\"}";
}
TSwriteall.jsonJSON
This JSON file is used to add a webhook with Particle cloud.
{
    "event": "TSwriteall",
    "url": "https://api.thingspeak.com/update.json",
    "requestType": "POST",
    "form": {
		"api_key": "{{k}}",
		"field1": "{{1}}",
		"field2": "{{2}}",
		"field3": "{{3}}",
		"field4": "{{4}}",
		"field5": "{{5}}",
		"field6": "{{6}}",
		"field7": "{{7}}",
		"field8": "{{8}}",
		"lat": "{{a}}",
		"long": "{{o}}",
		"elevation": "{{e}}",
		"status": "{{s}}"
    },
    "mydevices": true,
	  "noDefaults": true
}

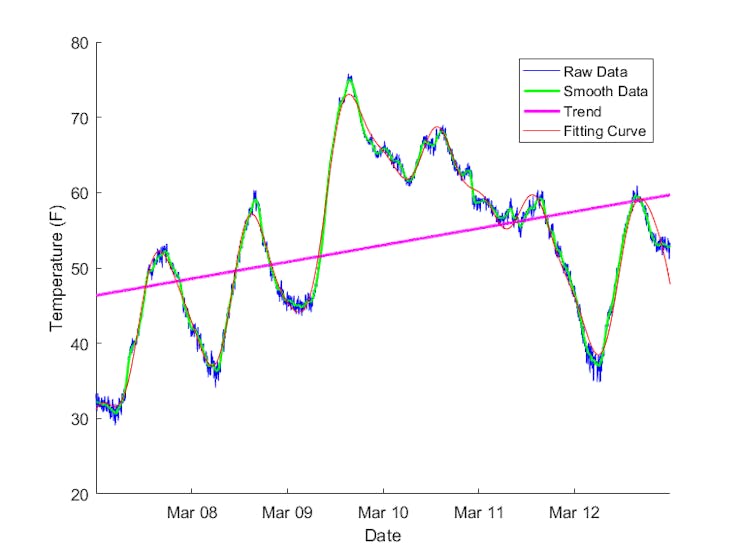

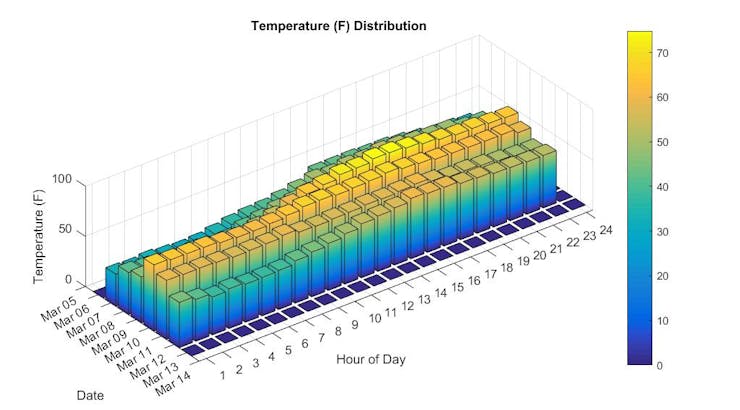

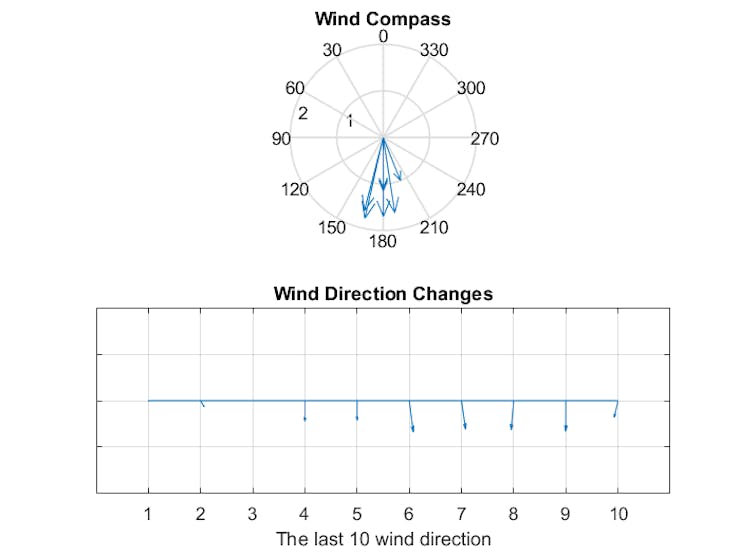

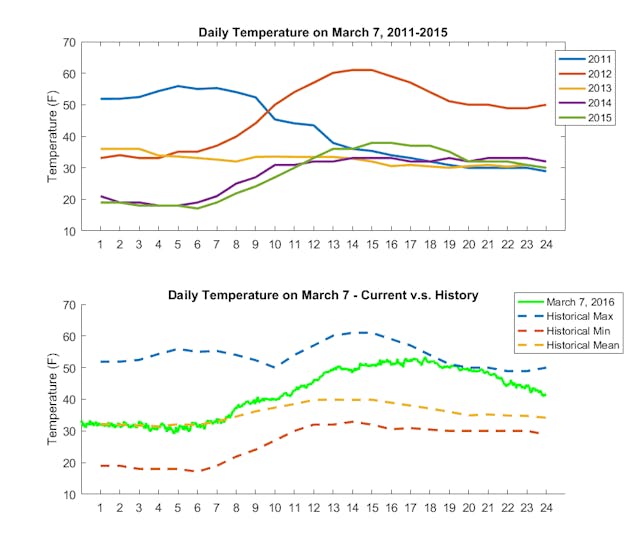

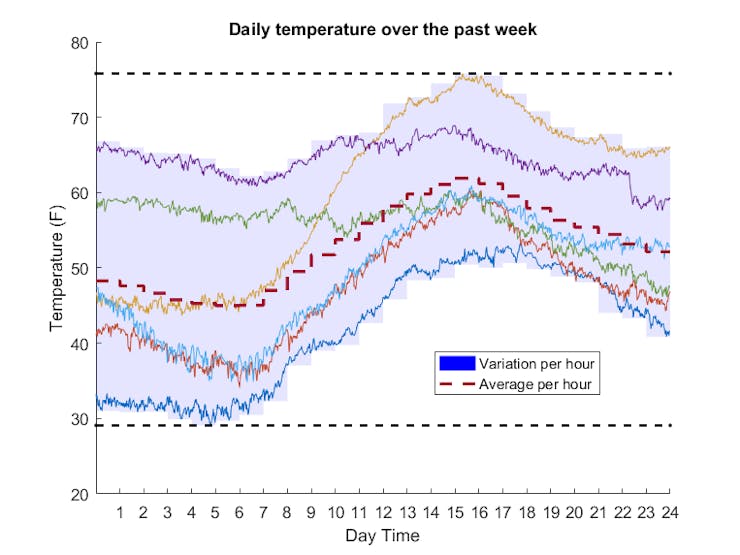

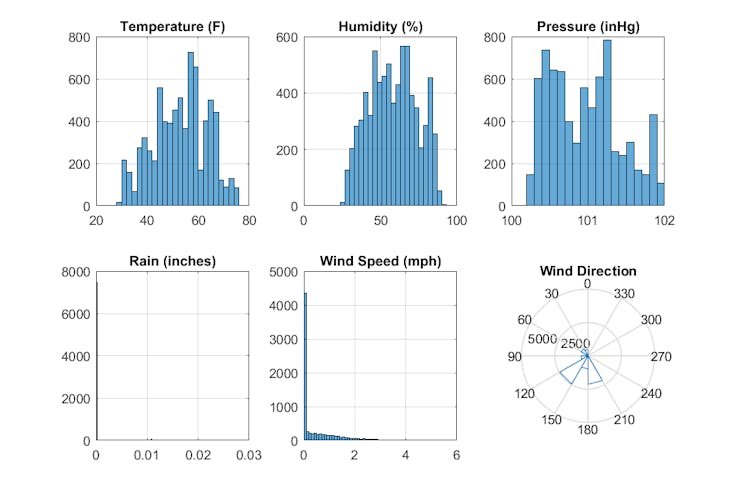

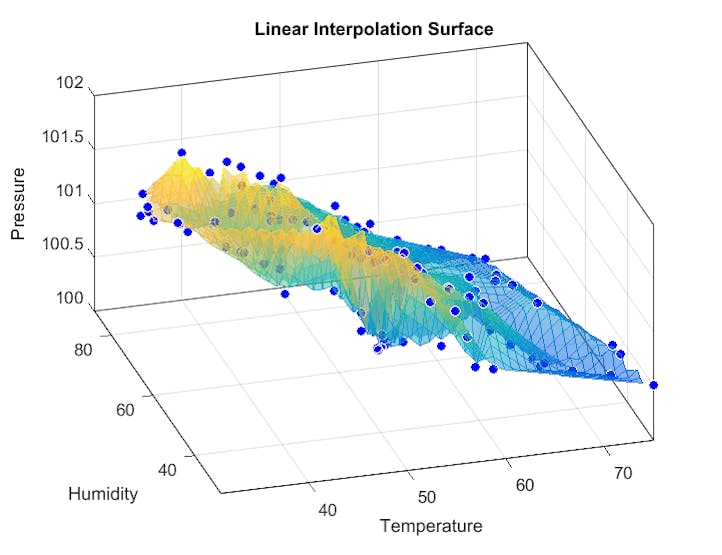

MATLAB Code for analysis and visualizationsMATLAB
You can download the files here:
http://www.mathworks.com/matlabcentral/fileexchange/56910-thingspeak-weather-station
No preview (download only).

Credits

Thanks to Rob Purser, Robert Mawrey and Hans Scharler, Robert Mawrey, Vignesh Santhanagopalan.

Replications

Did you replicate this project? Share it!

I made one

Love this project? Think it could be improved? Tell us what you think!

Give feedback

Comments

Similar projects you might like

The composting friend
Intermediate
  • 633
  • 34

Full instructions

Our goal is to make composting easier to use and to maintain.

AquaNiner Pet Hydration Monitor
Intermediate
  • 382
  • 14

Full instructions

Using two Photons, IFTTT and ThingSpeak, get notifications for when your furry friend needs water and monitor how much they're drinking.

Hot Shot Hoops
Intermediate
  • 530
  • 13

Full instructions

No need to keep track of the number of baskets you make when shooting hoops. Hot Shot Hoops does the work for you.

Hot Shot Hoops

Team IOT Basketball

Temperature Mirror
Intermediate
  • 378
  • 8

Full instructions

The Temperature Mirror incorporates a digital display to allow its user to readily view time, temperature, humidity, and light.

Temperature Mirror

MEGR3171 Team 49

Pet Feeder
Intermediate
  • 414
  • 7

Full instructions

Automated pet food dispenser to feed our pets when we are not at home by using an IoT device.

Teacher Tracker
Intermediate
  • 172
  • 4

Full instructions

If you want to know when a professor comes back to his/her office so you can ask annoying questions then this an option

ProjectsCommunitiesContestsLiveAppsBetaFree StoreBlogAdd projectSign up / Login
Respect project
Feedback
