HD44780 LCD Module driver for Windows 10 IoT

This is my first post about Windows 10 IoT and small computers (embedded) after some experiences in the past with the .Net MicroFramework (Netduino, in essence).

I must say that this Windows 10 is finally a small masterpiece, or “everything you ever asked and none never responded you”. The programming way is easy but very flexible, although still many bricks are missing (in development).

The source code on GitHub

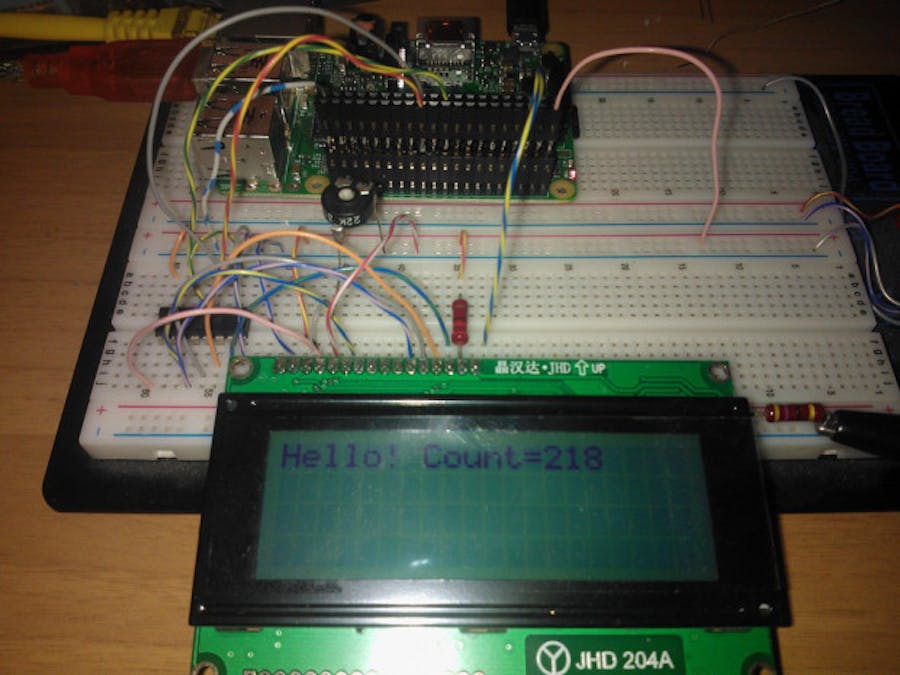

Here is a very simple experiment, a bit vintage, of driving a common alphanumeric LCD module (HD44780-based) with a Raspberry PI 2 and Windows 10 IoT.

The project isn’t anything new, but rather kinda “refresh” of another of mine where the Netduino board was used (see below). Someone of you may wonder “why” still using a so-old LCD module when several graphics are available on the market. Well, my first answer is: “why not?” As said, this project hasn’t any specific purpose (although many of you may dig into their “miracles box” and pull out an “almost useless” LCD module). The aim is to test how hard is to drive something well known.

Some Credits

I can’t miss to mention Laurent Ellerbach, who gave me some inspiration (and motivation) on pursuing those hacking/funny activities.

The Hardware

All you need is very easy to find:

• Raspberry PI2 (with Windows 10 IoT installed)
• any suitable HD44780 LCD display module (mine is a 4×20)
• 74HC595 shift-register
• 220 Ohms resistor (only if you need the backlight)
• 10k Ohms trimpot (22k or 47k are fine the same)

For sake of simplicity, I won’t detail how to set up the Raspberry, but there are many articles which describe very well that. I followed the Microsoft site and everything went fine, except for the suggested SD minimum size: I found that a 8GB won’t work. Simply consider a 16GB.

The Software

I wanted to publish the project keeping the sources simpler as possible. A similar application won’t have sense in a complex hardware (full-featured TFT displays and HDMI monitors perform way better than this module). The general guideline is: if you find convenient to connect a LCD module to a RPI, then make it working in minutes.

Since the LCD module’s capabilities are very limited, I embraced the idea to expose the APIs as it were a kind of “Console”. Just a “write” and something more, where a background task should manage the physical transfer by itself.

The project contains two different demo:

• a basic one, where some strings’ content is reflected on the display;
• a slightly more complex demo, which gets a bunch of RSS news from the BBC.uk channel, and rotates the titles on the screen.

Basic Demo

 class BasicDemo    {        public async Task RunAsync()        {            //write a static string            DriverHD44780.Instance.DrawString(                "This is a basic demo",                new Point(0, 0)                );            int n = 0;            while (true)            {                //display a simple counter                DriverHD44780.Instance.DrawString(                    $"Counting...{n}",                    new Point(0, 1)                    );                //display current time and date                var now = DateTime.Now;                DriverHD44780.Instance.DrawString(                    now.ToString("T") + "   ",                    new Point(0, 2)                    );                DriverHD44780.Instance.DrawString(                    now.ToString("M") + "   ",                    new Point(0, 3)                    );                n++;                await Task.Delay(1000);            }        }    }

RSS Demo

 class RssDemo    {        public async Task RunAsync()        {            //write a static string            DriverHD44780.Instance.DrawString(                "Getting RSS...",                new Point(0, 0)                );            //get the latest news using a normal HTTP GET request            var http = new HttpClient();            var endpoint = new Uri("http://feeds.bbci.co.uk/news/rss.xml");            var srss = await http.GetStringAsync(endpoint);            var xrss = XDocument.Parse(srss);            //extract the news items, and sort them by date-time descending            var xnews = xrss.Root                .Element("channel")                .Elements("item")                .OrderByDescending(_ => (DateTime)_.Element("pubDate"))                .ToList();            int n = 0;            while (true)            {                /**                * Loop the news as one per page                **/                //the first row is for the publication date-time                var dt = (DateTime)xnews[n].Element("pubDate");                DriverHD44780.Instance.DrawString(                    dt.ToString("g"),                    new Point(0, 0)                    );                //the three other rows are for the title                var title = (string)xnews[n].Element("title");                title = title + new string(' ', 60);                for (int row = 0; row < 3; row++)                {                    DriverHD44780.Instance.DrawString(                        title.Substring(row * 20, 20),                        new Point(0, row + 1)                        );                }                //wait some seconds before flipping page                n = (n + 1) % xnews.Count;                await Task.Delay(3000);            }        }    }

Performance

You may wonder how well performs the driver. Well, there are two stages involved in the displaying process:

• the calls from the main application to the driver;
• the physical data transfer.

Any invocation by the main app involves always the cache: no matter how many calls are made, because everything is hosted in memory. For this reason, any manipulation is irrelevant in terms of performance impact. However, a fixed rate (typically 200ms) there’s a cache dump to the LCD screen, that is: the physical data transfer though the SPI.

How long takes the entire screen dump via SPI?

The circuit is very simple, thus there’s no way to take the transfer faster than the machine execution speed. Even adjusting the SPI clock rate, the resulting duration won’t change notably. Please, bear in mind that a too high SPI clock rate could face signal degradation due the wire length. I used a perfect 1 MHz value, and you can see from the below screenshot that the total transfer duration is less than 30ms.

If you are interested in a faster way to dump the data via SPI, I suggest to read the following section which requires a decent knowledge about electronics.

The old “LCD Boost” Library.

The original project was tailored for the .Net MicroFramework (Netduino) and many things were optimized for speed reasons. Moreover, the NetMF had some leaky problems mostly due to the super squeezed CLR, thus many solutions were solved as it were a low-level device.

Here are some links to the original articles of mine:

Very fast SPI-to-parallel interface for Netduino

LcdBoost library for Netduino

The GDI library for Netduino targets a LCD module.

A playable Invaders-like game with a Netduino Plus 2.
