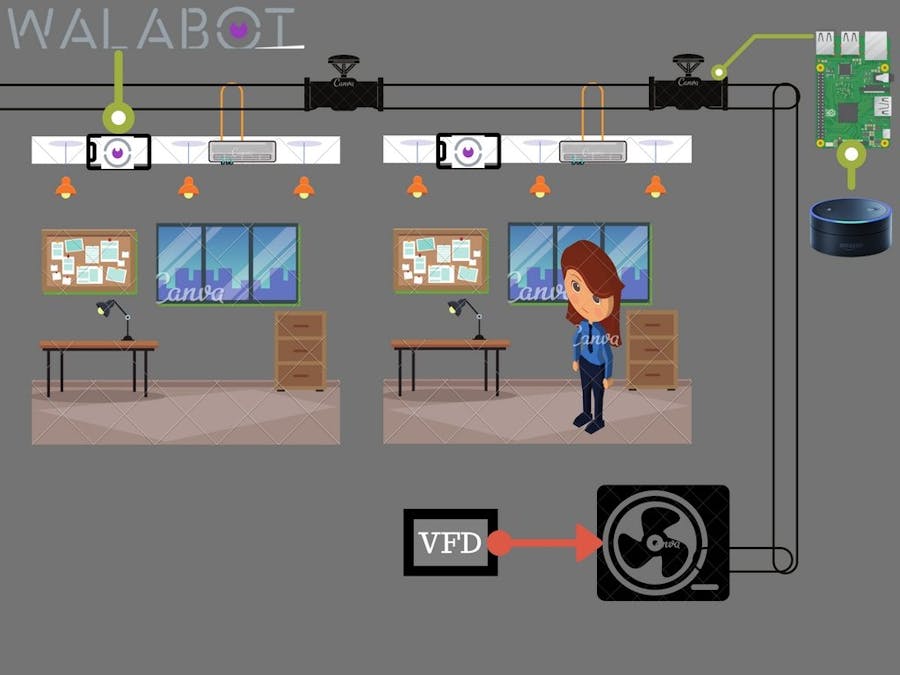

Walabot Controlled Centralized Cooling System

Controlling the required cooling in separate rooms on big buildings and offices by analyzing the number of human occupancy in the room.

AdvancedProtip3,216
Walabot Controlled Centralized Cooling System

Things used in this project

Hardware components

Walabot Developer Pack
Walabot Developer Pack
×1

Software apps and online services

MATLAB
MATLAB

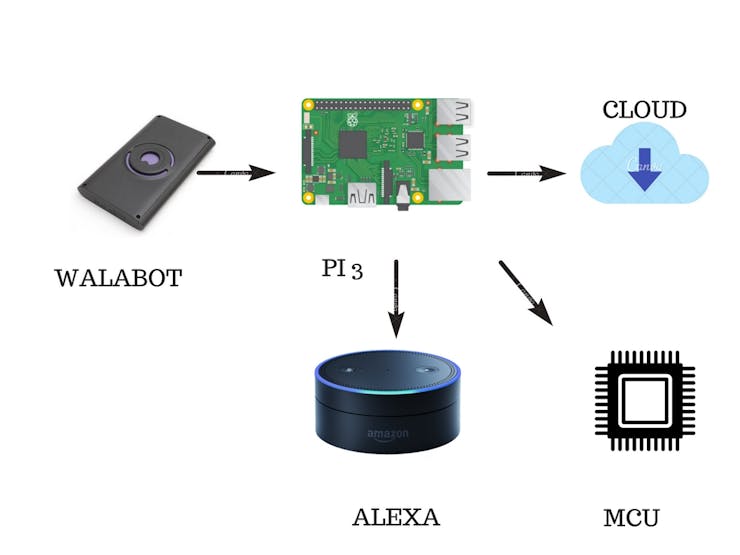

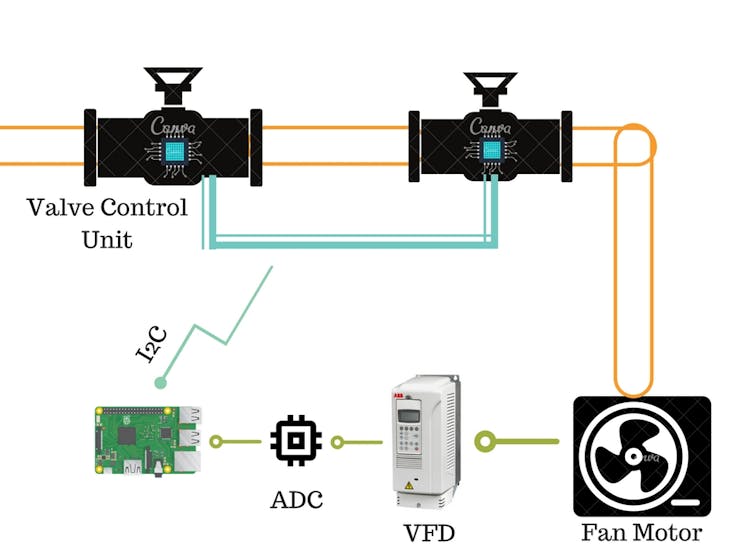

Story

Read more

Code

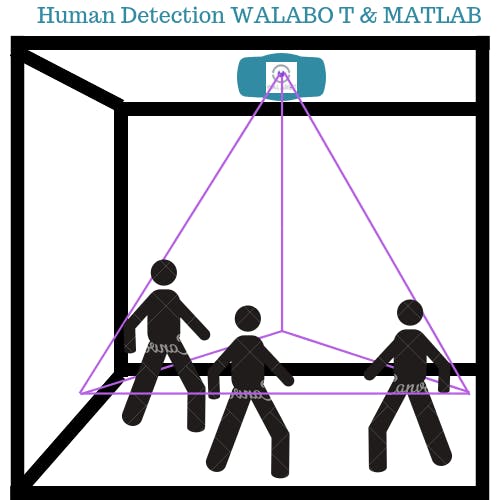

Moving Object Tracking Using WALABOT & MATLAB

MATLAB
This program detects the movement of the object and returns location of the moving object.
%% Target Detection using WALABOT & MATLAB
%
%%This code is used to detect moving object, And plots the location of
%%object in 3D cartesion plot%%

%Developed by Hemaraj, Chennai.
%Code Flow for walabot%

%%%%%CONNECT%%%%%%%%%%%%%
%%%%%CONFIGURE%%%%%%%%%%%
%%%%%Start%%%%%%%%%%%%%%%
%%%%%Calibrate%%%%%%%%%%%
%%%%%Trigger%%%%%%%%%%%%%
%%%%%Get Action%%%%%%%%%%
%%%%%Stop/Disconnect%%%%%

%Varible Intialization%
%variables for Spherical cartetion co-ordinates.
R_start = 120; R_end =5; R_res = 5; %Radius and resolution of arena in (CM).
T_min =20; T_max = -20; T_res =10;   %polar range & resolution of arena in (CM).
P_min = 60; P_max = -60; P_res = 3;   %azimuth range & resolution of arena in (CM).
Thresh = 40;          %Variable To set threshold.

%Importing Walabot API into MATLAB%
global walabot
asm = NET.addAssembly('C:\Program Files\walabot\WalabotSDK\bin\x64\WalabotAPI.NET.dll');
import WalabotAPI_NET.*;
walabot = walabotAPI_NET.WalabotAPI();
walabot.SetSettingFolder('C:\ProgramData\Walabot\WalabotSDK');

%Connection Establishment%
walabot.ConnectAny();

%Importing Scan Profile & Filter Function From walabot sdk into MATLAB.
SCAN_PROFILE = WalabotAPI_NET.APP_PROFILE.PROF_SENSOR_NARROW;
FILTER = WalabotAPI_NET.FILTER_TYPE.FILTER_TYPE_MTI;
walabot.SetProfile(SCAN_PROFILE);
walabot.SetThreshold(Thresh);

%Setting Arena for Spherical Cartetion Co-ordinates%
walabot.SetArenaR(R_start, R_end, R_res);
walabot.SetArenaTheta(T_start, T_end, T_res);
walabot.SetArenaPhi(P_start, P_end, p_res);
walabot.SetDynamicImageFilter(FILTER);

%Activate Walabot Start and calibrate%
walabot.Start();
walabot.StartCalibration();
walabot.GetStatus();

%get Moving target from the walabot
walabot.trigger();
walabot_result = walabot.GetTrackerTargets();
t_p = length(walabot_result);
radius = zeros(t_p,1);
target = zeros(t_p,3);
for A = 1:t_p
    target(A,:) = [walabot_result(A).xPosCm, walabot_result(A).yPosCm,walabot_result.aPosCm];
    radius(A,:) = sqrt((target(A,1).^2)+(target(k,2).^2)+(target(k,3).^2));
end

[value, dest] = min(radius(radius>0));
target_x = target(dest,1);
target_y = target(dest,2);
target_z = target(dest,3);

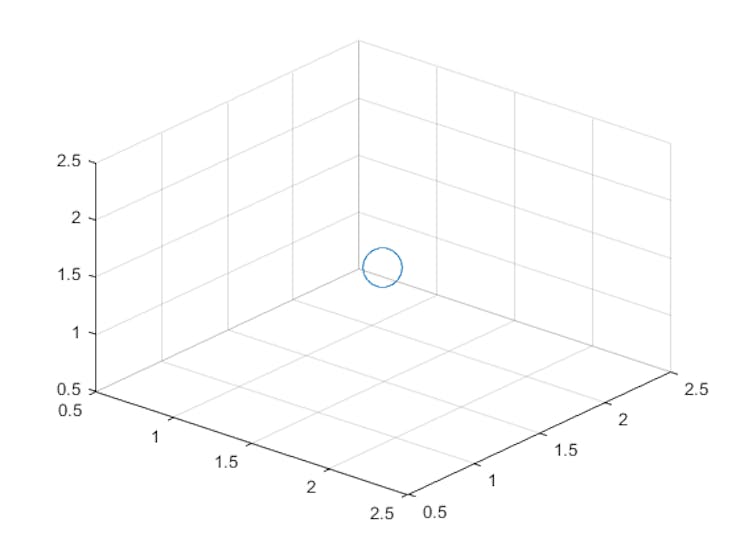

%ploting the value in 3D Cartetion Scatter plot

target_output = [target_x; target_y; target_z];
s = 200;
figure
scatter3(target_x, target_y, target_z, s)
view(40,35)

walabot.Stop()
walabot.Disconnect()
walabot.Clean()
