This is an implementation of the famous electronic game "Simon says" (aka Senso) with a LPC810 - ARM Cortex M0+ in DIP8 case. The minimalistic design needs only 23 parts for the realisation. It's easy possible to built your own Simon on a breadboard, but we provide also a kit including pre-programmed controller and pcb.

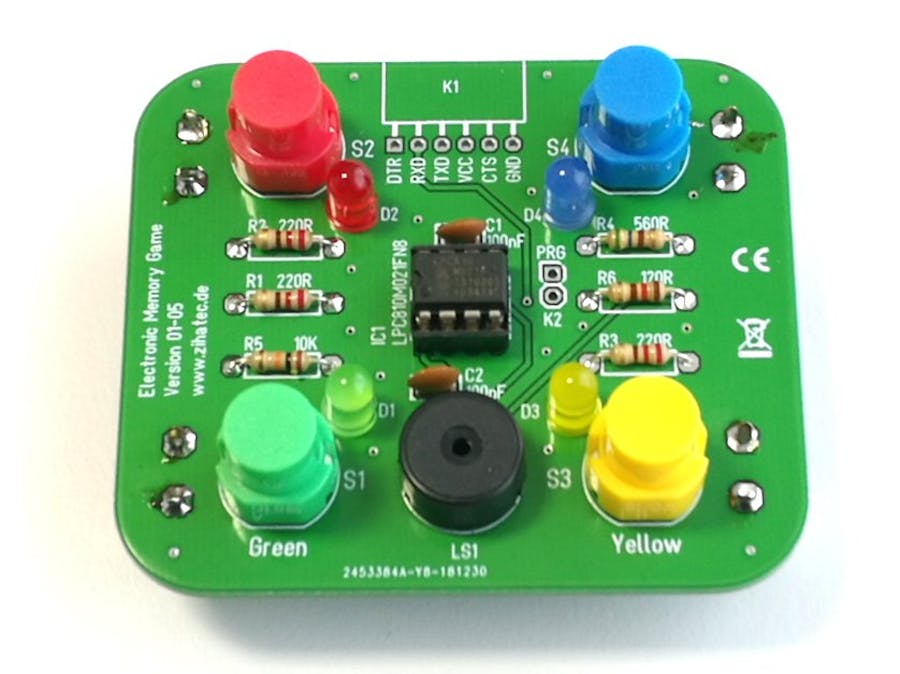

1 / 3 • front side
Assembly:
You can see the assembly of the kit in the video below:
Timelapsed assembly video of the kit
Programming:
The LPC810 contains a bootloader. We are using FlashMagic and a simple USB adaptor to upload the code into the controller. To enable the bootloader mode it is necessary needed to close the Jumper PRG
Programming of the microcontroller
Gameplay:
Press the green button first - this will wakeup the LPC810 from deep power down mode.All leds will flash after releasing the button.
Do what Simon says. Follow and repeat the sequence of lights and sounds for as long as you can.
after a wrong input all leds will flash and the game will show you the right input.
Finally the deep power down mode is activated automaticaly
