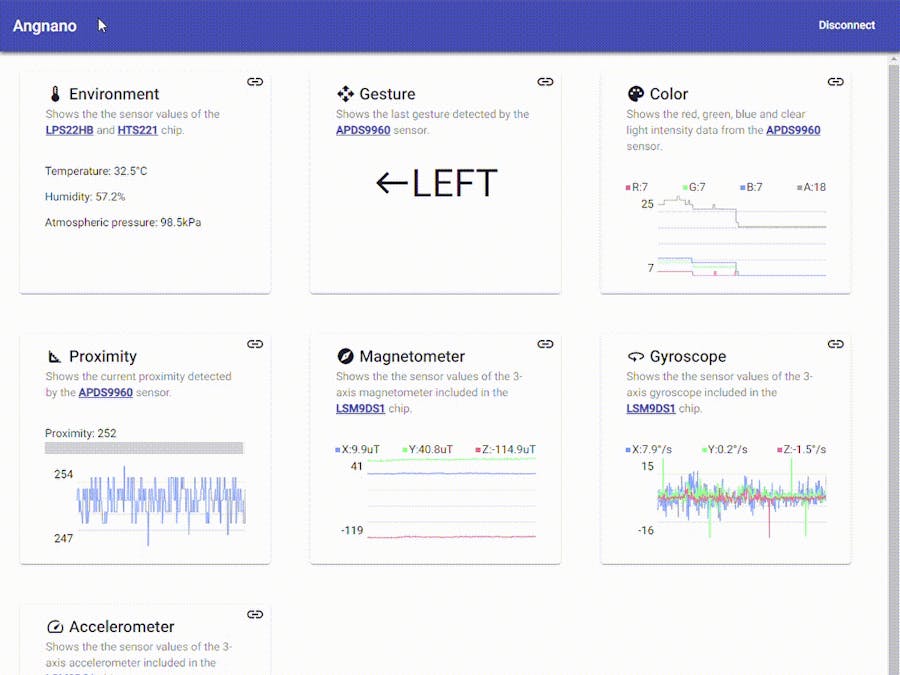

Angnano - Visualize Nano BLE Sense data within the Browser

#include <ArduinoBLE.h>
#include <Arduino_APDS9960.h>
#include <Arduino_HTS221.h>
#include <Arduino_LPS22HB.h>
#include <Arduino_LSM9DS1.h>


// Device name
const char* nameOfPeripheral = "Nano BLE Sense";
const char* uuidOfSenseService = "00001101-0000-1000-8000-00805f9b34fb";
const char* uuidOfSensorCharacteristic = "00001141-0000-1000-8000-00805f9b34fb";

// BLE Service
BLEService senseService(uuidOfSenseService);

// Characteristics
// ===================================================================================================================
// |   0   |    1    |   2   |   3   |   4   |       5       |      6      |      7      |      8      |      9      |
// |gesture|proximity|color r|color g|color b|light intensity|temperature_0|temperature_1|temperature_2|temperature_3|
// =========================================================================================
// |    10    |    11    |    12    |    13    |    14    |    15    |    16    |    17    |
// |humidity_0|humidity_1|humidity_2|humidity_3|pressure_0|pressure_1|pressure_2|pressure_3|
// =================================================================================================
// |   18  |   19  |   20  |   21  |   22  |   23  |   24  |   25  |   26  |   27  |   28  |   29  |
// |acc_x_0|acc_x_1|acc_x_2|acc_x_3|acc_y_0|acc_y_1|acc_y_2|acc_y_3|acc_z_0|acc_z_1|acc_z_2|acc_z_3|
// =================================================================================================
// |   30  |   31  |   32  |   33  |   34  |   35  |   36  |   37  |   38  |   39  |   40  |   41  |
// |gyr_x_0|gyr_x_1|gyr_x_2|gyr_x_3|gyr_y_0|gyr_y_1|gyr_y_2|gyr_y_3|gyr_z_0|gyr_z_1|gyr_z_2|gyr_z_3|
// =================================================================================================
// |   42  |   43  |   44  |   45  |   46  |   47  |   48  |   49  |   50  |   51  |   52  |   53  |
// |mag_x_0|mag_x_1|mag_x_2|mag_x_3|mag_y_0|mag_y_1|mag_y_2|mag_y_3|mag_z_0|mag_z_1|mag_z_2|mag_z_3|
// =================================================================================================
BLECharacteristic sensorCharacteristic(uuidOfSensorCharacteristic, BLERead | BLENotify | BLEBroadcast, 54, true);

void setup() {

  pinMode(LED_BUILTIN, OUTPUT);
  pinMode(LEDB, OUTPUT);
  pinMode(LEDR, OUTPUT);
  pinMode(LEDG, OUTPUT);

  digitalWrite(LED_BUILTIN, LOW);
  digitalWrite(LEDB, HIGH);
  digitalWrite(LEDR, HIGH);
  digitalWrite(LEDG, HIGH);

  if (!BLE.begin()) {
    digitalWrite(LEDR, LOW);
    while (true);
  }

  if (!APDS.begin()) {
    digitalWrite(LEDR, LOW);
    while (true);
  }

  if (!HTS.begin()) {
    digitalWrite(LEDR, LOW);
    while (true);
  }

  if (!BARO.begin()) {
    digitalWrite(LEDR, LOW);
    while (true);
  }

  if (!IMU.begin()) {
    digitalWrite(LEDR, LOW);
    while (true);
  }

  // Create BLE service and characteristics.
  BLE.setLocalName(nameOfPeripheral);
  BLE.setAdvertisedService(senseService);
  senseService.addCharacteristic(sensorCharacteristic);
  BLE.addService(senseService);

  // Bluetooth LE connection handlers.
  BLE.setEventHandler(BLEConnected, onBLEConnected);
  BLE.setEventHandler(BLEDisconnected, onBLEDisconnected);

  // Let's tell devices about us.
  BLE.advertise();
}

uint8_t characteristicBuffer[54];

int proximity = 0;
uint8_t gesture = 0x0;
int r = 0, g = 0, b = 0, a = 0;
float temperature = 0.0f;
float humidity = 0.0f;
float atmosphericPressure = 0.0f;

float accelerometerX = 0.0f;
float accelerometerY = 0.0f;
float accelerometerZ = 0.0f;

float gyroscopeX = 0.0f;
float gyroscopeY = 0.0f;
float gyroscopeZ = 0.0f;

float magnetometerX = 0.0f;
float magnetometerY = 0.0f;
float magnetometerZ = 0.0f;

unsigned long lastLedReset = 0;
unsigned long lastHtsUpdate = 0;
unsigned long lastBaroUpdate = 0;

void loop() {

  BLEDevice central = BLE.central();

  if(millis() - lastLedReset > 50) {
    lastLedReset = millis();
    digitalWrite(LEDR, HIGH);
    digitalWrite(LED_BUILTIN, LOW);
  }

  // Check if a proximity reading is available.
  if (APDS.proximityAvailable()) {
    proximity = APDS.readProximity();
  }

  // Check if a gesture reading is available
  if (APDS.gestureAvailable()) {
    gesture = APDS.readGesture();
  }

  // Check if a color reading is available
  if (APDS.colorAvailable()) {
    APDS.readColor(r, g, b, a);
  }

  // Check if a accelerometer, gyroscope or magnetometer reading is available
  if (IMU.accelerationAvailable()) {
    IMU.readAcceleration(accelerometerX, accelerometerY, accelerometerZ);
  }
  if (IMU.gyroscopeAvailable()){
    IMU.readGyroscope(gyroscopeX, gyroscopeY, gyroscopeZ);
  }
  if (IMU.magneticFieldAvailable()) {
    IMU.readMagneticField(magnetometerX, magnetometerY, magnetometerZ);
  }

  // Read temperature and humidity from sensor
  if (millis() - lastHtsUpdate > 1000) {
    lastHtsUpdate = millis();
    temperature = HTS.readTemperature();
    humidity    = HTS.readHumidity();
  }

  // Read atmospheric pressure from sensor
  if (millis() - lastBaroUpdate > 1000) {
    lastBaroUpdate = millis();
    atmosphericPressure = BARO.readPressure();
  }

  updateSensorCharacteristic();

  // Check BLE connection
  if (central && central.connected()) {
    digitalWrite(LEDB, LOW);
  }
}

void onBLEConnected(BLEDevice central) {
  digitalWrite(LEDB, LOW);
}

void onBLEDisconnected(BLEDevice central) {
  digitalWrite(LEDB, HIGH);
}

void updateSensorCharacteristic() {
  memcpy(&characteristicBuffer[0], &gesture, 1);

  memcpy(&characteristicBuffer[1], &proximity, 1);

  memcpy(&characteristicBuffer[2], &r, 4);
  memcpy(&characteristicBuffer[3], &g, 4);
  memcpy(&characteristicBuffer[4], &b, 4);
  memcpy(&characteristicBuffer[5], &a, 4);

  memcpy(&characteristicBuffer[6], &temperature, 4);
  memcpy(&characteristicBuffer[10], &humidity, 4);
  memcpy(&characteristicBuffer[14], &atmosphericPressure, 4);

  memcpy(&characteristicBuffer[18], &accelerometerX, 4);
  memcpy(&characteristicBuffer[22], &accelerometerY, 4);
  memcpy(&characteristicBuffer[26], &accelerometerZ, 4);

  memcpy(&characteristicBuffer[30], &gyroscopeX, 4);
  memcpy(&characteristicBuffer[34], &gyroscopeY, 4);
  memcpy(&characteristicBuffer[38], &gyroscopeZ, 4);

  memcpy(&characteristicBuffer[42], &magnetometerX, 4);
  memcpy(&characteristicBuffer[46], &magnetometerY, 4);
  memcpy(&characteristicBuffer[50], &magnetometerZ, 4);

  if(sensorCharacteristic.writeValue(characteristicBuffer, 54, true)) {
    digitalWrite(LED_BUILTIN, HIGH);
  } else {
    digitalWrite(LEDR, LOW);
  }
}
