Echoendrus 1.0.0

An AD interactive music interface that is empowered with human body EC.

IntermediateFull instructions provided1,930
Echoendrus 1.0.0

Things used in this project

Hardware components

Arduino UNO
Arduino UNO
×1
555 Timers
555 Timers
×1
Through Hole Resistor, 470 ohm
Through Hole Resistor, 470 ohm
×4
Through Hole Resistor, 220 ohm
Through Hole Resistor, 220 ohm
×1
Capacitor 10 µF
Capacitor 10 µF
×1
Capacitor 220 µF
Capacitor 220 µF
the main capacitor
×1
Ceramic Disc Capacitor, 0.1 µF
Ceramic Disc Capacitor, 0.1 µF
or even 2.2 nF
×1
Rotary Potentiometer, 10 kohm
Rotary Potentiometer, 10 kohm
×2
General Purpose Transistor NPN
General Purpose Transistor NPN
BC47 recommended
×1
5 mm LED: Yellow
5 mm LED: Yellow
×1

Hand tools and fabrication machines

10 Pc. Jumper Wire Kit, 5 cm Long
10 Pc. Jumper Wire Kit, 5 cm Long
3 of them have to be one end free for touching

Story

Read more

Schematics

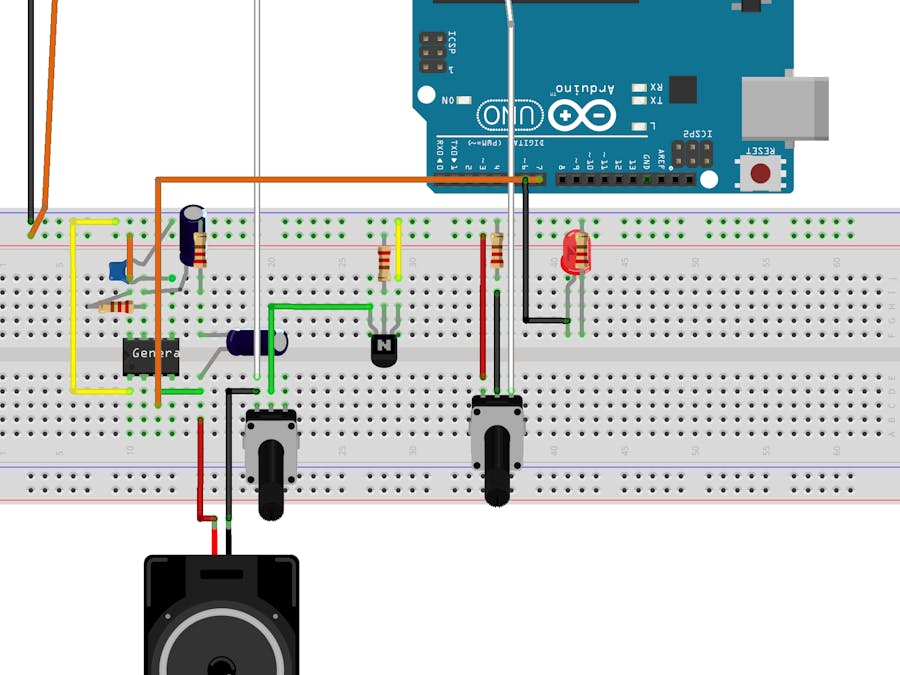

Echoendrus 1.0.0 Schematics

Start from left for reading

Code

Echoendrus 1.0.0 code

Arduino
void setup() {
  Serial.begin(9600);
  pinMode(6, OUTPUT);
  pinMode(7, OUTPUT);
  pinMode(A0, INPUT);
  pinMode(A1, INPUT);
}

void loop() {
  int x = analogRead(A0); //reads the AC NE555 current values. It decreases with touch
  int y = analogRead(A1); //reads the values of R4(pot)
  Serial.println(x);
  if(x<=10) {
    digitalWrite(6, HIGH);
    delay(500);
    digitalWrite(6, LOW);
    delay(500);
  }
  else {
    for(int i=1; i<2; i++) {
      tone(7, random((x-110), x)+11, x-220);
      delay(y-50);
    }
    delay(50);
  }
}
