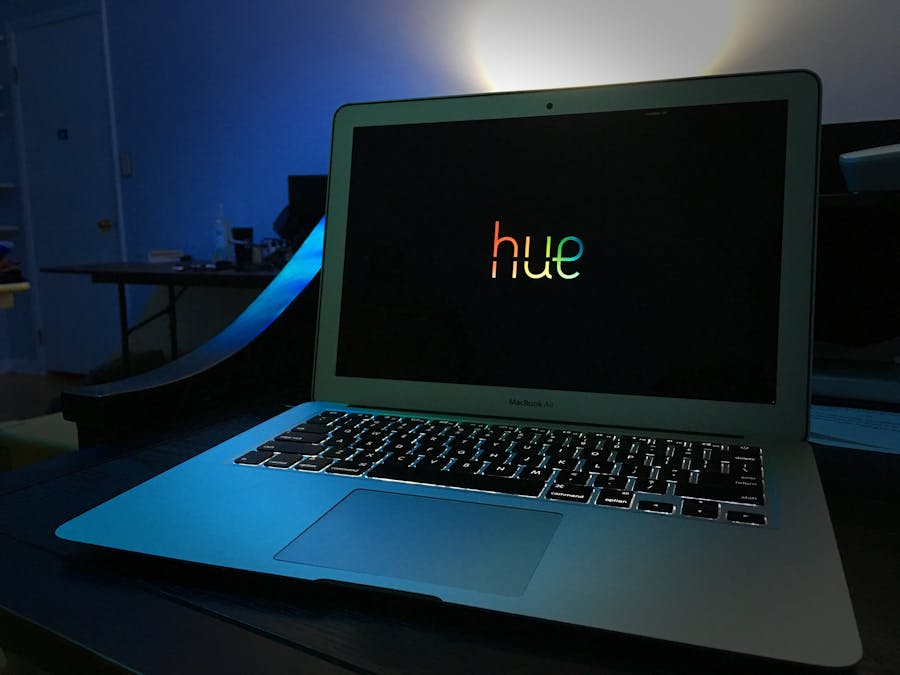

Breathing Lights (Walabot & Philips Hue)

Make your Hue lights breathe at the same rate as you with Walabot's breathing detection.

IntermediateWork in progress1 hour374
Breathing Lights (Walabot & Philips Hue)

Things used in this project

Hardware components

Walabot
Walabot
×1
Philips hue
Philips hue
×1

Software apps and online services

Walabot SDK
Ubuntu

Story

Read more

Code

HueBreathing.cpp

C/C++
#include "WalabotAPI.h"
#include <iostream>
#include <stdio.h>
#include <string>
#include <math.h>
#include <time.h>
#include <curl/curl.h>

using namespace std;

char request[100];

#define CHECK_WALABOT_RESULT(result, func_name)					\
{																\
	if (result != WALABOT_SUCCESS)								\
	{															\
		unsigned int extended = Walabot_GetExtendedError();		\
		const char* errorStr = Walabot_GetErrorString();		\
		std::cout << std::endl << "Error at " __FILE__ << ":"	\
                  << std::dec << __LINE__ << " - "				\
				  << func_name << " result is 0x" << std::hex	\
                  << result << std::endl;						\
																\
		std::cout << "Error string: " << errorStr << std::endl; \
																\
		std::cout << "Extended error: 0x" << std::hex			\
                  << extended << std::endl << std::endl;		\
																\
		std::cout << "Press enter to continue ...";				\
		std::string dummy;										\
		std::getline(std::cin, dummy);							\
		return;													\
	}															\
}

void setLight(bool on, int transitiontime) {

    // Curl setup
    CURL *curl;

    curl = curl_easy_init();

//    curl_easy_setopt(curl, CURLOPT_URL, "http://10.0.3.124/api/OOeV6cZg0zhTu4wLriaTSYMU1VfnttWYzwlZtiPx/lights/4/state");
    curl_easy_setopt(curl, CURLOPT_URL, "http://10.0.0.1/api/OOeV6cZg0zhTu4wLriaTSYMU1VfnttWYzwlZtiPx/groups/2/action");
    curl_easy_setopt(curl, CURLOPT_CUSTOMREQUEST, "PUT");
    // End Curl setup

    if (on) {
        cout << "on condition" << endl;
        // Format the request

        sprintf(request, "{\"on\":true,\"bri\":254,\"transitiontime\":%d}", transitiontime);
        cout << request << endl;
    } else {
        cout << "off condition" << endl;

        // Format the request
        sprintf(request, "{\"on\":false,\"transitiontime\":%d}", transitiontime);
        cout << request << endl;
    }

    curl_easy_setopt(curl, CURLOPT_COPYPOSTFIELDS, request);

    // Execute
    CURLcode res = curl_easy_perform(curl);

//    if (res != CURLE_OK) {
        cout << curl_easy_strerror(res) << endl << endl;
//    }

    curl_easy_cleanup(curl);
}

void PrintBreathingEnergy(double energy)
{
    #ifdef __LINUX__
		printf("\033[2J\033[1;1H");
	#else
	    system("cls");
	#endif
	printf("Energy = %lf\n ", energy * 1e7);
}

void SensorBreathing_SampleCode()
{

	// --------------------
	// Variable definitions
	// --------------------
	WALABOT_RESULT res;

	// Walabot_GetStatus - output parameters
	APP_STATUS appStatus;
	double calibrationProcess; // Percentage of calibration completed, if status is STATUS_CALIBRATING

							   // Walabot_GetImageEnergy
	double energy;

	// ------------------------
	// Initialize configuration
	// ------------------------

	// Walabot_SetArenaR - input parameters
	double minInCm = 30;
	double maxInCm = 150;
	double resICm = 1;

	// Walabot_SetArenaTheta - input parameters
	double minIndegrees = -4;
	double maxIndegrees = 4;
	double resIndegrees = 2;

	// Walabot_SetArenaPhi - input parameters
	double minPhiInDegrees = -4;
	double maxPhiInDegrees = 4;
	double resPhiInDegrees = 2;

	// ----------------------
	// Sample Code Start Here
	// ----------------------

	/*
		For an image to be received by the application, the following need to happen :
		1) Connect
		2) Configure
		3) Calibrate
		4) Start
		5) Trigger
		6) Get action
		7) Stop/Disconnect
	*/

	// Configure Walabot database install location
	#ifdef __LINUX__
	    res = Walabot_SetSettingsFolder((char*)"/var/lib/walabot");
	#else
	    res = Walabot_SetSettingsFolder("C:/ProgramData/Walabot/WalabotSDK");
	#endif

	CHECK_WALABOT_RESULT(res, "Walabot_SetSettingsFolder");

	//	1) Connect : Establish communication with Walabot.
	//	==================================================
	res = Walabot_ConnectAny();
	CHECK_WALABOT_RESULT(res, "Walabot_ConnectAny");

	//  2) Configure : Set scan profile and arena
	//	=========================================

	// Set Profile - to Sensor -Narrow.
	//			Walabot recording mode is configure with the following attributes:
	//			-> Distance scanning through air;
	//			-> lower - resolution images for a fast capture rate (useful for tracking quick movement)
	res = Walabot_SetProfile(PROF_SENSOR_NARROW);
	CHECK_WALABOT_RESULT(res, "Walabot_SetProfile");

	// Setup arena - specify it by Cartesian coordinates(ranges and resolution on the x, y, z axes);
	//	In Sensor mode there is need to specify Spherical coordinates(ranges and resolution along radial distance and Theta and Phi angles).
	res = Walabot_SetArenaR(minInCm, maxInCm, resICm);
	CHECK_WALABOT_RESULT(res, "Walabot_SetArenaR");

	// Sets polar range and resolution of arena (parameters in degrees).
	res = Walabot_SetArenaTheta(minIndegrees, maxIndegrees, resIndegrees);
	CHECK_WALABOT_RESULT(res, "Walabot_SetArenaTheta");

	// Sets azimuth range and resolution of arena.(parameters in degrees).
	res = Walabot_SetArenaPhi(minPhiInDegrees, maxPhiInDegrees, resPhiInDegrees);
	CHECK_WALABOT_RESULT(res, "Walabot_SetArenaPhi");

	// Dynamic-imaging filter for the specific frequencies typical of breathing
	res = Walabot_SetDynamicImageFilter(FILTER_TYPE_DERIVATIVE);
	CHECK_WALABOT_RESULT(res, "Walabot_SetDynamicImageFilter");

	//	3) Start: Start the system in preparation for scanning.
	//	=======================================================
	res = Walabot_Start();
	CHECK_WALABOT_RESULT(res, "Walabot_Start");

	//	4) Trigger: Scan(sense) according to profile and record signals to be available
	//	for processing and retrieval.
	//	================================================================================
	bool recording = true;

    cout << "Ready" << endl;

	while (recording)
	{
		// calibrates scanning to ignore or reduce the signals
		res = Walabot_GetStatus(&appStatus, &calibrationProcess);
		CHECK_WALABOT_RESULT(res, "Walabot_GetStatus");

		//	5) Trigger: Scan(sense) according to profile and record signals to be
		//	available for processing and retrieval.
		//	====================================================================
		res = Walabot_Trigger();
		CHECK_WALABOT_RESULT(res, "Walabot_Trigger");

		//	6) 	Get action : retrieve the last completed triggered recording
		//	================================================================
		res = Walabot_GetImageEnergy(&energy);
		CHECK_WALABOT_RESULT(res, "Walabot_GetImageEnergy");

        // Will's Code
        static bool lastInhaling = false;
        static double lastEnergy = energy;

        static unsigned long lastClock = clock();

        static unsigned long inhaleAccumulator = 0;
        static unsigned long exhaleAccumulator = 0;

        static unsigned long inhaleSamples = 0;
        static unsigned long exhaleSamples = 0;

        if (fabs(energy) >= 1e-6) {
            // Person Present

            bool inhaling = energy > 0;
            bool lastInhaling = lastEnergy > 0;

            if ((!inhaling && lastInhaling) || (inhaling && !lastInhaling)) {

                unsigned long currentClock = clock();

                unsigned long timeDiff = currentClock - lastClock;


                if (timeDiff >= 0.5e+6) {

                    if (inhaling) {
//                        cout << "Fade ON" << endl;
                        inhaleSamples++;
                        inhaleAccumulator += timeDiff;

                        unsigned long avg = (float)inhaleAccumulator / inhaleSamples;

                        // Turn on the lights with transition time in 1/10 seconds
                        setLight(true, avg / 100000);
                    } else {
//                        cout << "Fade OFF" << endl;
                        exhaleSamples++;
                        exhaleAccumulator += timeDiff;

                        unsigned long avg = (float)exhaleAccumulator / exhaleSamples;

                        // Turn off the lights with transition time in 1/10 seconds
                        setLight(false, avg / 100000);
                    }

                    lastClock = currentClock;
                }

            }
        }


        lastEnergy = energy;

		//	******************************
		//	TODO: add processing code here
		//	******************************
//		PrintBreathingEnergy(energy);
	}

	//	7) Stop and Disconnect.
	//	======================
	res = Walabot_Stop();
	CHECK_WALABOT_RESULT(res, "Walabot_Stop");

	res = Walabot_Disconnect();
	CHECK_WALABOT_RESULT(res, "Walabot_Disconnect");
}

int main()
{

	SensorBreathing_SampleCode();
}
