Things used in this project

Hardware components:
Phpoc blue per 100x1000 euk22wtv9i
PHPoC Blue
×1
Pwm sensor board egzopqmg5u
PHPoC PWM & Sensor Expansion Board
×1
Relay board s type htqfasikzh
PHPoC 4-Port Relay Expansion Board (S-type)
×1
Tower Pro SG92R servo motor
×2
Limit Switch
×2

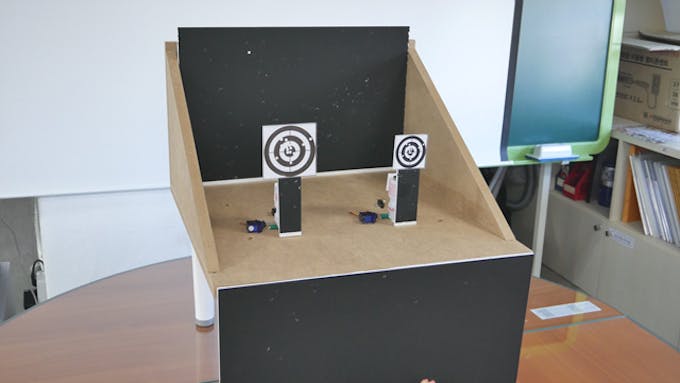

DIY Target
×2

Code

task0.phpPHP
<?php

if(_SERVER("REQUEST_METHOD"))
	exit; // avoid php execution via http request

include_once "/lib/sd_340.php";
include_once "/lib/sn_tcp_ws.php";
include_once "/lib/sd_spc.php";

define("PWM_PERIOD", 20000); // 20000us (20ms)
define("WIDTH_MIN", 600);
define("WIDTH_MAX", 2450);

define("DIN0_PIN", 0);
define("DIN1_PIN", 1);
define("GAMING", "S");
define("READY", "R");
define("END", "E");

$sid = 1;
$motor = 0;

spc_reset();
spc_sync_baud(115200);
spc_request($sid, 4, "set 0 delay 150");
spc_request($sid, 4, "set 1 delay 150");
spc_scan();

function eio_in($sid, $pin)
{
    $resp = spc_request($sid, 4, "get $pin input");

    if($resp === false)
        return "";

    $resp = explode(",", $resp);

    return $resp[1];
}

function stand_target($motor) {

	for($angle = 0; $angle <= 120; $angle += 120)
	{
		//echo $angle, " ";

		$width = WIDTH_MIN + (int)round($angle / 180.0 * (WIDTH_MAX - WIDTH_MIN));
		ht_pwm_width($motor, $width, PWM_PERIOD);

		usleep(300000);
	}
	for($angle = 120; $angle >= 0; $angle -= 120)
	{
		//echo $angle, " ";

		$width = WIDTH_MIN + (int)round($angle / 180.0 * (WIDTH_MAX - WIDTH_MIN));
		ht_pwm_width($motor, $width, PWM_PERIOD);

		usleep(300000);
	}

}


ht_pwm_setup(0, WIDTH_MIN, PWM_PERIOD, "us");
ht_pwm_setup(1, WIDTH_MIN, PWM_PERIOD, "us");

uio_setup(0, DIN0_PIN, "in");
uio_setup(0, DIN1_PIN, "in");

$last_sw0 = 0;
$last_sw1 = 0;
$game_stat = "E";
$last_game_stat = "";
$rwbuf = "";

ws_setup(0, "shooting", "csv.phpoc");

while(1)
{
	$ws_state = ws_state(0);

	if($ws_state == TCP_CONNECTED)
	{
		$get_score = 0;

		$rlen = ws_read_line(0, $rwbuf);

		if($rlen)
		{
			$game_stat = substr($rwbuf, 0, 1);
		}

		switch($game_stat){
			case READY:
				if($last_game_stat != $game_stat)
				{
					stand_target(0);
					stand_target(1);

					usleep(300000);

					ws_write(0, "R");

				}
				break;
			case GAMING:
				$touch0 =  (int)(eio_in($sid, 0));
				$touch1 =  (int)(eio_in($sid, 1));

				if($touch0 != $last_sw0)
				{
					if($touch0)
					{
						$get_score = 5;
						stand_target(0);
					}
					$last_sw0 = $touch0;
				}

				if($touch1 != $last_sw1)
				{
					if($touch1)
					{
						$get_score = 10;
						stand_target(1);
					}
					$last_sw1 = $touch1;
				}
				 ws_write(0, "$get_score");
				break;
			case END:
				break;
		} // switch end
		$last_game_stat = $game_stat;
	}
}
?>
index.phpPHP
<!DOCTYPE html>
<html>
<head>
<title>PHPoC / <?echo system("uname -i")?></title>
<meta name="viewport" content="width=device-width, initial-scale=0.7, maximum-scale=0.7">
<style> body { text-align: center; } </style>
<script>
var ws;
var c=30;
var t, tt;
var timer_is_on=0;

function init()
{
	document.getElementById("counter").innerHTML = "0";
	document.getElementById("score").innerHTML = "0";
	document.getElementById("result_score").innerHTML = "0";

	connect_onclick();
}

function connect_onclick()
{
	if(ws == null)
	{
		var ws_host_addr = "<?echo _SERVER("HTTP_HOST")?>";

		if((navigator.platform.indexOf("Win") != -1) && (ws_host_addr.charAt(0) == "["))
		{
			// network resource identifier to UNC path name conversion
			ws_host_addr = ws_host_addr.replace(/[\[\]]/g, '');
			ws_host_addr = ws_host_addr.replace(/:/g, "-");
			ws_host_addr += ".ipv6-literal.net";
		}

		ws = new WebSocket("ws://" + ws_host_addr + "/shooting", "csv.phpoc");

		document.getElementById("ws_state").innerHTML = "CONNECTING";

		ws.onopen = ws_onopen;
		ws.onclose = ws_onclose;
		ws.onmessage = ws_onmessage;
	}
	else
		ws.close();
}

function ws_onopen()
{
	document.getElementById("ws_state").innerHTML = "<font color='#35aba6'>CONNECTED</font>";
	document.getElementById("bt_connect").innerHTML = "Disconnect";

	setButton();
}

function setButton() {
	document.getElementById("displayDiv").style.display  = "none";
	document.getElementById("resultDiv").style.display  = "none";
	document.getElementById("buttonDiv").style.display  = "block";

}

function ws_onclose()
{
	document.getElementById("ws_state").innerHTML = "<font color='gray'>CLOSED</font>";
	document.getElementById("bt_connect").innerHTML = "Connect";

	ws.onopen = null;
	ws.onclose = null;
	ws.onmessage = null;
	ws = null;
}

function ws_onmessage(e_msg)
{

	e_msg = e_msg || window.event; // MessageEvent

	console.log(e_msg.data);

	if (e_msg.data == "R") {
		startGame();
	} else {
		var tmp_score = 0;
		tmp_score = parseInt(document.getElementById("score").innerHTML) + parseInt(e_msg.data);
		document.getElementById("score").innerHTML = tmp_score;
	//	document.getElementById("result_score").innerHTML = tmp_score;
	}



}

function timedCount()
{
	document.getElementById("counter").innerHTML=c;

	c = c-1;
	t = setTimeout("timedCount()",1000);

    if (c<0) {
		endGame();
    }
}

function endGame() {
	resetCount();

	document.getElementById("result_score").innerHTML = "Score : " + document.getElementById("score").innerHTML;

	document.getElementById("displayDiv").style.display  = "none";
	document.getElementById("buttonDiv").style.display  = "none";
	document.getElementById("resultDiv").style.display  = "block";

	if(ws.readyState == 1)
      	  ws.send("E\r\n");
}

function readyGame() {
	if(ws.readyState == 1)
      	  ws.send("R\r\n");

	document.getElementById("start_span").innerHTML  = "READY";
}

function startGame() {

		if(ws.readyState == 1)
	      	  ws.send("S\r\n");

		document.getElementById("displayDiv").style.display  = "block";
		document.getElementById("resultDiv").style.display  = "none";
		document.getElementById("buttonDiv").style.display  = "none";

		doTimer();
}

function reset() {
	resetCount();
	setButton();

	document.getElementById("start_span").innerHTML  = "START";

	document.getElementById("counter").innerHTML = "0";
	document.getElementById("score").innerHTML = "0";
	document.getElementById("result_score").innerHTML = "0";
}

function doTimer()
{
	if (!timer_is_on)
  	{
  		timer_is_on=1;
  		timedCount();
  	}
}

function stopCount()
{
	clearTimeout(t);
	timer_is_on=0;
}

function resetCount()
{
	clearTimeout(t);
	timer_is_on=0;
	c=30;
}

function restartCount() {
	clearTimeout(t);
	timer_is_on=0;
	c=30;
	doTimer();
}

window.onload = init;
</script>
<style type="text/css">
.contents {
	font-family: arial;
	font-size: 380px;
	font-weight: bold;
}

.subjects {
	font-family: arial;
	font-size: 72px;
	font-weight: bold;
}

.span_button {
	margin-top: 122px;

	font-family: arial;
	font-size: 256px;
/*	border: 1px solid black;	*/
}

.span_result {
	margin-top: 50px;
	font-family: arial;
	font-size: 128px;
	font-weight: bold;
}

#resultDiv, #buttonDiv {
	border: 1px solid black;
}

h1 {
	font-family: arial;
	font-size: 120px;
	font-weight: bold;
}
</style>
</head>

<body>
<br/><br/><br/>
<div id="buttonDiv" style="margin: 0 auto;width:980px;height:500px;">
	<div style="margin-top:96px;">
		<span id="start_span" class="span_button" onclick="readyGame();">START</span>
	</div>
</div>

<div id="resultDiv" style="margin: 0 auto;width:980px;height:500px;">
	<br/><br/><br/>
	<span class="span_result" id="result">GAME OVER</span><br/><br/><br/><br/>
	<span class="span_result" id="result_score"></span>
</div>

<div id="displayDiv" style="margin: 0 auto;width:980px;height:500px;">
	<table style="width:980px;">
		<tr>
			<td style="width:450px;height:76px;border: 1px solid black;"><span class="subjects" style="color:#da6324;">Time</span></td>
			<td style="width:72px;height:76px;"></td>
			<td style="width:450px;height:76px;border: 1px solid black;"><span class="subjects" style="color:#35aba6;">Score</span></td>
		</tr>
		<tr>
			<td style="height:448px;border: 1px solid black;"><span class="contents" id="counter" style="color:#da6324;">0</span></td>
			<td style="height:448px;"><span class="contents"></span></td>
			<td style="height:448px; border: 1px solid black;"><span class="contents" id="score" style="color:#35aba6;">0</span></td>
		</tr>
	</table>
</div>
<br/><br/>
<h2>WebSocket <font id="ws_state" color="gray">CLOSED</font></h2>
<button id="bt_connect" type="button" onclick="connect_onclick();">Connect</button>
<button id="bt_reset" type="button" onclick="reset();">Reset</button>

<br/><br/>
<span id="log"></span>
</body>
</html>
