Dodge the block!
Objective is to avoid the block by tilting the device. Game is over if user touch the red blocks
How to Play:
Tilt the module to move the green square, avoiding the red block which are falling down at a faster pace as time goes on!
Feel free to change the game parameter to make the game more enjoyable!
You can find more simple games for M5Stack Core2 here:
gunpowder003/M5Stack-Core2: Source code for python program for M5Stack Core2

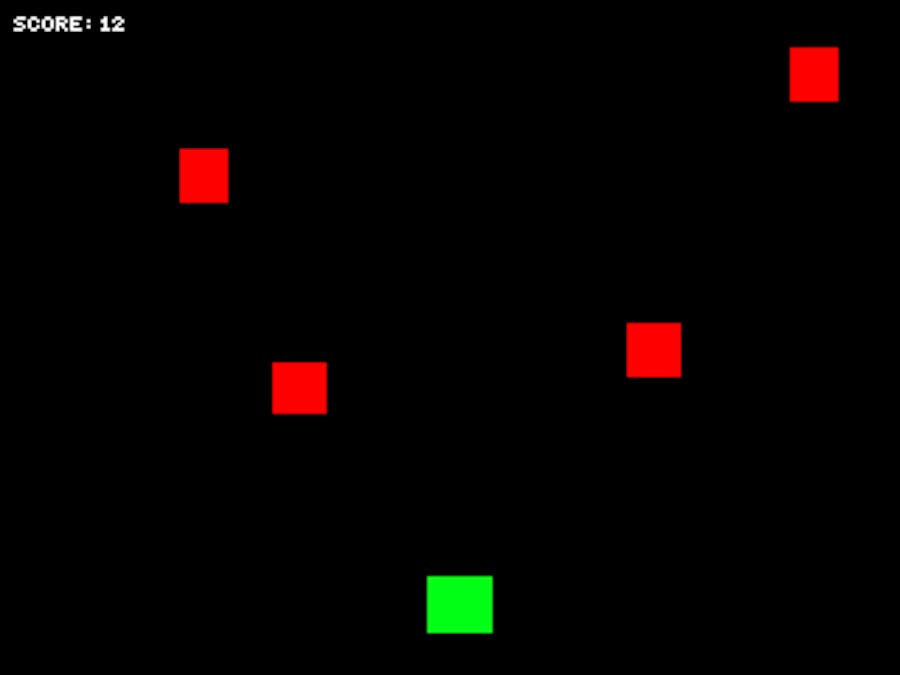

Gameplay demo:
from m5stack import *
from m5ui import *
from uiflow import *
import imu
import time
import random
# Initialize display and IMU
lcd.clear()
imu0 = imu.IMU()
# Screen size
SCREEN_WIDTH = 320
SCREEN_HEIGHT = 240
# Player settings
PLAYER_SIZE = 20
SPEED_MULTIPLIER = 25 # Increased for faster player movement
player_y = SCREEN_HEIGHT - 30 # Fixed player position (bottom of screen)
# Block settings
BLOCK_WIDTH = 20
BLOCK_HEIGHT = 20
MAX_BLOCKS = 30 # Max difficulty level
BLOCK_SPEED_INCREASE = 0.7 # Increased difficulty progression
# Game loop
def start_game():
global player_x, score, blocks
# Reset player position
player_x = SCREEN_WIDTH // 2
# Reset score
score = 0
# Initialize blocks
blocks = []
for _ in range(3): # Start with 3 blocks
x_pos = random.randint(0, SCREEN_WIDTH - BLOCK_WIDTH)
y_pos = random.randint(-100, -20)
speed = random.uniform(2, 4)
block = M5Rect(x_pos, y_pos, BLOCK_WIDTH, BLOCK_HEIGHT, color=0xff0000, fillcolor=0xff0000)
blocks.append({"obj": block, "x": x_pos, "y": y_pos, "speed": speed})
# Create player object
player = M5Rect(player_x, player_y, PLAYER_SIZE, PLAYER_SIZE, color=0x00ff00, fillcolor=0x00ff00)
while True:
# Restart game if BtnA is pressed
if btnA.isPressed():
lcd.clear()
start_game()
return
# Read accelerometer values (invert X for correct movement)
ax = -imu0.acceleration[0]
# Move player
player_x += int(ax * SPEED_MULTIPLIER)
player_x = max(0, min(player_x, SCREEN_WIDTH - PLAYER_SIZE)) # Keep within screen
# Move blocks and increase speed over time
for block_data in blocks:
block_data["y"] += block_data["speed"]
# Convert to integers for M5Rect
block_data["x"] = int(block_data["x"])
block_data["y"] = int(block_data["y"])
# Reset block when it reaches the bottom
if block_data["y"] > SCREEN_HEIGHT:
block_data["y"] = random.randint(-100, -20)
block_data["x"] = random.randint(0, SCREEN_WIDTH - BLOCK_WIDTH)
block_data["speed"] += BLOCK_SPEED_INCREASE # Increase difficulty
# Add a new block every 3 points (max 10)
if score % 3 == 0 and len(blocks) < MAX_BLOCKS:
new_x = random.randint(0, SCREEN_WIDTH - BLOCK_WIDTH)
new_y = random.randint(-100, -20)
new_block = M5Rect(new_x, new_y, BLOCK_WIDTH, BLOCK_HEIGHT, color=0xff0000, fillcolor=0xff0000)
blocks.append({"obj": new_block, "x": new_x, "y": new_y, "speed": random.uniform(2, 4)})
# Collision detection
for block_data in blocks:
if (player_x < block_data["x"] + BLOCK_WIDTH and
player_x + PLAYER_SIZE > block_data["x"] and
player_y < block_data["y"] + BLOCK_HEIGHT and
player_y + PLAYER_SIZE > block_data["y"]):
# Show Game Over screen
lcd.clear()
lcd.print("Game Over!", SCREEN_WIDTH//2 - 40, SCREEN_HEIGHT//2, 0xffffff)
lcd.print("Score: " + str(int(score)), SCREEN_WIDTH//2 - 30, SCREEN_HEIGHT//2 + 20, 0xffffff)
lcd.print("Press BtnA to Restart", SCREEN_WIDTH//2 - 60, SCREEN_HEIGHT//2 + 40, 0xffffff)
# Wait for BtnA to restart
while not btnA.isPressed():
time.sleep(0.1)
# Restart the game
lcd.clear()
start_game()
return
# Update player position
player.setPosition(int(player_x), int(player_y)) # Ensure integer values
# Update block positions
for block_data in blocks:
block_data["obj"].setPosition(int(block_data["x"]), int(block_data["y"])) # Ensure integer values
# Clear previous score area
lcd.rect(10, 10, 80, 20, 0x000000, fillcolor=0x000000)
# Print updated score
lcd.print("Score: " + str(int(score)), 10, 10, 0xffffff)
# Increase score over time
score += .1
# Speed up the game loop for faster movement
time.sleep(0.03) # Reduced delay for faster gameplay
# Start the game
start_game()
